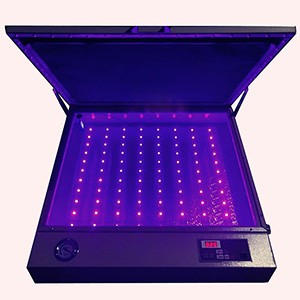

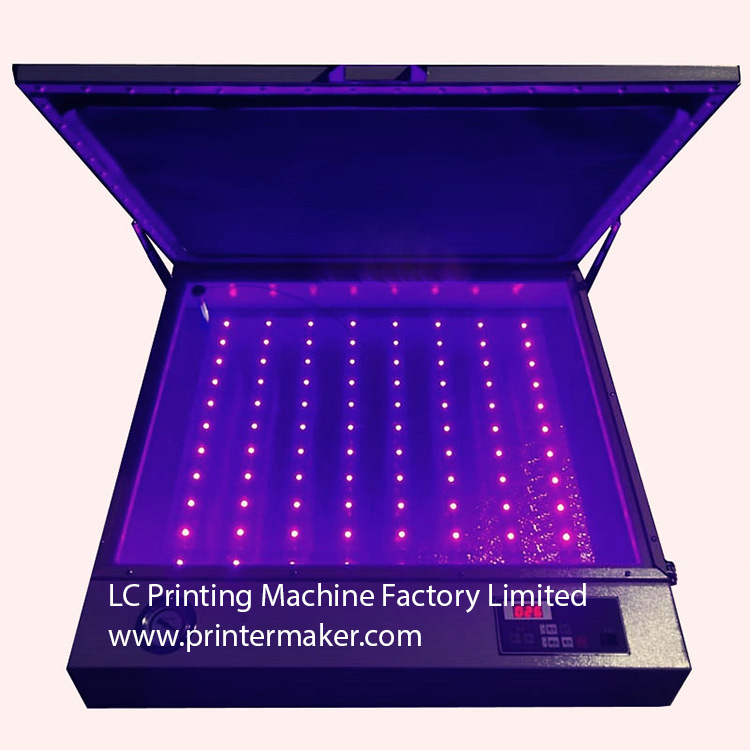

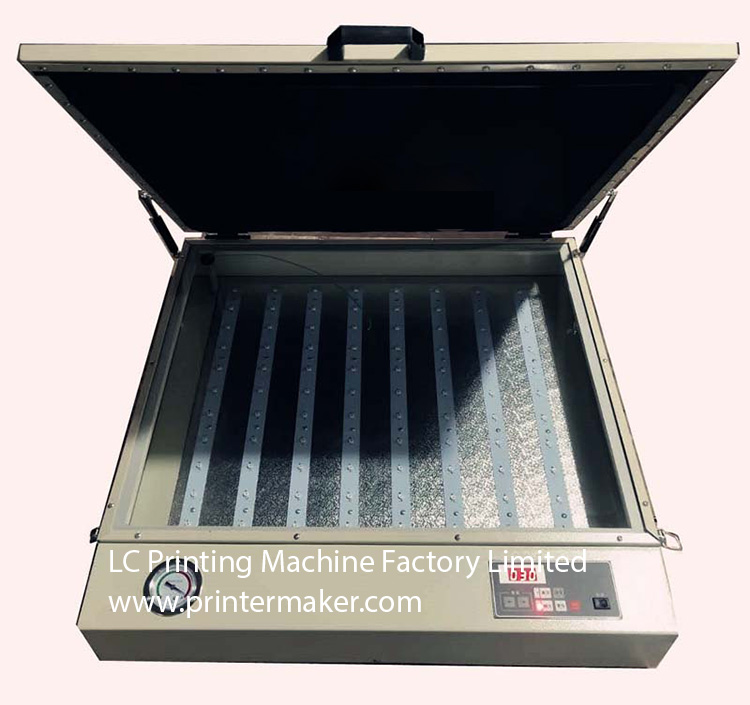

M5060LED is a new model launched by our company, plate drying using microcomputer control, digital display, key number, parameter storage, intelligent design, easy to operate, the use of new oilfree vacuum pump, vacuum degree up to -0.08mpa, equipped with vacuum display table; Printing plate light source adopts 8 10W ULTRAVIOLET light tubes, can be widely used in screen plate, resin plate, pad printing plate production.

Main parameters:

1.Light source: 8 * 10 w
2.Vacuum: -0.08mpa
3.Power: 100 w
4.Glass area: 700*600MM
5.Mesh frame size :600X500MM
6.Overall size: 850X820X220MM
7.Packing size: 880X860X270MM
8.Net weight: 30 kg
9.Gross weight: 43 kg
