Description:

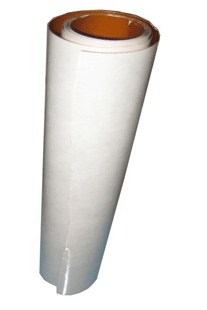

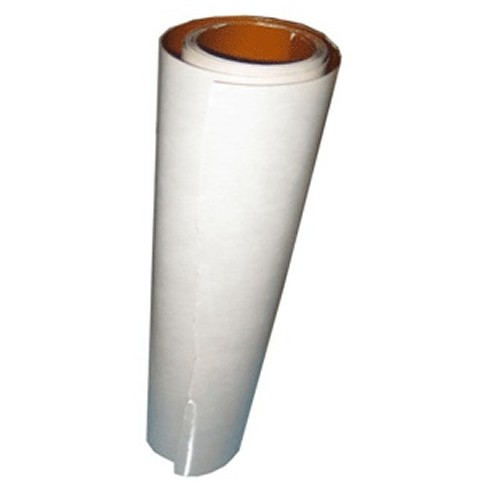

High Temperature Tape
High temperature adhesive tape is coated in a layer of hot glue the top release paper and then drying the material; As a result of gravure coating process, coating is very uniform, and the hot plate in the metal layer is formed between the bonding layer;
Will melt the adhesive layer to the hot plate stamping Edition paste the above, when the removal of heat, and then knocked to the plate with a screwdriver;
High temperature adhesive tape suitable for stamping area is not much the fixed version.
Usage:
Stick copper plate, Zn-plate, silcion rubber plate onto stamping aboard of gilding machine.
Technical Parameter:Width: 30mm;
Colour: Yellow;
Temperature range:0-400:
Thickness of base:0.075um, Tape thickness: 0.03mm.
Production Advantage:Well temperature resistance, good adhesive bonding;
Easily Stripping between base and tape;
Easily to store because of Glue coating on the base paper;
Expediently cut to fit size to adhere between stamping plate and Bronzing Edition;
Guarantee the stickup planeness becuase of very thin Emulsion thickness.
Use Method:
Accoring to the size of bronzing edition, cut high temperature tape to fit area and cover it onto bronzing edition after peeling emulsion film from base paper;
Put Bronzing edition coverred high temerature Emulison onto the working table of stamping machine;
Set the temerature of stamping machine at a correct range;
Operate the stamping machine and make the stamping head press down with Bronzing edition for 10 seconds;
Bronzing Edition will ne stick to stamping head when emulsion melt.
Storage:
Store in the place confined and shady space. Too high temperature will make the temperature paper melt and deformation.
Shelf life:3 Years

Printing Plate type:Copper Edition; ZN-edition; Silicon rubber edition.
