Parameter:
1.Max. product thickness and height: 0-80mm
2. Table Size：600*1200mm
3. Max Printing area：550*1150mm
4. Max Stroke of up-and-down frame：160mm
5. Max. printing speed：1000-1500pcs/hour
6. Air pressure：6 Bar
7. Power voltage: AC 380V (because of the electric lifting table) 220V, 3 phrases 60HZ is optioncal
8. Power consumption：3000 W

Features:
1. Vertical structure, Compact & space-saving. easy operation and good stability.
2. Printing driven by servo motor, Installed Linear Guide or Linear Guideway. Printing speed and ink flooding speed are adjustable. Running smoothly and a long work life.
3. Special cushion cylinder installed on the left/ right buffer gear.
4. The motor drive screen frame up and down, two poles guide. Separated buffering air course to keep stability register.
5. Duralumin working table( made according to the international standard cast aluminium JISH5302-2000 ), precise scale micro-adjustable. Planeness keep in 0.05mm, roughness .
6. Printing angle/ printing pressure and spacing between screen frame and table are adjustable.
7. Reliable safety device is installed according to CE standard.
8.PLC touch screen control for easy operation.
Description:

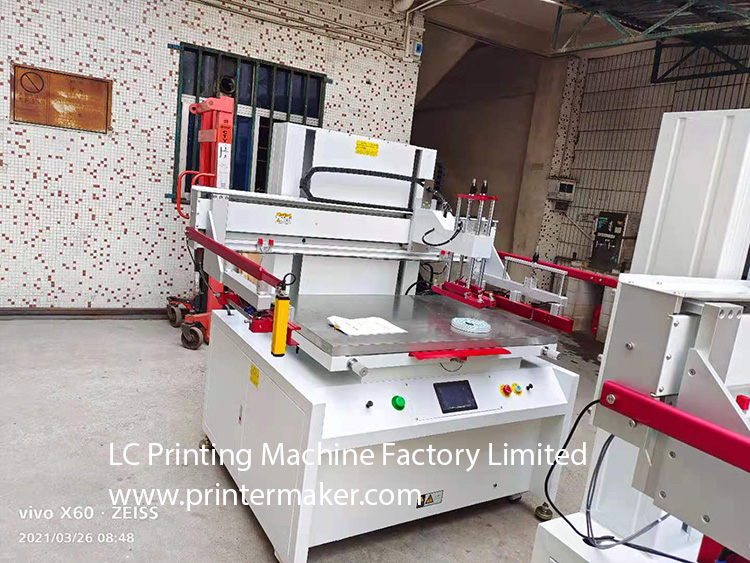

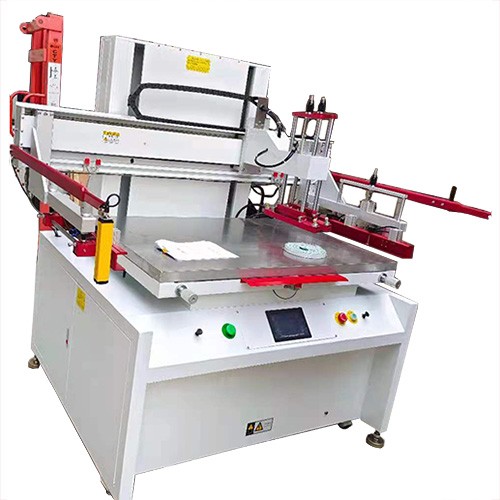

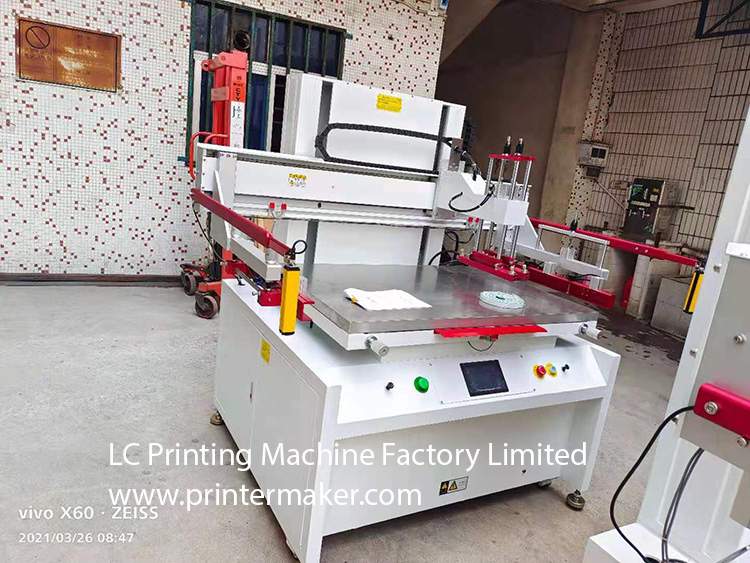

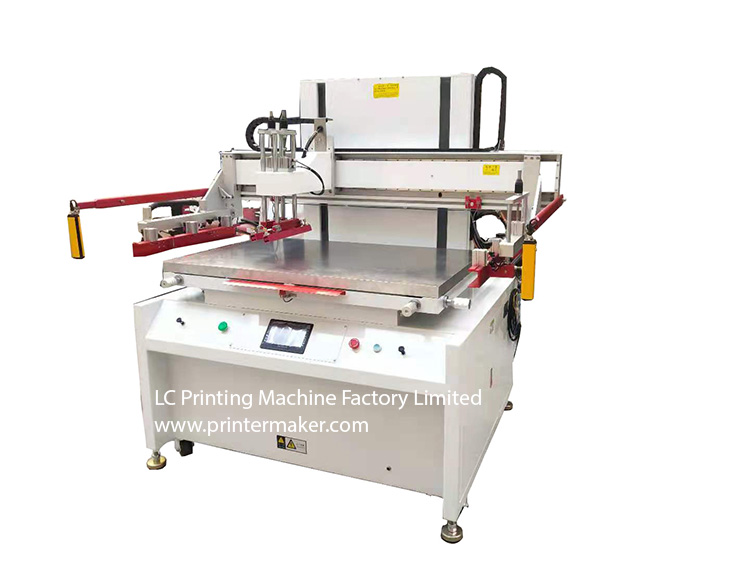

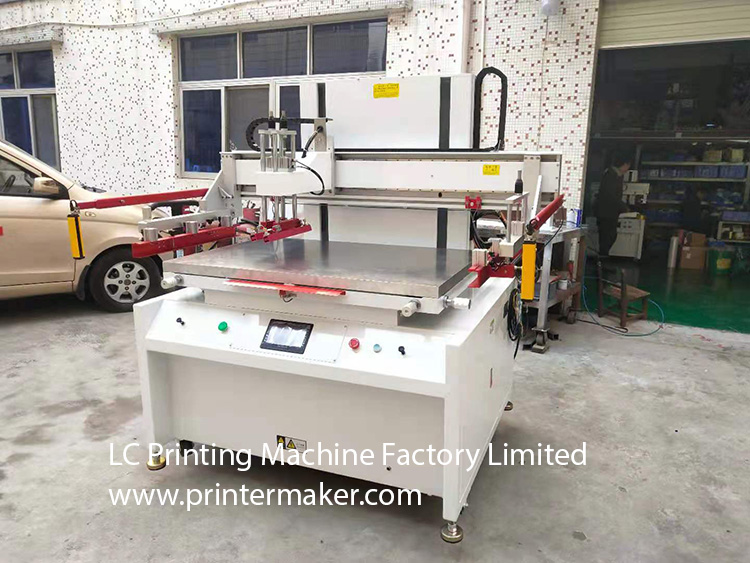

Flatbed screen printing machine model SP-60120 is a big size vertical flat screen printing press, adopting distyle constructure, double conversion system, operating fastly and steady. It is suitable for printing  PCB Board, Sheet, Film or Cube forms which with smooth flat surface and made of as metal, plastic, ceramic, glass, wood etc. It is widely used in electronic industry, advertising, packing & printing, toy, stationery, gifts, industrial arts fields etc.
