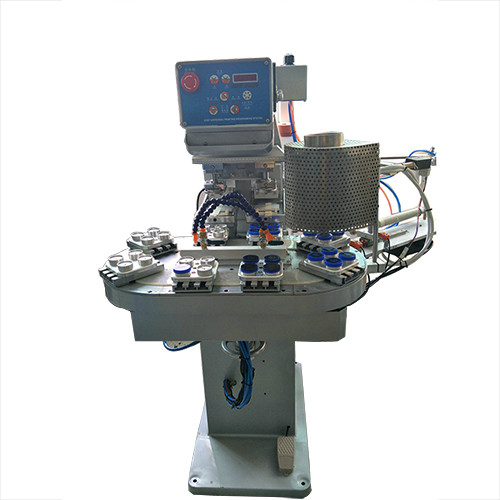

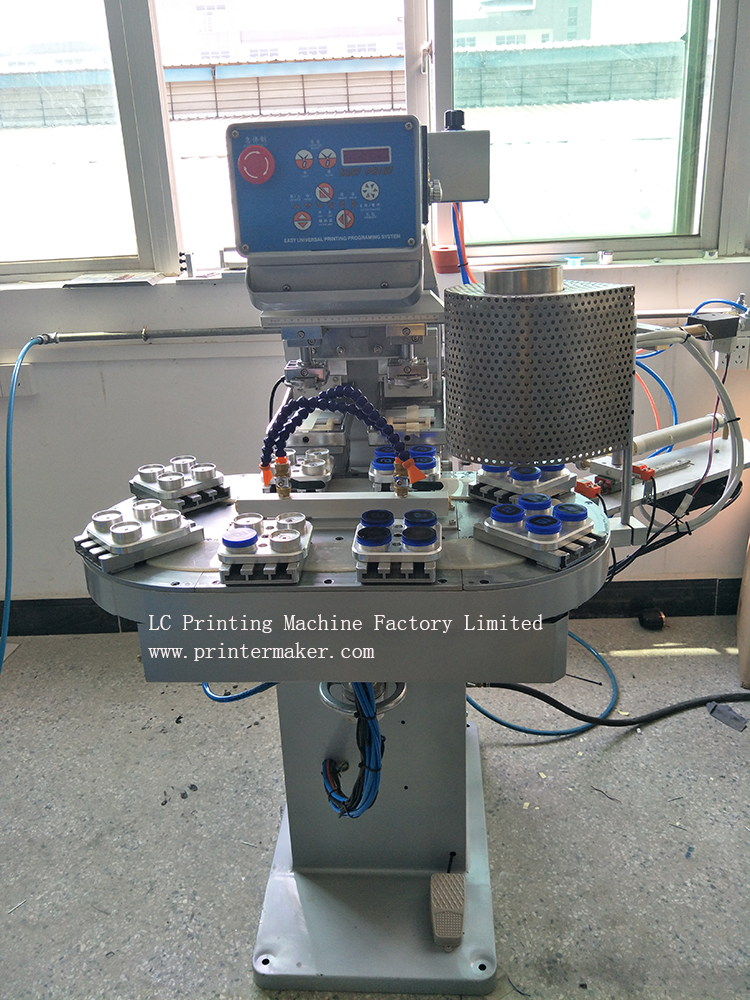

Product name: Two Colors Pad Printing Machine with Conveyor & Flamer devices

Model Number: P2-CA

Two Color Pad Printer with Carousel & Flamer devices
Specifications︰
P2/CA
1.Max. plate size: 100x150mm；
2.Max. worktable area: 95x150mm；
3.Max. printing Area: 90×130mm；
4.Max Products Dimension: 100*140mm;
5.Max. printing speed: 30 pcs per minutes, one circle time print 4pcs, 7,200pcs per hour；
6.Printable color quantity:2
7.Air consumption: 166Litre/min(5bar)；
8.Machine Dimensions: 920*980*1490mm；
9. Net weight: 180KG, Gross Weight: 210Kg；

10. Packing size: 103*124*153CM

Advantages︰
1. 2-color,gear-type conveyor with 8 stations;
2. Microprocessor control for each function ;
3. 4-Digit auto counter built-in;
4. Coin aluminium structure frame ensures sturdiness;
5. ink roller used for ink applying is easy to remove and clean;
6. Independent stroke and speed adjustment for pad up/down;
7. Auto balanced doctor blade ensures that ink can be scraped cleanly and completely;
8. Adjustable printing speed meets different printing requirements;
9. Ink roller keeps working while pad doesn't lower down ;
10. Pad takes ink twice and prints once to get thicker ink;
11. Independently adjustable ink tray base,easy to overprint;
12. Auto air drying available;
13. Japan SMC Cylinder & Germany Festo Pneumactic Parts

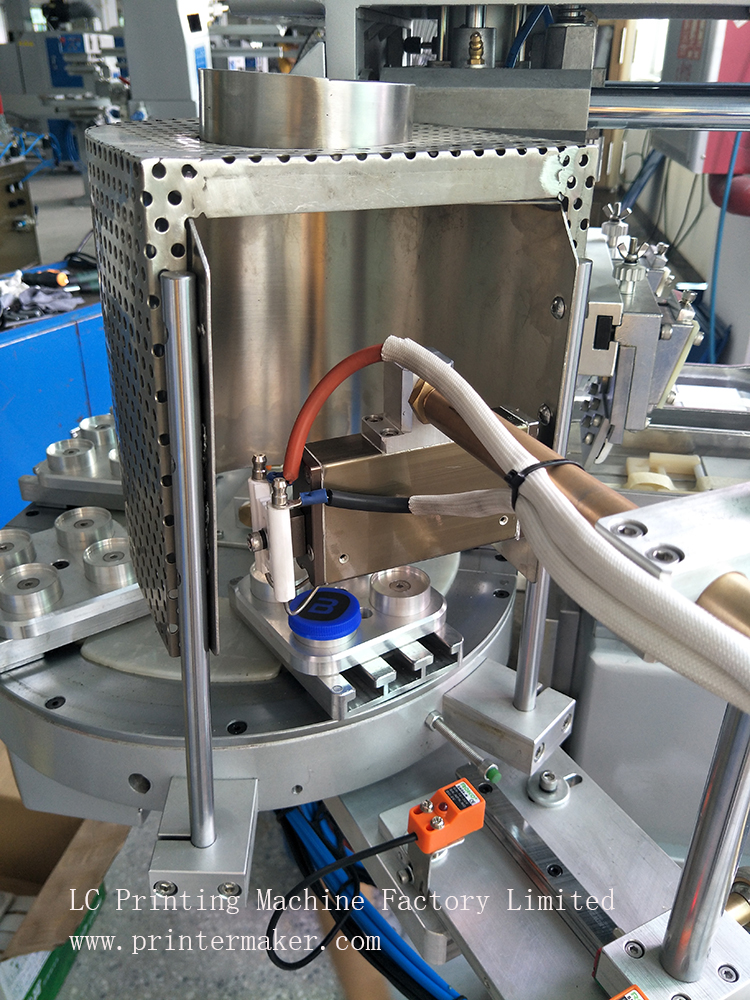

14. Flaming devices as pre-treatment for PP, PET, HDPE plastic materials to increase the ink adhension.

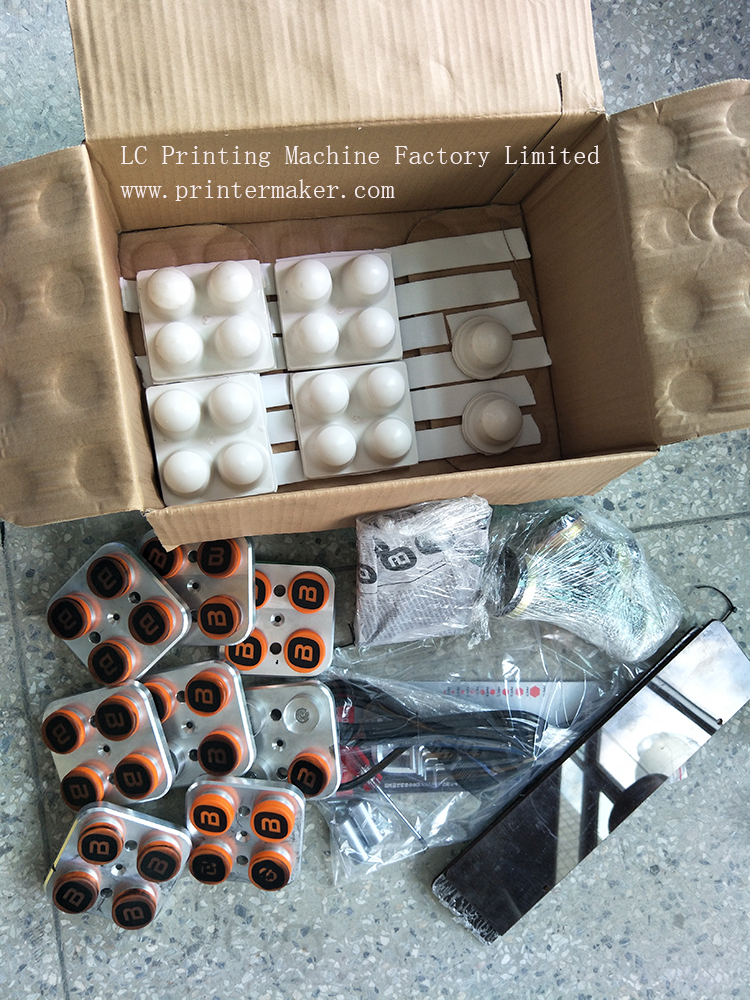

Machine Fittings︰
1. Two plates,
2. Two pads
3. Two blades
4. A tool box.

Application:

This machine is featured by attaching with conveyor for high speed printing and flame advices for plastic treatment to increase the ink adhension on the subsuject products. It is perfect choice for those ball pens, golf balls, toy heads, toy cars, USB keys, electrical panel products in single and multi colors printing.

Key words:two colors pad printing machines on wooden caps, two colors pad printing machines on plastic caps, ball pens two colors pad printing machines,2 colors pad printing machines on conveyor
