Description:

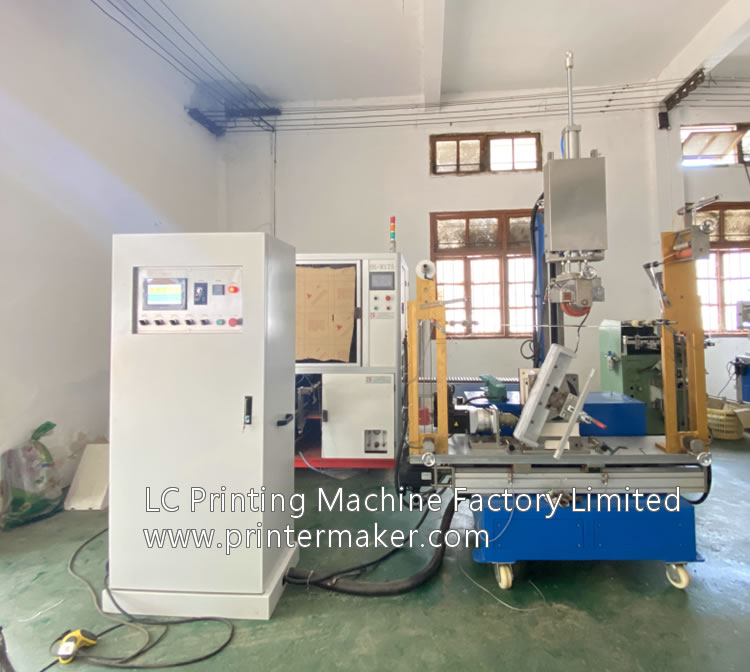

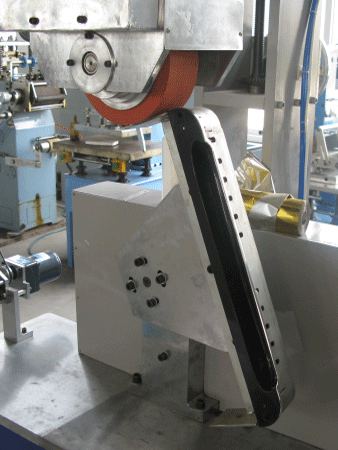

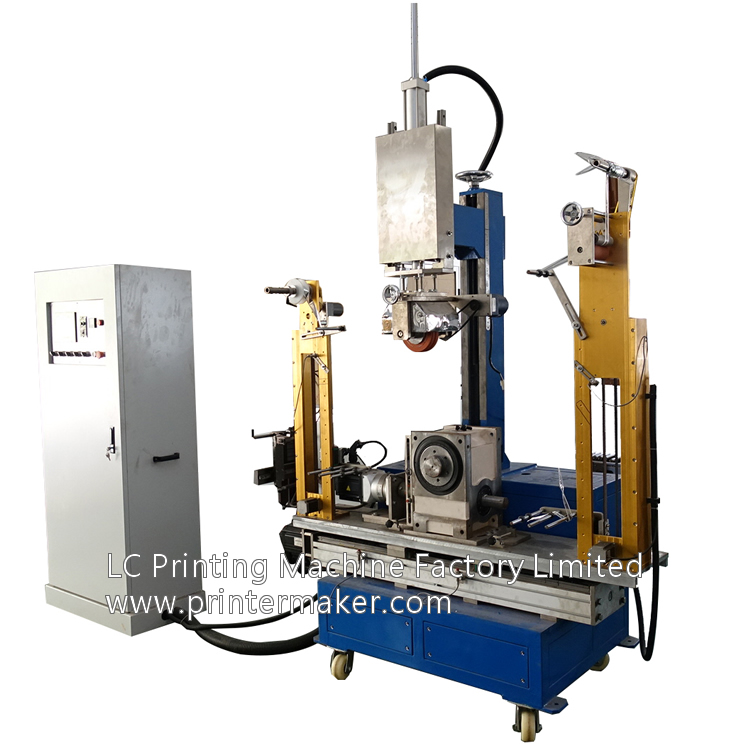

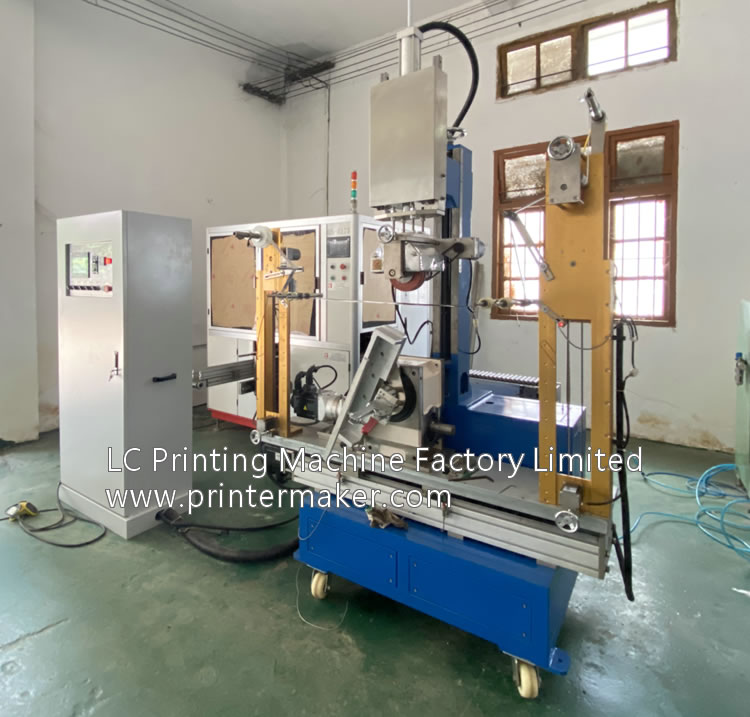

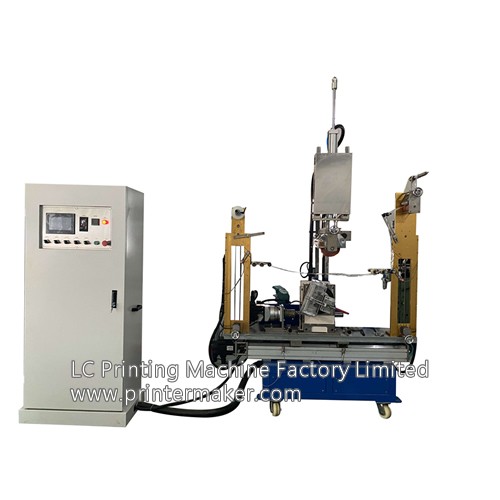

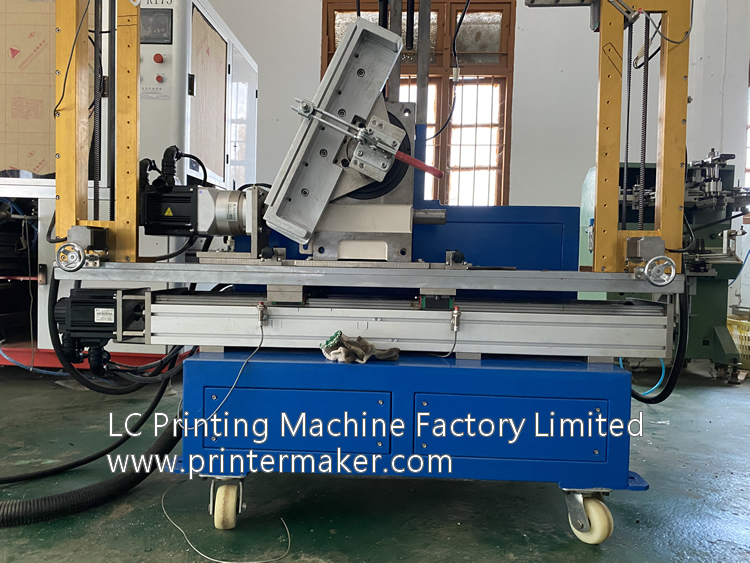

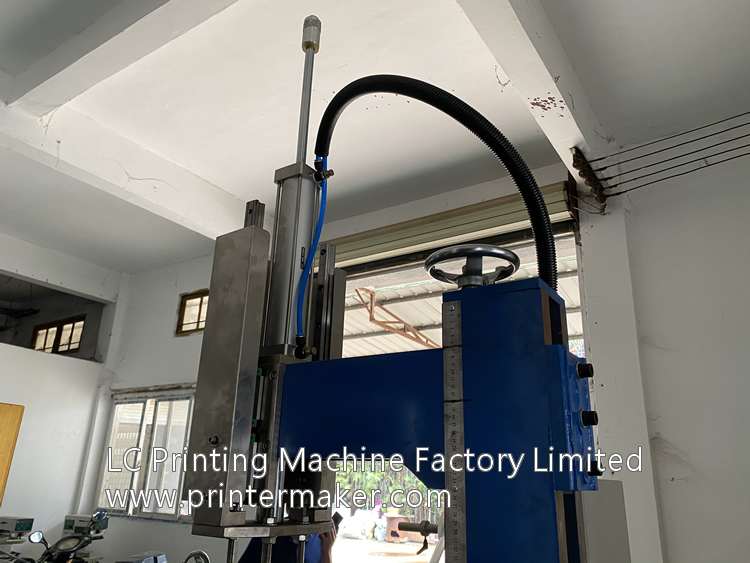

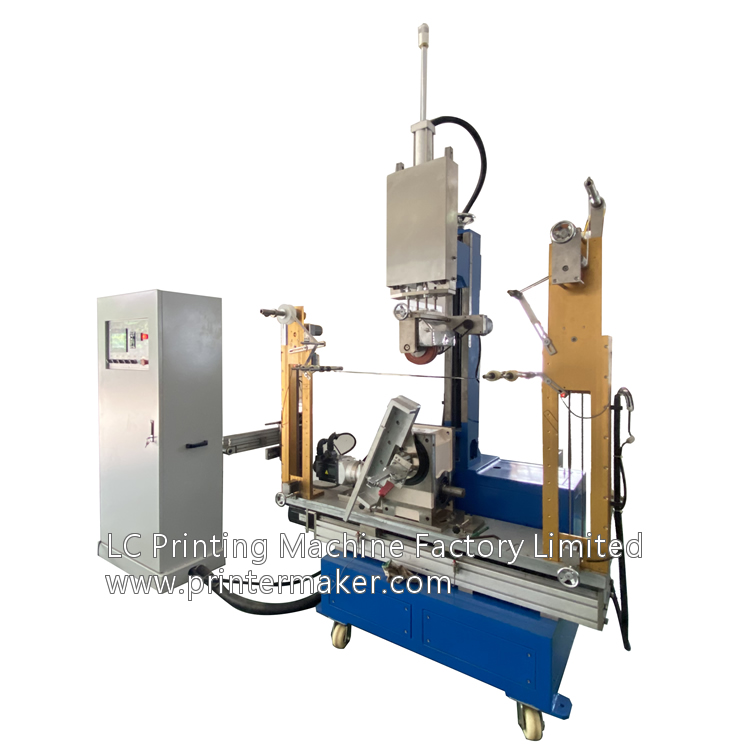

Refrigerator tray hot stamping machine
Specifications︰
1：silicon roller: outter diameter is at 195*70mm
2: hot stamping stroke: 625MM
3:  Adjust stroke: 300mm
4: Hot stamping temparature: 0-300 degree
5: Stamping pressure: 300kg
6: Stamping angle: 270 degree
7:  Stamping speed: 15-20pcs/Minutes
8: Power rate: 2.4KW
9: Foil rewinding motor: 25W
10: Stamping air pressure: 0.7-0.8Mpa.
11: Power supply: 220V, 50HZ
12: Machine gross weight: 650kg
13: Machine dimension: 1400*1200*2200mm
Advantages︰
1.Microprocessor control (English/Chinese version switchable).
2.Rubber roller contacts uniformaty for large area transfer with substrates .
3.High precision photo sensor used to monitor and control the feeding of foil with dots .
4.Stamping head height is adjustable to meet the requirements for different substrates with various heights.
5.Auto foil feeding and collecting and the feeding length adjustable.
Machine Fittings︰
1. One foot stamping foil or heat trnasfer film;
2. Cylinder silicon roller one pcs;
3. Cylinder jig one set

4. Tool box one set.
