Description:

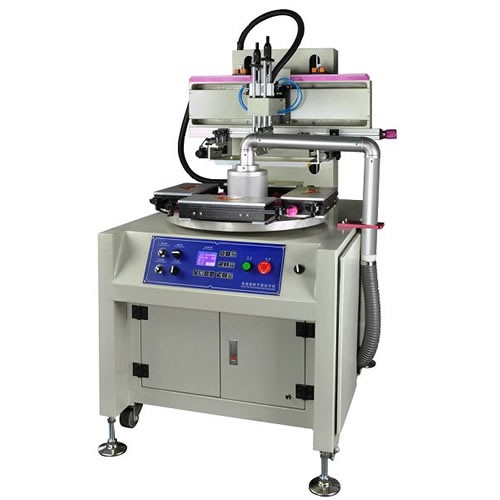

Stationery Ruler Screen Printing Machine
Printing Color:Single Color
Max printing Size:200*300mm
Max print speed:2500PCS/Hr
Rotarytable Workstation:4 PCS
Power:110/220V 750W
Place of orignal:China
Model:SP-2030V4
Brand:EASY
packing:Plywooden Case
MOQ:1set
Payment terms:TT/LC
Delivery terms:By Sea or By Air
Delivery date:Stock and hand
Function introduction:

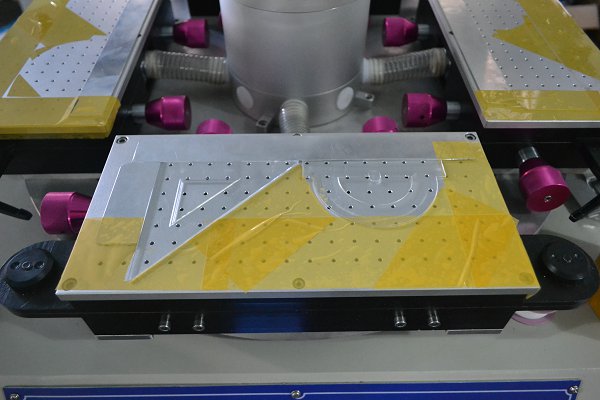

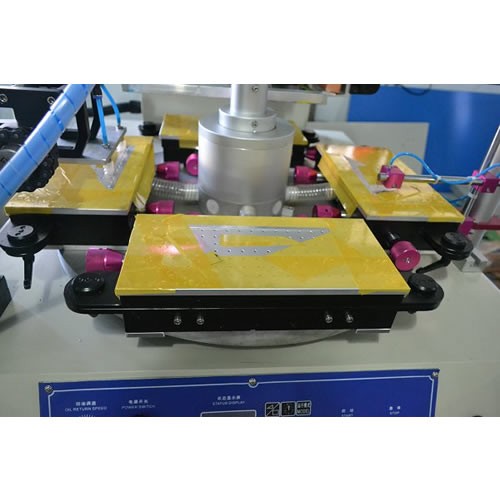

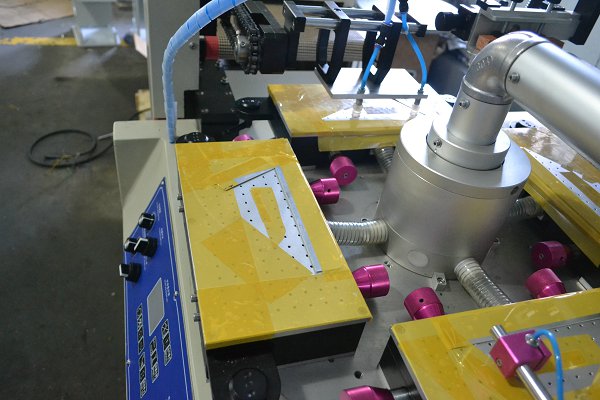

1.High speed cam divider rotary worktable
2.Using Taiwan LSK guide rail with self direction, making sure high precision
3.The X and Y direction of the worktable can be adjusted, the precision can be up to 0.01mm
4.Big vacuum system
5.No need to make jigs for kinds of stationery rulers, change quickly
6.Speed: 2200~2500pcs/hr
7.With the function of no printing when no work pieces, reduce the trouble of cleaning screen frame

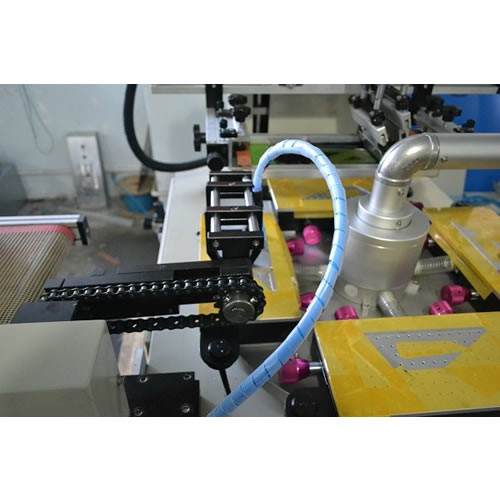

8.Auto-baiting by manipulator with vacuum pad
9.Power: 220V 50-60M/HZ

10.It's suitable for printing set squares, straight rulers,protractors with 350mm or below and other flat products.
