Product name：CNC Multicolor Overprint Screen Printing Machine
Item：MSP-400X
Details：

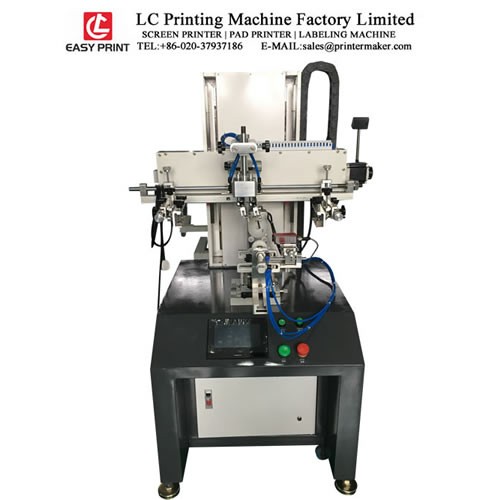

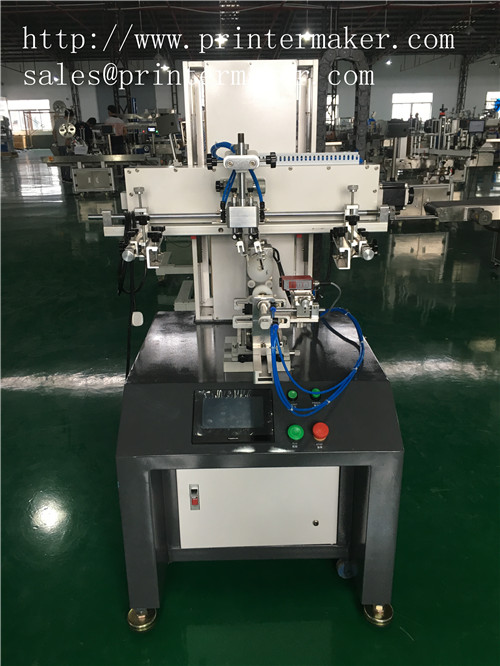

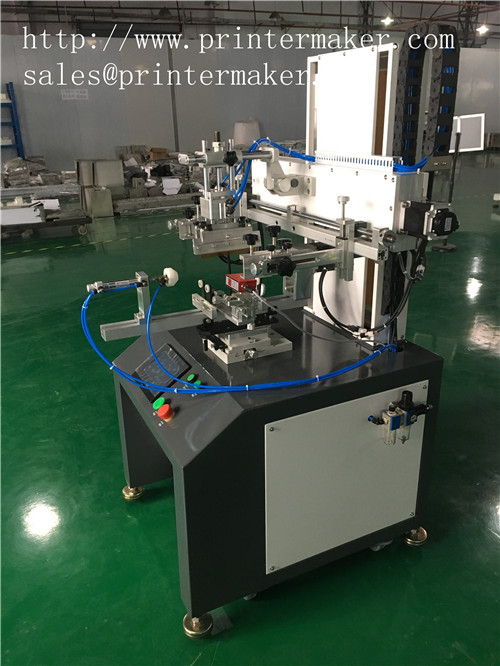

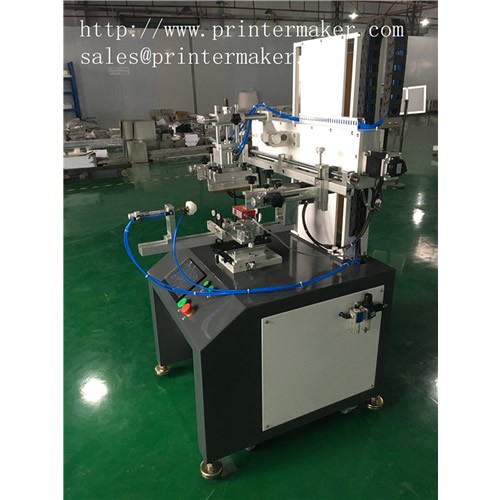

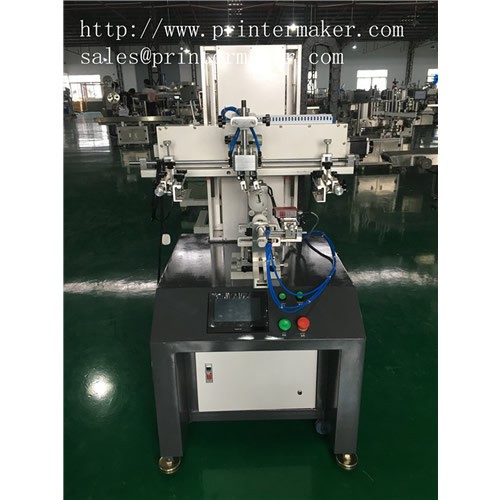

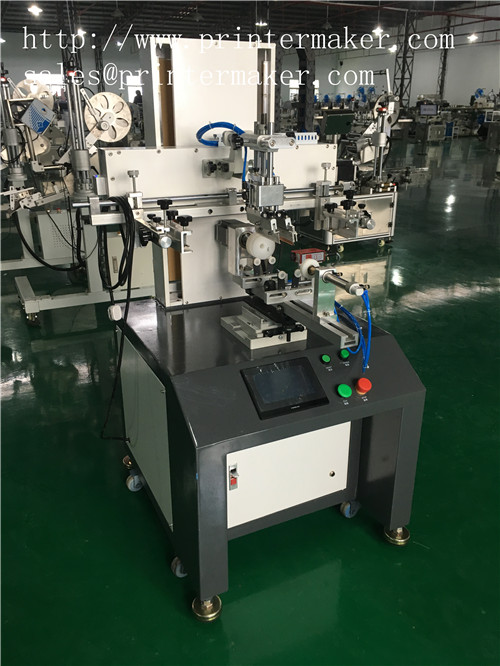

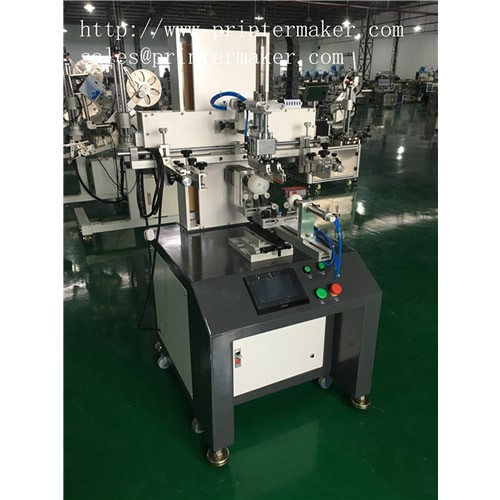

CNC Multicolor Overprint Screen Printing Machine
This machine is high precision overprinting servo screen printing machine .
Advantage
1) Don't need any registration point for products .

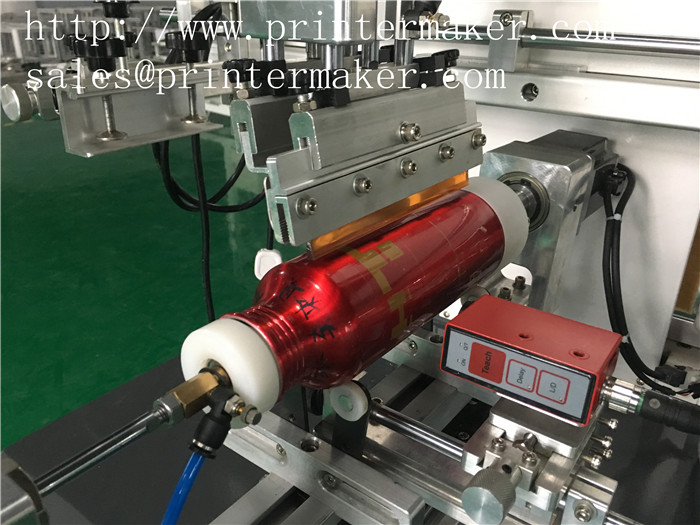

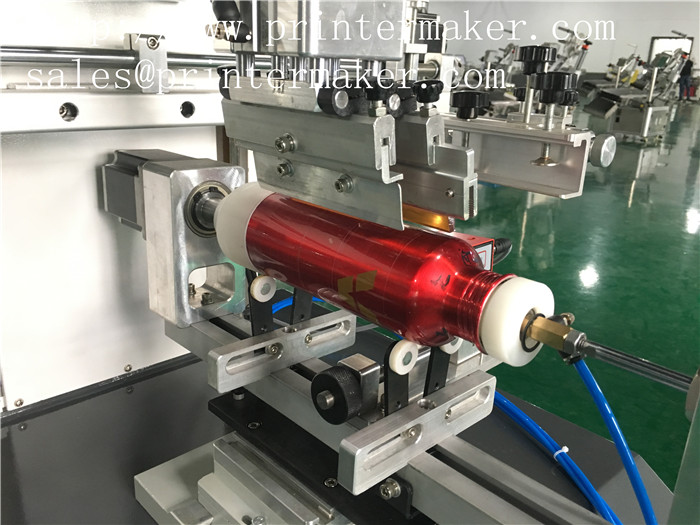

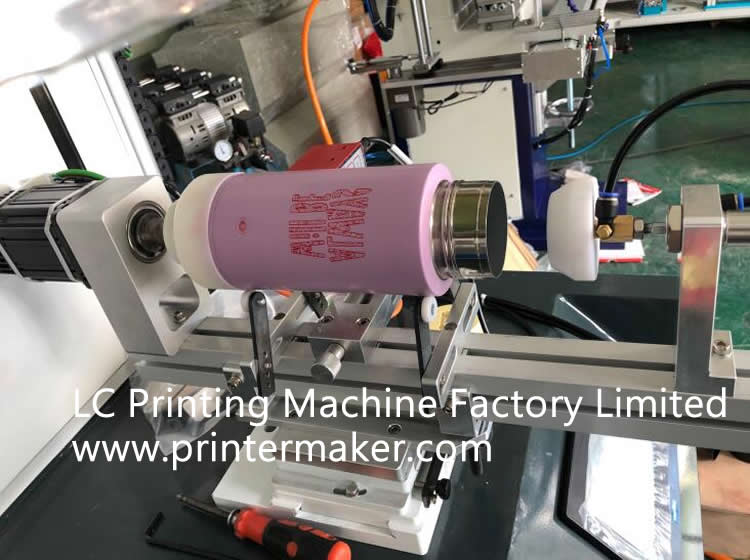

Leuze sensor detect first printing to overprint , to print second color , very high precision .

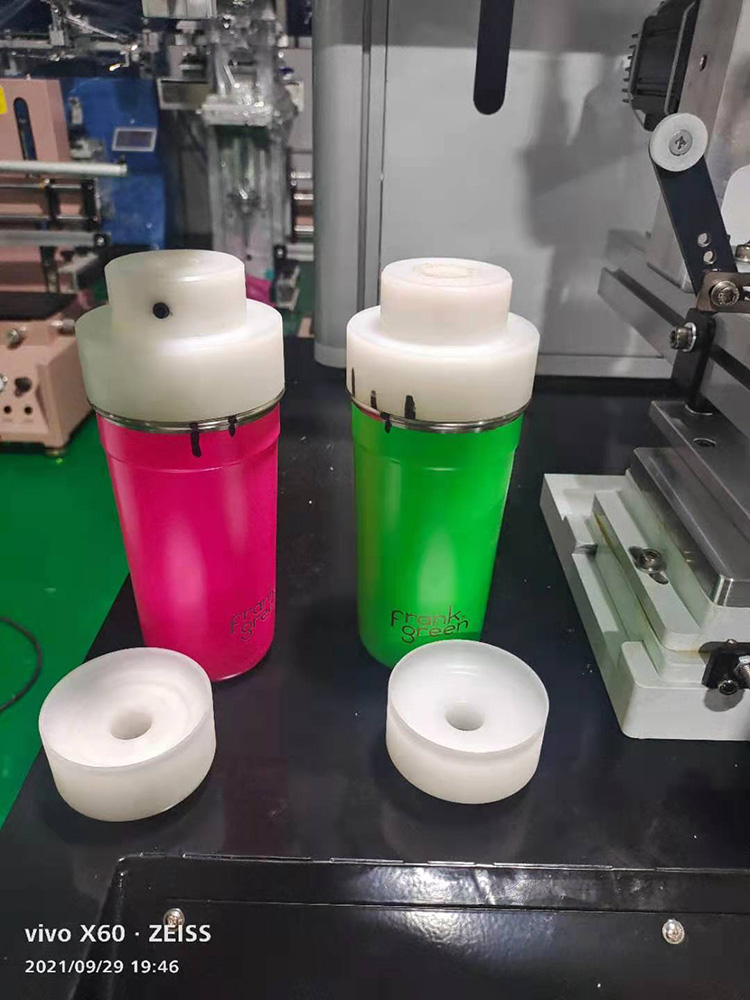

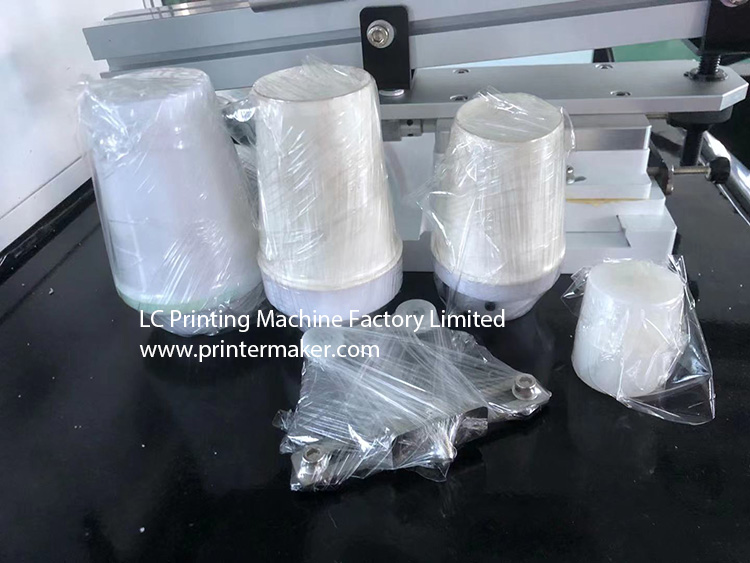

2) Don'y need any gears , just fixture is enough.

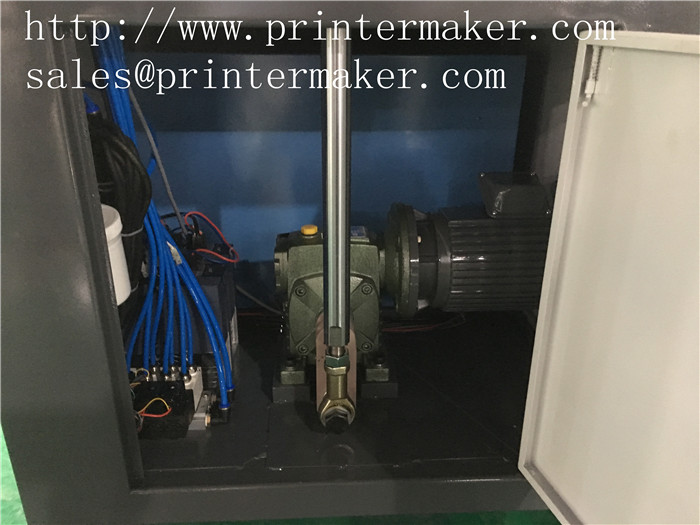

Panasonic servo motor instead gear to overprint .
Specification
Model number	MSP-300X	MSP-400X	MSP-600X	MSP-800X	MSP-1200X
(Round)Max Printing diameter	82 mm	120mm	180mm	250mm	375mm
(Round)Max printing area	300×260mm	300×360 mm	300×570mm	350×770mm	420×1170mm

Max Workpiece rake	<14°	<14°	<14°	<14°	<14°
Air pressure	6bar	6bar	6bar	6bar	6bar
power	2.3kw	2.3kw	2.8kw	3.2kw	3.6kw
Voltage	AC110V/220V	AC110V/220V	AC110V/220V	AC110V/220V	AC110V/220V
Printing speed	1300P/H	1200P/H	1100P/H	900P/H	800PH
Machine appearance（mm）	850×850×1280	1080×850×1280	1200×1100×1450	1300×1180×1450	1720×1600×1650
Machine weight	320kg	345kg	500kg	520kg	600kg
