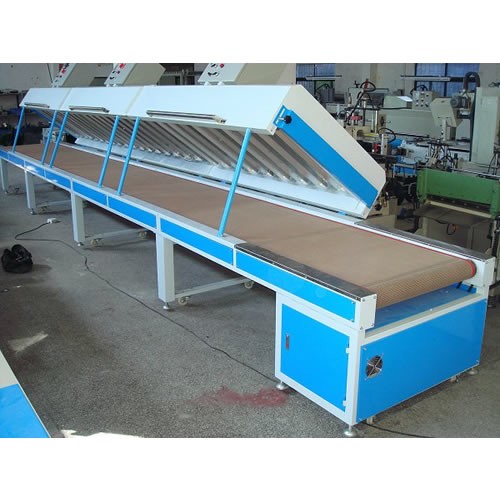

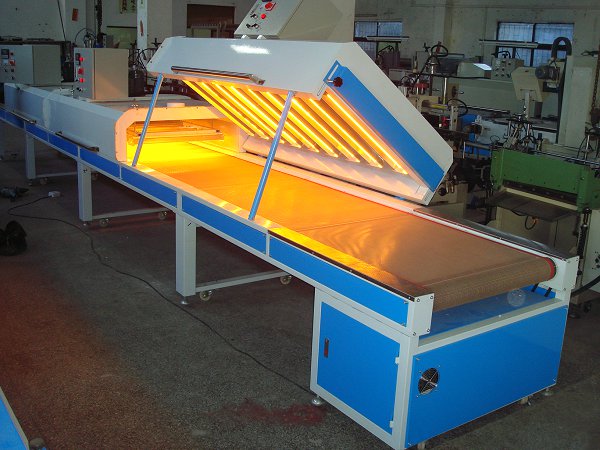

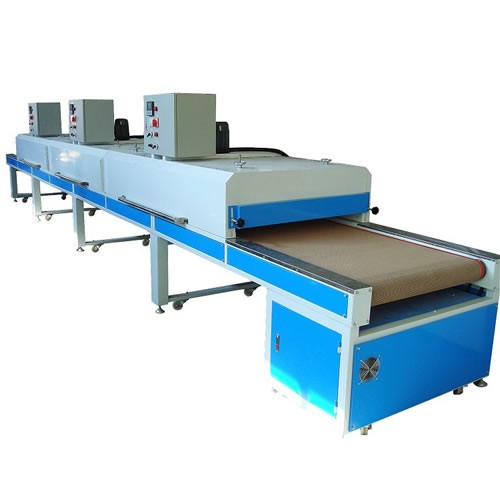

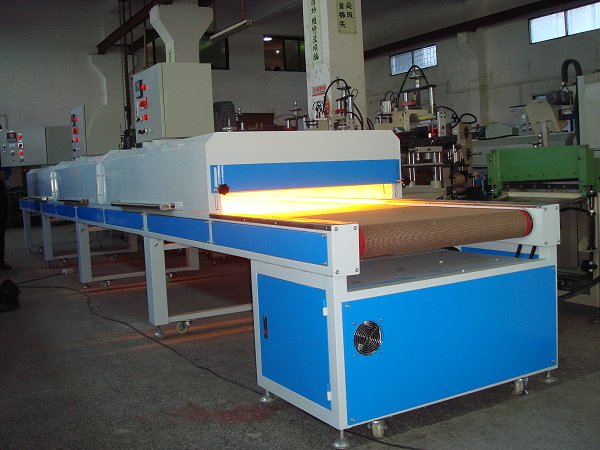

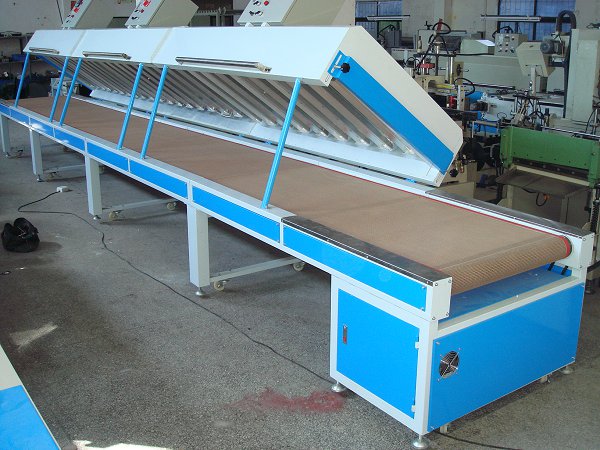

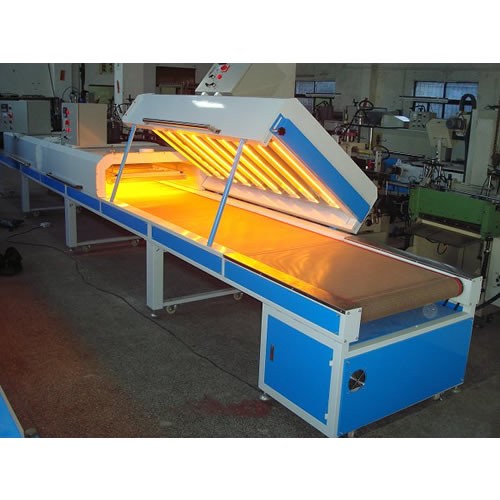

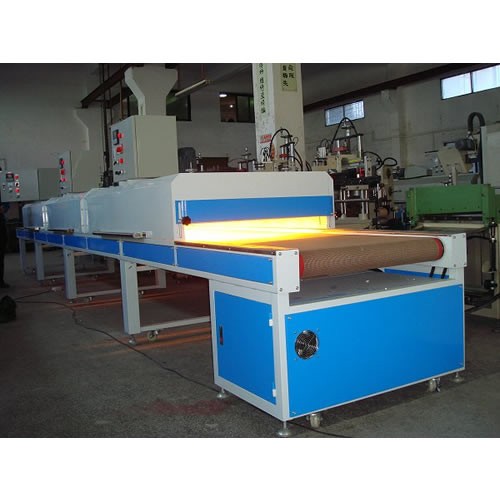

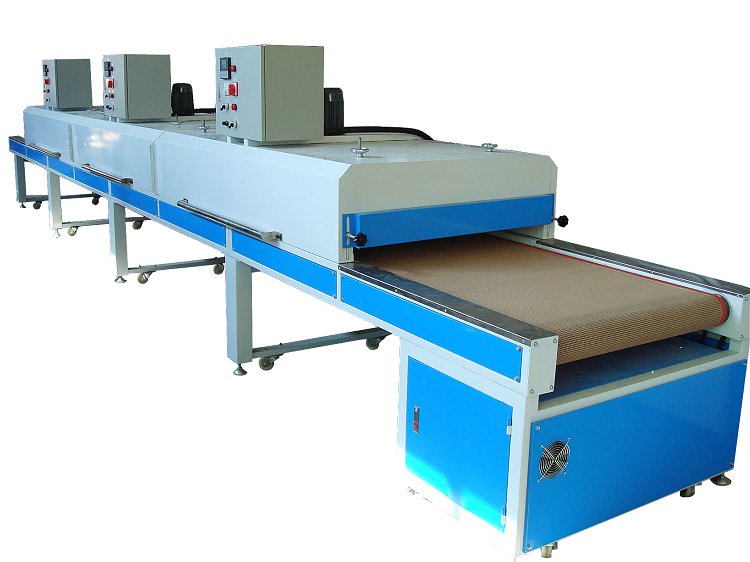

Infrared Tunnel Dryers
The IR heating tunnel could be made customizing, stainless steel conveyor material, teftlon conveyor material, maximum temparature, width, infeed and out feed belt,  drying zone length is optional！
Model: DT-40

Specifications︰
1.Conveyer width：400mm; Lenth: 2500mm, infeed&outfeed: 500mm each;
2.Total wattage：10KW
3.Wind fan wattage：500W
4.Conveyer motor wattage：400W/1P
5.ConveyEr speed：0~10m/min
6.Speed adjustment：stepless
7. Machine dimension：4000×520×1600mm(l×w×h)
8. Net weight：520KG
9. Package: wooden case.
10. Power supply: 380V,50HZ,3 Phrases; 220V-240V, 60HZ, 3 Phraes (optional)

DT-50
Specifications︰
1.Conveyer width：500mm; infeed&outfeed length: 500mm each; heating zone length:2000mm; total length at 3000mm.
2.Total wattage：10KW
3.Wind fan wattage：500W/380V
4.Conveyer motor wattage：1000W/1P/380V
5.ConveyEr speed：0~10m/min
6.Speed adjustment：stepless
7. Machine dimension：3200×520×1600mm(l×w×h)
8. Net weight：520KG
9. Package: wooden case size at 3550*650*1750mm

DT100
1:Model No:      DT100
2:Conveyer size: Conveyer width：1000mm;Total Length:6000mm;( 1000MM width; infeed&outfeed length:1000mm each;  heaing zone:2000MM *2sets; Max infeed height：15CM;
3:Total wattage:   23.3KW
4:Circulating air motor ：750W*2=1300W
5:Conveyer motor wattage:200W;velocity rate:30RPM,every 50 seconds
6:Heating temparature:100-200degree; Heating tube length:1010mm*24pcs;tubes power rate: 900W
7:Conveyer Speed adjustment: Stepless 0-12meters/minutes;
8:Machine dimension:  1230*6000*1600mm (W*L*H)
9:Gross/Net weight:   1500KG/1300KG
10:Package:  Wooden case
11:Automatic Grade:  Manual
12:Warranty       :  2years
13: Conveyor materila: Telflon
14: packing size:1400*2150*1600mm *2 polywood cases ; 1400*1100*1600*2 polywood case
15: Power supply: 380V,50HZ,3 Phrases; 220V-240V, 60HZ, 3 Phraes (optional)
Advantages︰
1. Conveyer Made by stainless steel and high temperature resist ,
2. Famous brand motor drive,stepless speed adjustment.
3. High quality automatically temperature controlling system.
4. Fast drying for products after printing.
Products Description:
Drying for variety of screen printing, pad printing and spraying thermosetting ink processing such as heat press, electric products,( silicon, electric membrane film key press, window glass
ink processing such as heat press, electric products,( silicon, electric membrane film key press, window glass
