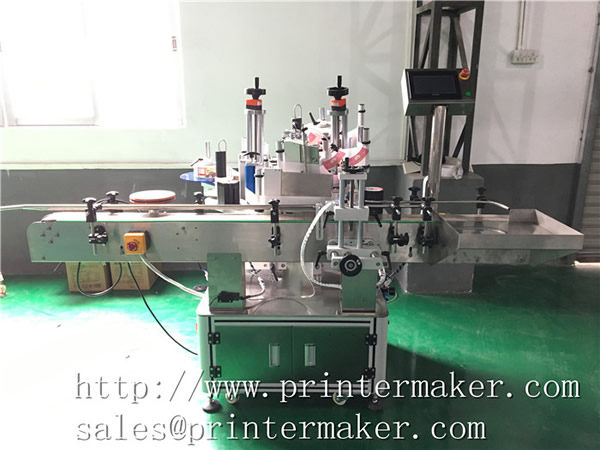

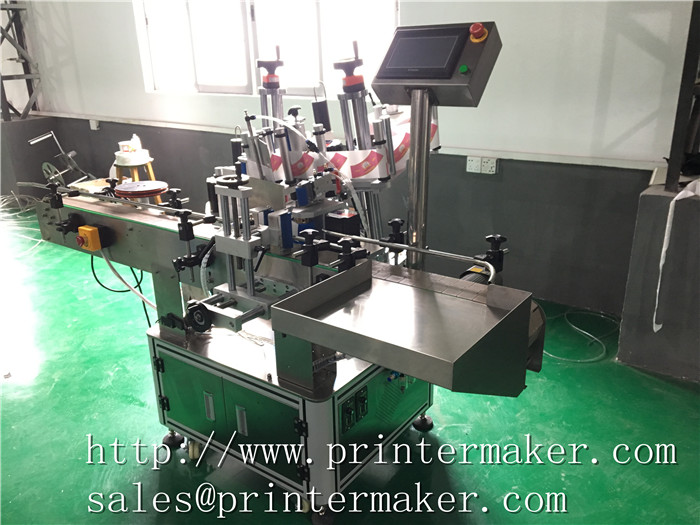

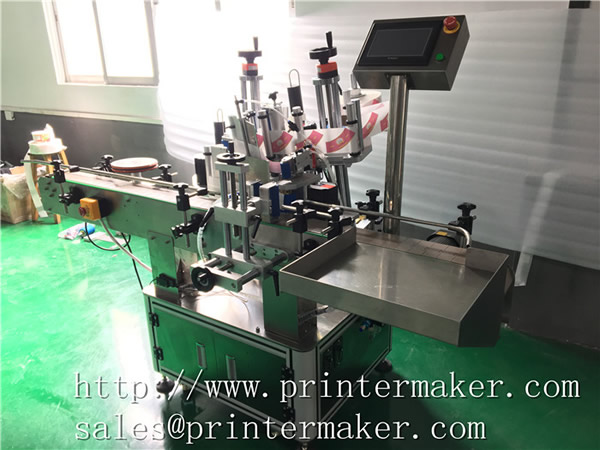

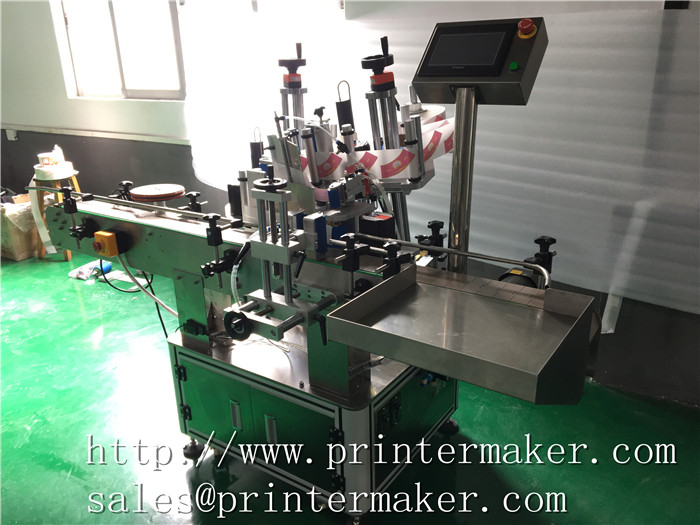

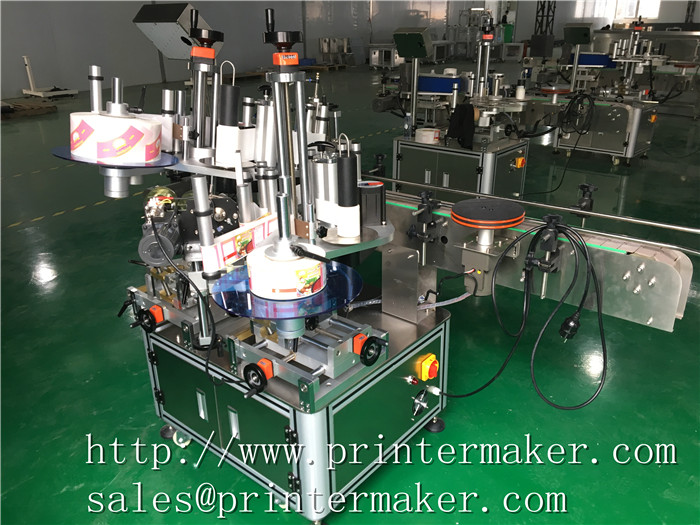

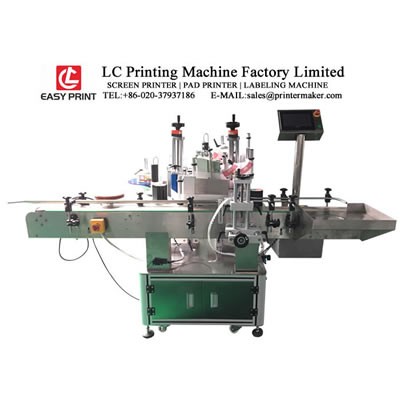

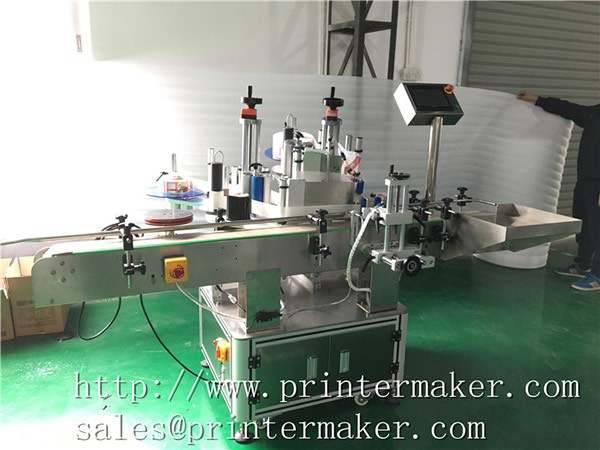

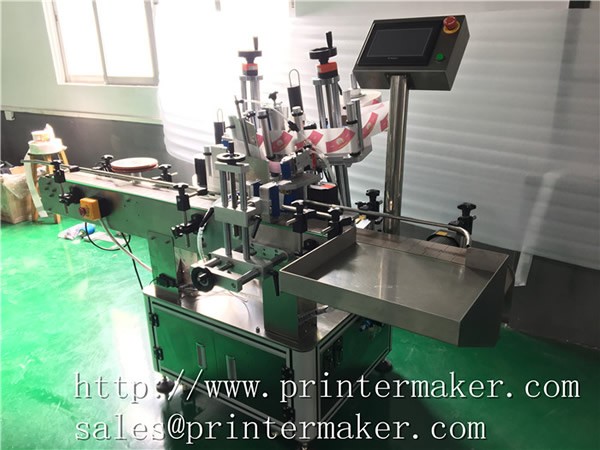

Automatic Labeling Machine for Bottles Side and Top Combination
It's applied to label the self-adhesive label on various flat surface products, as books , file folders , cases , cartons , bags , etc.
This machine is widely used in electrical , pharmacy, foodstuff, beverage, cosmetic and chemical etc industries.

Features
1.Adopt mature technology PLC control system, operation is stable and high-speed

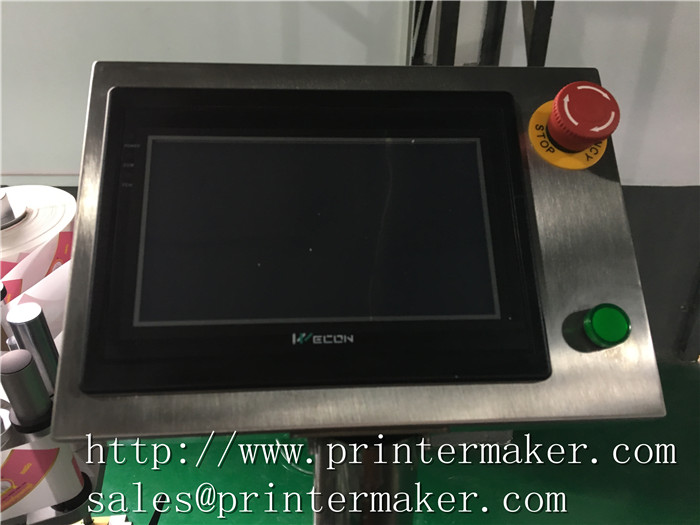

2.Using touch-screen control operating system, simple, practical, efficient;
3.Adapt variety shape of object in top labeling;
4.Screw adjustment to suppress body movements accurately;
5.Synchronization chain mechanism ensure labeling smooth and precise calibration;

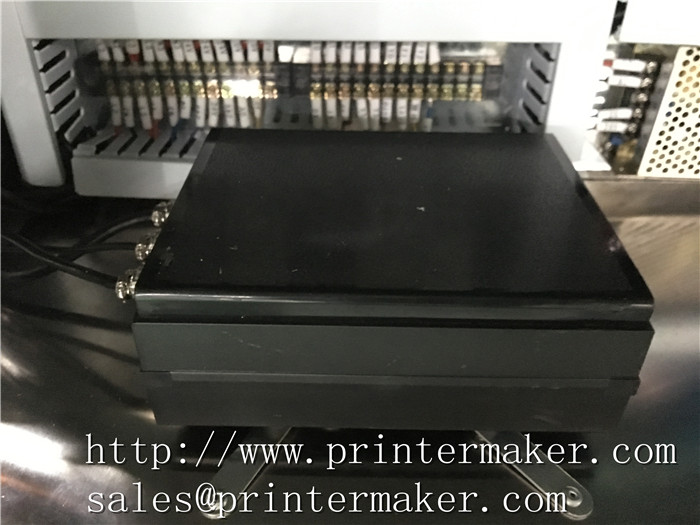

6.Advanced technology of pneumatic code system, print batch number and expiry clearly.

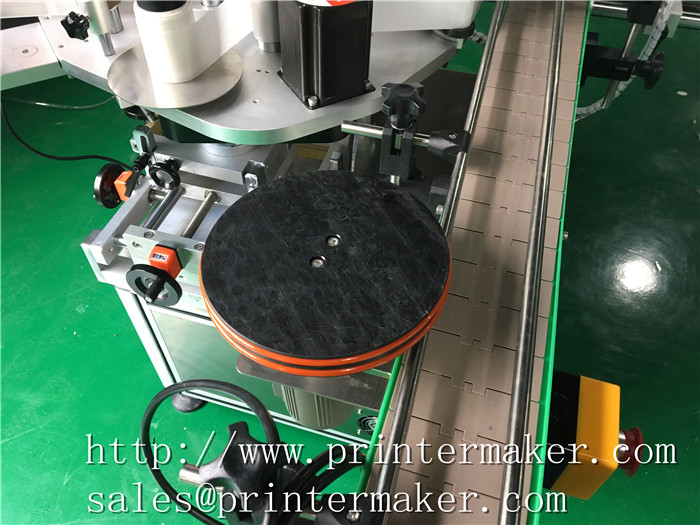

7.Transmission-type rolling bottles, make sure the labels attached more firmly;
8.Labeling transparent label without bubble and wrinkle;

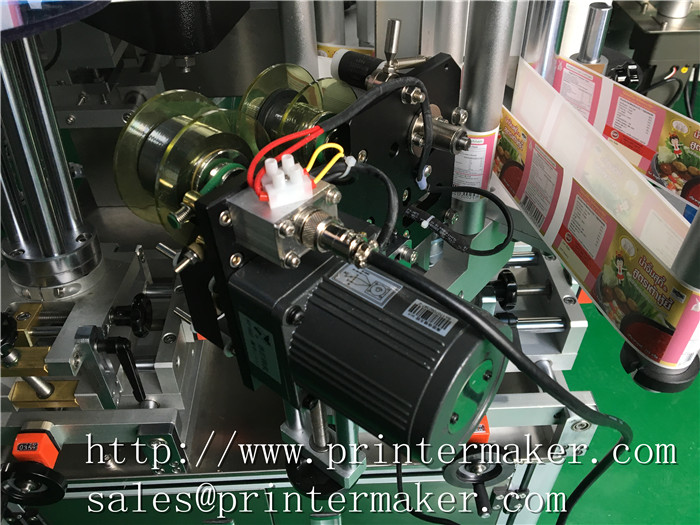

Flat Labeling Head
Specification
1.Label width: 20-150mm
2.Label length:6-250mm
3.Products Diameter:
Length: 40mm-400mm
Width: 40mm-200mm
Height: 0.2mm-150mm
4.Max Outside diameter of label roll: φ350mm
5.Inside diameter of label roll: φ76mm
6.Max Labeling speed: 200pcs /min
7.Accuracy of labeling:±0.5mm

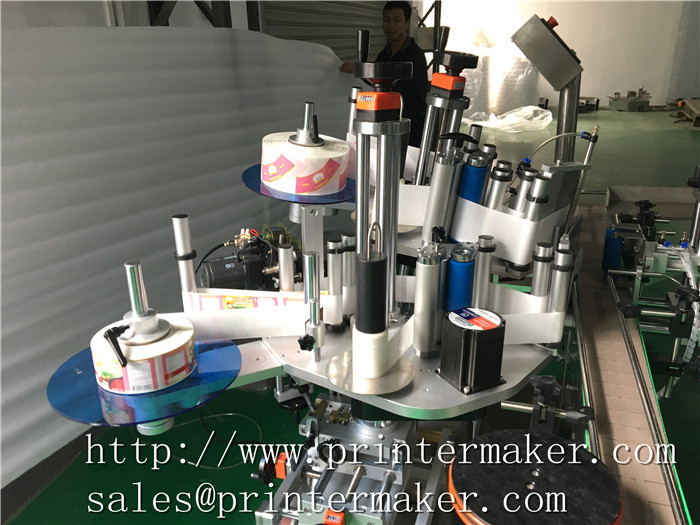

Side Labeling Head
1.Label width: 20-290mm
2.Label length:20-160mm
3.Products size:
Diameter: φ25mm-φ100mm
Height:25-300mm
4.Max Outside diameter of label roll: φ280mm
5.Inside diameter of label roll: φ76mm
6.Max Labeling speed: 60pcs /min
7.Accuracy of labeling:±1mm

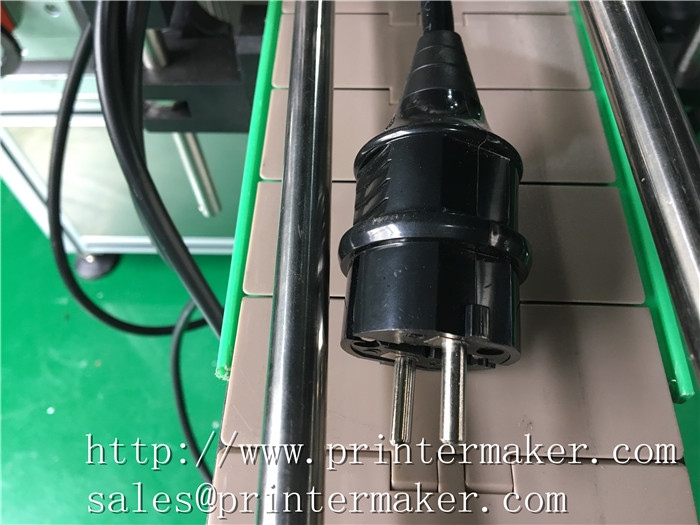

8.Power: 220V/110V 50/60Hz 900W
9.Machine Net Weihgt : 250KG

10.Machine Dimension: 1950mm x 1200mm x 1550 mm
