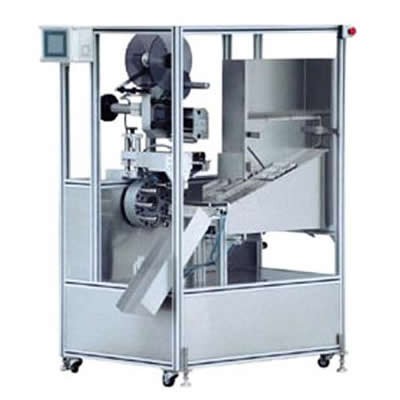

Automatic Soft Tube Labeling Machine with Registration
Advantage
1.Automatic Feeding , Fix position ( regstration ) , labeling , downloading .
2.High precision cam indexing drive: reliable, maintenance free, and precise position of tubes.
3.Label adapting roll of carefully defined material elasticity, and precisely adjustable pressure – ensure firm label adaptation and eliminate air bubbles effectively
4.User-friendly touch screen operation panel: Simple operation, comprehensive functions, online help, parameter memory, alerts, and Chinese or English menus.
Specification
1.Label width:  20-200mm
2.Label length:20-320mm
3.Products Diameter:  φ8mm - φ100mm
4.Products Heigth: 10mm -200mm
5.Max Outside diameter of label roll: φ280mm
6.Inside diameter of label roll: φ76mm
7.Max Labeling speed: 80 - 150 pcs /min
8.Accuracy of labeling:±0.5-1mm
9.Power: 110V/220V 50/60Hz     2kw

10.Air Pressure: 0.4-0.6 mpa
