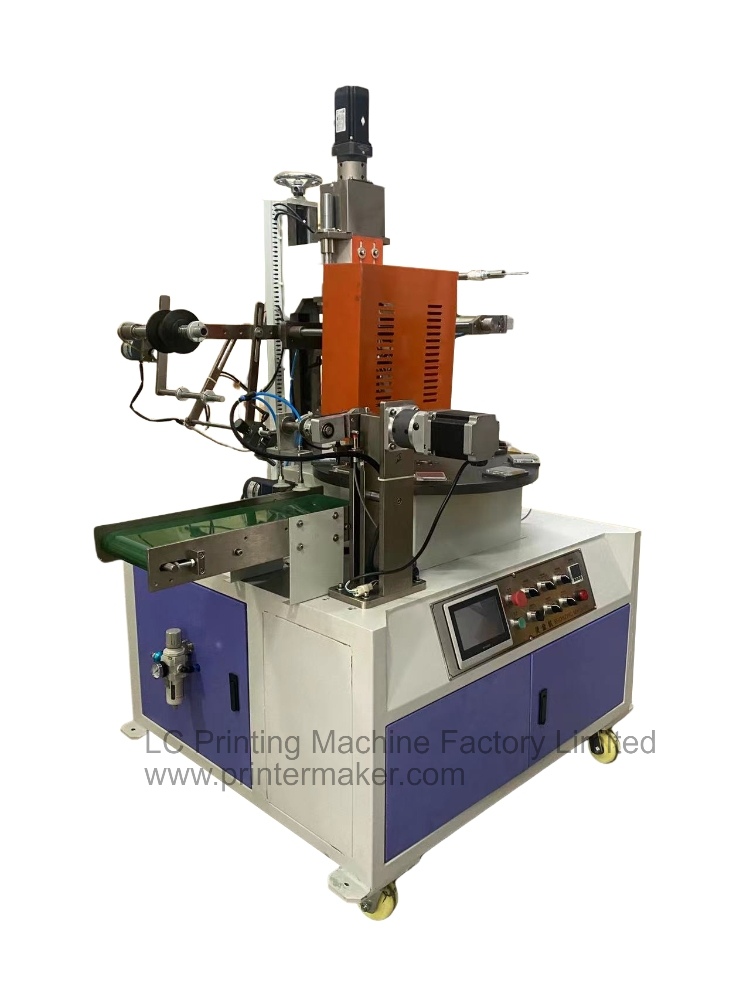

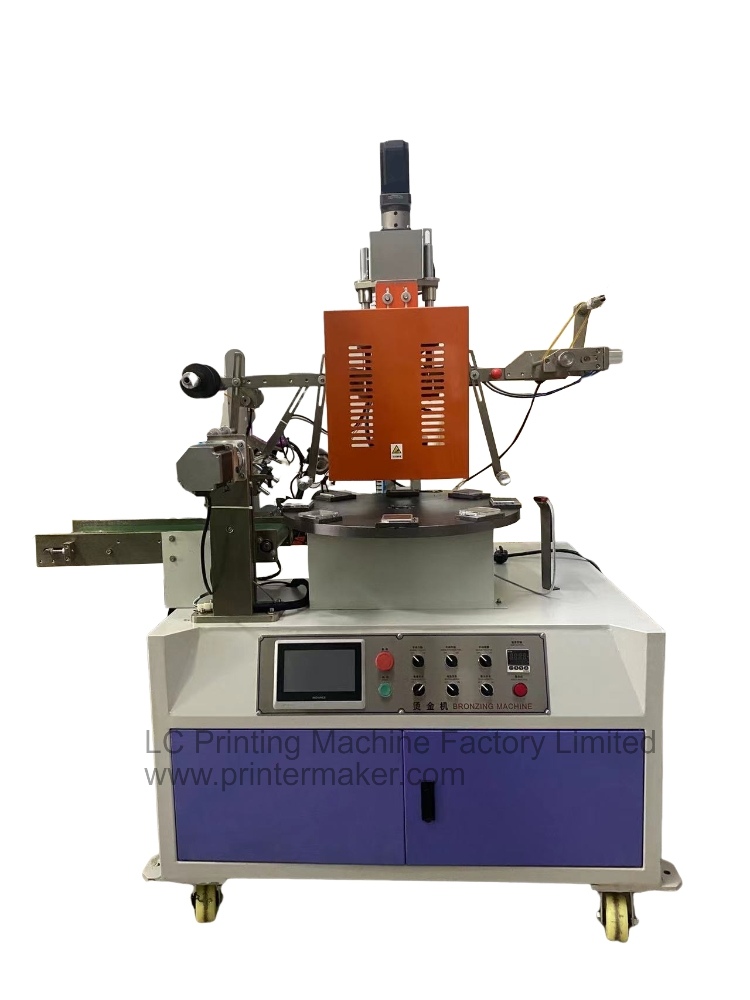

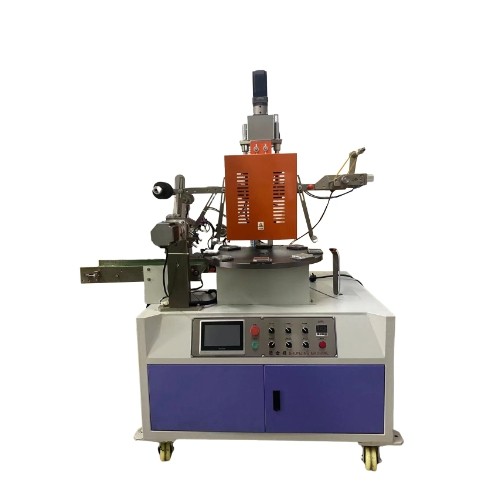

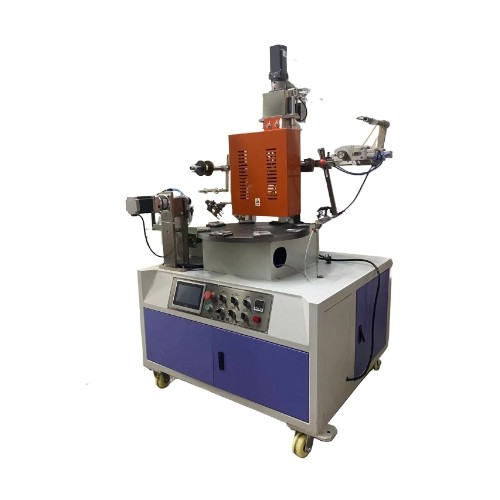

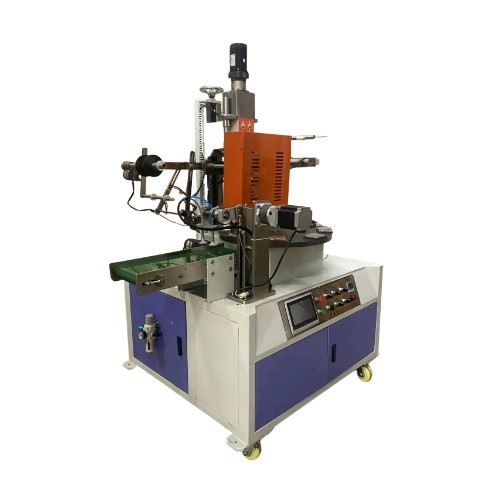

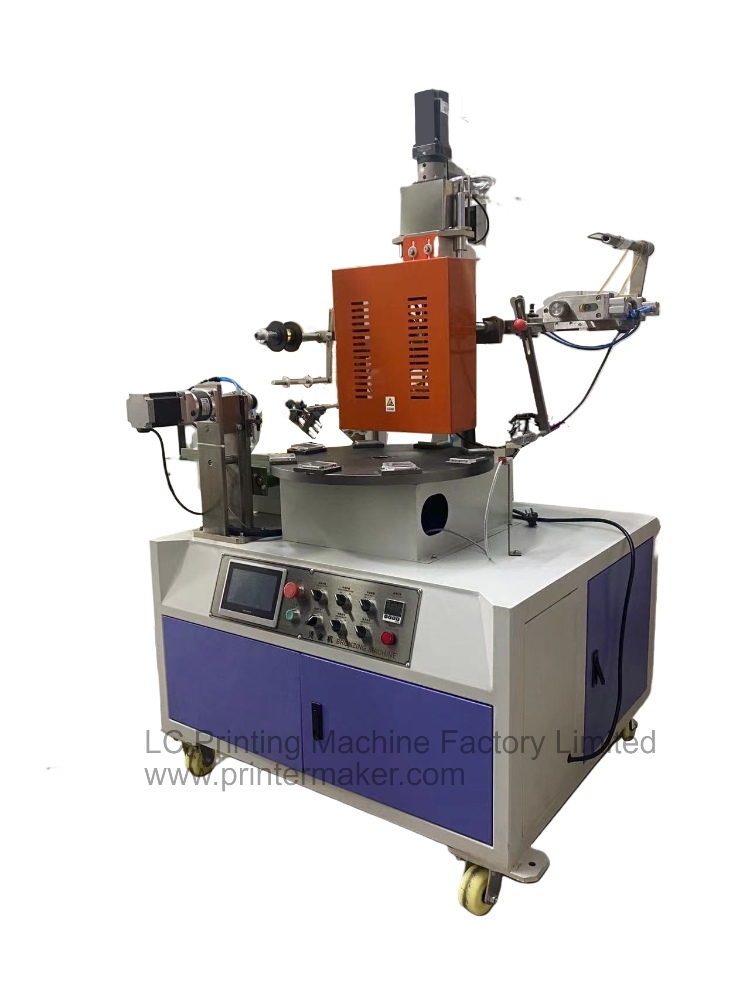

Product name:Flat Rotary Fully automatic Flat Hot Stamping machine
Parameter:

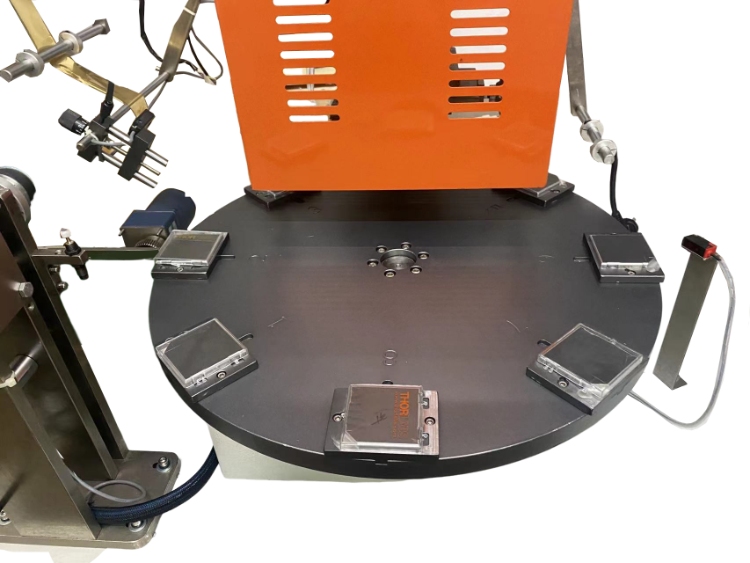

1:Mechanical model: AHT-6S2: Turntable size: 700mm diameter
3: Stroke of hot stamping head: 80mm (adjustable 50mm)
4: Hot stamping temperature: room temperature 0 ℃ ~ 300 ℃
5: Rated voltage: 220v60 / 50Hz
6: Hot stamping pressure range: 250-300kg
7: Heating power: 2000W
8: Overall power: 3800W
9: Air pressure: 5-7bar
10: Machine size: 1400 * 1000 * 2100mm
11: Machine weight: 800kg
12: Packing size:176*161*205CM (L*W*H)
Machine configeration:
(1) Adopt 6-station divider;
(2) Touch Screen control, PLC interface is easy to operate;
(3) Hot stamping pressure, temperature and speed can be adjusted;
(4) Built in self counting;
(5) Automatic foil feeding, foil receiving and adjustable,
(6) Manual feeding and automatic discharging;
(7). Safety cover for operator's safety operation.
Machine Part details:
Serial No. part name brand origin
1 Bearing (continental)
2 Temperature control meter (delta continental)
3 Main motor: Chengji continent
4 PLC delta Taiwan
5 Frequency converter (eurui continent)
6 Switch button Schneider France
7 Film discharging motor, film collecting motor precision research mainland
8 Lifting cylinder III and Korea
9 Solenoid valve (Jin Gong Taiwan)
Application:
This machine could be customizing with programming modification to connect with customers auto Robot signal working as unloading system.
It is fitting on all those flat case, cosmetic case, and flat box automatic hot stmaping.
