Description:

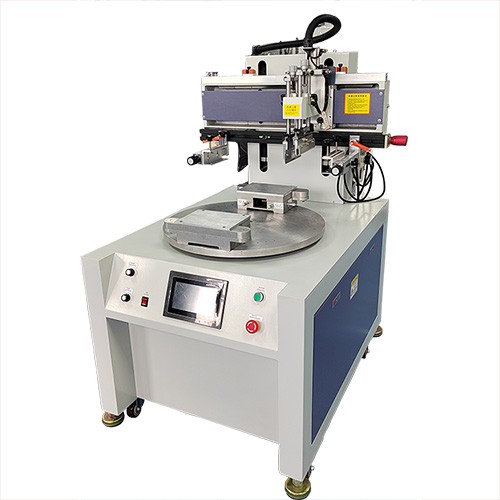

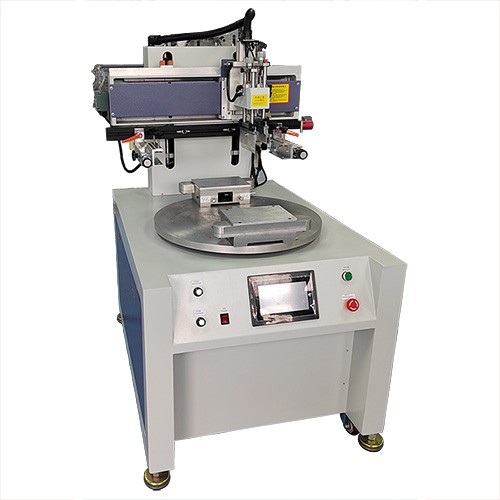

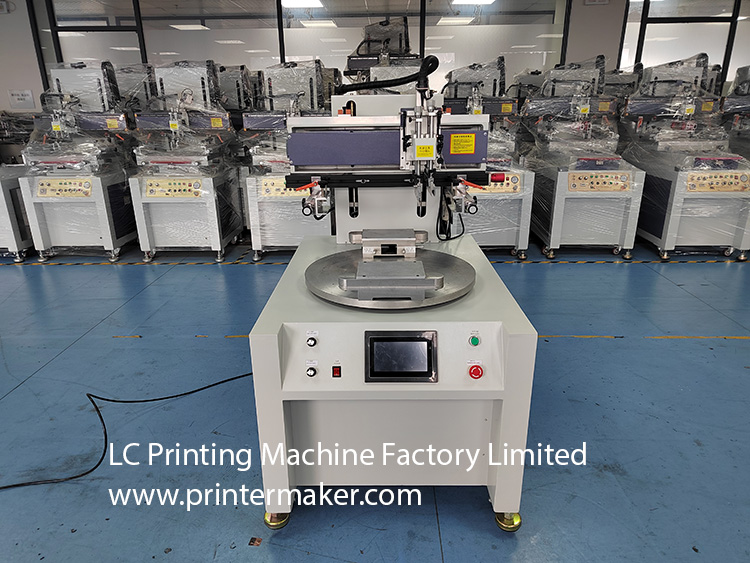

Flat Screen Printer With 2 Workstations
Model:MSP-2030T2
1. Maximum printing area: 200*300mm
2. Transverse stroke: 400MM
3. Vertical stroke: 100MM
4. Worktable size: 600mm
5. Max height of printing products: 50mm
6. workstation: 2, 4, 8 for choice
7.Machine size:115*95*150CM
8.Weight:250KG

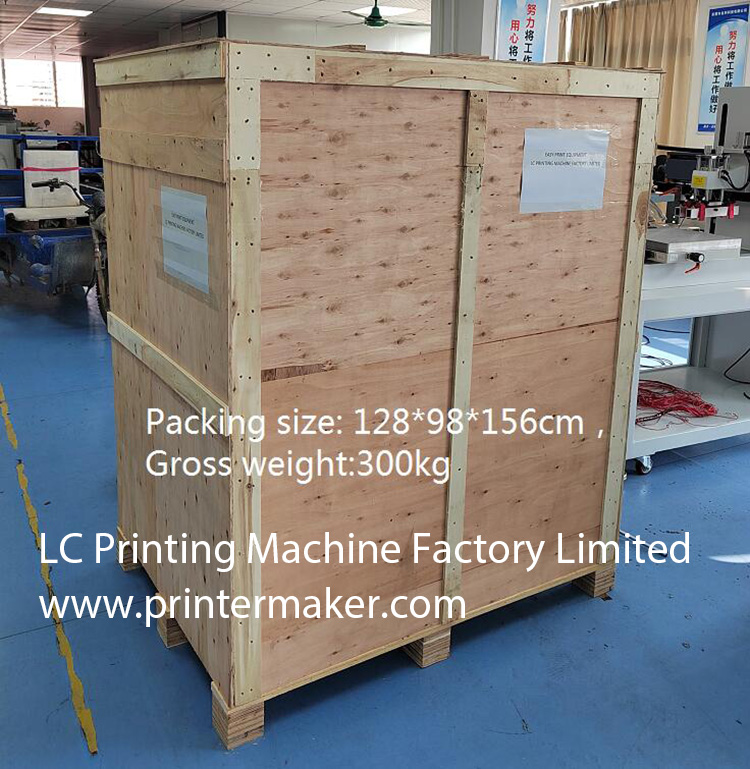

9.packing size:128*98*156cm in export Plywood Case
10.Delivery terms:By sea or By air
11.Delivery date:Within 3-5 days after order confirmed

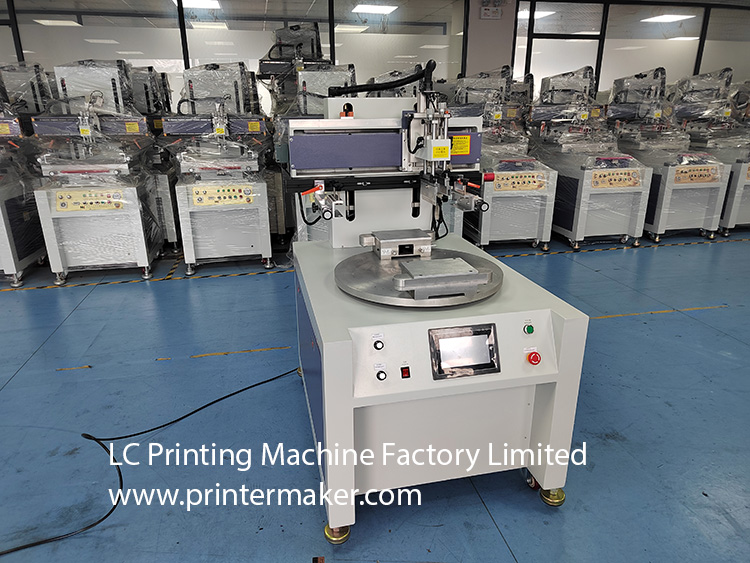

This machine is a high speed and precise screen printer, using Taiwan
Mechanical cam divider compose high speed rotary table, which have no shack when Printing.
It is perfect choice for those small flat products such as phone case, touch screen plates, name plates, box,
school rulers, culculator, lighter, caps lids, testing papers, etc which is very much convenient for unloading
and unloading the products parts.
At the same time, the automatic feeding system,unloading robot as well as the IR or UV dryer will be optional
accoding to customer's actual request.choice for you to do large quantity printing.
Function introduction:

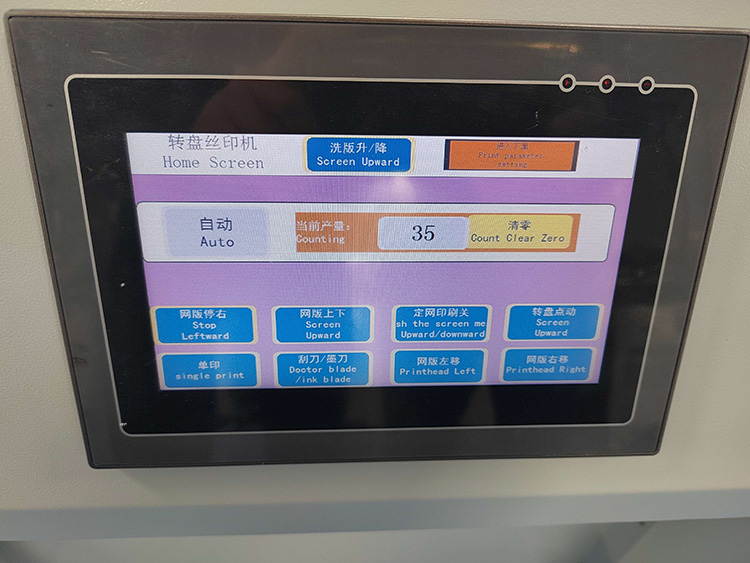

1. PLC Touch screen control

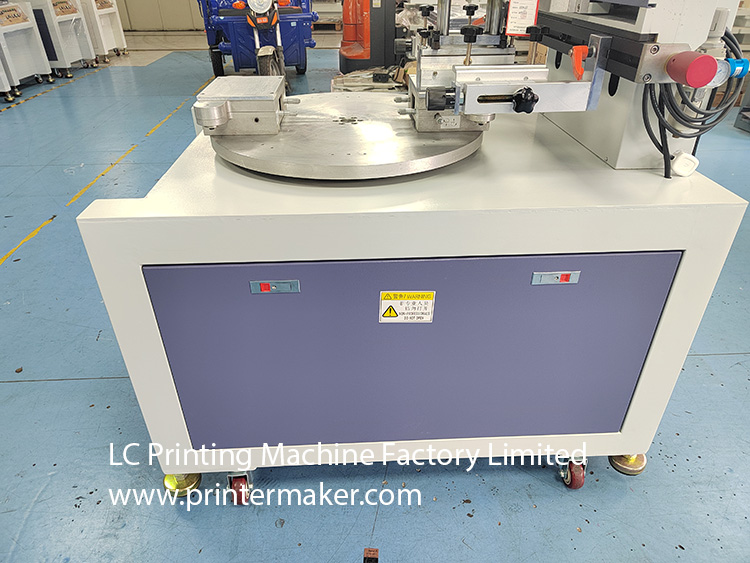

2. TaiWan splitter for the rotation table.
3. Air frame adopts coin alloy, and metal coating surface
4. Distyle vertical structure, high precision, steady operation

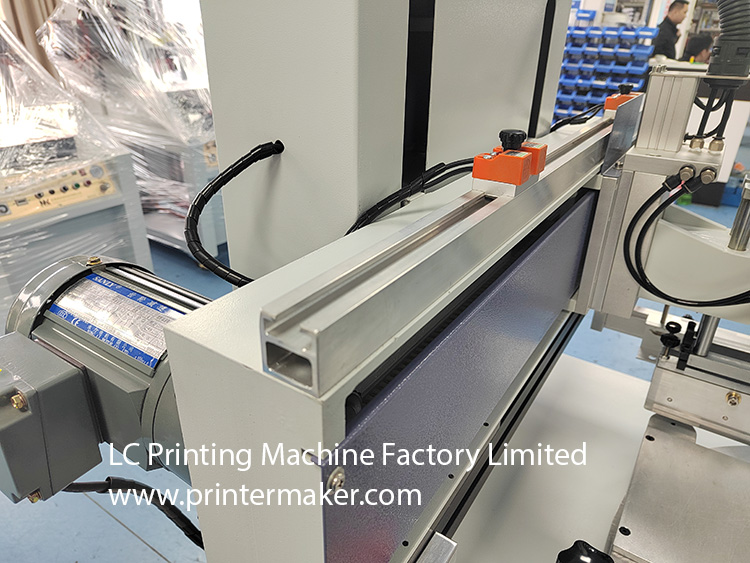

5. The transverse stroke can be adjusted, spacing by Taiwan electronic switch
6. The angle of scraper and ink covering blades can be adjusted randomly

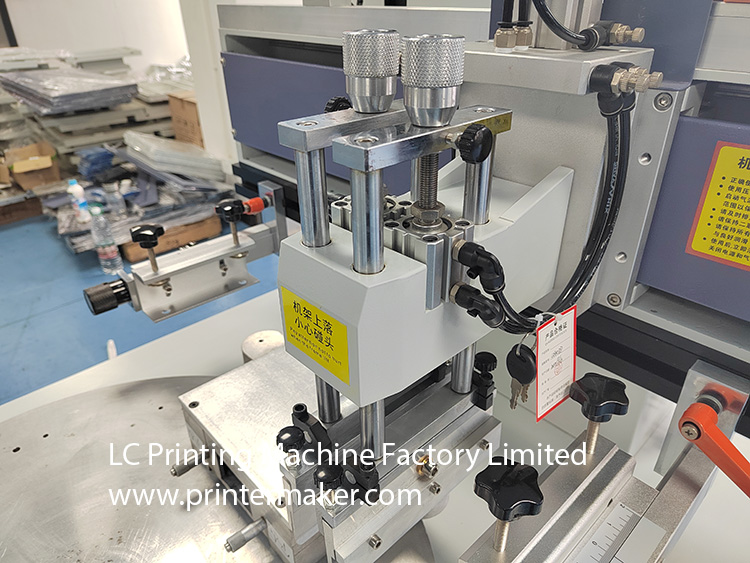

7. Installing scraper constant pressure equipment to make sure pressure is steady when printing
8. You can regulate work-table back and forth or right and left, and then fastening it

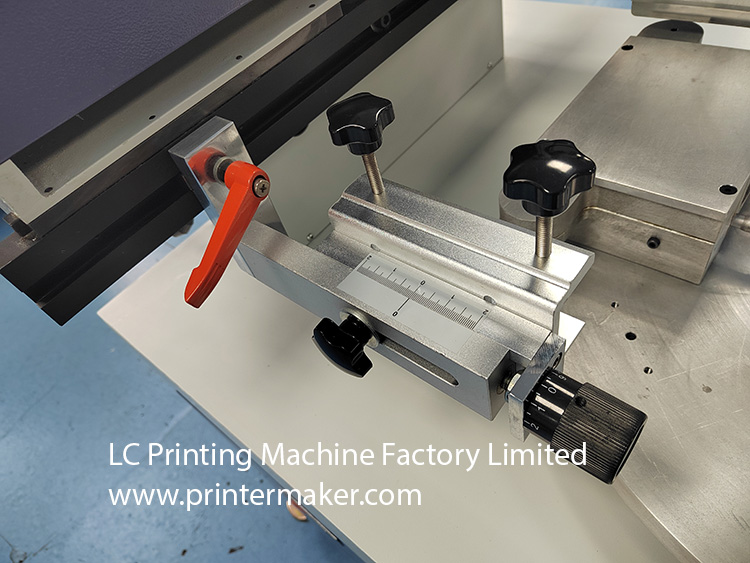

9. You can regulate screen frame back and forth, right and left or level orientation

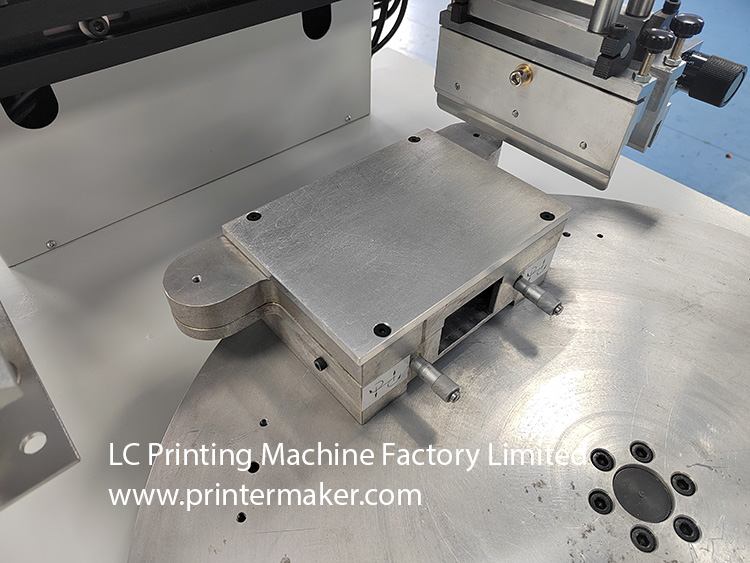

10. T-slot worktable, convenient to install mould
11. Installing CEC oil buffer on up and down, left and right to avoid printing shocking
12. The machine is running fast, stably and lower noise.
13. Action model option: Fully automatic semi-automatic manual
14. Start-up method: Panel foot switches
15. Scraper pressure controller: By pressure regulating Valve
16. Vertical driving style: Pneumatic

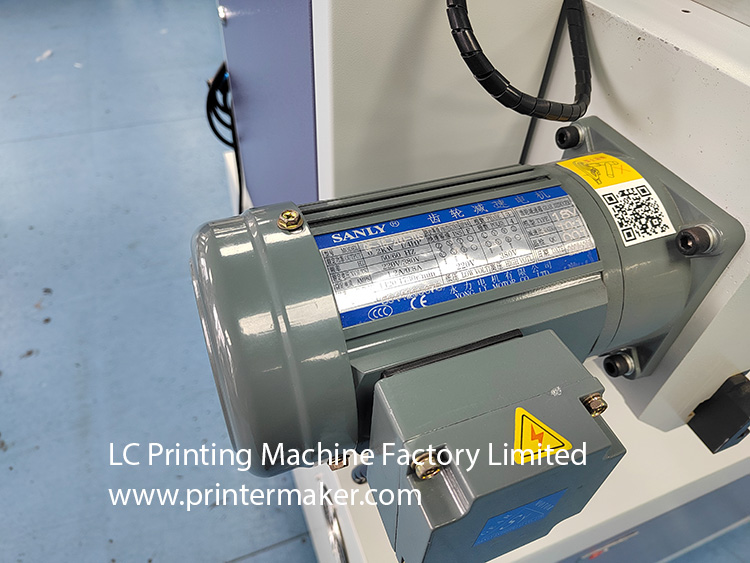

17. Transverse driving style: Electric
