Description:

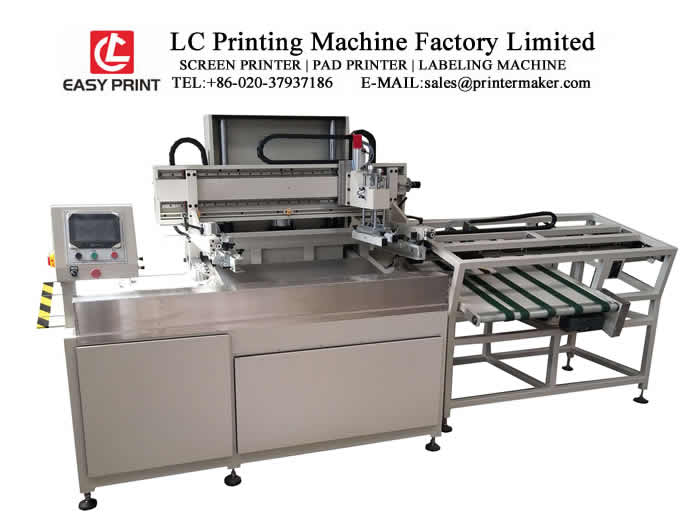

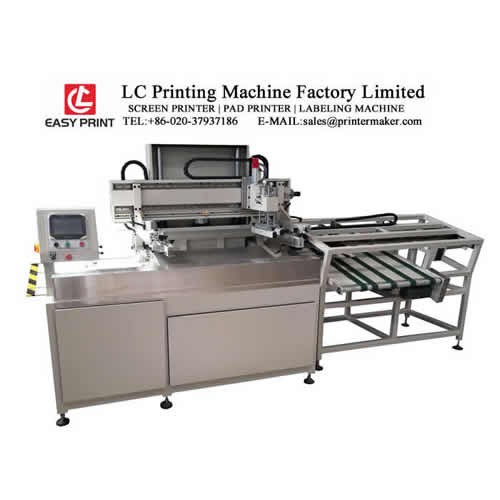

Automatic Screen Printing Machine for Reflector Film/Paper/Sheet
Technical parameters：
Model:EASY-5070ZY
Max. printing size（mm）:500*700mm
Max. frame size（mm）: 700*1060mm
Off-frame height（mm）:＜10
Max. feeding height（mm）:≤240
Max. speed（p/h）:1000p/h
Printing material thickness （mm）:0.02～0.4mm
Power（kW）:3kw
Power supply:3N-50Hz-380V
Working pressure（MPa）:0.5～0.6MPa
Machine dimension （L*W*H）mm:2200*1150*1700mm
Applications:
Automatic Screen Printing Machine is suitable for reflective film, paper, sheet. It’s Automatic feeding, automatic printing and automatic material unloading.
Key Features:
Servo motor for driving lifting, printing, feeding, unloading, which with high accuracy.  Auto positioning with accuracy.
The printing pressure is adjustable, which can meet the different requirements of all kinds of ink.
Unique synchronous snap off device to prevent screen glued.
PLC controller with Display panel, with easy operation.
Auto material unloading, connect with any dryers, convenience and easy to operate
It’s full auto machine for reducing labor cost.
Auto lift for loading a stack of sheet.

Air blowing device with paper splitter to separating of the paper, prevent double-sheet.
