Description:

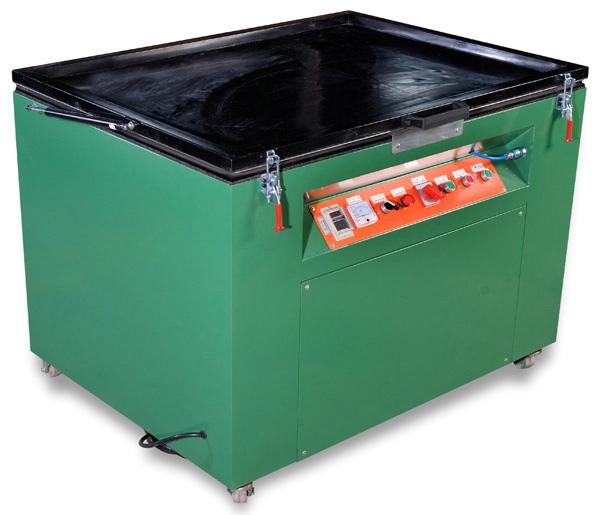

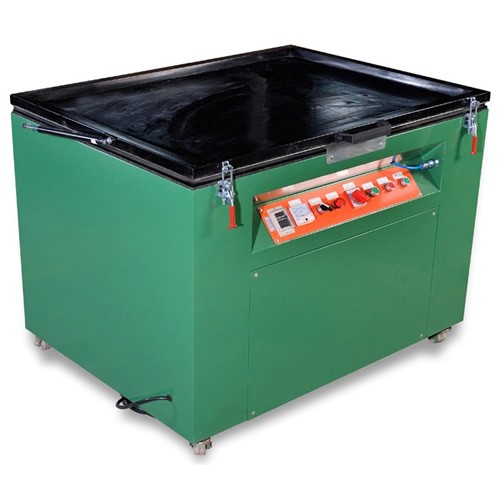

UV Exposure Machine
Used in the filed of plate-making such as pad plate, screen plate, hot stamper plate, resin plate. when you put the film onto the plate into UV exposure machine, start it, the emulsion on the plate will appear a unseen imagine. this is important process on all plate-making technology.flexibility Rubber Film ensure Film contact compactly with surface of slik when vacuum state.
Price Terms:FOB GuangZhou
Payment Terms:T/T. LC
Packing:Wooden case
Lead Time:Within 3 days
Standards Certificate:ISO9001-2000
Power Supply:220V/50HZ 1-PHASE
Colour Painted:Green
Specifications:
1.Glass Dimension: 1500×2000mm;
2.Glass thickness: 10mm.
3.Lamp Wattage: 3000W;
4.Vacuum degree: 0.05mpa.
5.Wattage: 80w/cm.
6.Lamp distance:850mm；
7.Weight:120KG.
8.Outer domension: 2050×1570×1100mm;
9.Max Frame Dimension: 1900×1400mm;
10. Max Exposure Area: 1700×1200mm.
Advantages:
1.Choose high quality UV lamp. keep long life.
2.Reflect cover made by resist aging materials.
3.Whole jointing with zinco plate, both portability and firmly.
4.Exposal time auto adjustment and controlling.
5.High vacuum degree, easy to transfer and copy fine lines ；
6. Automatic door of UV lamp shut off and turn on when exposure and finsi ensure long life of UV lamp;

7. High toughness Rubber Layer ensure Film closely cover with frame.
