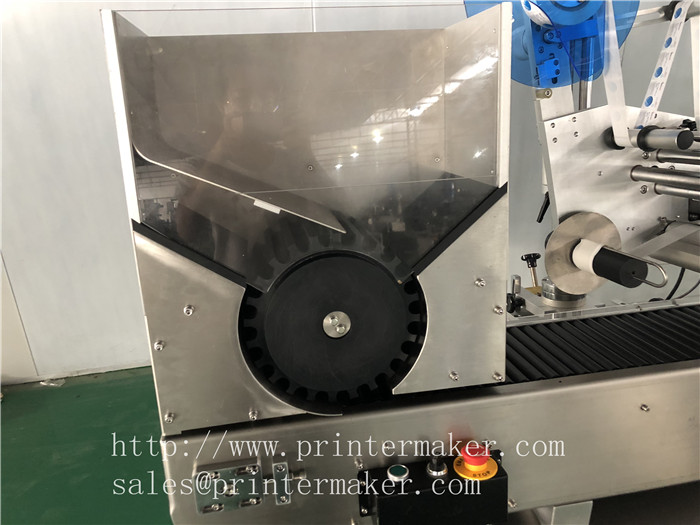

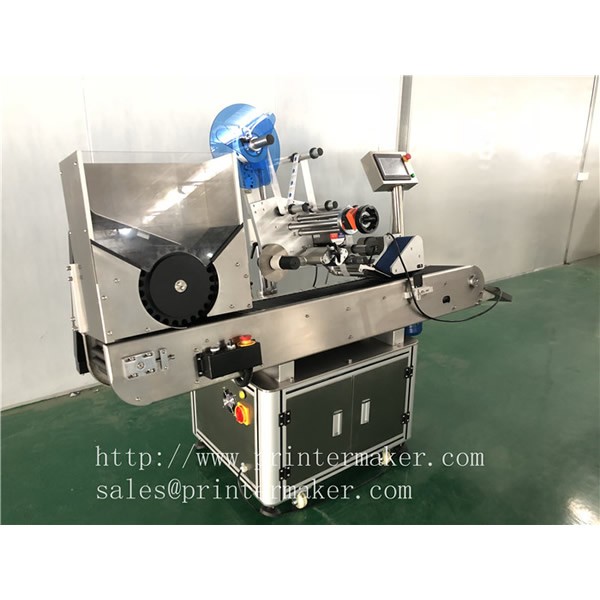

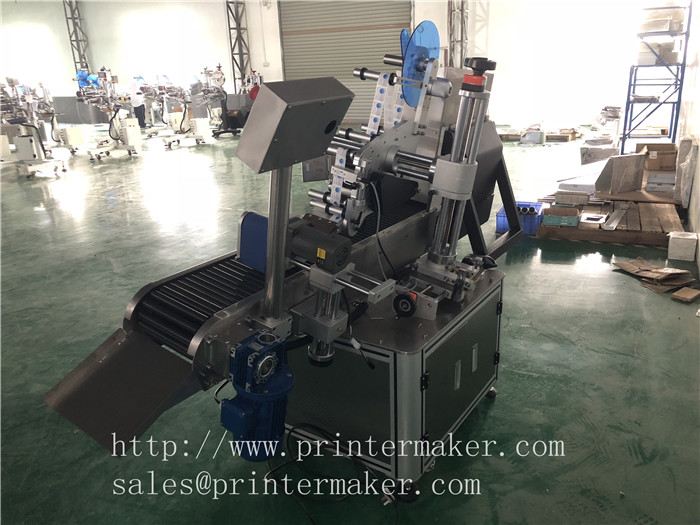

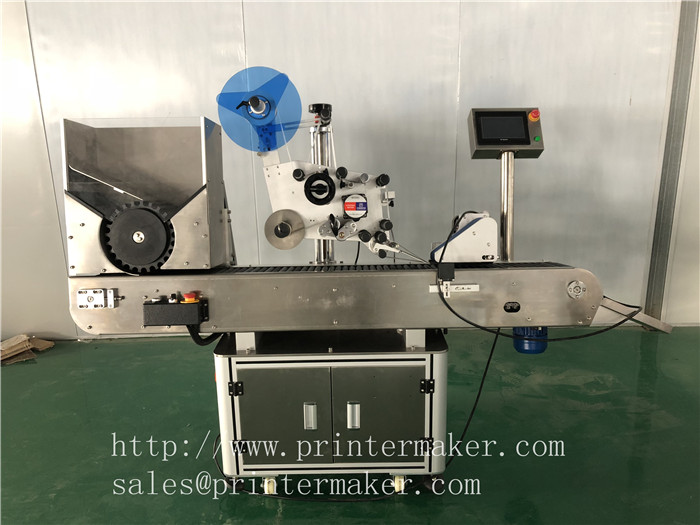

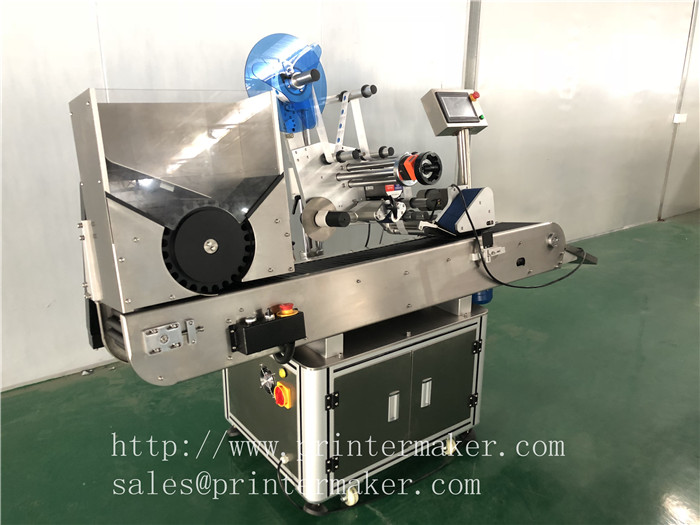

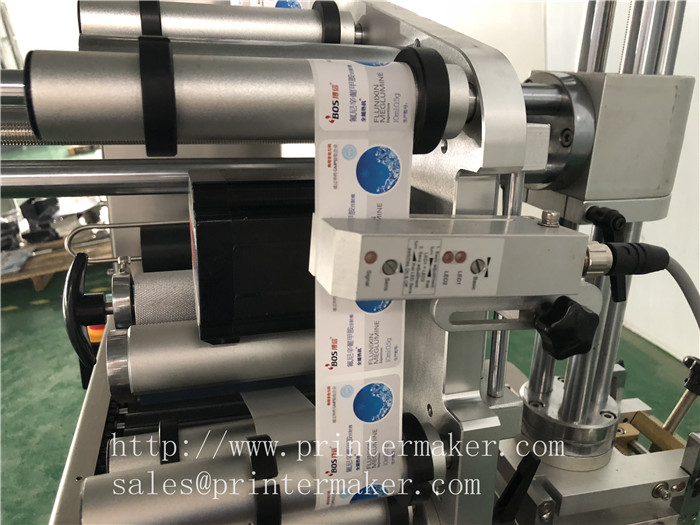

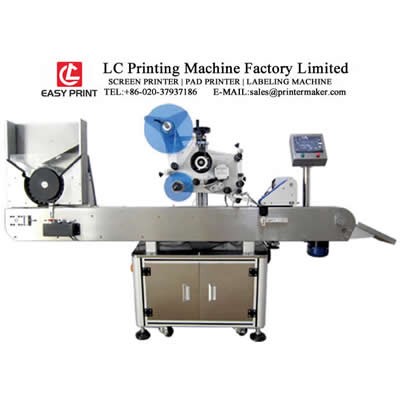

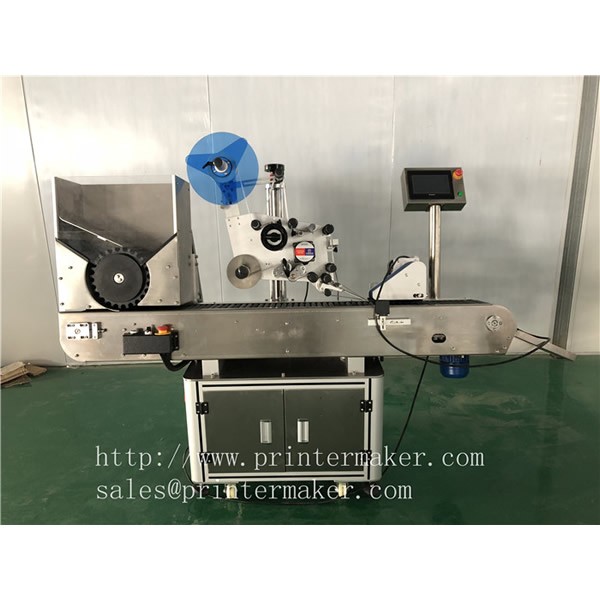

Horizontal Adhesive Automatic Labeling Machine
It adopt horizontal type transmission , horizontal type labelling , more stable ,
more precise and improve working efficiency
It's applied to label the self-adhesive label on various small cylinder products, as small bottle , ampoule , lipstick ,pen etc.
This machine is widely used in electrical , pharmacy, foodstuff, beverage, cosmetic and chemical etc industries.
Feature

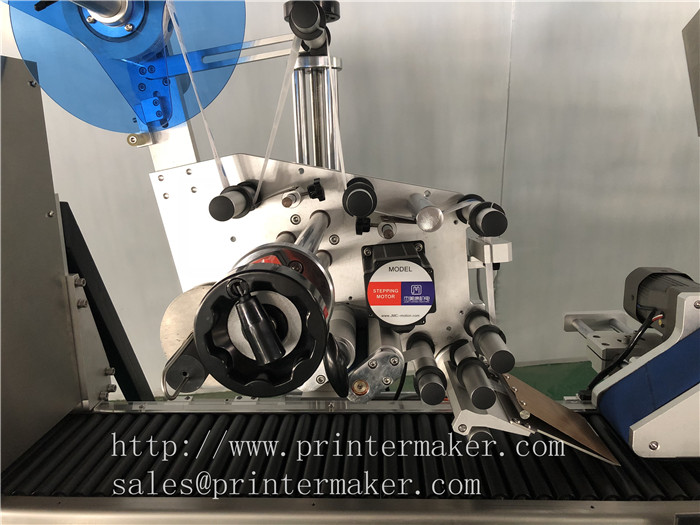

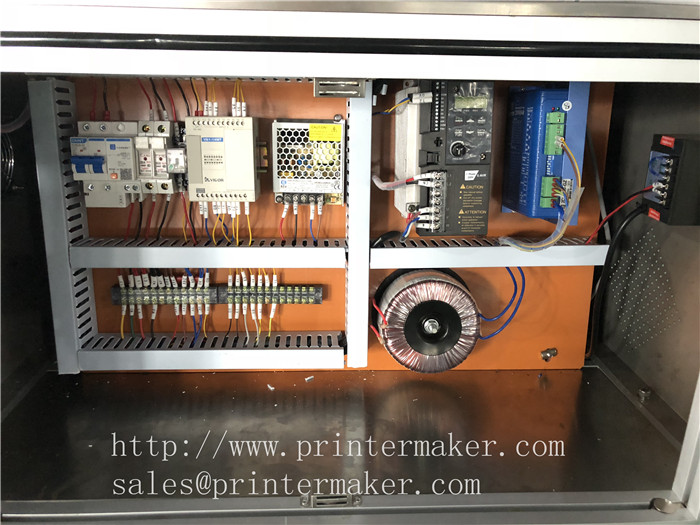

1.Adopt High stability German LEUZE labeling system, Panasonic PLC , Panasonic Signal transmission system.
operation is stable and high-speed

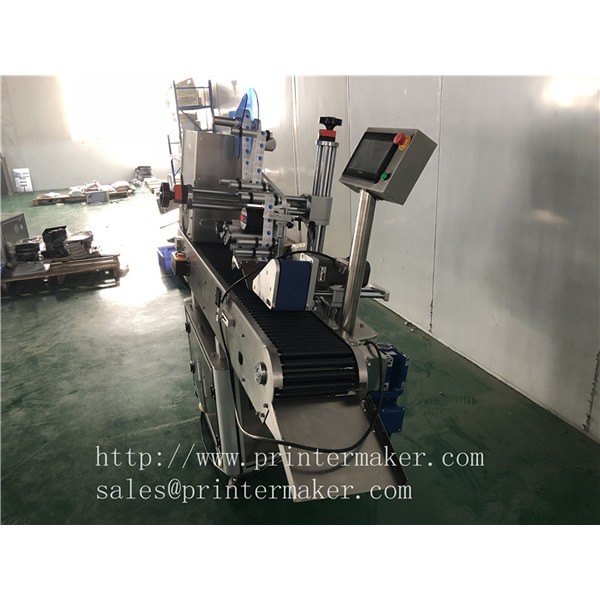

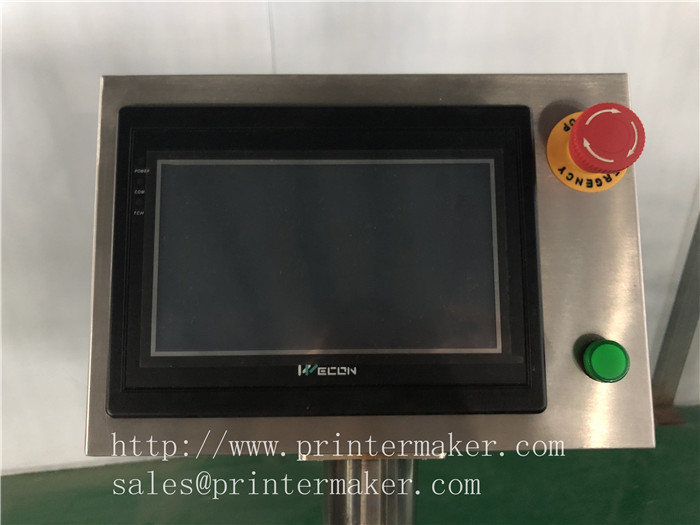

2.Using touch-screen control operating system, simple, practical, efficient;
3.Adapt variety shape of object in top labeling;
4.Screw adjustment to suppress body movements accurately;
5.Synchronization chain mechanism ensure labeling smooth and precise calibration;
6.Advanced technology of pneumatic coding system, print the batch number and expiry clearly.

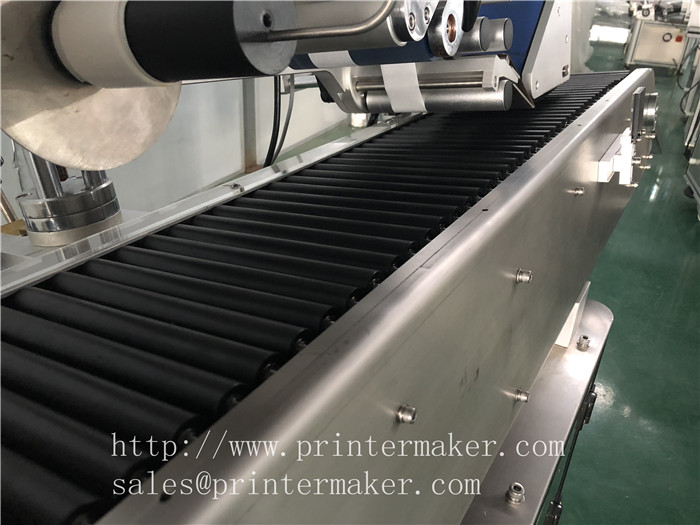

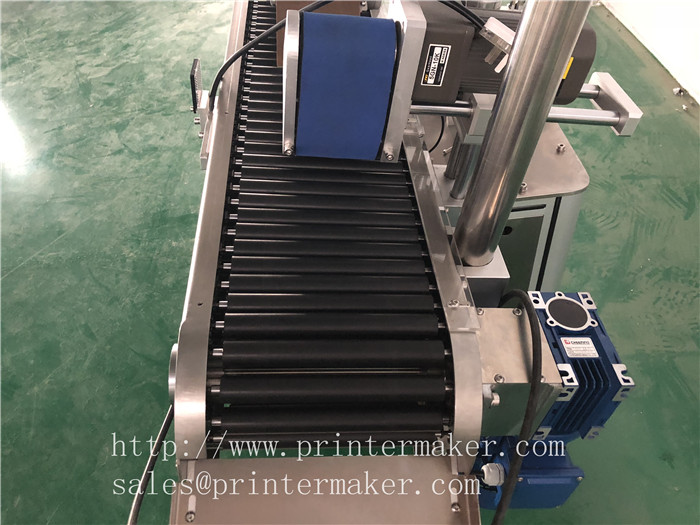

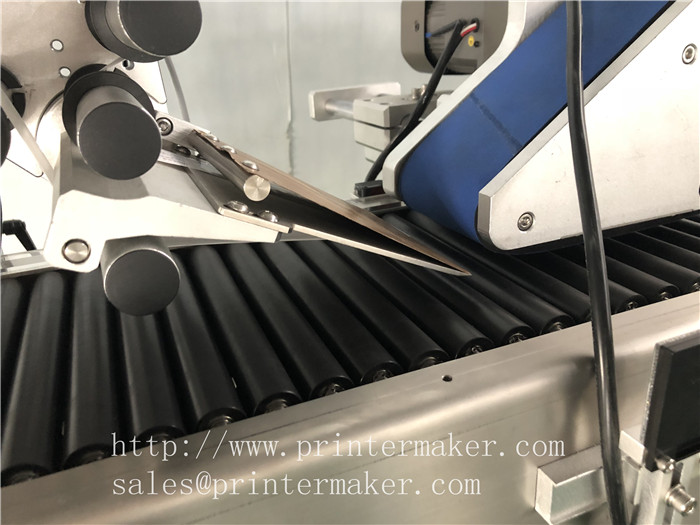

7.Transmission-type rolling bottles, make sure the labels attached more firmly;
8.Labeling transparent label without bubble and wrinkle;
Specification
1.Label width: 20-100mm
2.Label length:20-130mm
3.Products Outer Diameter: φ18 mm-21 mm,    Length:25mm-100 mm
4.Max Outside diameter of label roll: φ280mm
5.Inside diameter of label roll: φ76mm
6.Max Labeling speed: 450pcs /min
7.Accuracy of labeling:±0.5mm
8.Power: 220V/110V 50/60Hz 1400W
9.Machine Net Weihgt : 250KG；Gross Weight: 328KG
10.Machine Dimension: 2050mm x 773mm x 1415mm

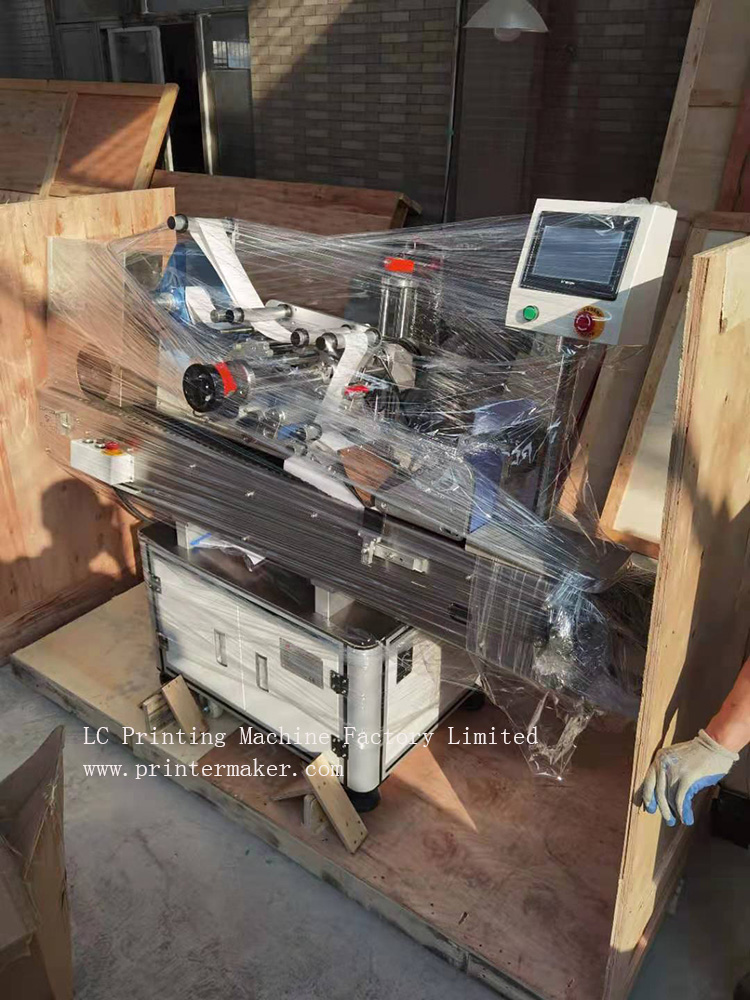

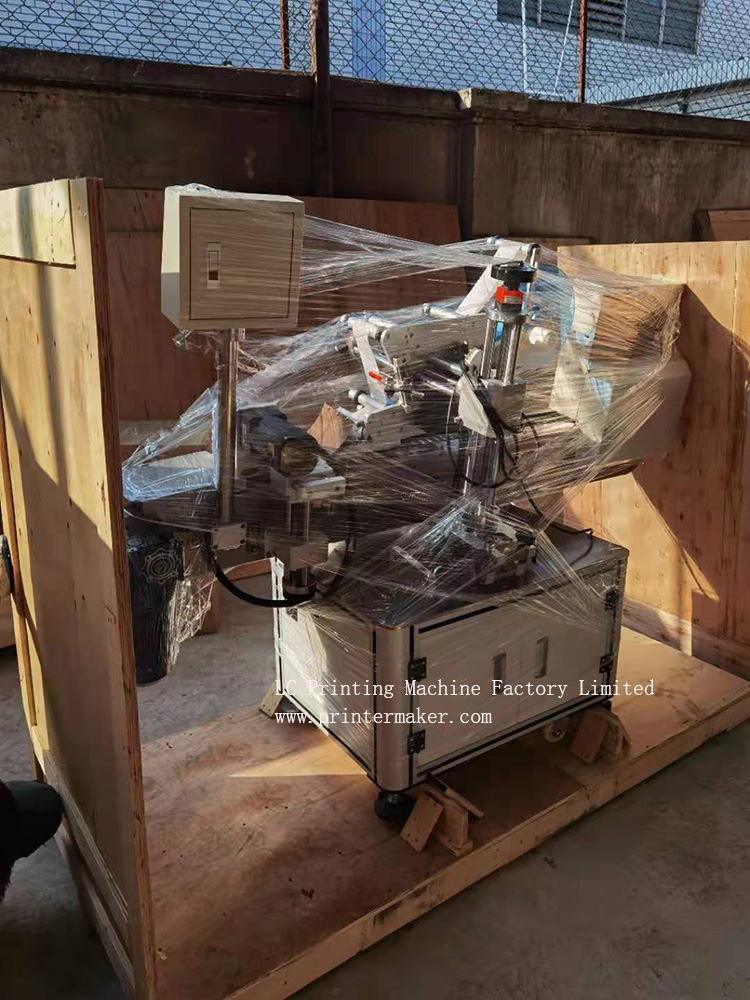

11. Packing size: 2050x870x1450mm
