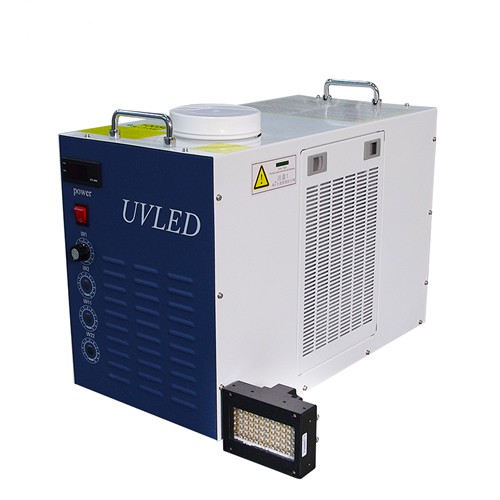

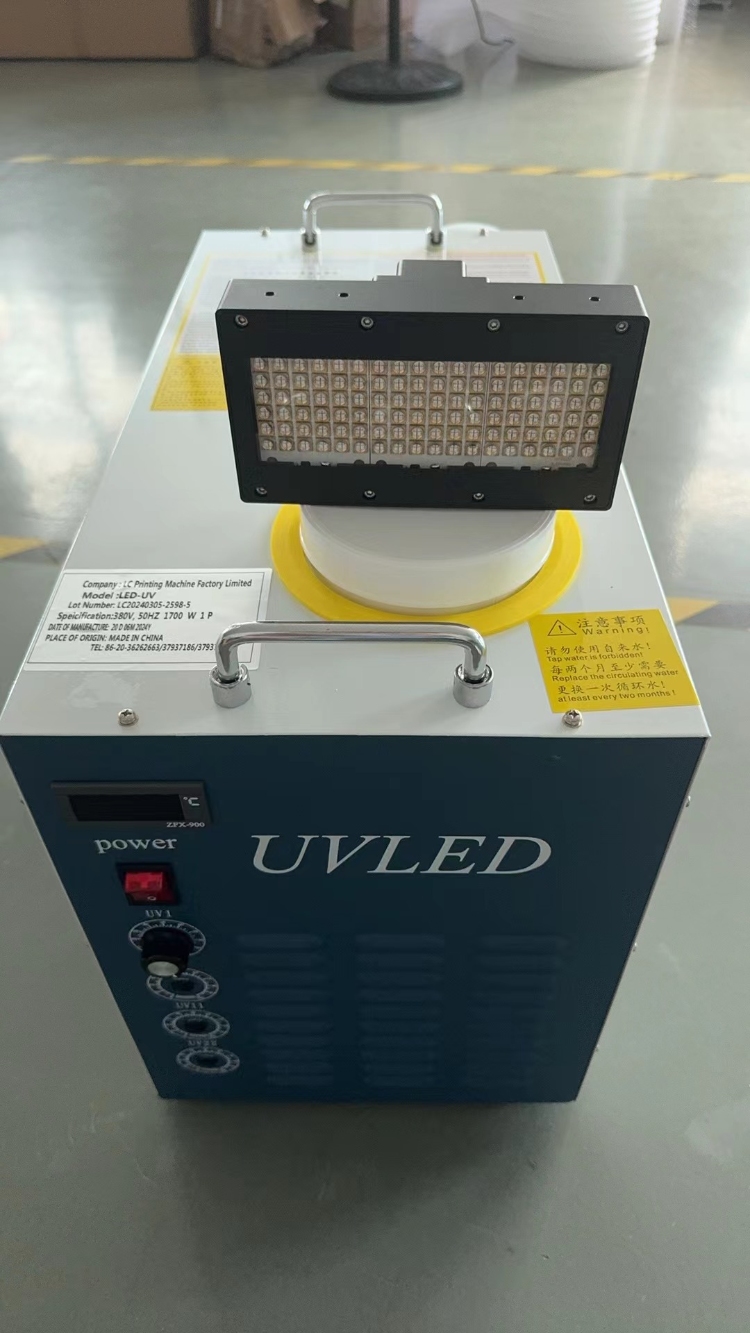

UV Led Curing System For Printing Machine
UV Led Curing System For Printing Machine
Specification：

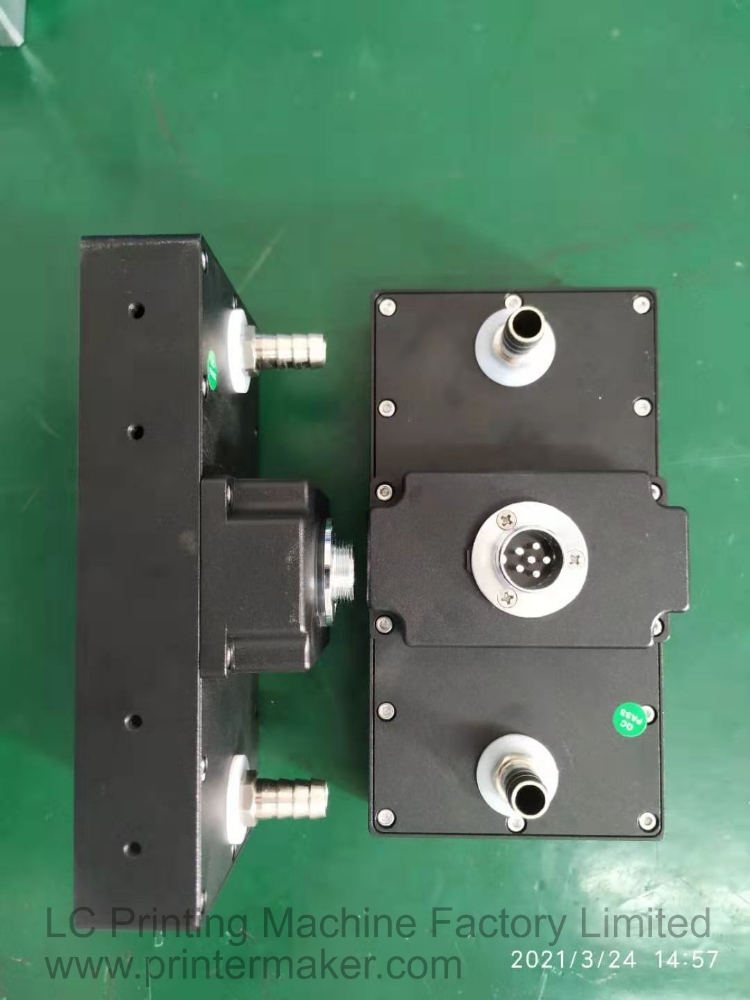

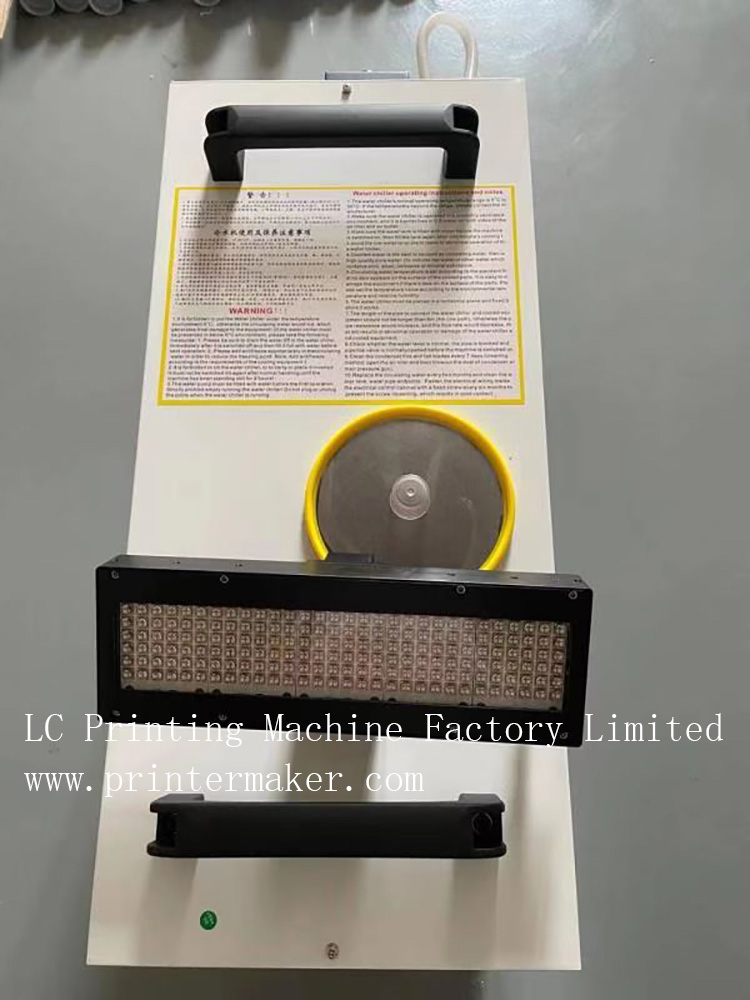

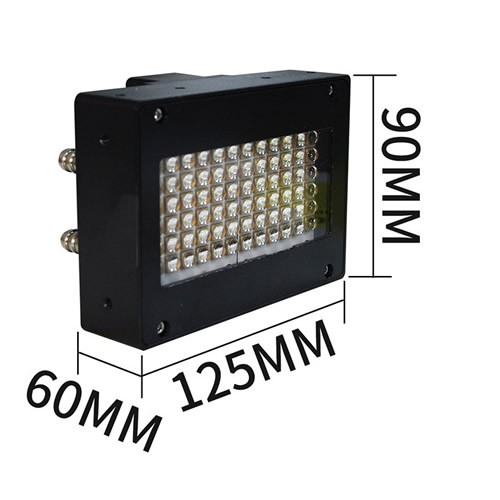

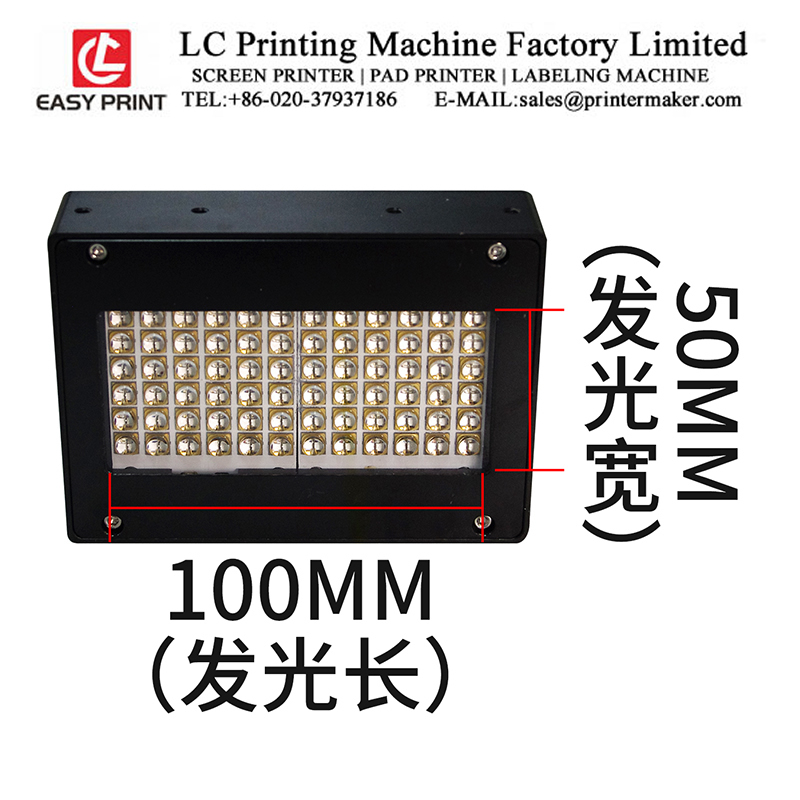

1. LED UV Lamp length : 100mm
2. Wavelength: 395nm or 385nm or 365nm
3. Irradiation power: 10w/cm2
4. Irradiation height: 2- 30mm
5. LED Chips brand :LG
6. Machine Power: 0-800W(Power can be adjustable)

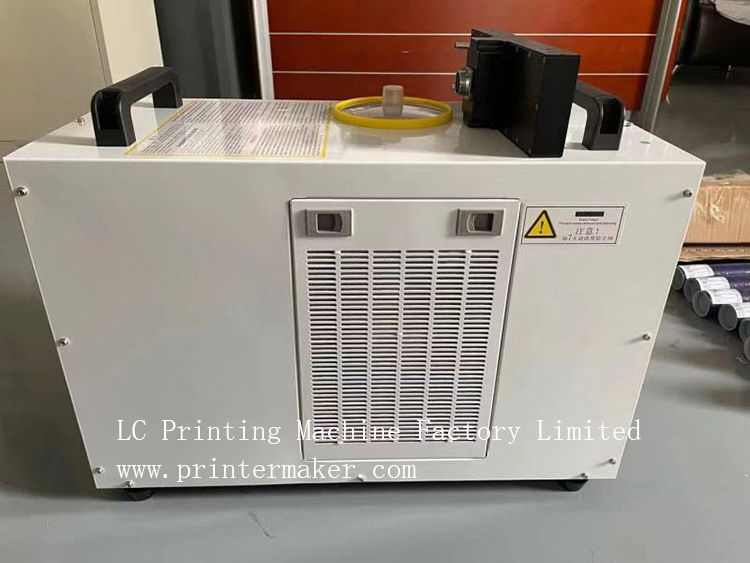

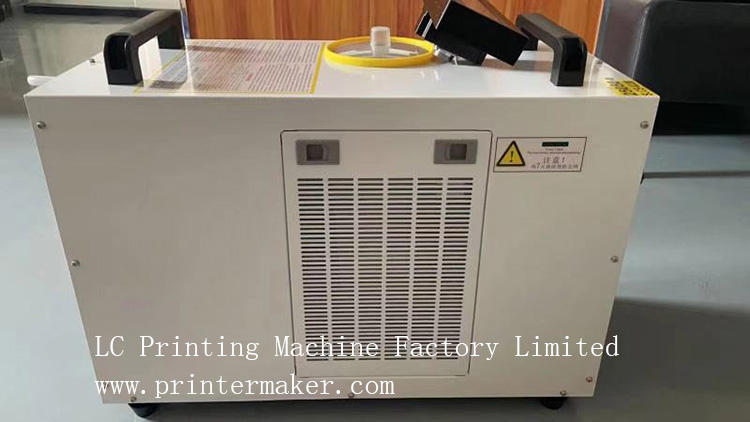

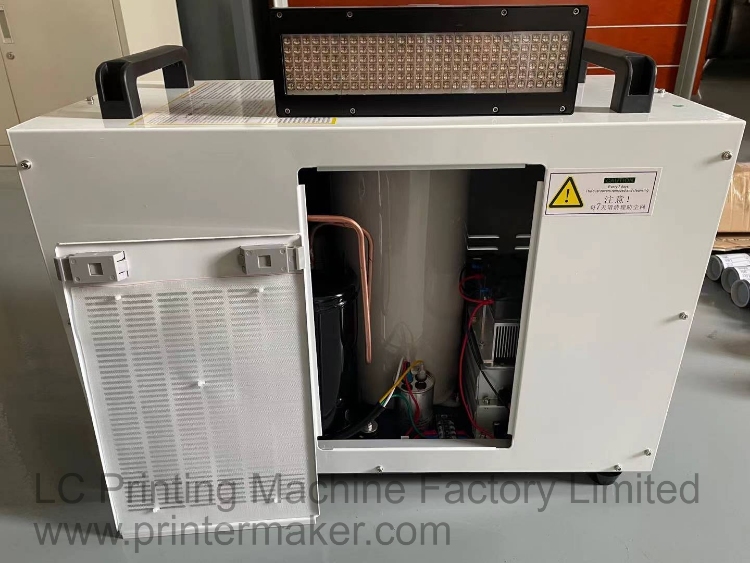

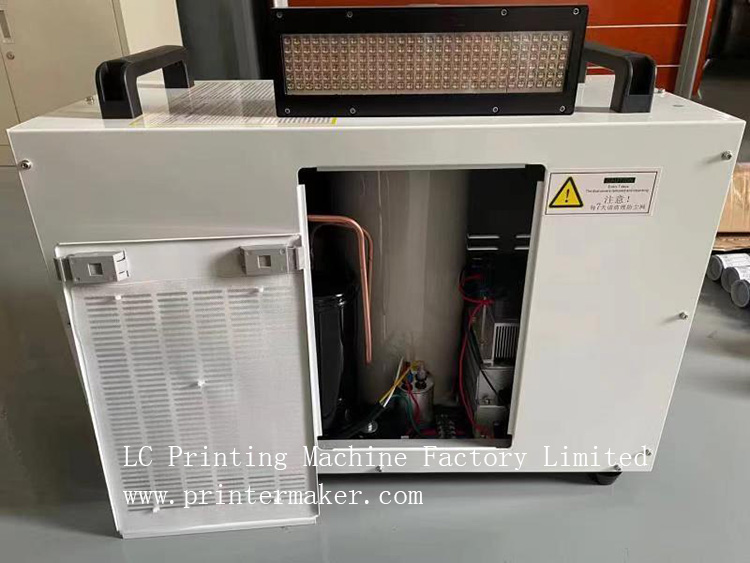

7 .Water Cooled Machine Power:520W

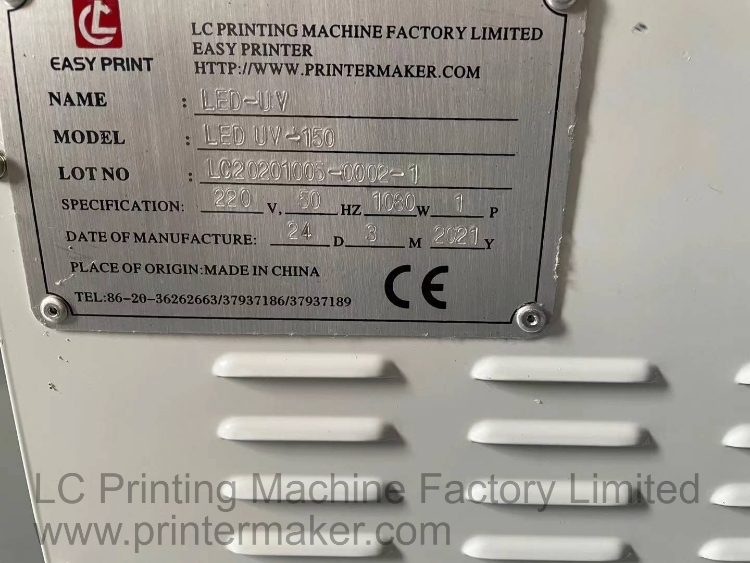

8. The Machine Voltage : 220V / 60 Hz ,Single phase
Advantages of LED Curing:
1: Drying is perfect cleaner,
Specification：
1. LED UV Lamp length : 100mm
2. Wavelength: 395nm or 385nm or 365nm
3. Irradiation power: 10w/cm2
4. Irradiation height: 2- 30mm
5. LED Chips brand :LG
6. Machine Power: 0-800W(Power can be adjustable)
7 .Water Cooled Machine Power:520W
8. The Machine Voltage : 220V / 60 Hz ,Single phase
Advantages of LED Curing:
1: Drying is perfect cleaner,
2: Much longer lamp lifespan for at least 2 years.
3: No require additional connections for ozone evacuation.

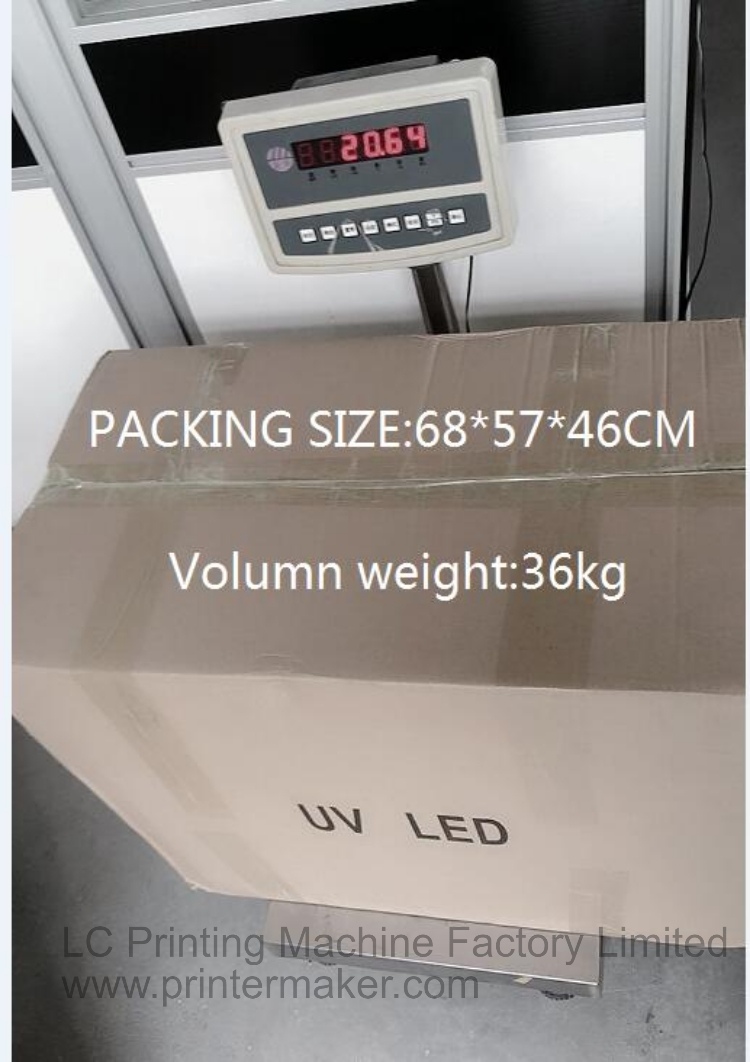

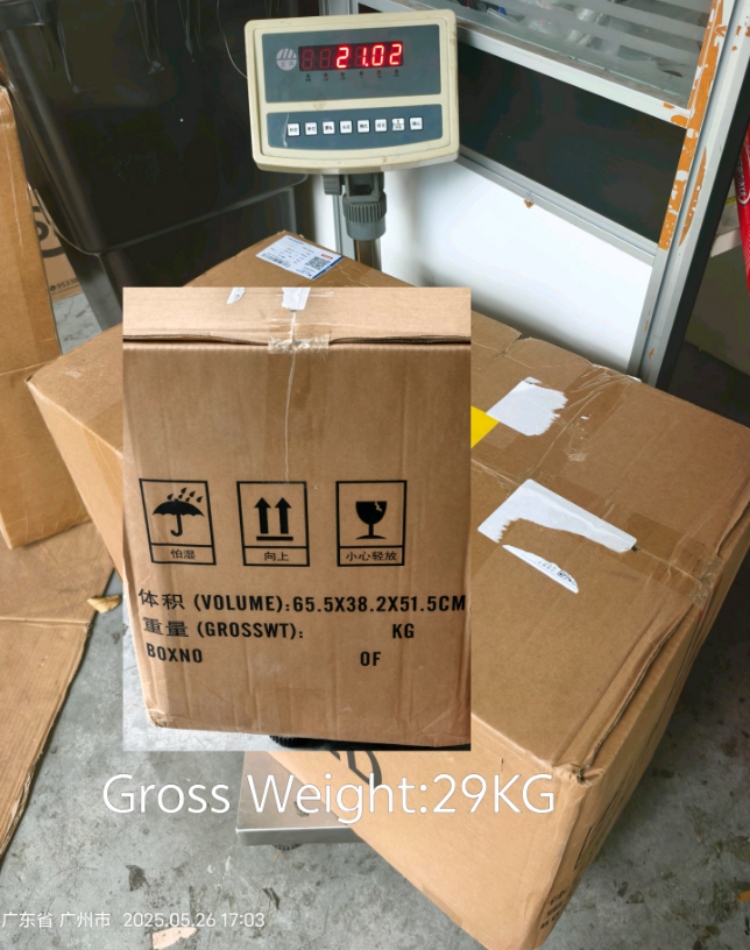

LED packaging size and weight
specifications
Package size
weight
100mm*50mm
65.5cm*38.2cm*51.5cm
18kg
150mm*50mm
65.5cm*38.2cm*51.5cm
20kg
200mm*50mm
68.5cm*52cm*61.5cm
40kg
250mm*50mm
72cm*52cm*61.5cm
52kg
