Technical Parameters:

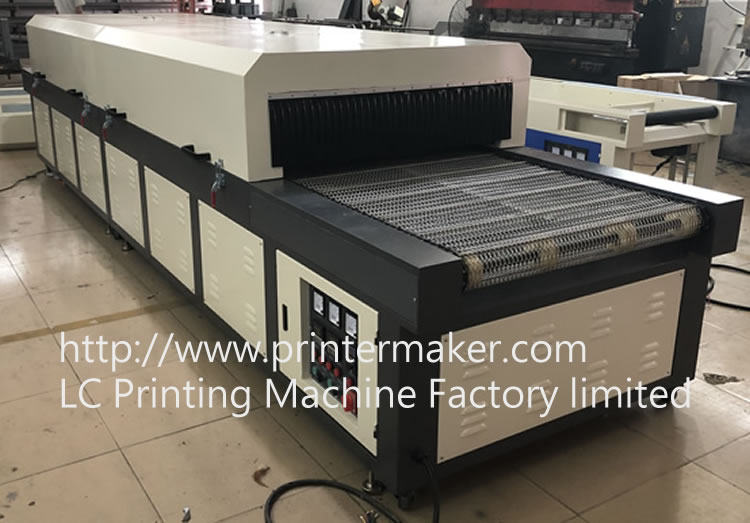

1:Model No:M-1000BO
2:Conveyer size: width: 1000mm; infeed length:500mm; outfeed length:1000mm, heating zone: 2000mm*2 zones; total length at 5.5 meters;Max.infeed height at 28CM
3:Total wattage:   2700W*3pcs*2heating zone=16.2KW
4:Circulating air motor ：750W*2=1500W
5:Conveyer motor wattage(invertor):500W;velocity rate:60RPM,every 70 seconds;
Max. speed at 9000mm per minute.
6:Heating temparature:     100-200 degree.
Heating Tube length:       900mm*12pcs;
Heating Tube power rate: 2700W--U Shape
7:Conveyer Speed adjustment: Stepless 0-8meters/minutes;
Stainless steel conveyor belt
8:Machine dimension:   1350mm*5500mm*1240mm(W*L*H)
9:Gross/Net weight:    1480KG/1590KG
10:Package:            Wooden case
11:Automatic Grade:    Manual
12:Warranty       :    2 years
13:Usage:              Round,Oval and flat plastic or glass bottles
14:packing size:       3110*1430*1400mm* 1 case
2610*1430*1400mm* 1 case
Totally two cases

Package: Export polywood case
