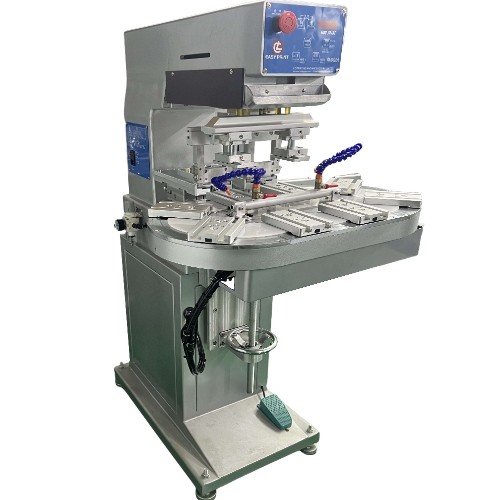

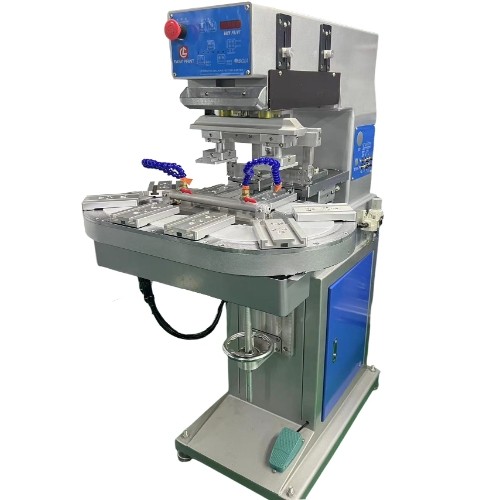

Two-color Ink Cup Pad Printer with conveyer
Two color pad printer with conveyer has 8 PCS printing position. It can print 8 PCS products and two colors at one cycle.1. Controlled by microprocessor, easy operation, running stably and accurately.
2. 4-digit auto counter built-in.
3. Cast aluminum machine frame, low weight and high intensity, turnable machine head.
4. Separate adjustment of the pad up/down stroke speed.
5. Ink scraper is auto balance keeping in printing.
6. With the function of ink scraping nonstop without printing in order to prevent the ink from drying. 7. Ink cup is turnable and adjustable in vertical and horizontal direction.
8. Super long slide stroke to print large size workpiece.
9. Speed of every single pneumatic organ is adjustabl
Specifications
1. Model No: EP2C-250T
2. Operation: Pneumatic
3. Printing Colors: 2
4. Max. Printing area: 80x165 mm
5. Plate area: 100*250*0.3mm
6. Closed ink cup diameter:90mm
7. Max printing speed: 1800PCS/H
8. Wattage: 220V/ 50Hz 110V/60Hz
9. Air pressure: 6 Bar
10. Machine size: 1000× 750× 1470mm
11. Machine Gross/Net weight: 280kg/210kg
12. Packing size: 1070*830*1600mm
Free Fitting:
1:Two PCS pad steel plate
2:Two PCS silicone rubber pad
3:One PCS jig
4:Tooling box
5:Englishi specifications
Price Terms --FOB or CFR
Payment Terms --T/T or LC
Packing --Wooden case
Standards Certificate--- CE
Main Parts FESTO CYLINDER (MADE BY GRMANY )
Application:
This machine is fitting on printing those metal, glass, ceramic, plastic, wood, leather and other materials which is relatively small flat or curved and irregular surfaces precision printing products such cell phone button, remove controller,golf ball, toys, pens, mouse, electronic products, handicrafts, heel, shoes sold, toy heads,lighters, car parts etc.
