Description:

Price：1500USD

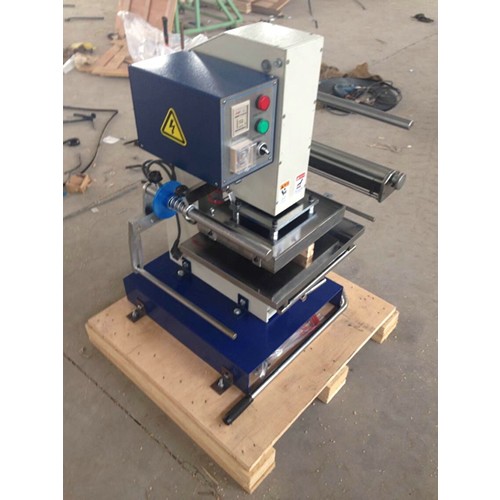

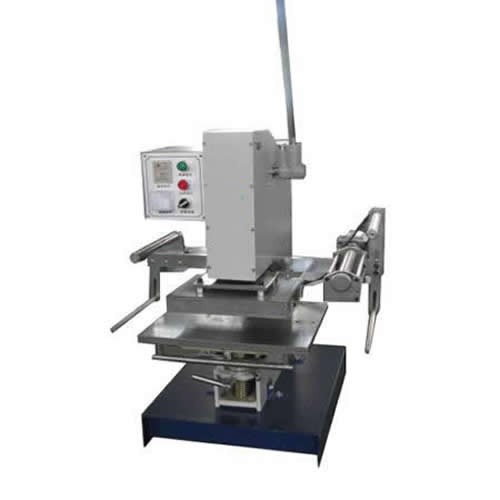

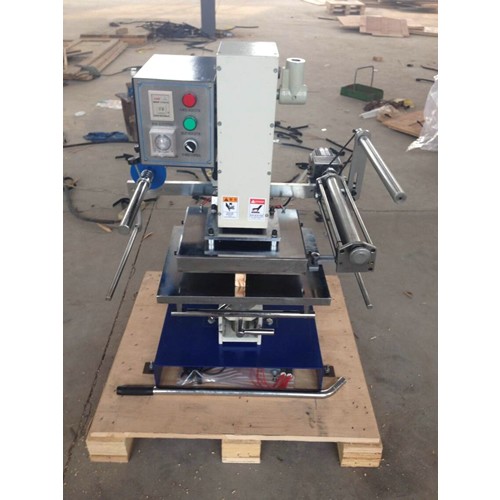

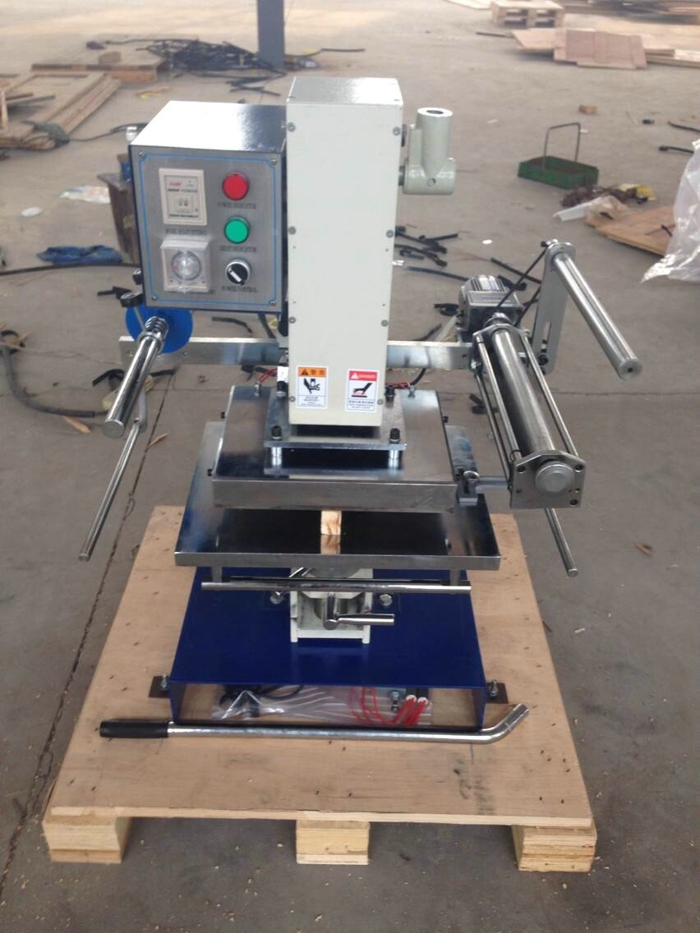

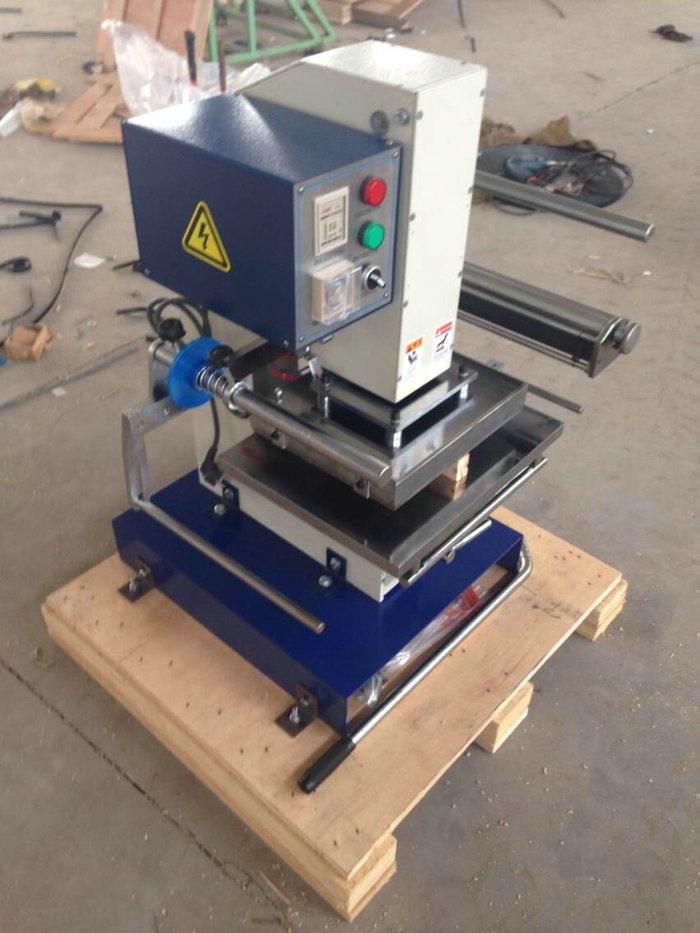

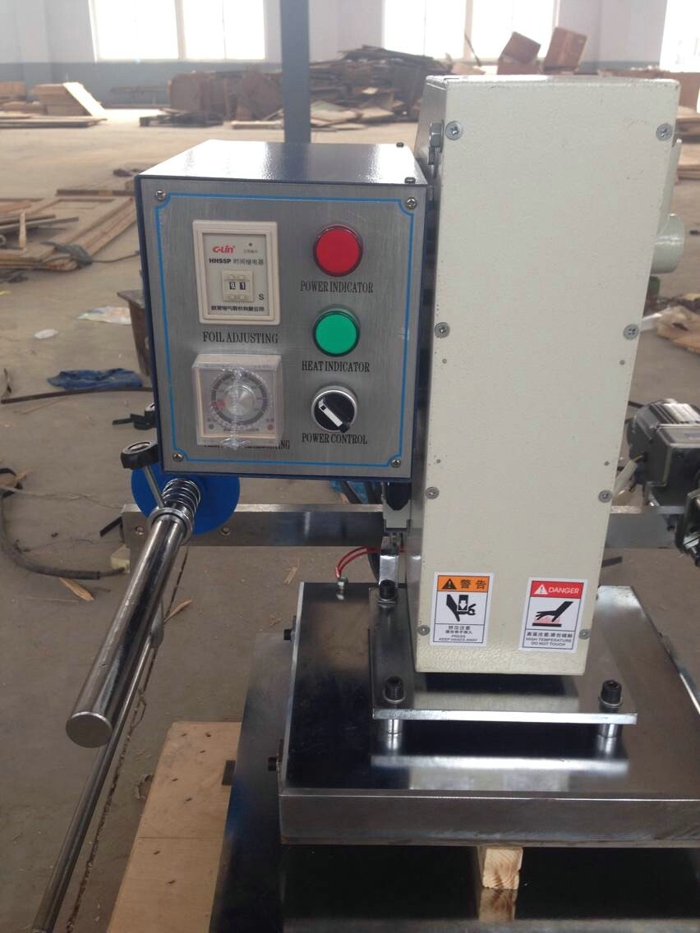

Large Pressure Hot Stamping Machine
Price Terms:FOB GuangZhou
Payment Terms:T/T LC
Packing:Wooden case
Lead Time:Within 5 days
Standards Certificate:ISO9001-2000
Power Supply:220V/110V/50HZ/60HZ-1 Phase
Colour Painted:White
Specifications:
HST-200
1.Size of Hot Plate:150×200 mm
2. Work Table Size:320 ×400 mm
3.Max. Pressure :4000Kg
4.Max. Head Stroke:40mm
5.Heater Capacity:1200 W
6. Foil Controller:motor Controller
7. Temperature adjustment :0-300oC
8. Net Weight:210 Kg
9. Dimension: 750 x 750 x 1150 mm

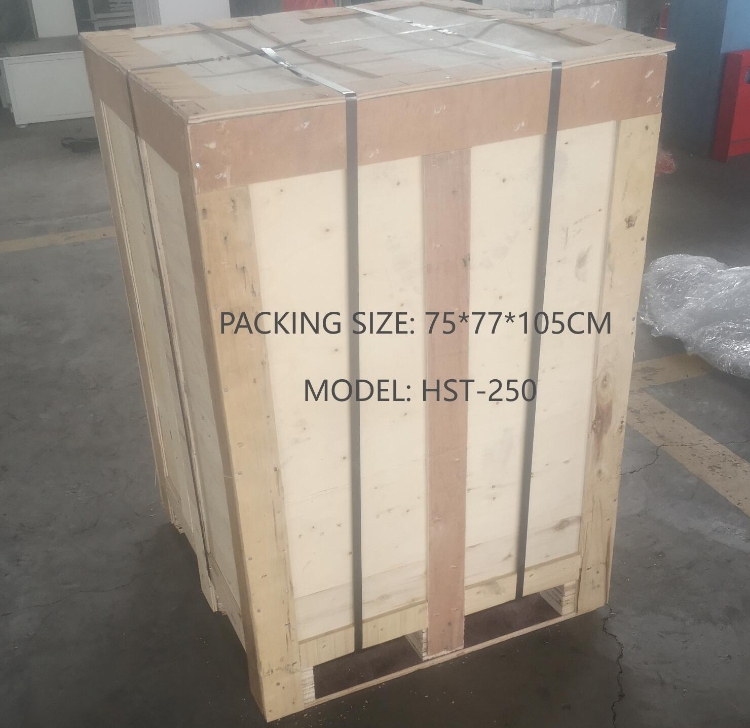

10.Packing Size:75*77*105CM

HST-250

1.Size of Hot Plate:300×250 mm
2. Work Table Size:320 ×400 mm
3.Max. Pressure:4000Kg
4.Max. Head Stroke:40mm
5.Heater Capacity: 1200 W
6. Foil Controller:motor Controller
7. Temperature adjustment:0-300oC
8. Net Weight:300Kg
9. Dimension: 750 x 750 x 1150 mm
HST-270
1.Size of Hot Plate:190×270 mm
2. Work Table Size:320 ×400 mm
3.Max. Pressure:4000Kg
4.Max. Head Stroke:40mm
5.Heater Capacity: 1200 W
6. Foil Controller:motor Controller
7. Temperature adjustment :0-300oC
8. Net Weight:260Kg
9. Dimension: 750 x 750 x 1150 mm
HST-290
1.Size of Hot Plate:210×290 mm
2. Work Table Size:320 ×400 mm
3.Max. Pressure:4000Kg
4.Max. Head Stroke:40mm
5.Heater Capacity:1200 W
6. Foil Controller:motor Controller
7. Temperature adjustment :0-300oC
8. Net Weight:225 Kg
9. Dimension:550 x 750 x 1150 mm
Advantages:
1.Minimum air consumption;
2.Capable of adjusting the stamping pressure, the temperature and the speed;
3.Worktable capable of slight adjustment to rear-and-front, left-and-right and rotation;
4.The height of the stamping head adjustable accordingly;

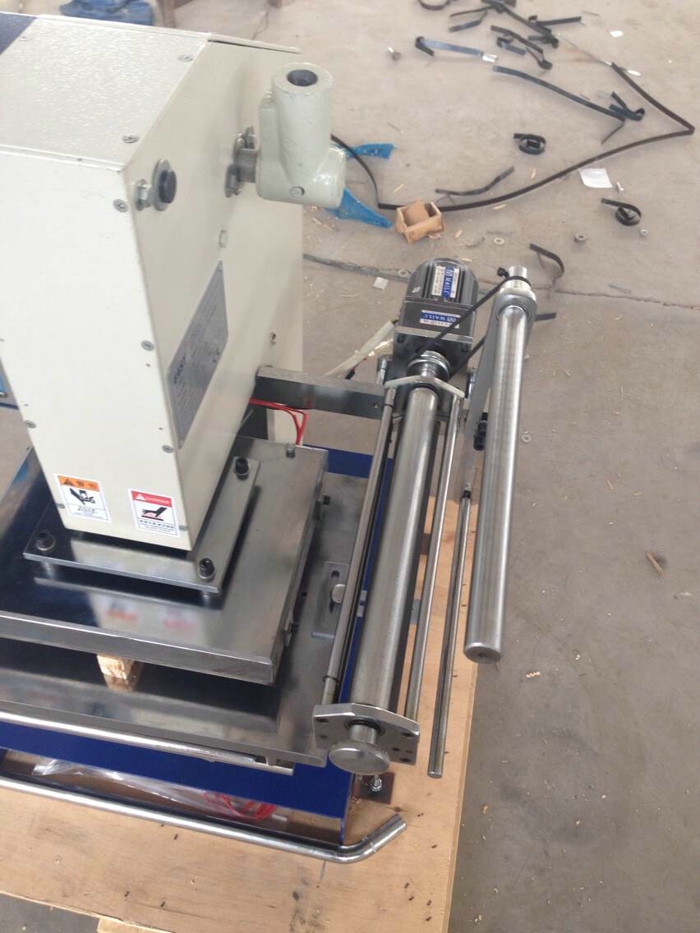

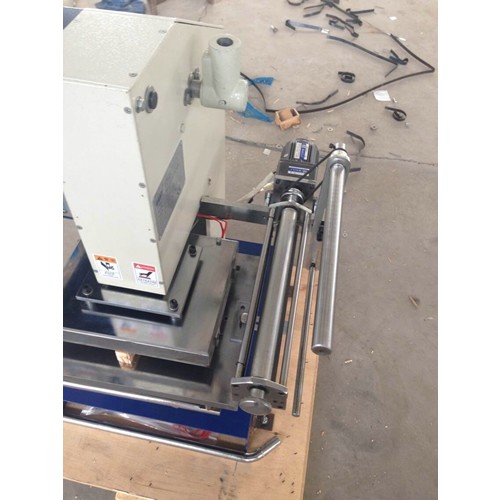

5.Automatic foil feeding and rolling with adjustable function;
Machine Fittings:
1. Silicon rubber Edition one pic;
2. High temperature Paper one inch；
3. Stamping foil one roller；
4. One set tool；
5. Spring 2 Pcs;
6. AC contactor 1 pc;
7. Rubber Ring 1 pc;
8. Thermocouple 1 pc;
9. Limit Switch 1 pc;
10. Heater tube 2 pcs.
Package List:
Package list: 750 x 750 x 1150 mm
Gross weight: 185kg.
Ship Date:
Ship on aboard within 5 days after TT
Any china city delivery within 10 days.
Wooden case package.
Testing:220V power supply;
Stamping foil suited for objects;
Flat or edition stamping plate;

Fixture for objects to be stamped.
