Description:

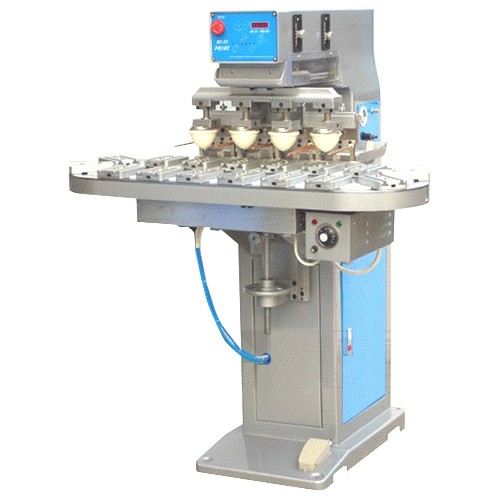

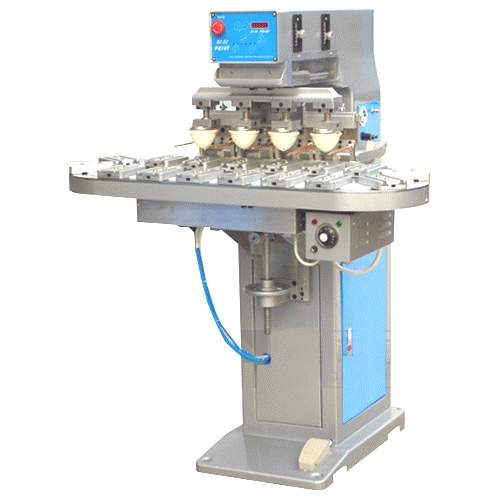

Economical 4 Color Pad Printing Machine with Conveyer
This Pad Printer is fited pad printing plastic products, same as toyes, gift products, pen, PE products, golf ball package products, bos, , hosehold, stationery, pen, ball, electron products, mobile phone, bottle. Metals products, furniture fittings.

Specifications:
1. Model No: EP4C-150
2. Operation: Pneumatic
3. Printing Colors: 4
4. Max Plate area: 100*150mm
5. Max printing area: 80*130mm
5. Printing position: 14
6. Max printing speed: 1400PCS/H
7. Wattage: 220V/ 50Hz
8. Air pressure: 6 Bar
9. Machine size: 105*110*135cm
10. Machine weight: 200kg
Free match :
4 pcs steel pad plates.
4 pcs rubber pad

English operating instruction

Function

1. Controlled by microprocessor, easy operation, running stably and accurately.
2. 4-digit auto counter built-in.
3. Cast aluminum machine frame, low weight and high intensity, turnable machine head.
4. Separate adjustment of the pad up/down stroke speed.
5. ink scraper is auto balance keeping in printing.
6. With the function of ink scraping nonstop without printing in order to prevent ink from drying.
7. Ink cup is turnable and adjustable in vertical and horizontal direction.
8. Super long slide stroke to print large size workpiece.
9. Speed of every single pneumatic organ is adjustable.

Price Terms:FOB GuangZhou
Packing:Wooden Case
Standards Certificate︰ CE
Application area:toies, pens, Cosmetics package box, hardware Parts.
Main Parts:Airtac MADE BY TAIWAN

H.S.Code:84439000
