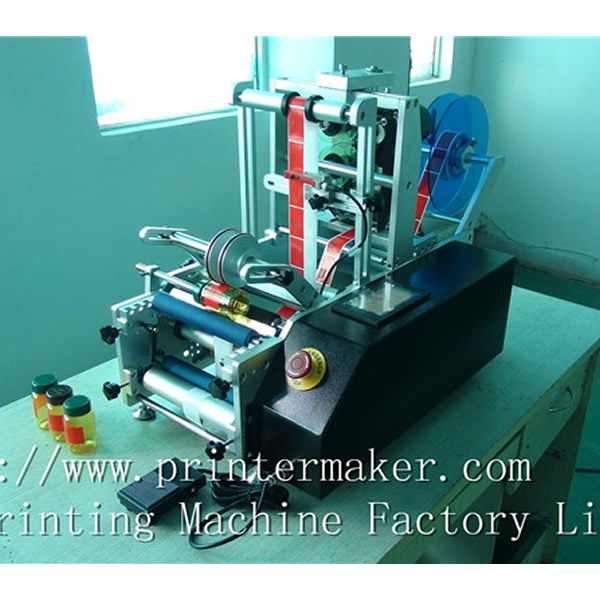

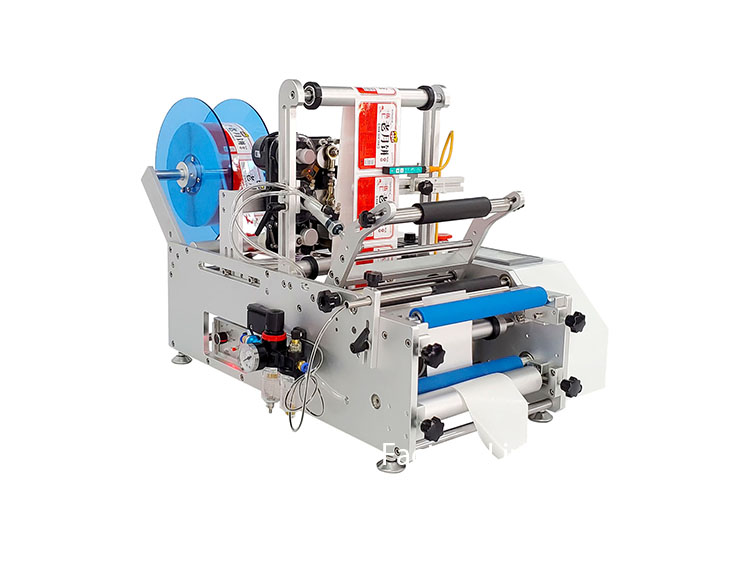

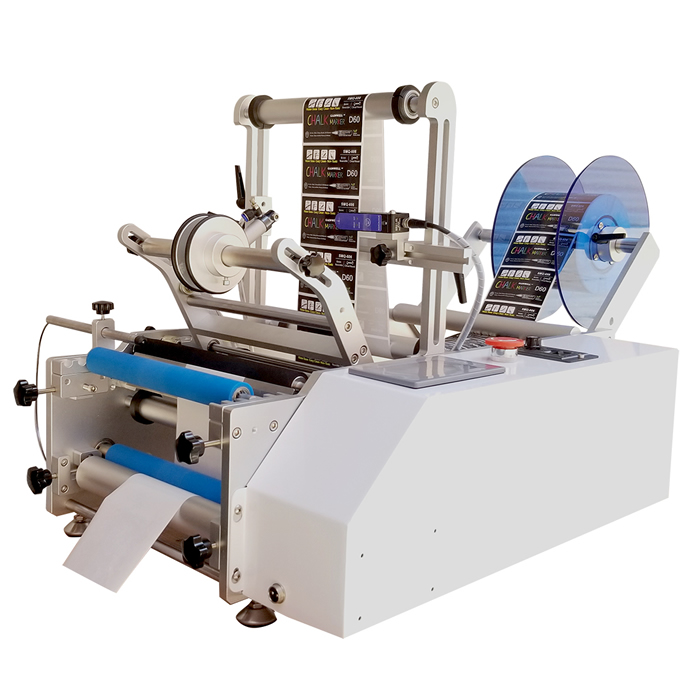

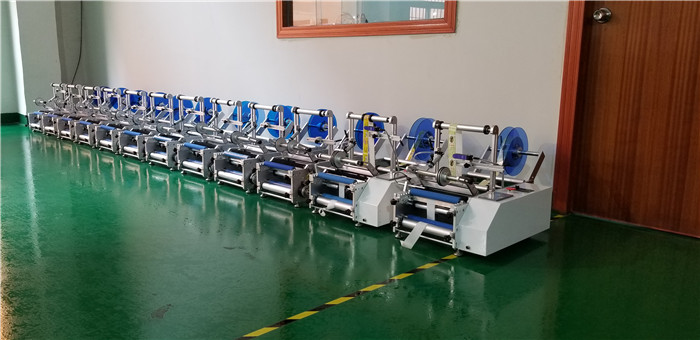

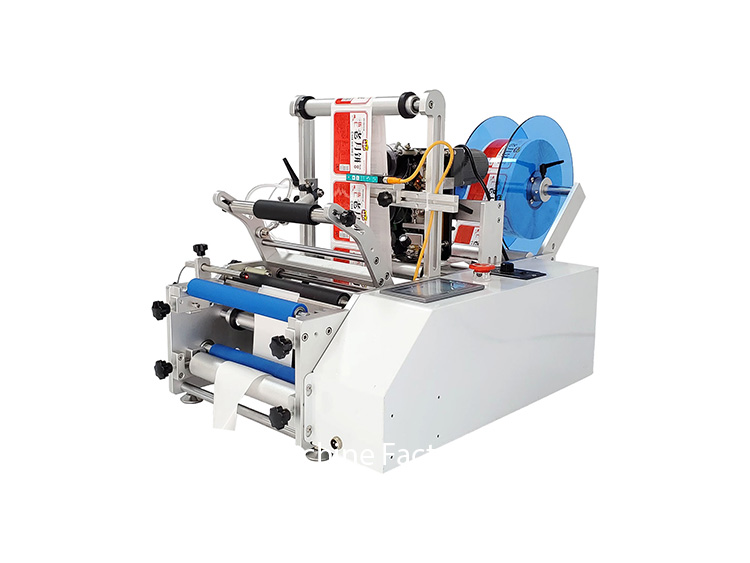

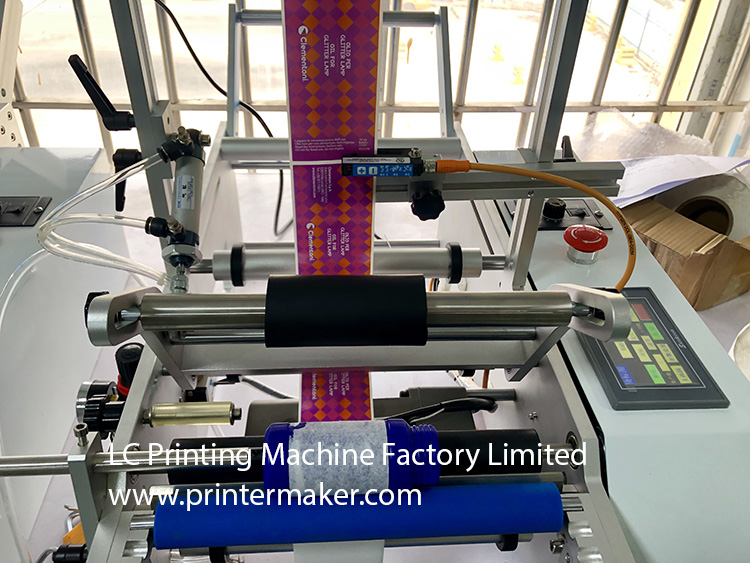

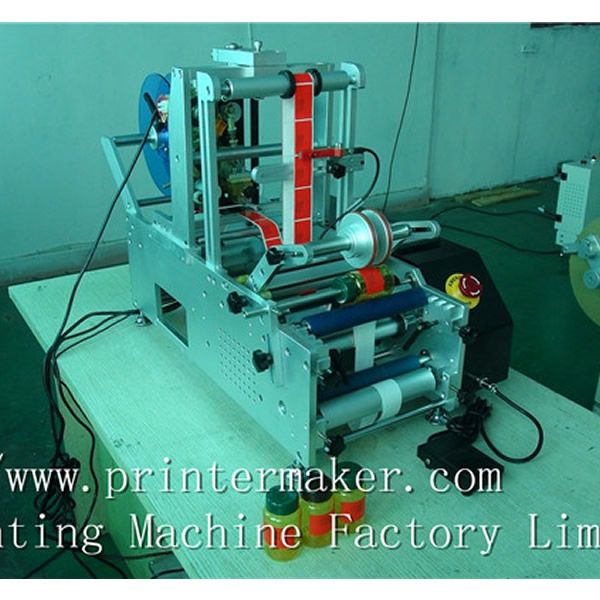

Glass Wine Bottles Labeling Machine
Feature
1.High accuracy and high speed, dispensing & labeling automatically printing date on the bottle at the same time
2.Suitable for labeling round bottle in different sizes.
3.Composed by main body, sending paper, receiving paper, bottle orientation etc parts.

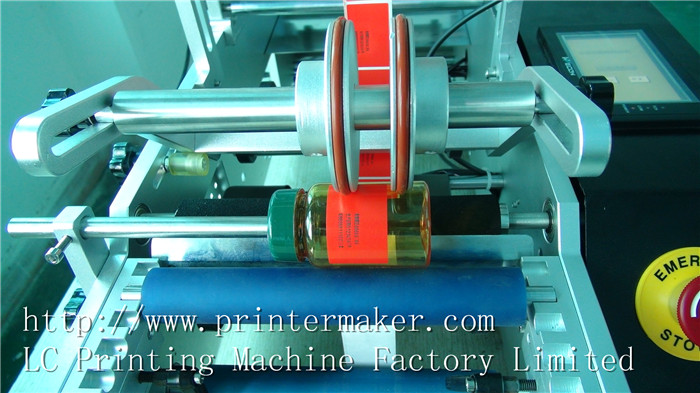

4.Putting the bottle to orientation part by manual and fix the bottle;
5.all metal are made of 304 stainless steel with surface finishing and special treatment, which we can guarantee you very good quality
6.Small size labeling machine, very easy to operate
Specification
1.Label width: 10-180mm
2.Label length:15-380mm
3.Products Diameter: φ15mm-φ160mm
4.Products Heigth: 20mm -300mm
5.Max Outside diameter of label roll: φ240mm
6.Inside diameter of label roll: φ76mm
7.Max Labeling speed:10 m/min
8.Accuracy of labeling:±0.5mm

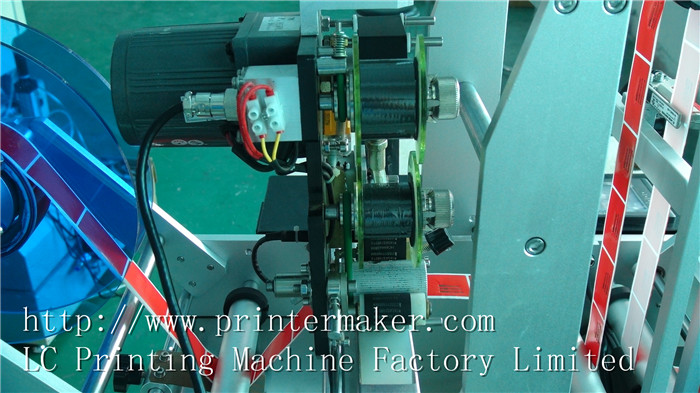

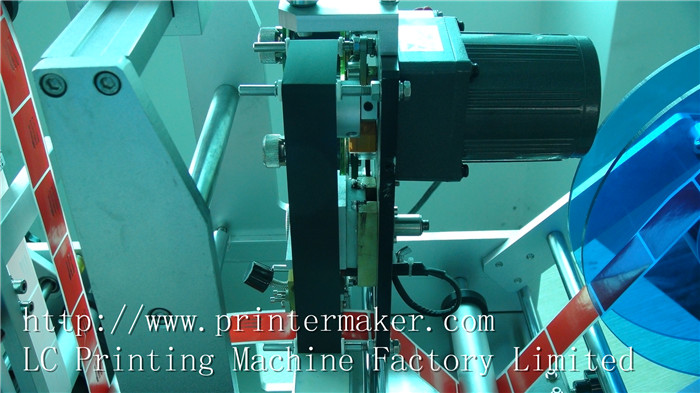

9. Coding Machine max line : 5 line , 16 words / link ( including 48 word dies )
10.Power: 220V 50Hz 300W
11.Machine Dimension: 920mm x 420mm x 500 mm
12. Machine Net Weihgt : 45 KG Gross weight : 75KG
13: Packing size:85*66*77cm;
Warranty

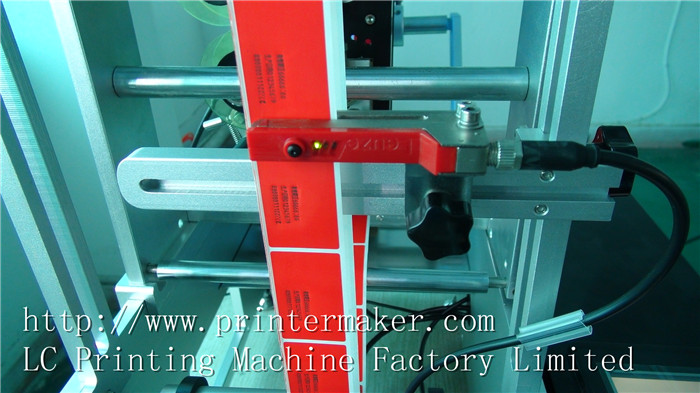

1.PLC, Motor ,Cylinder & Electric Eye can be changed for free within 1year,freight collect.
2.Other parts can be changed for free within 2years,freight collect.

3.Warranty period:3years
