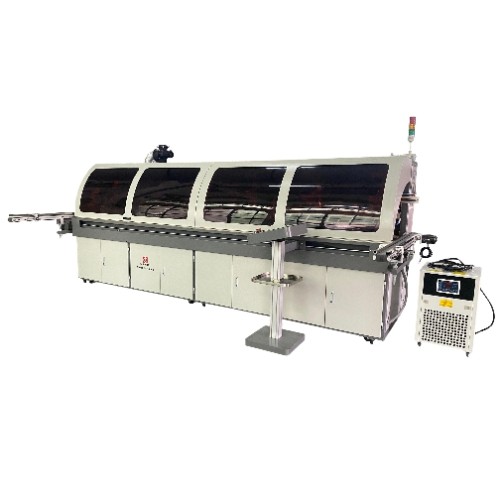

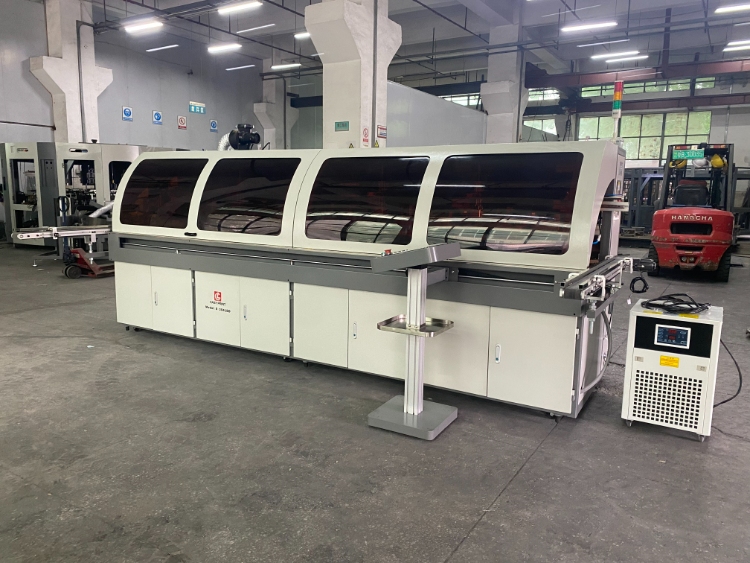

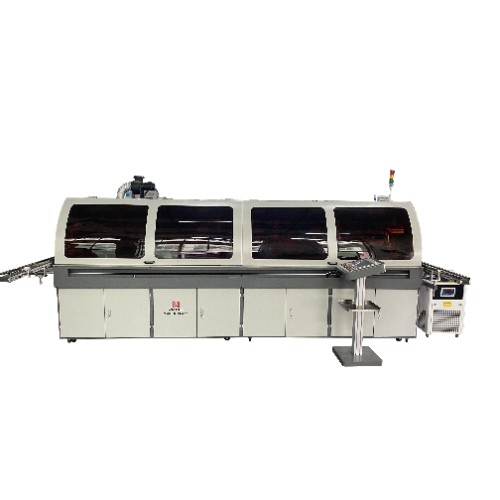

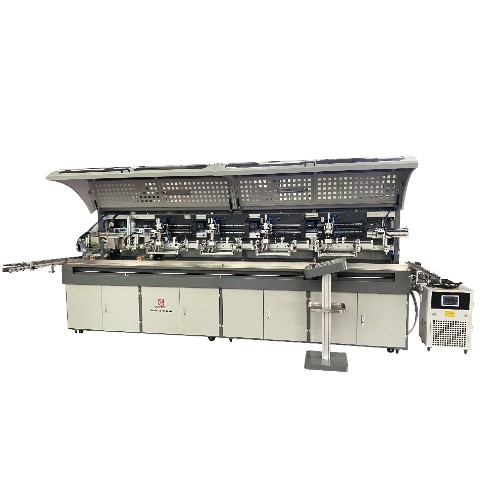

Glass Bottle Automatic Screen Printer with LED UV Cure

Short Description:

Glass Bottle Automatic Screen Printer with LED UV Cure...

Product Details

Product Tags

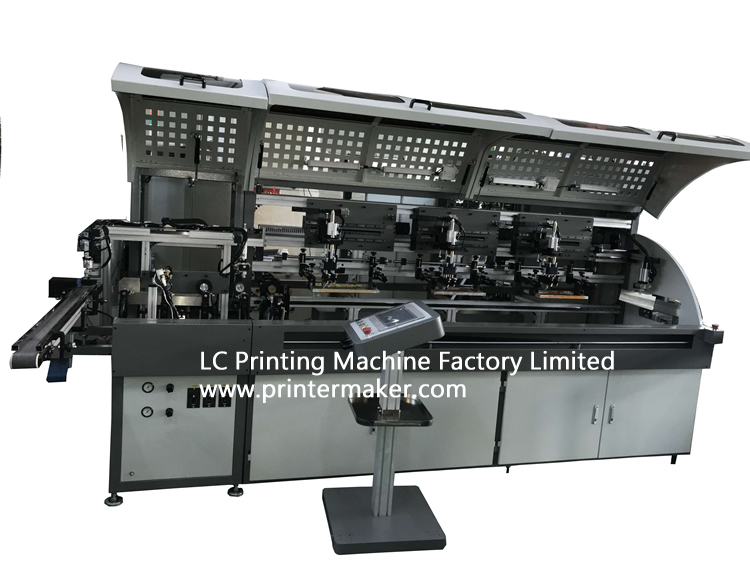

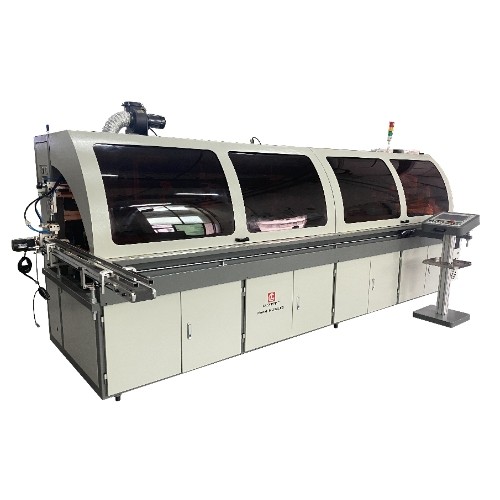

4 Colors Glass Bottle Automatic LED Silkscreen Printer
Model Number: S-303LED
Description:

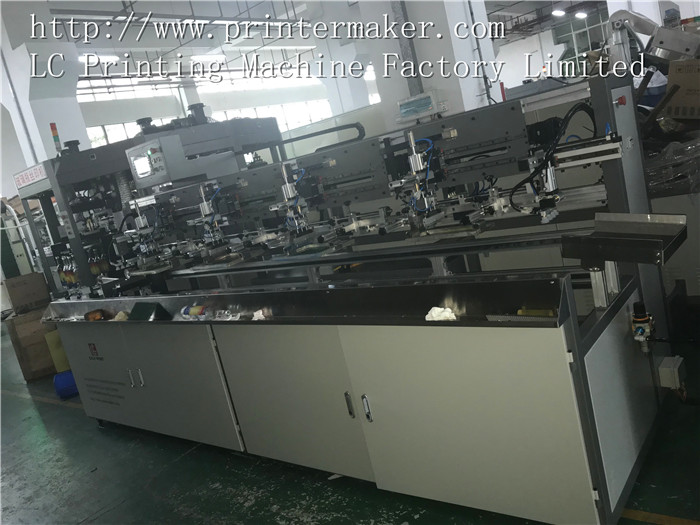

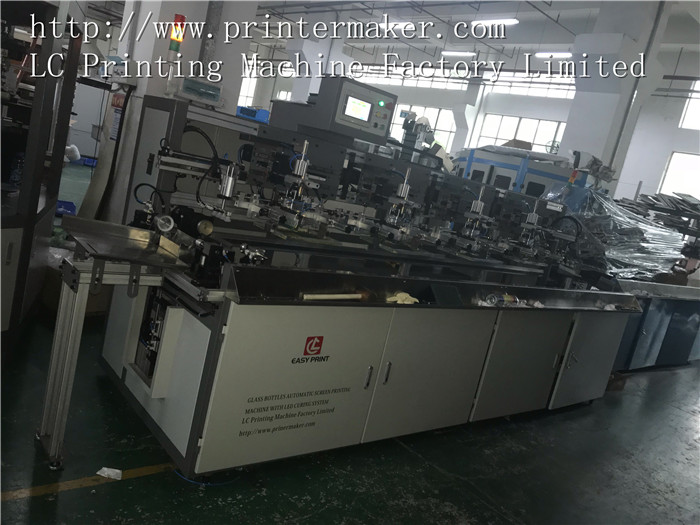

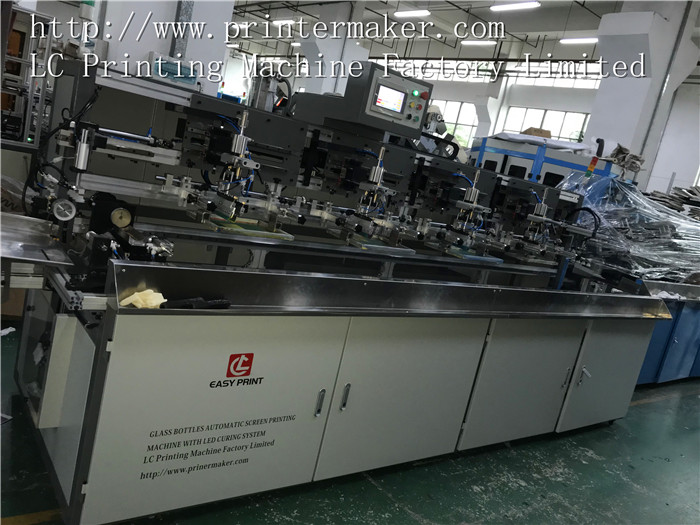

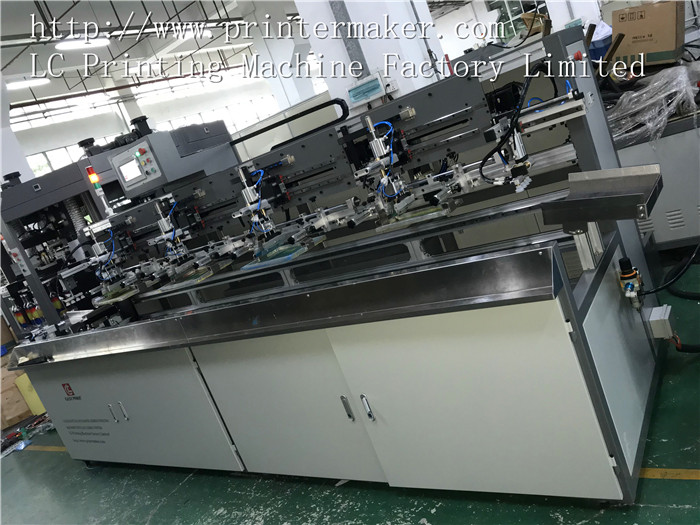

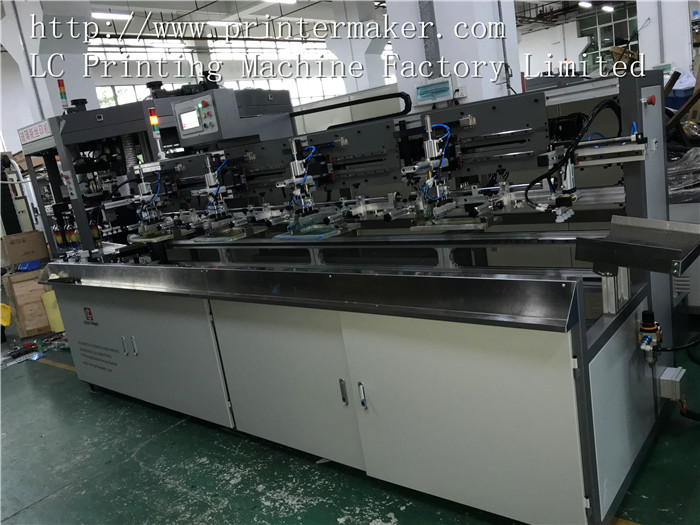

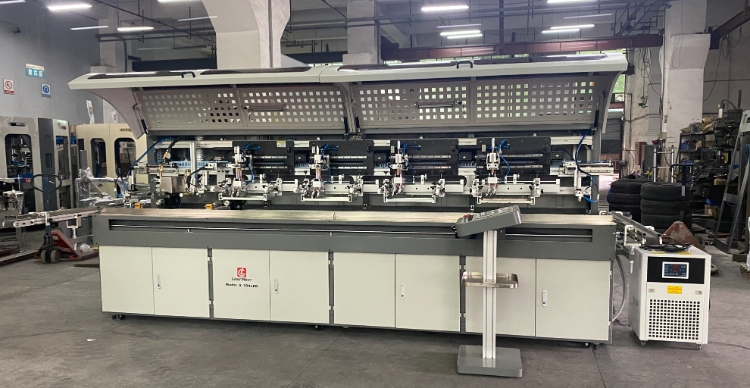

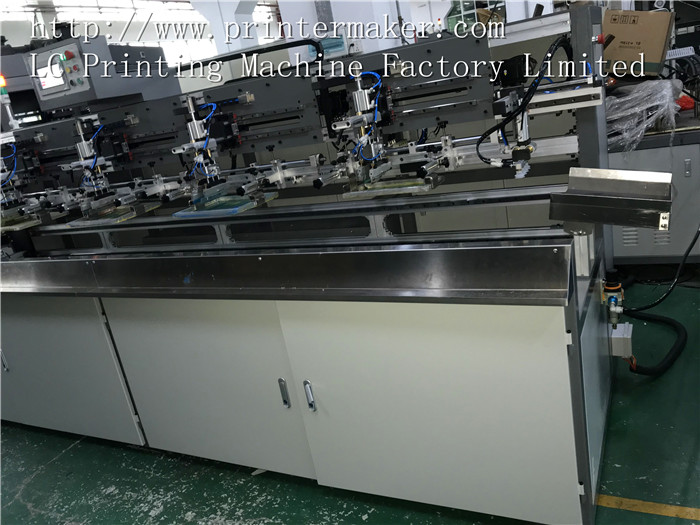

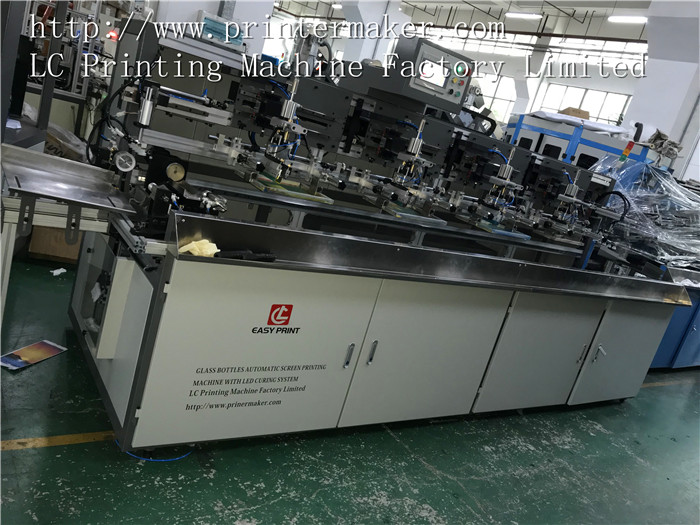

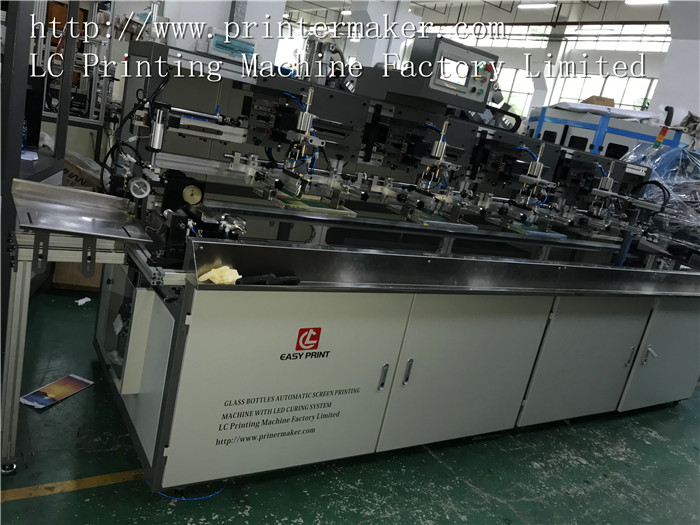

4 Colors Glass Bottles Automatic Screen Printing Machine with LED Curing System
Technical Parameters:
1. Product Outlook: Cylindrical
2. Printing Size: Max Dia.100mm
3. Printing Length: Max. Length:300mm
4. Working Capacity: 900pcs/hour
5. Frame Heating Power rate: 3.2W (optional for thermoplastic ink)
6. Power Supply: 220V 1-phase 50Hz

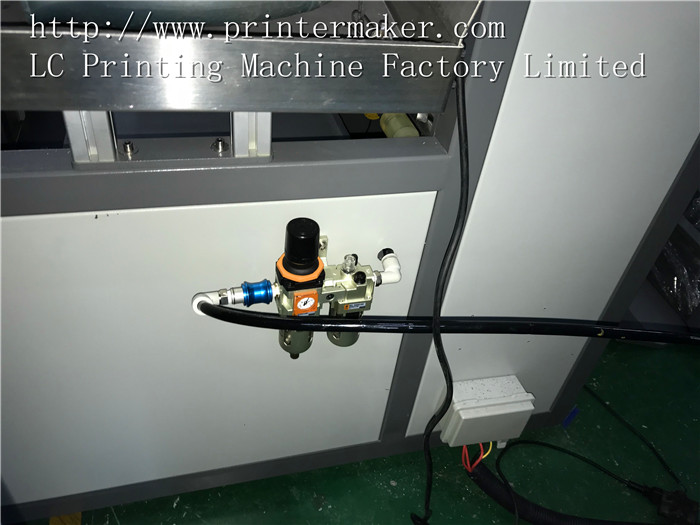

7. Air Compressor: 5-7 Bar
8: Total Power Rate: 2.8KW
10: Machine Dimension:2300 × 1000 × 1700mm

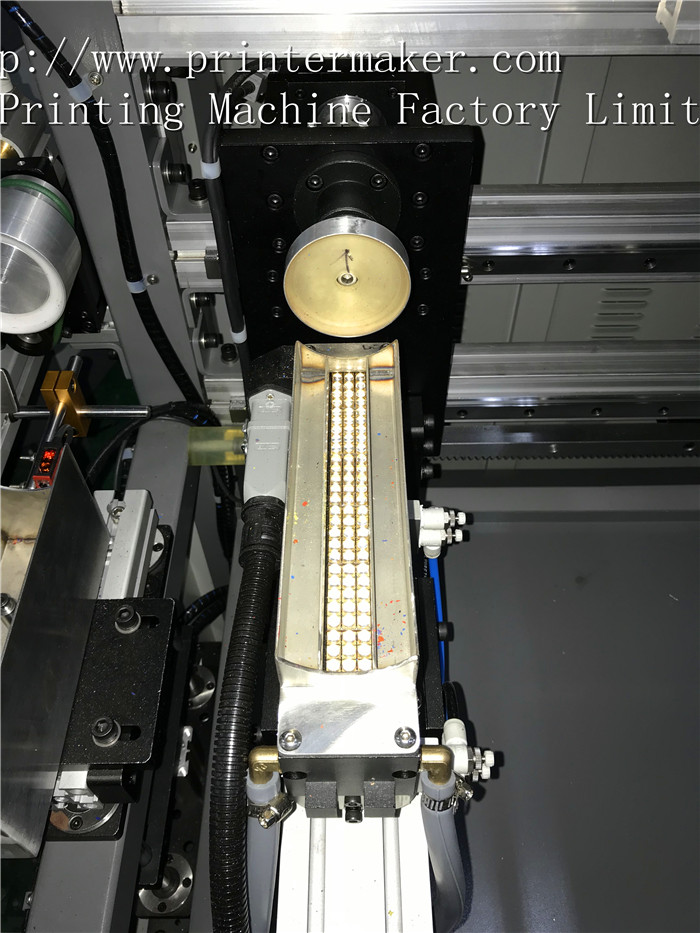

11. LED LAMP:2W/PC 8W/M2 wavelength:395nm
12: Net Weight:1500KG
13:Gross Weight:2000KG

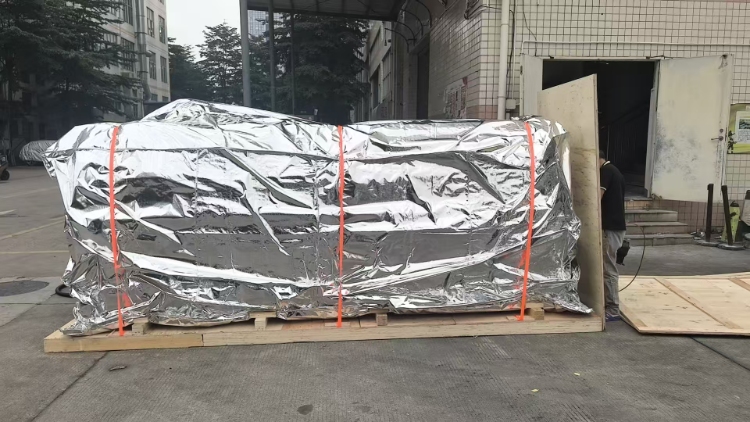

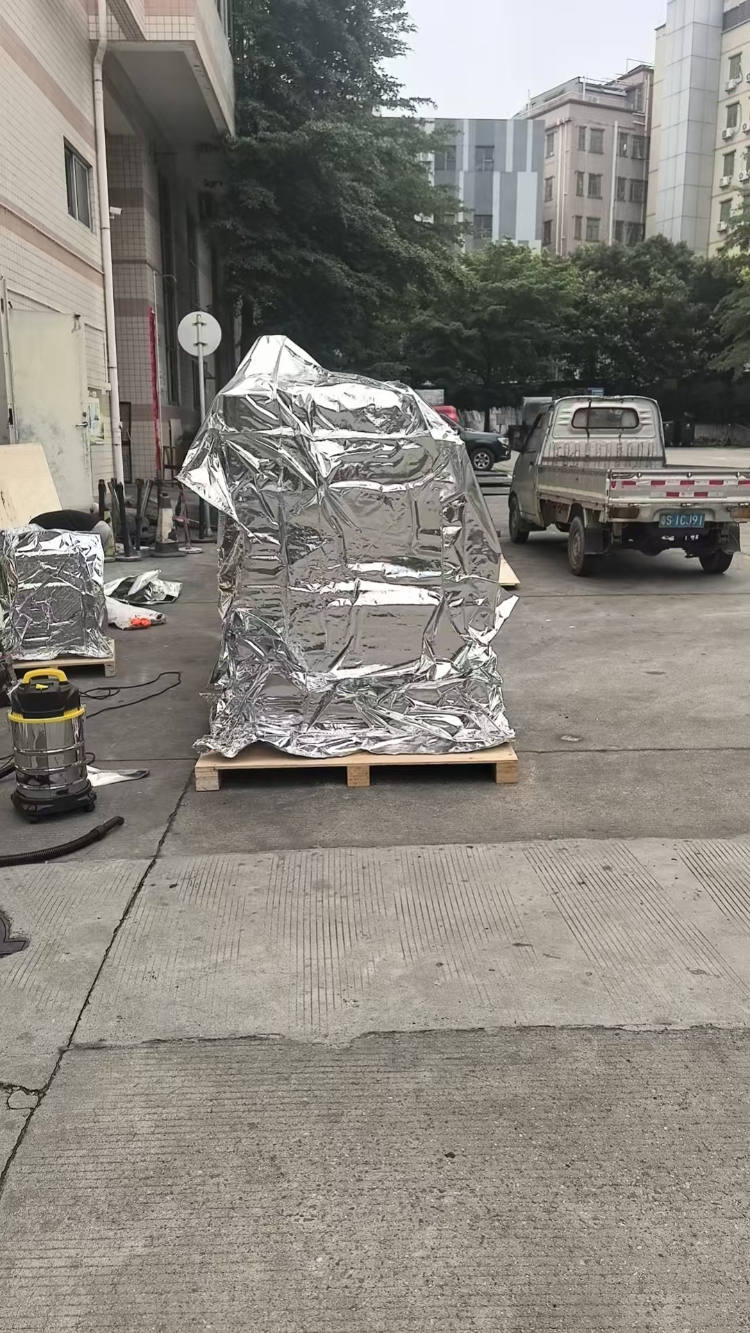

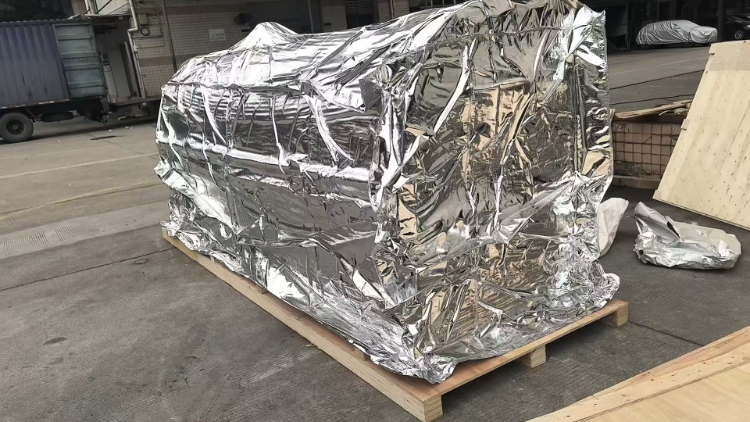

14:Packing Size:
Main Machine ：368*140*195cm

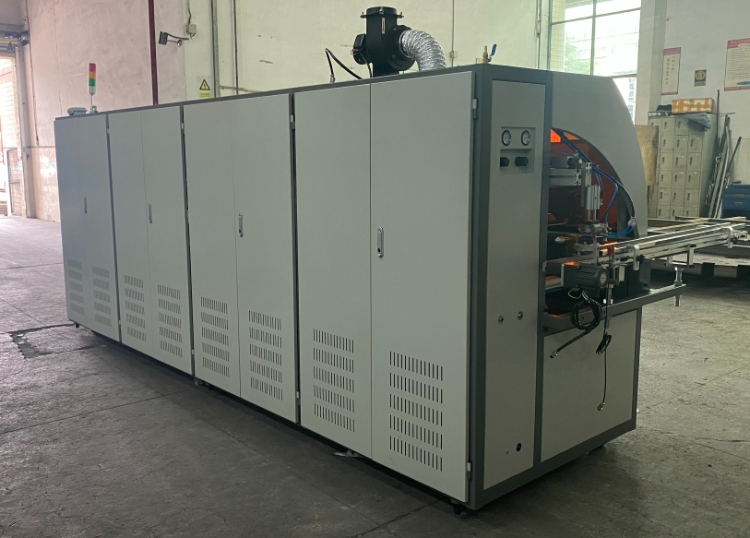

Flaming station ：140*90*185cm
Uploading belt+ Controller：180*65*127cm

Advantages:
1.Aluminium alloy structure frame;

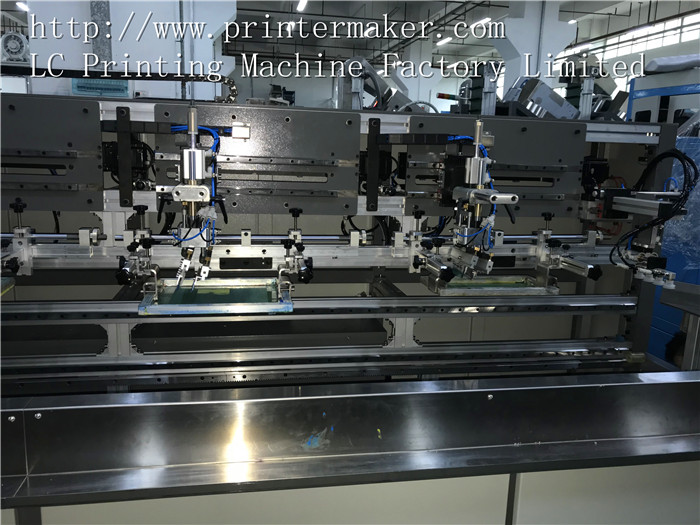

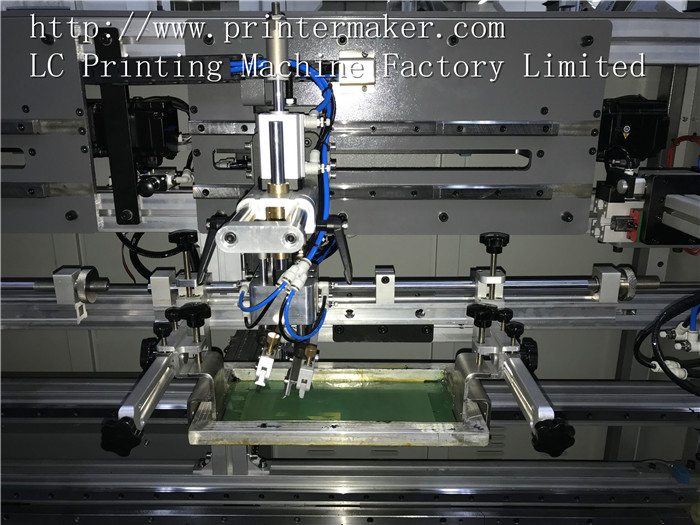

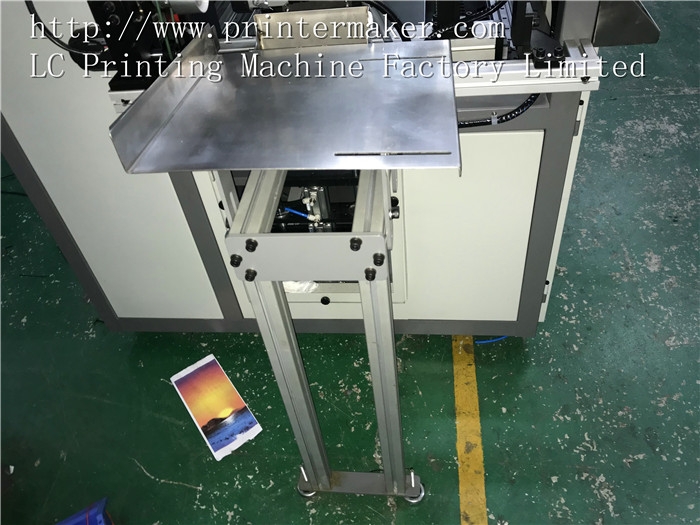

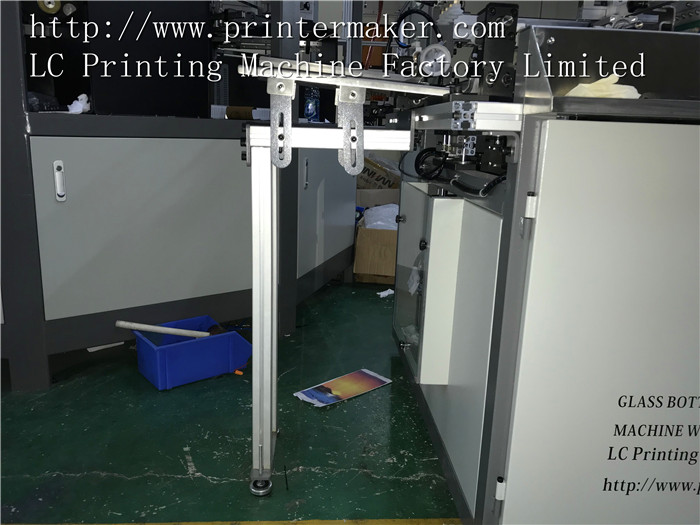

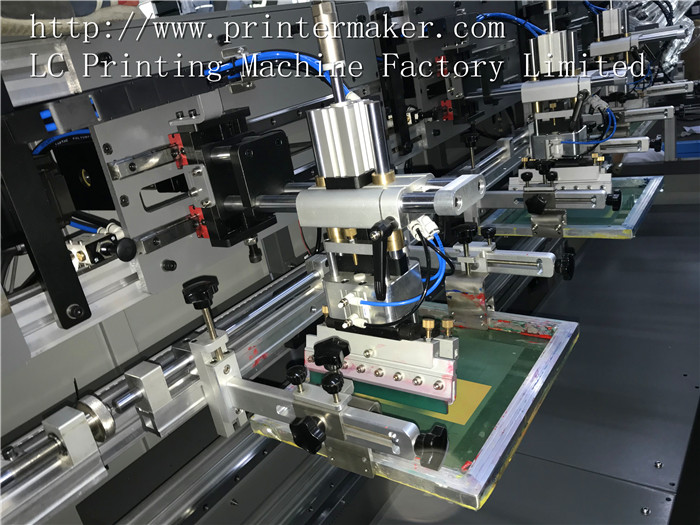

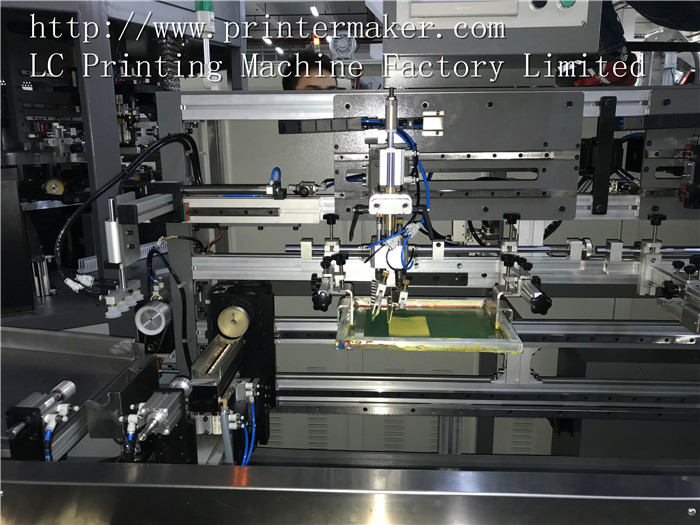

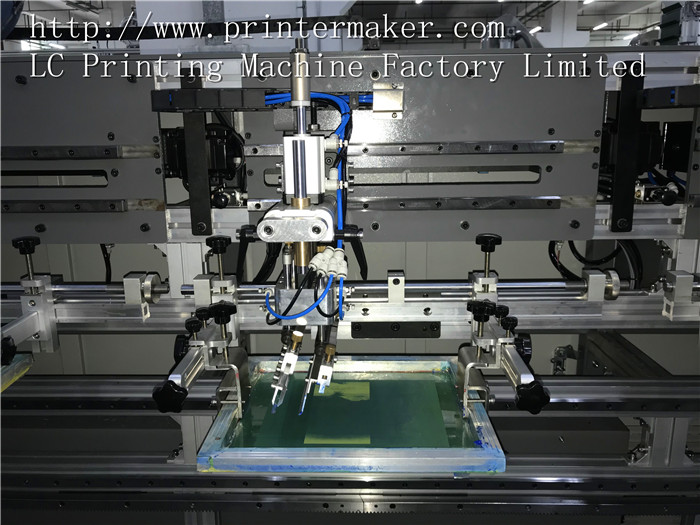

2.Uploading conveyor belt, Automatic feeding, transportation, Fire flaming treatment, screen printing, LED curing system;
3. One-time loading objects and multi-color overprint. fit printing objects without orientation point and hole;

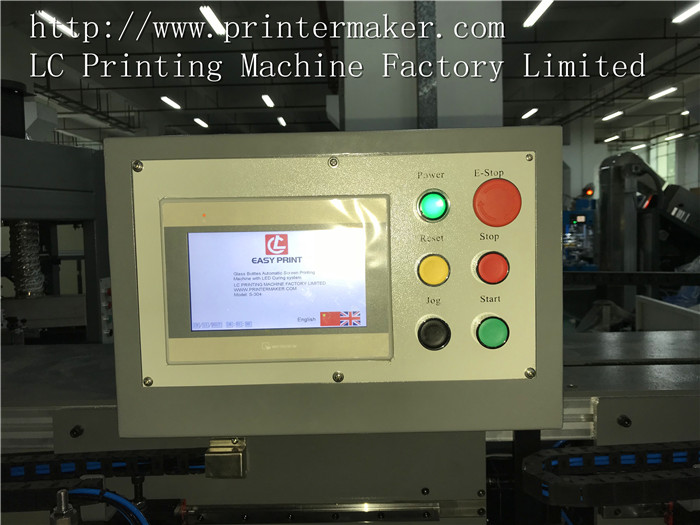

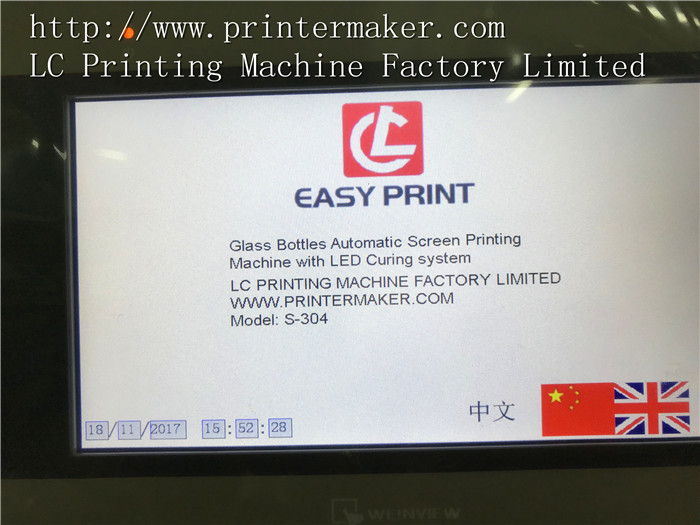

4.PLC controlling and touch-screen operation technology; In both English and Chinese version on the touch screen control.
5.World famous brand pneumatic part and electron parts;
6.High printing efficiency and high printing precision;

Application:

4 colors automatic LED silk screen printing machine is the new upgraded machine which is for used for wine bottles, drinking bottles,
glass bottles, tumblers, mugs, plastic bottles, sports bottles with LED ink printing.
It is featured by fitting for multi colors printing on
all those round cylindrical bottles and free of the registration mark.
It is widely used in the wine bottles industry, alcohol bottles
industrial, cosmetic industry and so on.
