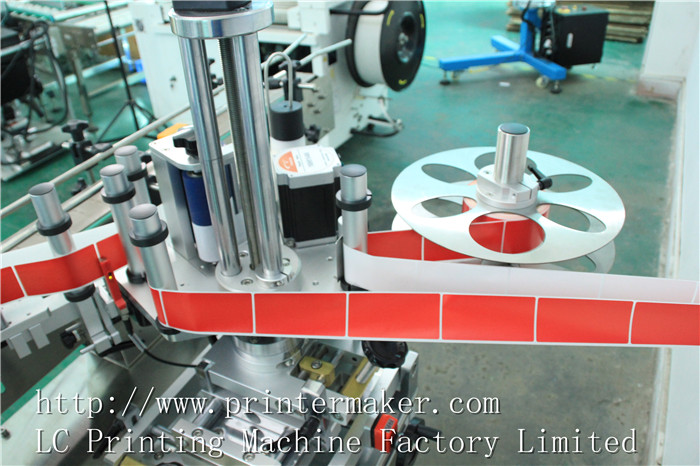

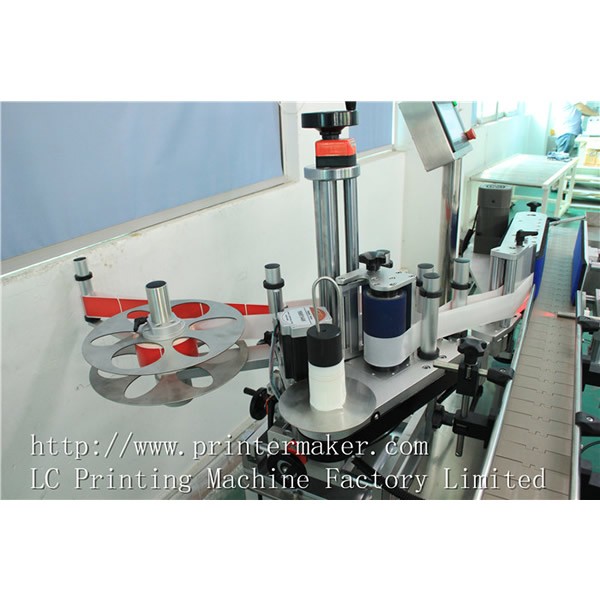

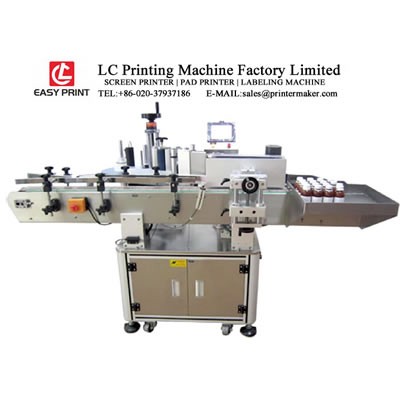

Vertical type Automatic Labeling Machine
It adopt vertical type transmission , vertical type labelling , more stable ,more precise and improve working efficiency.
It's applied to label the self-adhesive label on various largesize cylinder products, as wine bottle , zip-top can , abluent etc.
This machine is widely used in electrical , pharmacy, foodstuff, beverage, cosmetic and chemical etc industries.
It can be modified to double label , label two labels once time,more advanced , more high working efficiency , save more time and cost .
Feature

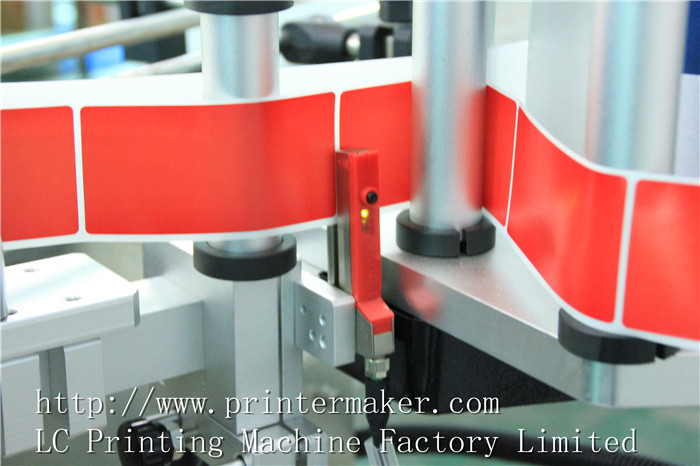

1.Adopt High stability German LEUZE labeling system, Panasonic PLC , Panasonic Signal transmission system.
operation is stable and high-speed

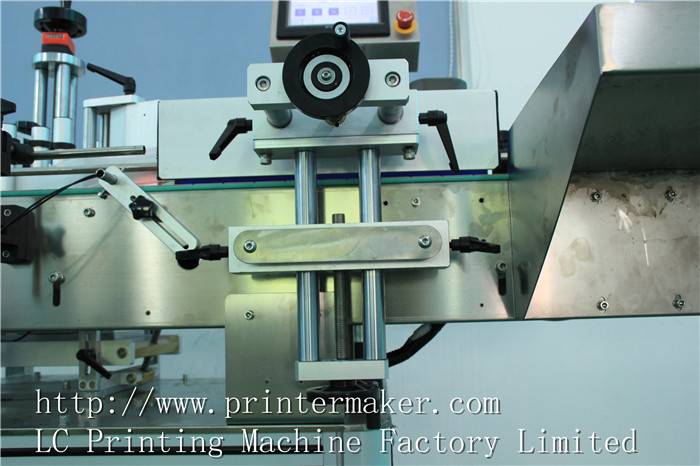

2.Using touch-screen control operating system, simple, practical, efficient;
3.Adapt variety shape of object in top labeling;

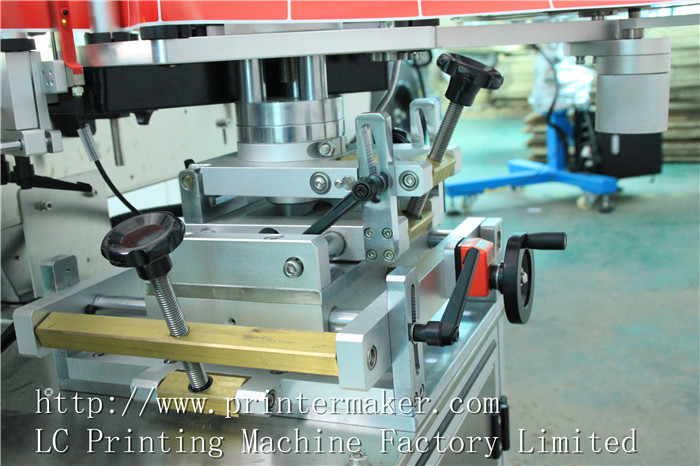

4.Screw adjustment to suppress body movements accurately;
5.Synchronization chain mechanism ensure labeling smooth and precise calibration;
6.Advanced technology of pneumatic coding system, print the batch number and expiry clearly.

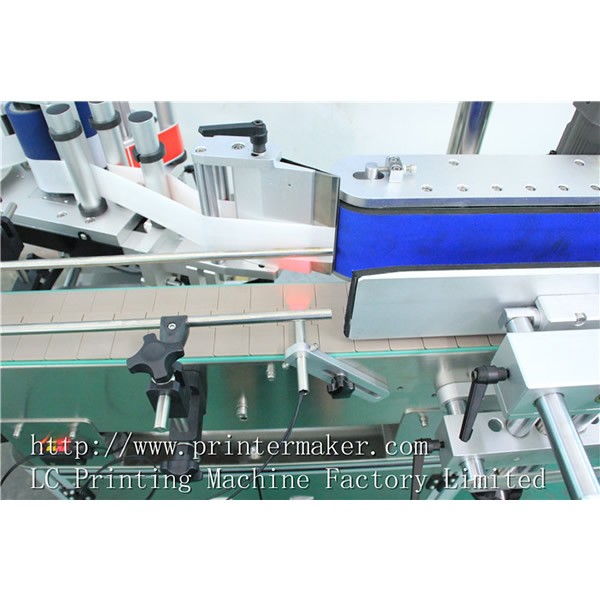

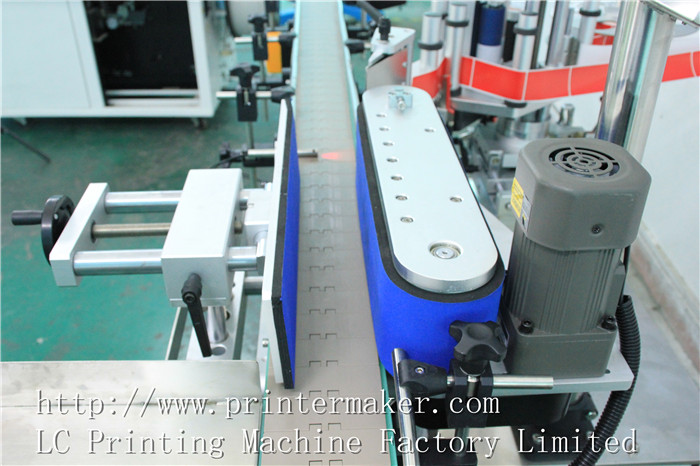

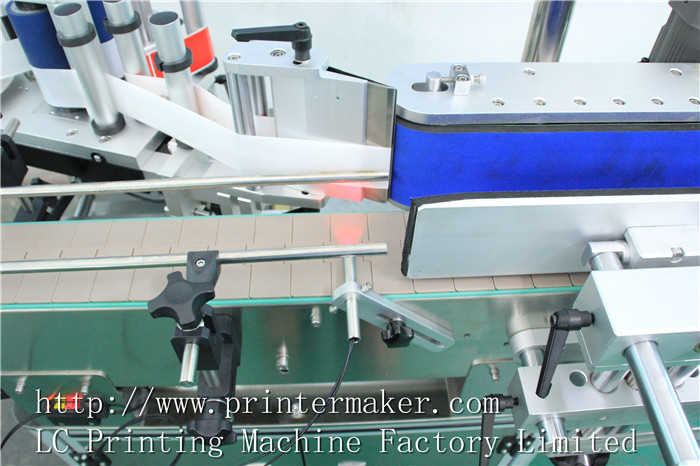

7.Transmission-type rolling bottles, make sure the labels attached more firmly;
8.Labeling transparent label without bubble and wrinkle;
Specification
1.Label width: 15-100mm
2.Label length:20-314mm
3.Products Size:
Diameter: φ25mm-100mm
Height: 25mm-230mm

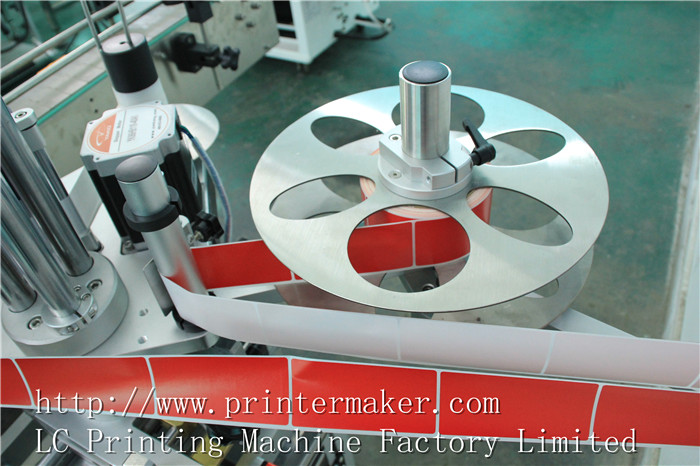

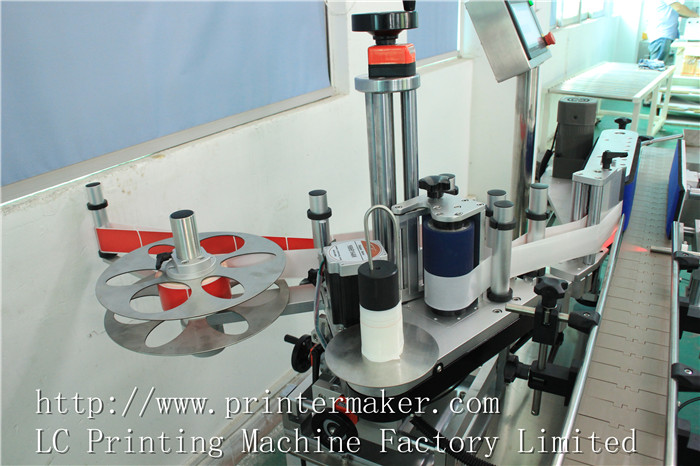

4.Max Outside diameter of label roll: φ280mm
5.Inside diameter of label roll: φ76mm
6.Max Labeling speed: 120pcs /min
7.Accuracy of labeling:±1mm
8.Power: 220V/110V 50/60Hz 980W
9.Machine Net Weihgt : 180KG ,  Gross Weight:300KG
10.Machine Dimension: 1950mm x 1100mm x 1300 mm

11.Pack Size:215*115*155CM
