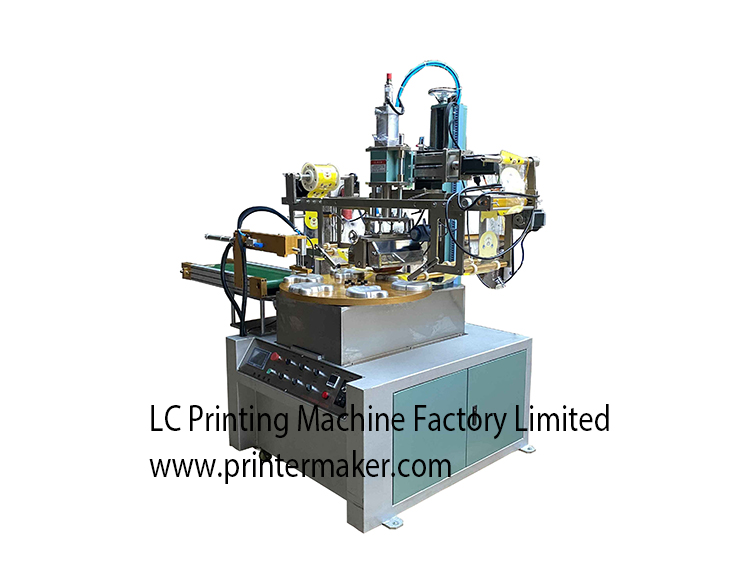

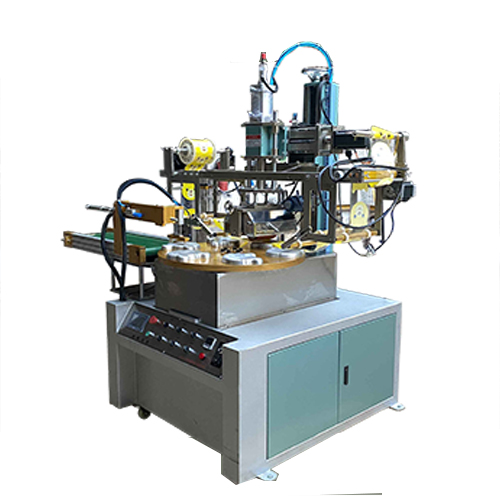

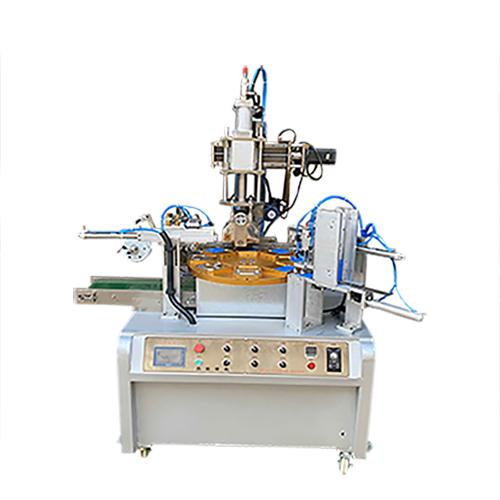

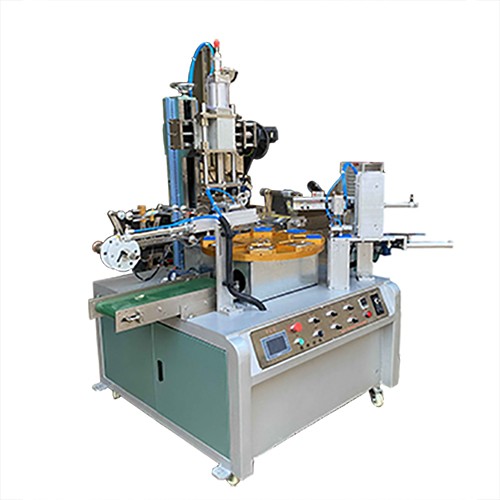

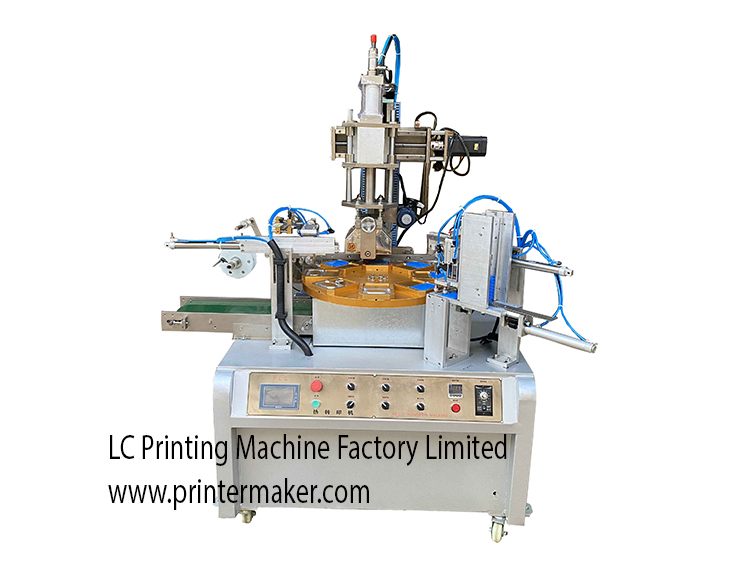

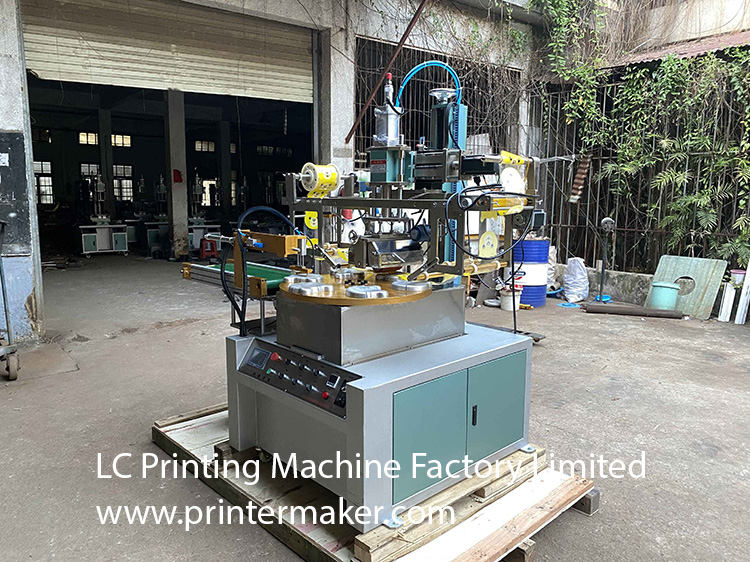

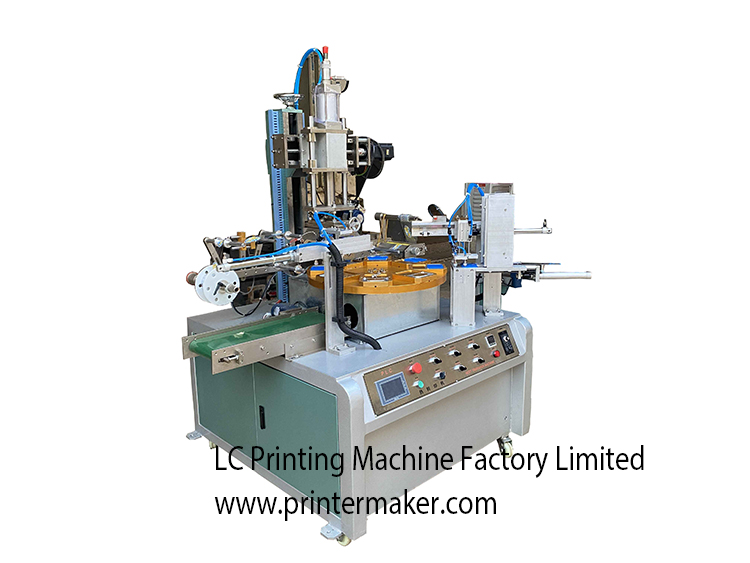

Flat Rotary Fully automatic heat transfer machine

Model Number: AHT-6S
Product price: US$:negotiated

Short Description:

Flat Rotary Fully automatic heat transfer machine ...

Send email to us

Product Details

Product Tags

Video

packing

Parameter:

1:Mechanical model: AHT-6S
2: Turntable size: 700mm diameter
3: Stroke of hot stamping head: 80mm (adjustable 50mm)
4: Hot stamping temperature: room temperature 0 ℃ ~ 300 ℃
5: Rated voltage: 220v60 / 50Hz
6: Hot stamping pressure range: 250-300kg
7: Heating power: 2000W
8: Overall power: 3800W
9: Air pressure: 5-7bar
10: Machine size: 1400 * 1000 * 2100mm
11: Machine weight: 800kg

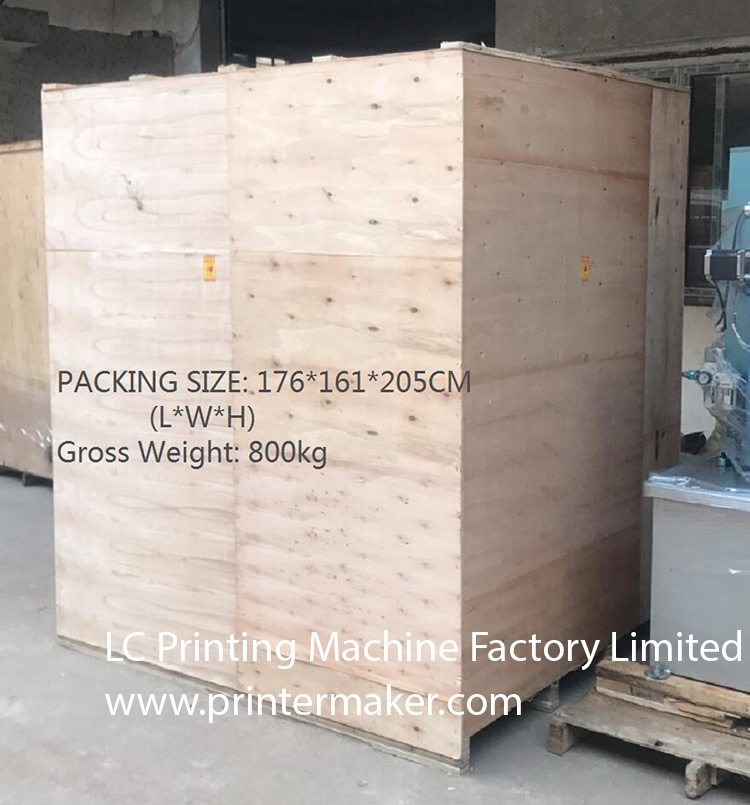

12: Packing size:176*161*205CM (L*W*H)

Machine features:

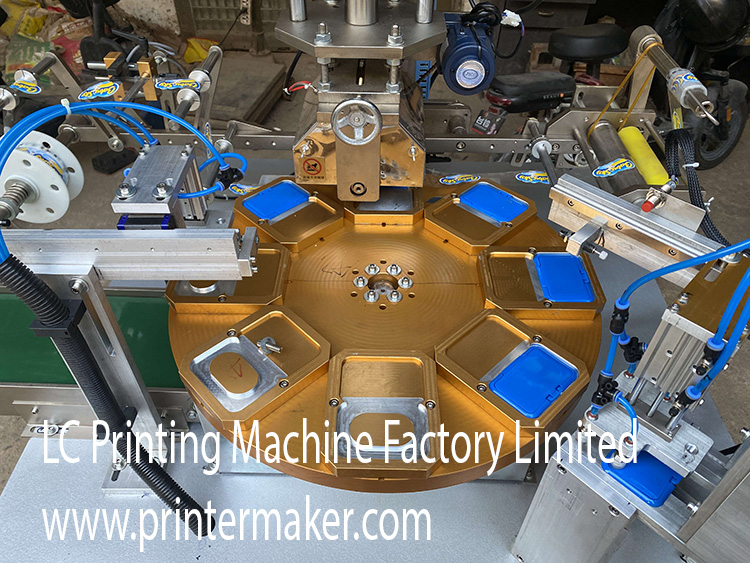

(1) Six stations spliter is adopted;

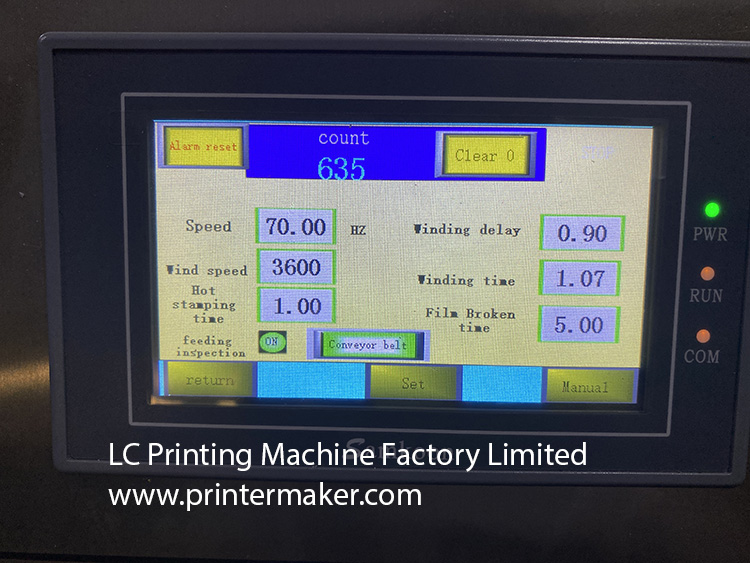

(2) Computer control, PLC touch screen operation panel, easy to operate;
(3) Hot stamping& heat transfer printing head pressure, temperature and speed can be adjusted;
(4) Built in self counting;

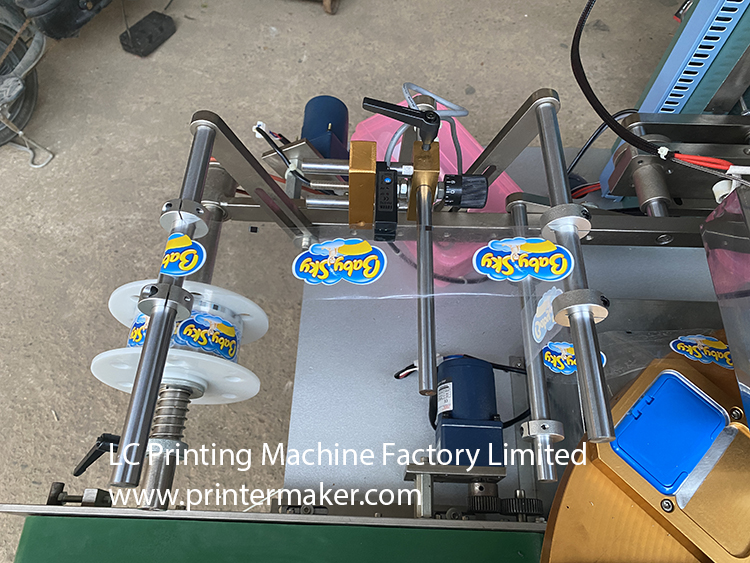

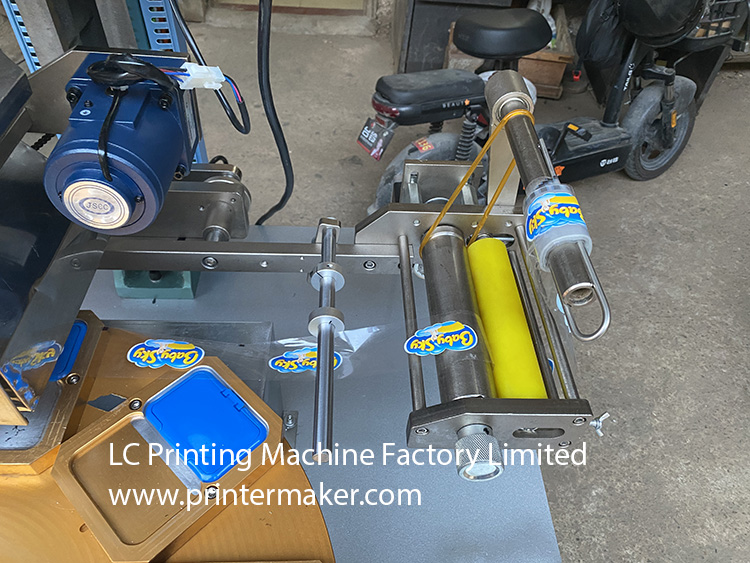

(5) Automatic film &foil winding and rewind and adjustable,
(6) The height of the hot stamping head is adjustable and the product height range is big;

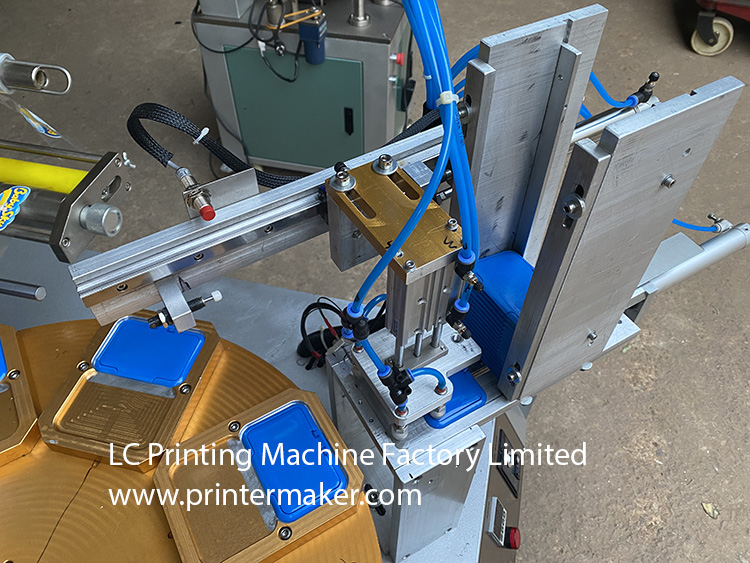

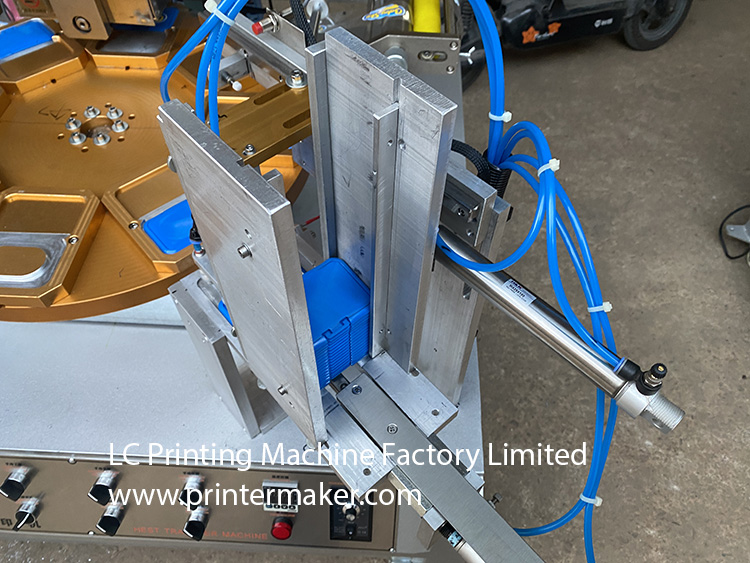

(7) Automatic feeding and robot unloading
