Parameters:

1.Printing Speed Round: 2500pcs / hr Oval 2800pcs / hr
2.Round Printing Size: φ100X320mm（Dia.*H）; Oval:200-280mm( W*H)
3.Printing Length: Oval Width 25-100mm Length 25-320mm
4.Compressed Air: 0.6MPa
5.Lp Gas:0.15MPa
8.Power Unit:380V/3P 50Hz 7KW/220-240V,3Phrases,7KW.
10.Machine Dimension:2580×1580×2100mm
11.Packing Size:3600*1400*2000mm

12.Net Weight:1500KG

13.Gross Weight:1600KG

Features:

1: Cam-linkage mechanisms driving mode combined with PLC control system for effectively guarantee

working stability, reliability, and most efficiency.

2:Main components from Rexroth, Schneider, SMC, Mitsubishi international brand.

The machines hardware parts are made by CNC directly from CAD.

3: Machine Frame & structures made by high-intensity aluminum alloy and stainless steel.

4: With PLC control system, touch screen interface. Fast setup & quick tooling change over for

customer's easy operation and adjustment.

5: Adopted with No-product- no print system, auto counter, safety alarm device.

6: Optional: Made based on the customer's special requirements. The round & oval bottles commonly used devices, antistatic dust removing device, extra set flame treatment, UV/IR system, auto scrambler system, offloading conveyor, offloading robot to have bottles stand up on the unload conveyer belt and any other customizations due to order.

7: Italy Style Electronic UV Curing System for mostly power rate saving, assuring the UV lamp’s longest life span, adjustable UV identity from 20%-100%

8. Most advanced LED Curing is optional

Description:

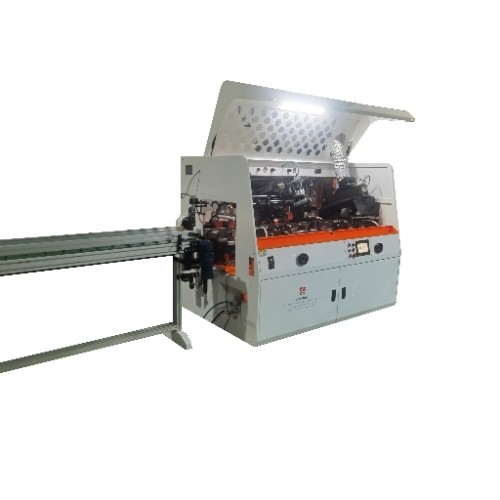

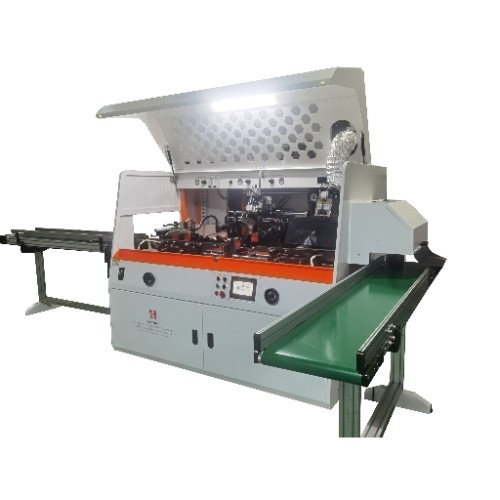

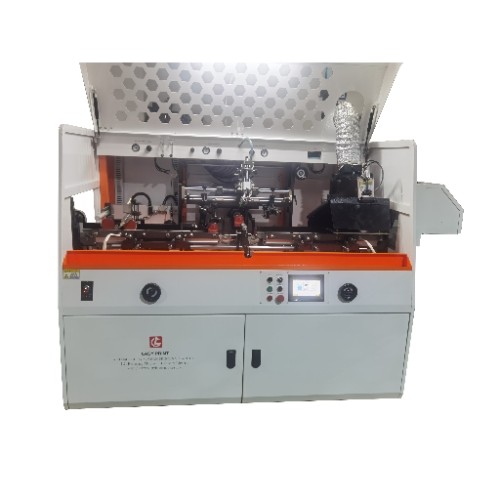

Single Color Mechanical Driven Automatic UV Screen Printing Machine is the latest upgraded mechanical driven automatic UV silk screen printing machine. Compare with the traditional pneumatic driven automatic UV silk screen printing machine, the latest designed mechanical driven automatic UV silk screen printing machine is with advantages as below:

1: Much Higher Working Capacity

2: Lower noise and perfect working stability because of the mechanical driven

3: High précised and perfect registering multi-color printing

4: Easy setting up for tooling change between oval, round and flat shape bottles and containers

5: Either choose with electronic control UV curing system for adjust the UV density ranges from 0-100% or present most advanced LED Curing system.

Advantages:

This machine is fitting on all those round and oval bottles which is diameter within 100mm, height over 280mm--330mm bottles printing. It is perfect for those longer glass, plastic ,metal bottles, containers, flask printing in all those included round, cone, oval, and flat shape!
