Description:

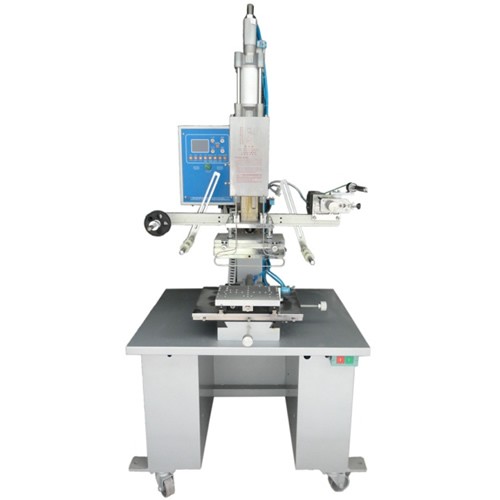

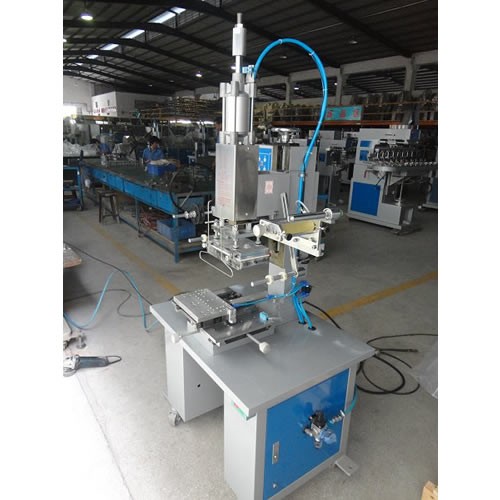

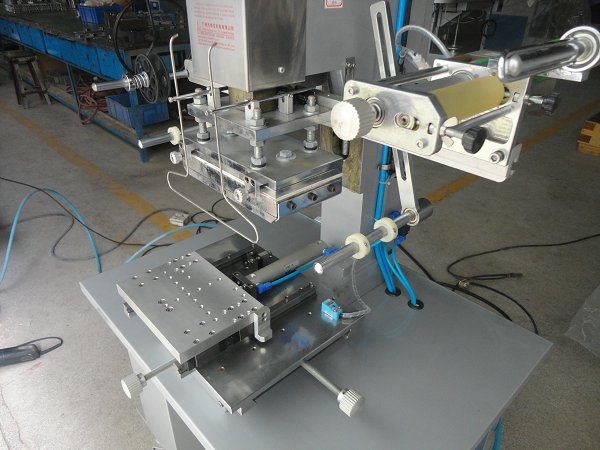

Flat Hot Stamping Machine with Shuttle Table
Specification:
2A/S
1:Max.hot-printing size:130x250mm 
2:Speed(Pieces/minute):18
3:Machine size(LxWxH):95x70x175cm  
4:Net Weight:230kg 
5:Air Pressure(bar) 5-7 
6:Power: 220V/50Hz 2.1kw
7: Packing size: 85*105*180CM
2A/S-300
1:Max.hot-printing size:200x300mm 
2:Speed(Pieces/minute):18
3:Machine size(LxWxH):95x70x175cm  
4:Net Weight:230kg 
5:Air Pressure(bar) 5-7 
6:Power: 220V/50Hz 2.1kw
Product Description:

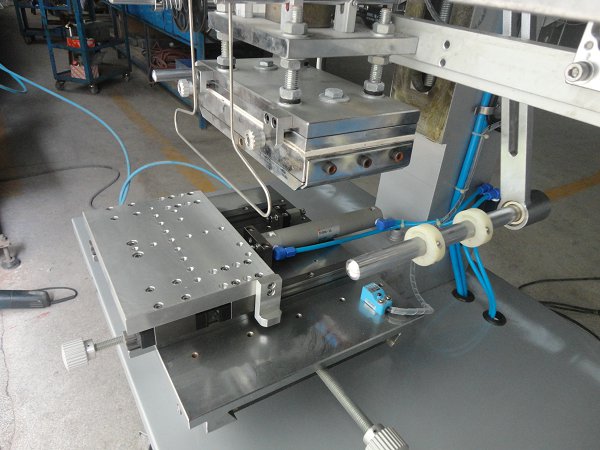

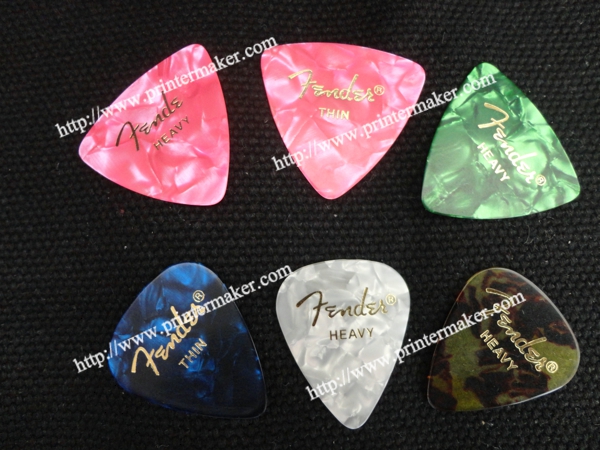

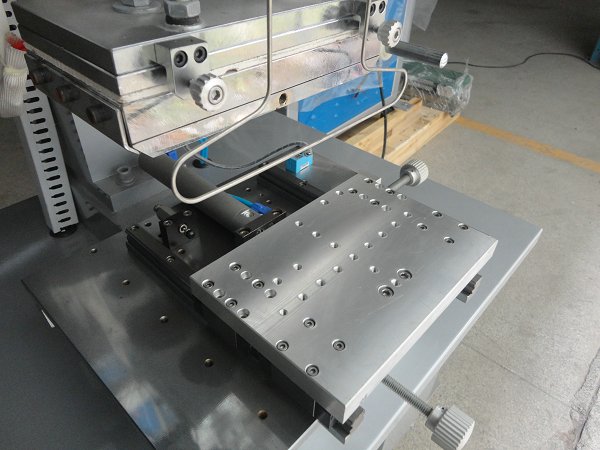

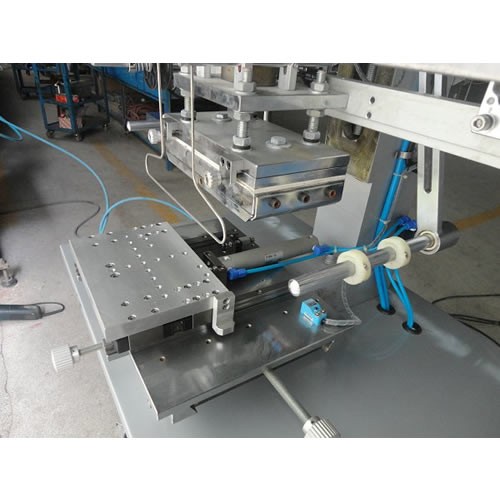

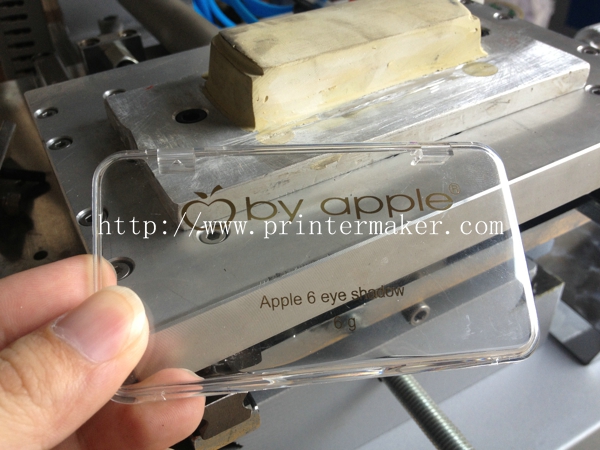

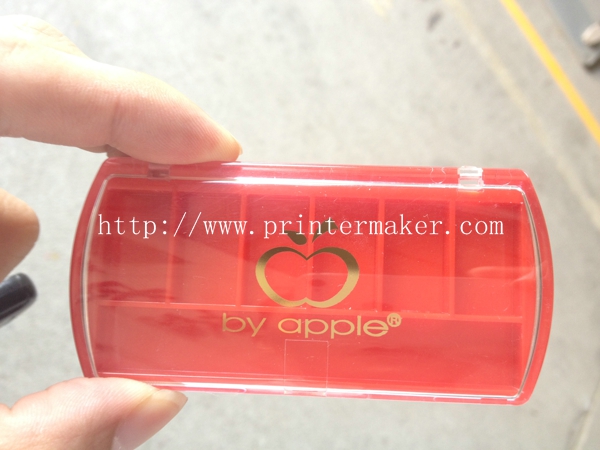

The model 2A/S Hot Stamping Machine is upgraded based on model 2A with shuttle moving working table. This designed is greatly increased the working capacity and mostly degree protect the operator from the heating plates. It is fit for doing hot-stamping the bigger flat work-pieces. For some special concavo-convex products,the flexed silicon die should be adopted.For example: plastic packings, ornaments, caskets and etc.
