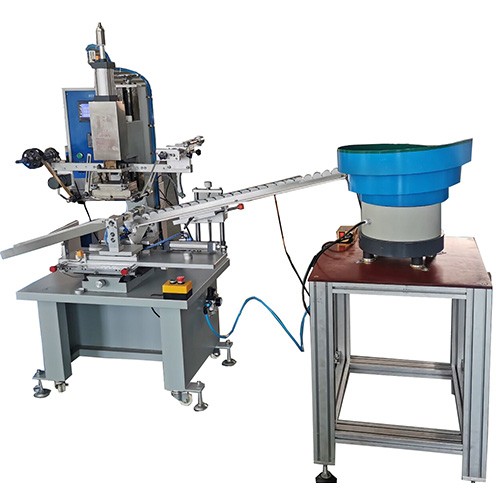

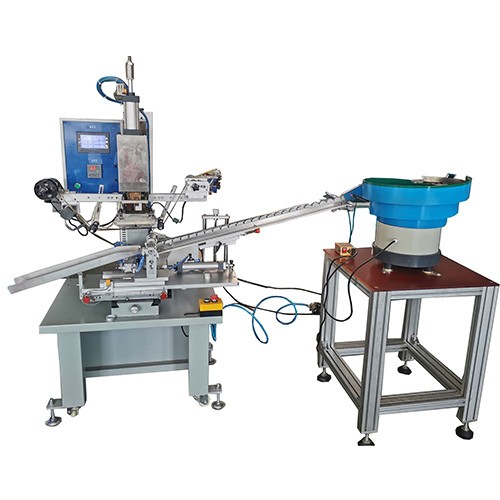

Automatic Hot Stamping Machine for Round Caps
Automatic Hot Stamping Machine for Round Caps included the vibrating bowl
Model:6AC-150-Caps
1:Max.printing size:Φ40X70mm
2:Speed(Pieces/minute):30pcs/Min.
3:Machine size(LxWxH):220X110X175cm
4:Net/Gross Weight:420kg/480kg;
5:Air Pressure(bar):5-7bar
6:Power: 220V/50Hz，2KW
7: Motor Rate:1600W
8: Up and Down Pressure: 200kg
9: Packing Szie:
Main Machine:100*82*180CM
vibrating bowl:70*70*128CM
Feature:
1: The improvements on the more easy operations, appearance, technical performance, etc.;
2: fully automatic feed vibrating bowl to greatly save the labout cost.
3: PLC and Touch screen control.
4: Japan driving motor
5: Japan SMC cylinder
6: German Snyeider electrical control
7:Hot Stamping Machine for Round Caps adopts the rail propping device and has such features as bearing high
pressure&high precision of sliding.
8:adopts sloping feeder of disparting the materials to reduce the friction of the caps
9:.It is very convenient to change the toolings and easily maintain for the circuit is controlled by the relay.
10: high speed, good performance, safety operation, No Caps no foiling,
low consumption and high efficiency.And it is very easy to operate it.
Description:
Fully automatic Hot Stamping Machine model 6AC-150-Caps is designed for Round Caps
in fully automatic hot stamping. It is perfect for those plastic caps,bottles caps,
round caps, lip stip tubes etc in fully automatic and high speed hot stamping.
Model:6AC-150-Caps
1:Max.printing size:Φ40X70mm
2:Speed(Pieces/minute):30pcs/Min.
3:Machine size(LxWxH):220X110X175cm
4:Net/Gross Weight:420kg/480kg;
5:Air Pressure(bar):5-7bar
6:Power: 220V/50Hz，2KW
7: Motor Rate:1600W
8: Up and Down Pressure: 200kg
9: Packing Szie:
Main Machine:100*82*180CM
vibrating bowl:70*70*128CM
Feature:
1: The improvements on the more easy operations, appearance, technical performance, etc.;
2: fully automatic feed vibrating bowl to greatly save the labout cost.
3: PLC and Touch screen control.
4: Japan driving motor
5: Japan SMC cylinder
6: German Snyeider electrical control
7:Hot Stamping Machine for Round Caps adopts the rail propping device and has such features as bearing high
pressure&high precision of sliding.
8:adopts sloping feeder of disparting the materials to reduce the friction of the caps
9:.It is very convenient to change the toolings and easily maintain for the circuit is controlled by the relay.
10: high speed, good performance, safety operation, No Caps no foiling,
low consumption and high efficiency.And it is very easy to operate it.
Description:
Fully automatic Hot Stamping Machine model 6AC-150-Caps is designed for Round Caps
in fully automatic hot stamping. It is perfect for those plastic caps,bottles caps,
round caps, lip stip tubes etc in fully automatic and high speed hot stamping.
