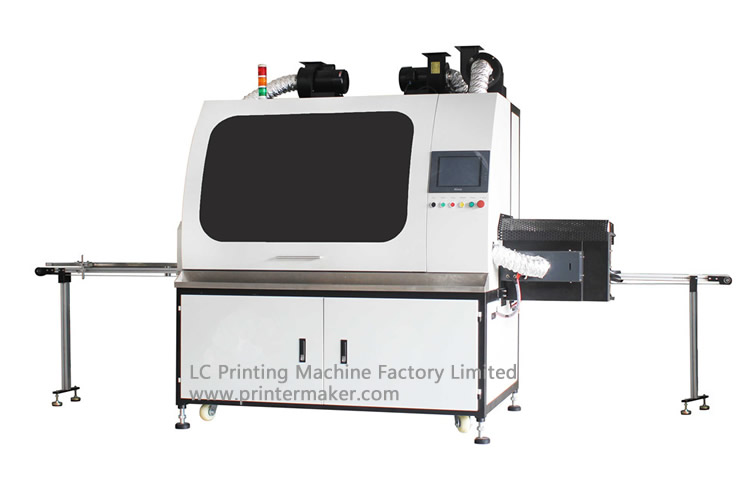

Glass Perfume Bottle Hot Stamping Machine
Model Number: SGL-PT04-3DH
Automatic Glass Perfume Bottle Hot Stamping Machine
Model: SGL-PT04-3DH
Applications:
This Multi-function Automatic Glass Bottle Hot Stamping Machine (CNC Printing Machine) is fit for multi colors decoration of all shapes of glass bottles, cups, mugs at high production speeds.
It is suitable for all those glass perfume bottles hot stamping on all those square shape, oval shape, round shape and triangle shape bottles in once time hot stamping.
Parameters:
1:Hot Stamping size: Round bottle: φ20-φ100mmlength:25-270mm
Oval bottle:width:25-120mm, length:25-270mm
2:Speed: Round bottle:2400pcs/h.
Square bottle(one side):3000pcs/h.
Square bottle(multi sides):1500-2500pcs/h.
Oval bottle:2600pcs/min
Oval bottle(Two or full round):1500-2000pcs/h
3.Air Pressure: 0.6Mpa
4.Power: 380V 3phase 50Hz 10Kw
5.Machine Size:2400*1500*1700mm
Features:
1. Full Servo system. Automatic loading and unloading system with multi axis servo robot
2. Automatic hot stamping with high efficiency.
3.Automatic printing system with all servo driven: hot stamping head, print station, Roller rotation, container up/down all driven by servo motors.
4.Fast tooling changeover time, it's about 20 minutes for each color. All parameters automatic setting by touch screen.
5.All Ethercat servo motors with industrial PLC control & touch screen operation system, internet cable connection available,
easy for future maintenance and upgrading
6.Safety operation with CE
Options:
1. CCD registration system(camera vision system) for cylindrical products without registration point
2. Additional module up to 10 units for multi color printing
