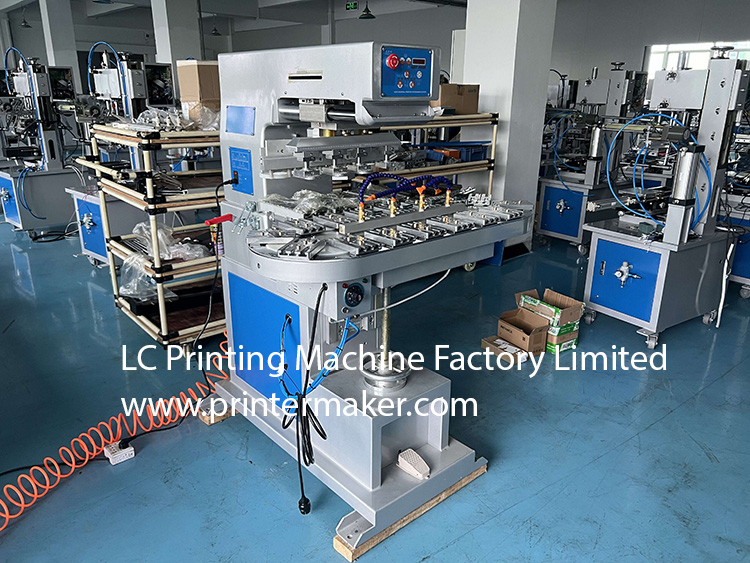

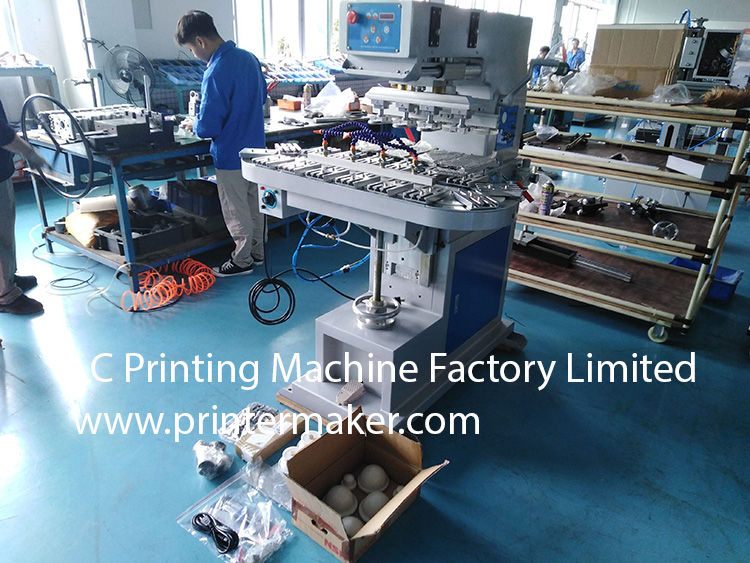

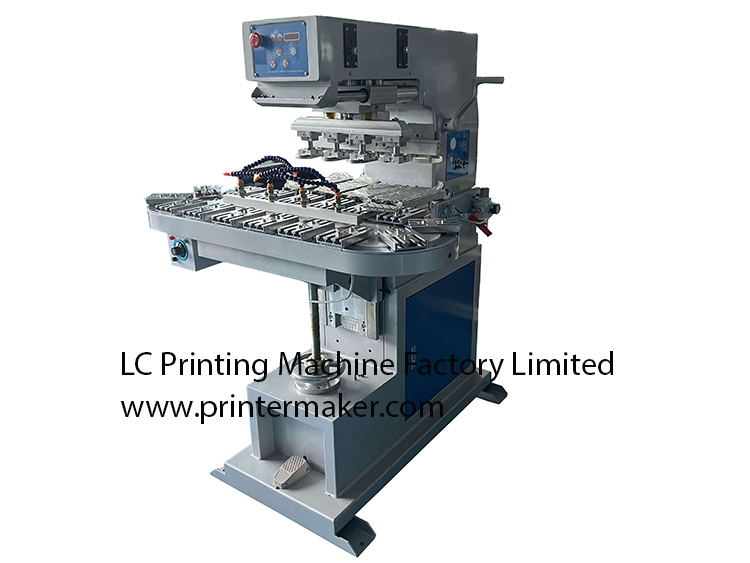

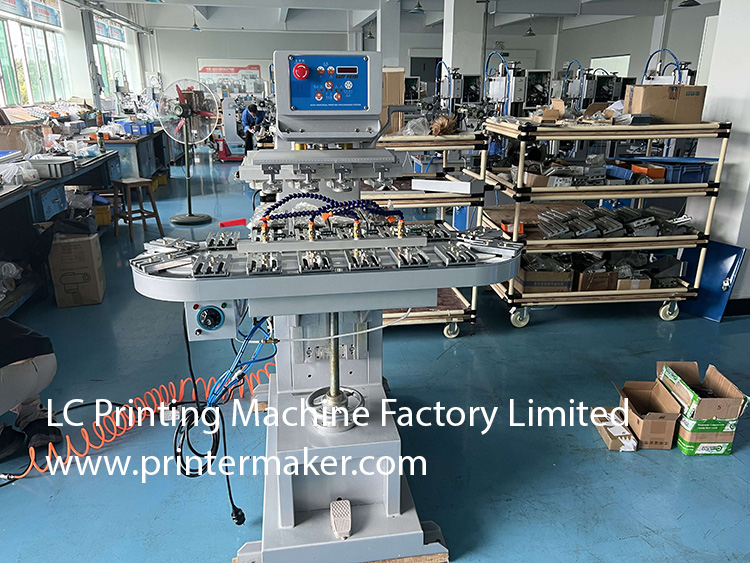

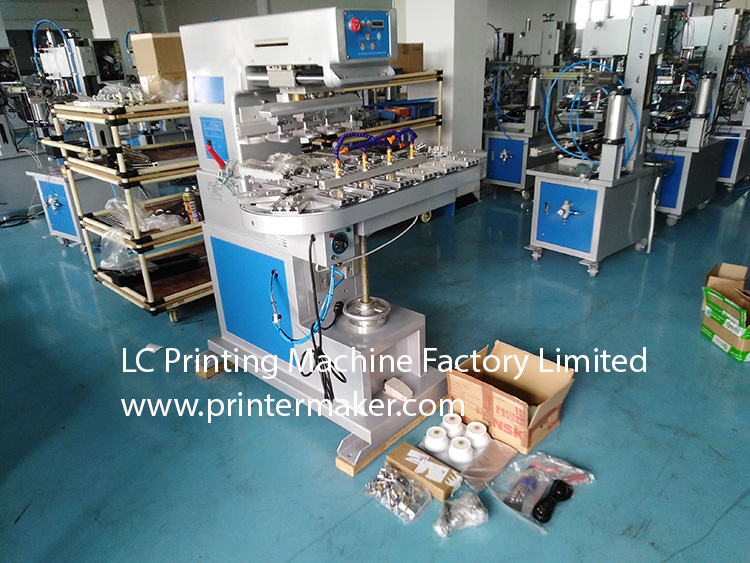

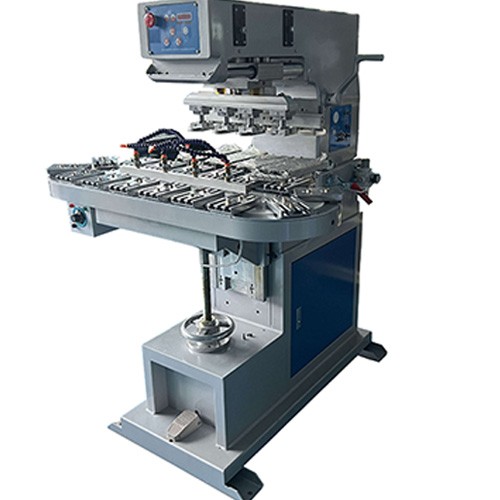

4 Color Ink Cup Pad Printing Machine with Conveyor
4 color Pad Printer With Carousel
Print 4 colors one time, excellet decorating results widely used in the field of toys, gifts .

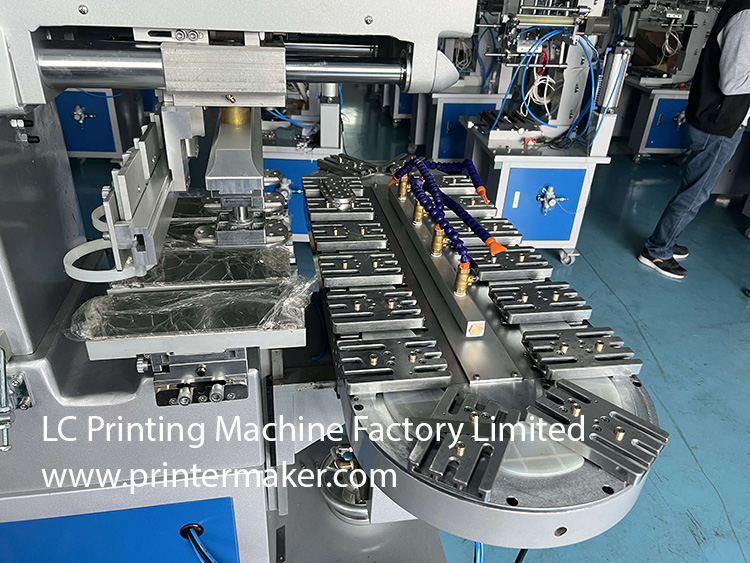

With conveyer worktable to supply high printing efficiency and put 16 pcs objects to print.
Coin Aluminium structure ensure more stabilization and long life.
Ink Cup system for environmental protection and materials saving
Price Terms:FCA GuangZhou
Payment Terms:T/T LC
Packing:Wooden case
Lead Time:Within 7 days
Standards Certificate:ISO9001-2000
Power Supply:110/220v 60/50Hz
Colour Painted:Blue and Sliver
Machine Parameter:
M4C-250T
1.Max. plate size:100×250×0.3 mm;
2.Max. worktable area:85×125mm;
3.Max. printing area:85×170mm; Colour number:ranges from 1-4 colors.
4.Max. printing speed:1200pcs/hr;
5.Ink cup system: Ink cup at 100*90mm diameter, Ring size at 100*90*12mm
6.Air consumption:330Litre/min(6bar);
7.Printing objects dimension:100×140mm.
8.Conveyer stroke:125mm;
9. Station number: 16
10.Machine Size:122*147*152
11.Net Weight:350 Kg

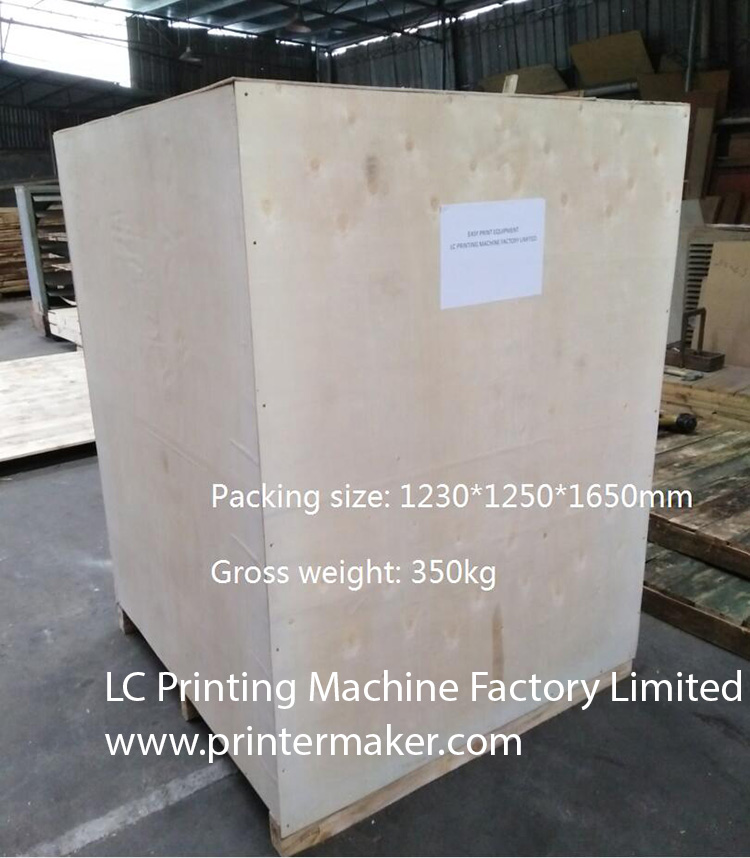

12: Packing size:1230*1250*1650mm
2.Auto four digit counter built-in;
3.Ink covering by ink roller;
4.Fully Coin aluminium structure ensures sturdy and long life;
5.Printing speed adjustable to meet with different needs;
6."Inking twice, printing once" to get better ink covering;

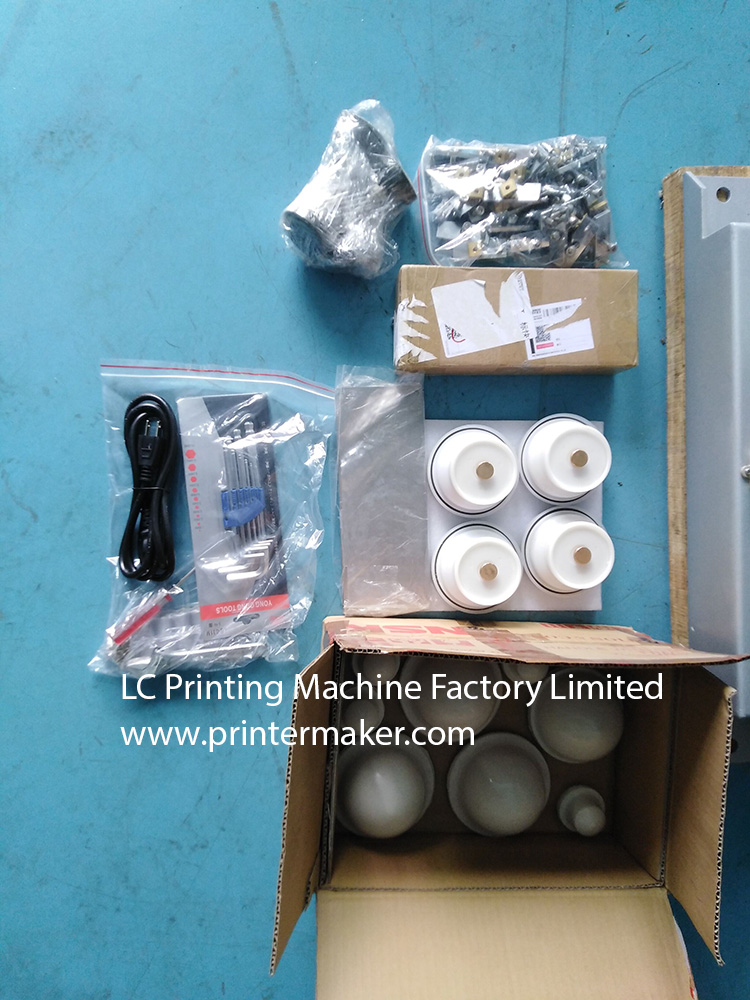

Machine Fittings:
1. Four cliche plates,
2. Four pads
3. Four sets of ink cup
4. A tool box.
Ship Date:
By sea:
within 30 days after receive T/T OR LC.
Print 4 colors one time, excellet decorating results widely used in the field of toys, gifts .
With conveyer worktable to supply high printing efficiency and put 16 pcs objects to print.
Coin Aluminium structure ensure more stabilization and long life.
Ink Cup system for environmental protection and materials saving
Price Terms:FCA GuangZhou
Payment Terms:T/T LC
Packing:Wooden case
Lead Time:Within 7 days
Standards Certificate:ISO9001-2000
Power Supply:110/220v 60/50Hz
Colour Painted:Blue and Sliver
Machine Parameter:
M4C-250T
1.Max. plate size:100×250×0.3 mm;
2.Max. worktable area:85×125mm;
3.Max. printing area:85×170mm; Colour number:ranges from 1-4 colors.
4.Max. printing speed:1200pcs/hr;
5.Ink cup system: Ink cup at 100*90mm diameter, Ring size at 100*90*12mm
6.Air consumption:330Litre/min(6bar);
7.Printing objects dimension:100×140mm.
8.Conveyer stroke:125mm;
9. Station number: 16
10.Machine Size:122*147*152
11.Net Weight:350 Kg
12: Packing size:1230*1250*1650mm
Advantages and features:
1.Total micro computer controlled operation;2.Auto four digit counter built-in;
3.Ink covering by ink roller;
4.Fully Coin aluminium structure ensures sturdy and long life;
5.Printing speed adjustable to meet with different needs;
6."Inking twice, printing once" to get better ink covering;
Machine Fittings:
1. Four cliche plates,
2. Four pads
3. Four sets of ink cup
4. A tool box.
Ship Date:
By sea:
within 30 days after receive T/T OR LC.
