Description:

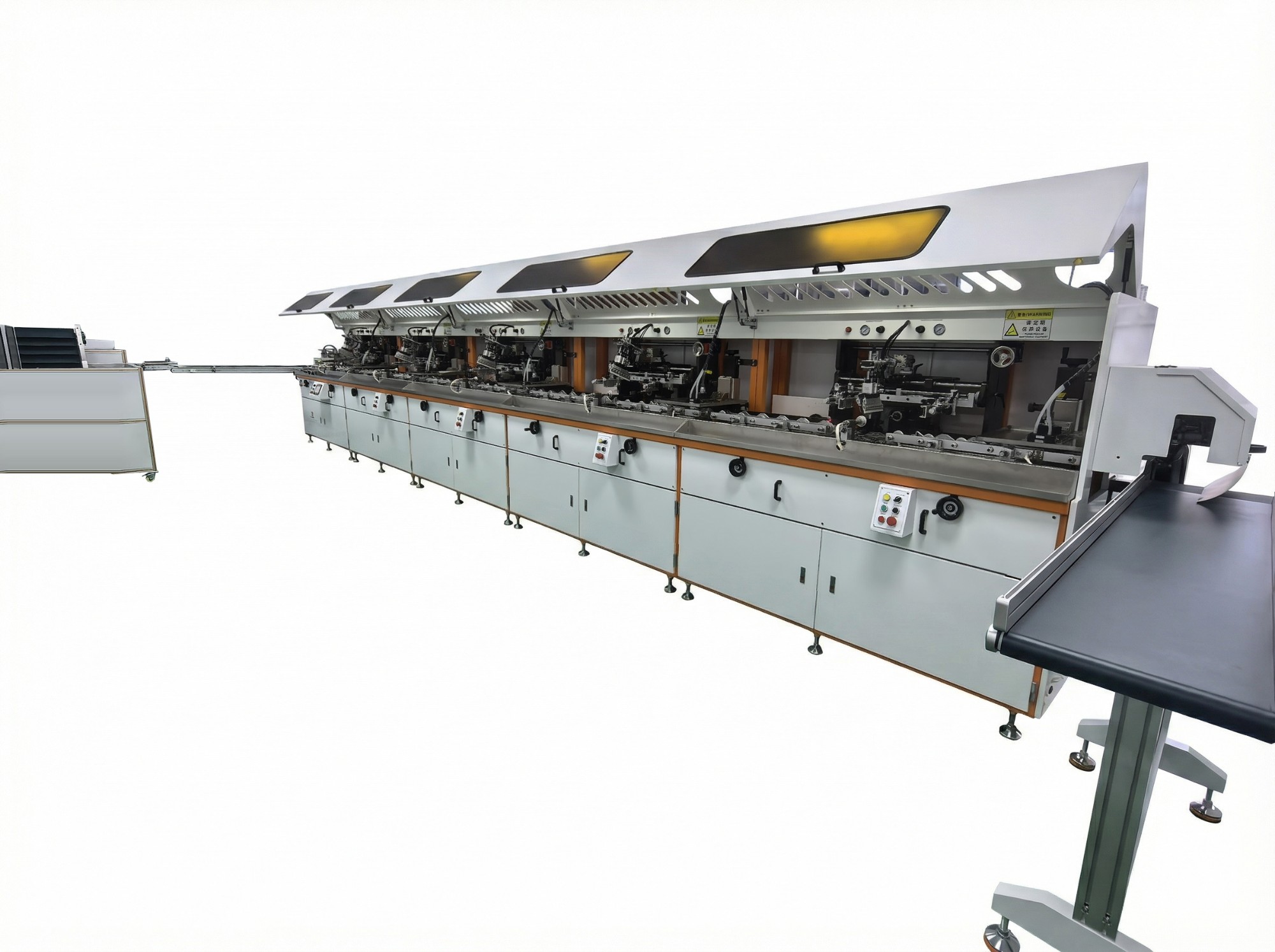

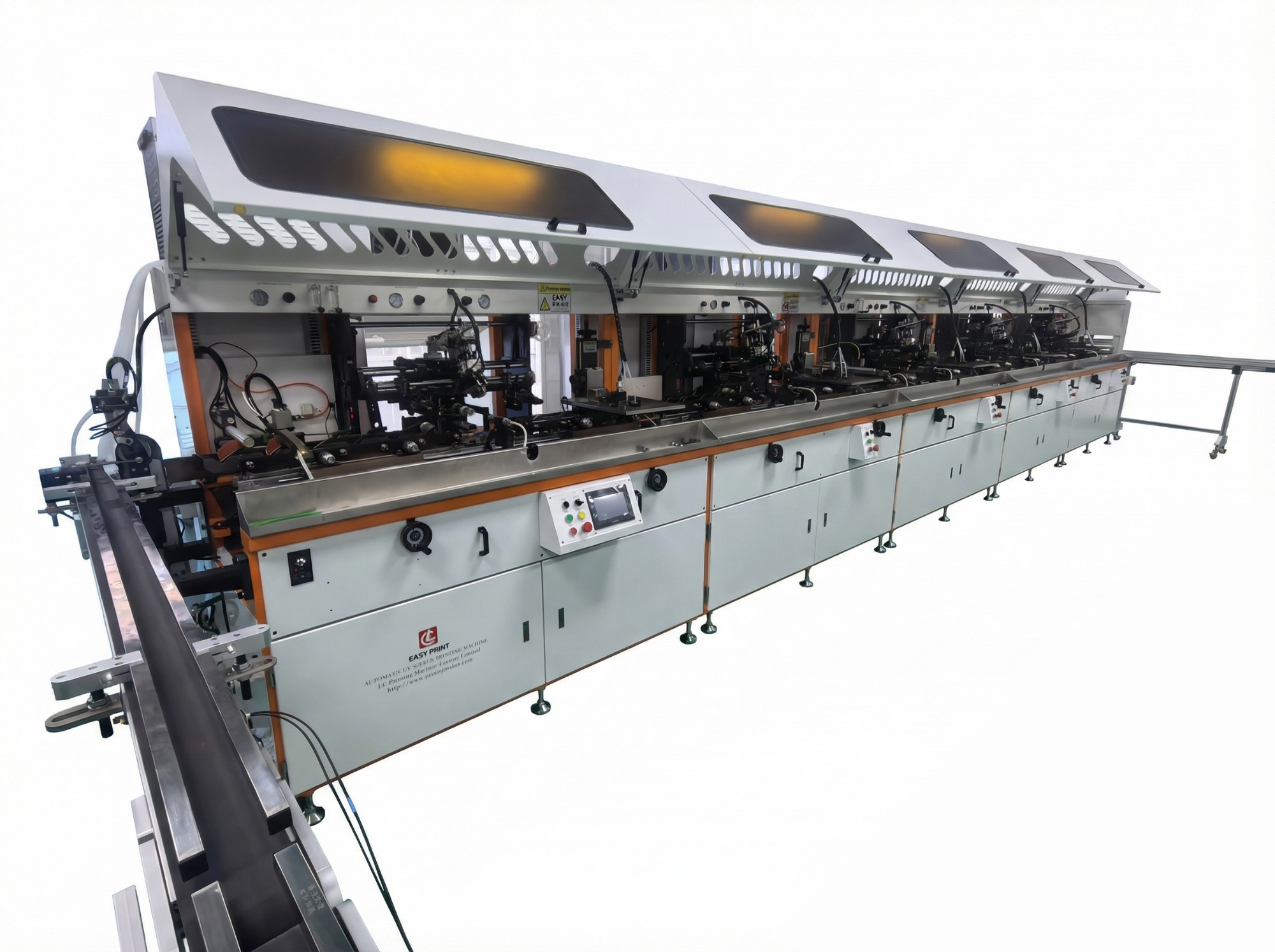

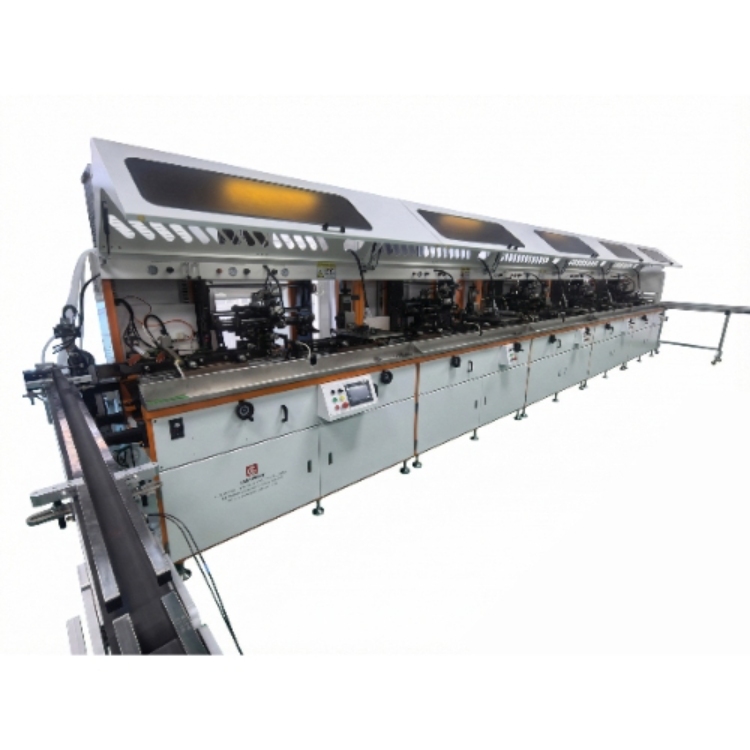

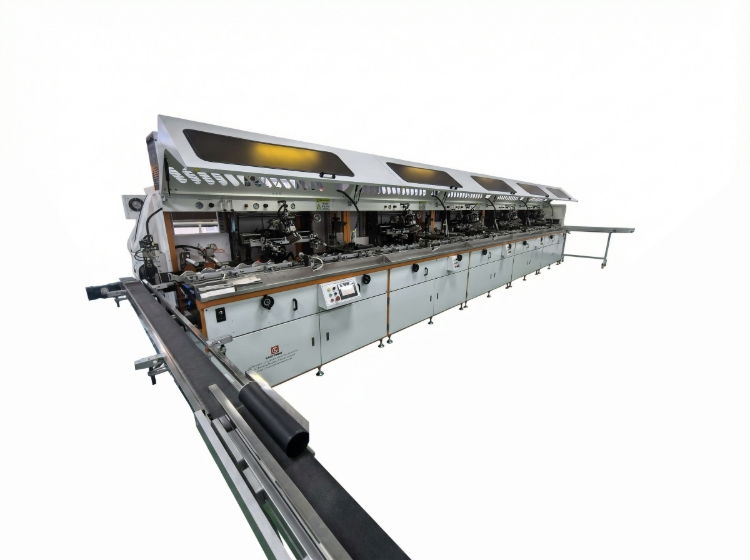

New Upgraded 5 Colors Automatic Silk Screen Printing Machine With Advanced LED Curing system, compare with the traditional pneumatic driven automatic UV silk screen printing machine, this machine is upgraded with mechanical driving system which is fitting on all those round, cone, oval, flat, square shape bottle and container’s silk screen printing.

New Generation Machine advantages as below:
1: Much Higher Working Capacity
2: Lower noise and perfect working stability because of the mechanical driven
3: High précised and perfect registering multi-color printing
4: Easy setting up for tooling change between oval, round and flat shape bottles and containers
5: Equipped with electronic control LED curing system with advantages of perfect good adhesion on different type of plastic or glass bottles materials; Lower power consumption, No harmful to operator’s eyes;  More durable and long life span of the LED lamp for lasting at least of 3 years for the lamp head.

6: Flaming pre-treatment system to increase and assuring the ink printing adhesion ( plasma treatment is optional)

7: Attached with anti-statistic dust remover

Machine Parameters:
1.Printing Speed: Round: 3500pcs / Hr ;Oval 4000pcs / Hr
2:Product size: Round: φ100X280mm ; Oval: Oval Width 25-100mm Length 25-280mm
3.Printing Size: φ100X260mm for round; 100-260mm for oval
4.Compressed Air: 0.6MPa
5.Lp Gas:0.15MPa
8.Power Unit:380V/3P 50Hz 50KW (220-240V,3Phrases, 60HZ optional)
9: Mercury LED lamp power rate: 2.2KW*5 sets=11KW
10.Machine Dimension: 10581*2700*1706MM

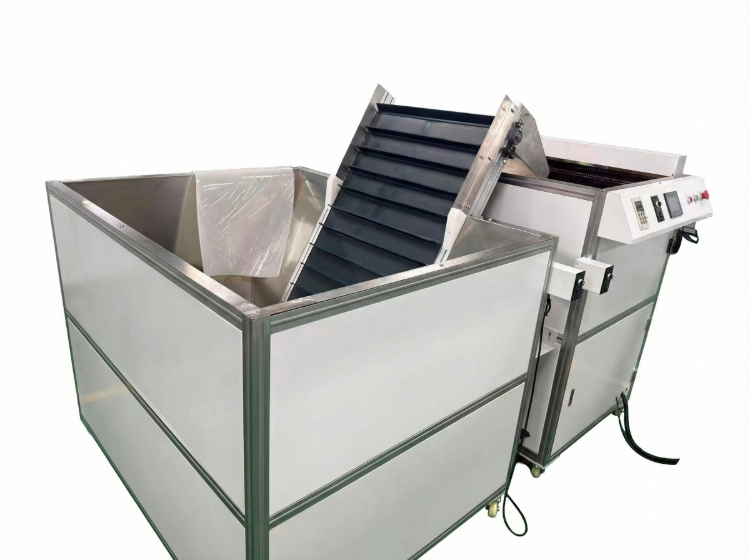

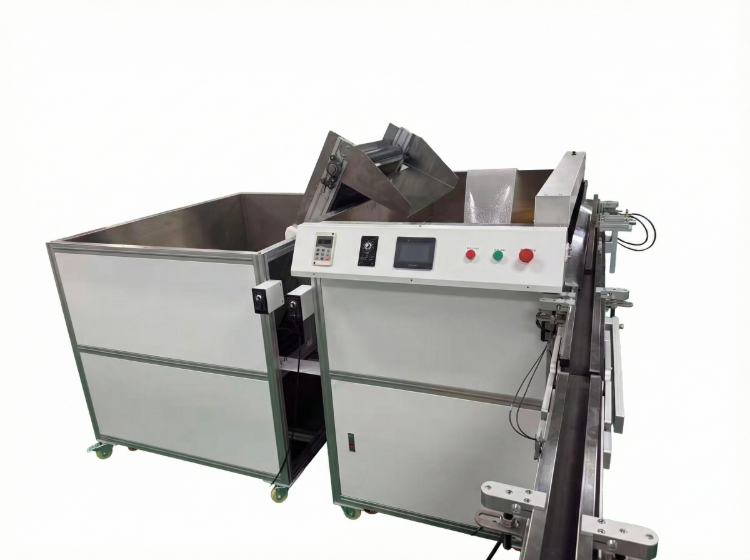

Automatic feeding Scrambler System: 2455*2108*1496MM

11.Machine Packing Size:(2910*1980*2000MM)* 5 cases

Automatic feeding system: 2250*1610*1700MM&2050*1710* 1850MM

Isolating Transformer  960* 950* 1100MM
12.Net Weight: 6000KG
13.Gross Weight:6800KG
Features:
1:Cam-linkage mechanisms driving mode combined with PLC control system for effectively guarantee working stability,reliability, and most efficiency.
2:Reliability: Main components from Rexroth, Schneider, SMC, Mitsubishi international brand. The machines hardware parts are made by CNC directly from CAD.

3: Machine Frame & structures made by high-intensity aluminum alloy and stainless steel.
4: With PLC control system, touch screen interface. Fast setup & quick tooling change over for customer's easy operation and adjustment

5:  Adopted with No-product- no print system, auto counter, safety alarm device.
6: Optional: Made based on the customer's special requirements. The round & oval bottles commonly used devices,antistatic dust removing device, extra set flame treatment, LED/UV/IR system, auto scrambler system, offloading conveyor, offloading robot arm to have bottles stand up on the off conveyor belt and any other customizations due to order.

7: Equipped with electronic control LED curing system with advantages of perfect good adhesion on different type of plastic or glass bottles materials; Lower power consumption, No harmful to operator’s eyes;  More durable and long life span of the LED lamp for lasting at least of 3 years for the lamp head.
