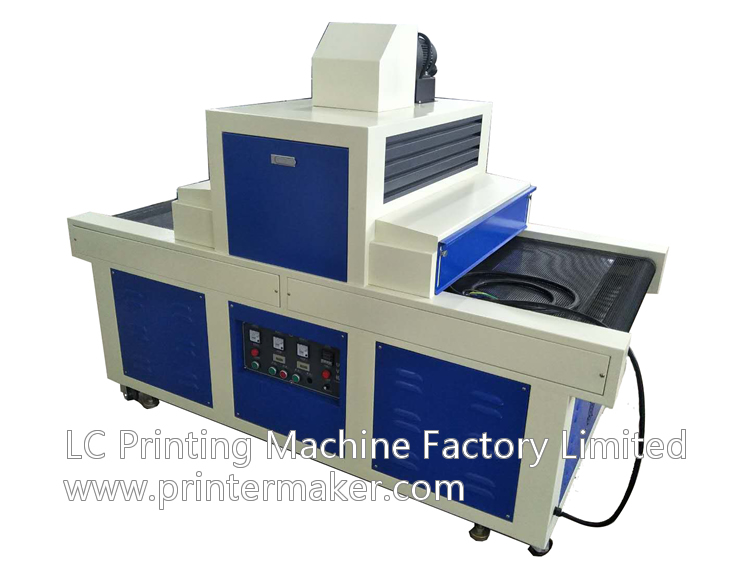

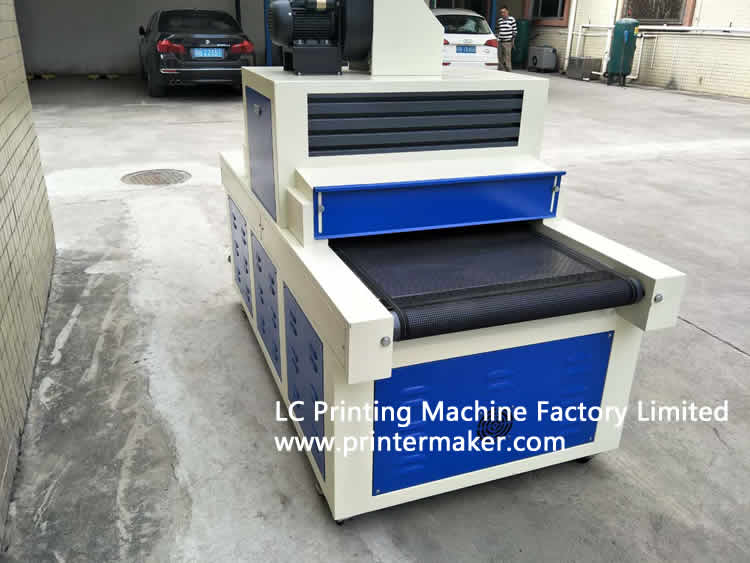

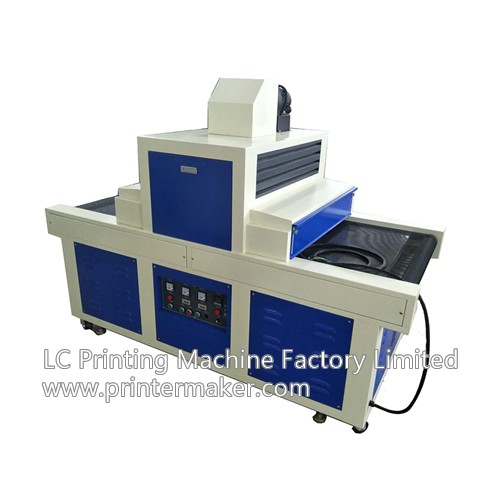

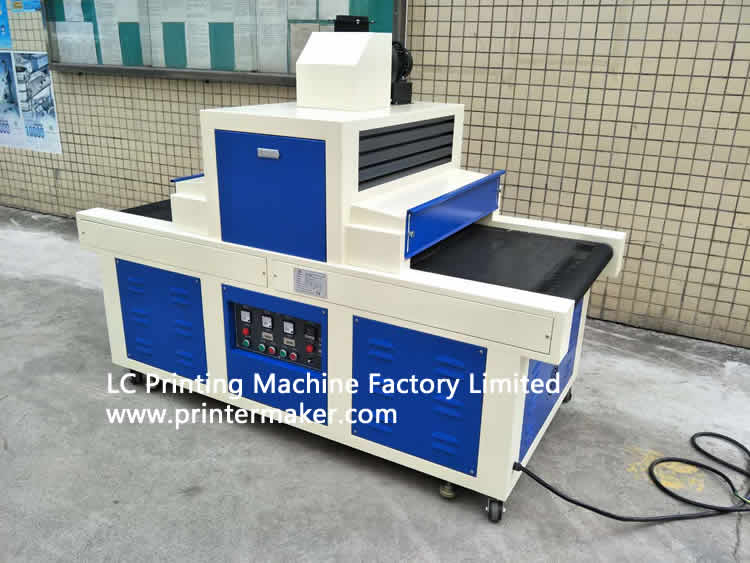

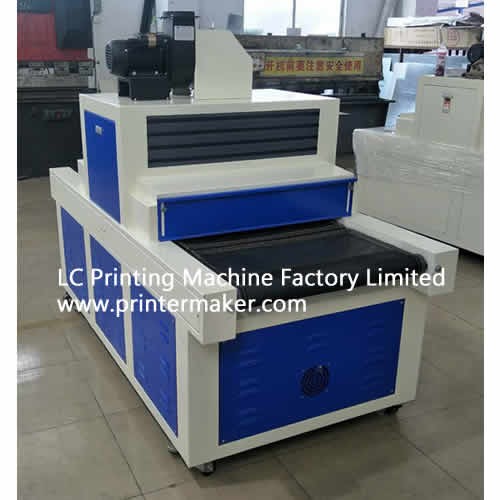

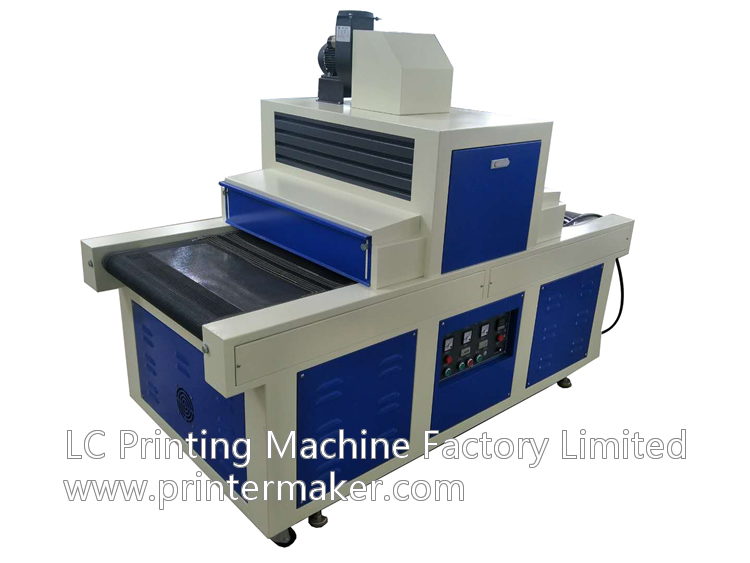

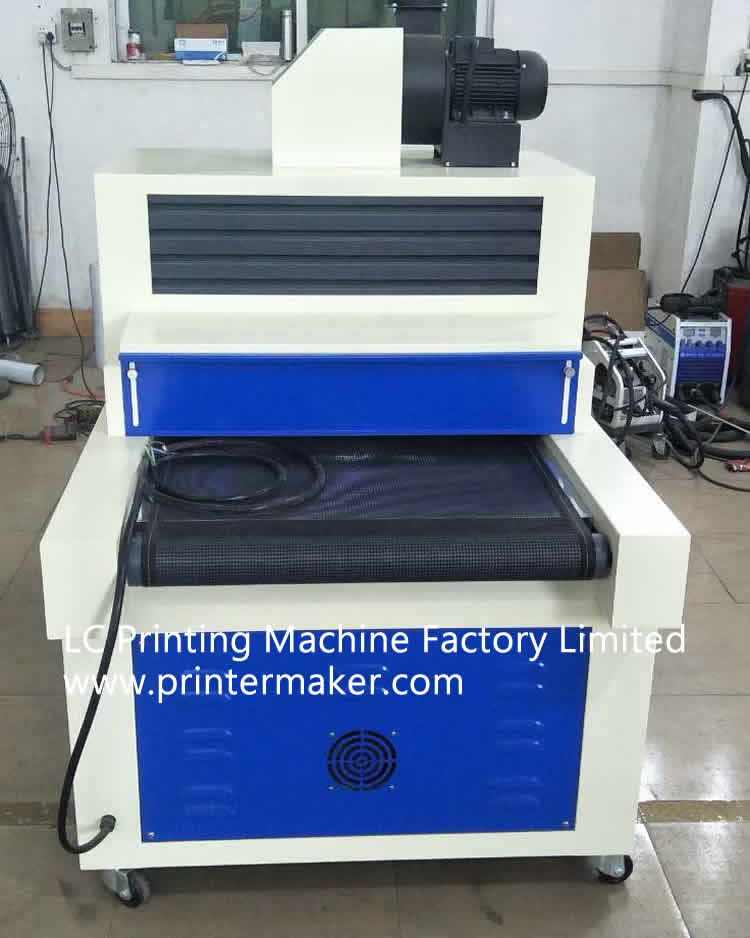

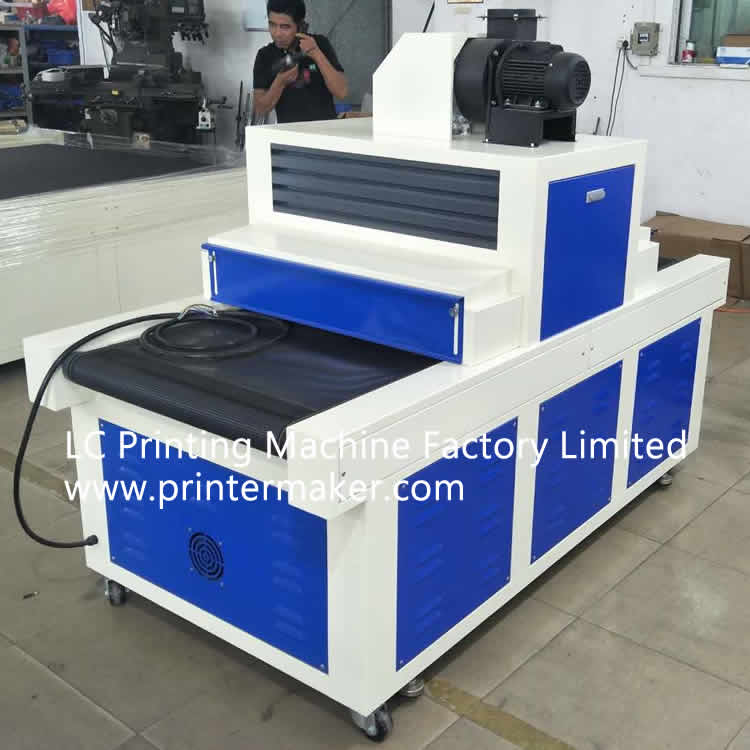

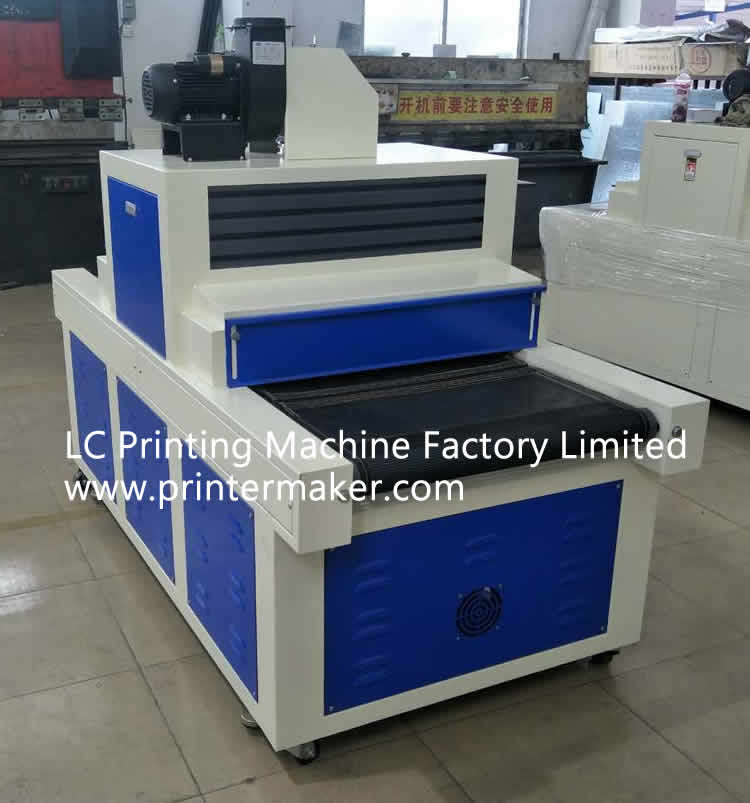

UV Conveyor Dryer
Specifications︰
M-500UVF
1. Conveyer width：500mm
2. Conveyer Longth: 2000mm
3. Max height of Proudution:75mm
4. Lamp Wattage:3KW/380V*2PCS.
5. Wind fan wattage：500W/380V
6. Conveyer motor wattage：1000W/1P/380V
7. Total Wattage：7KW
8. Conveyer speed：0-10m/min
9. Speed adjustment：stepless
10.Dimension：2000*660*980mm(L*W*H)
11.Net   weight：220KG
12.Gross Weight: 320KG
13.Package: 2160*840*1380mm;

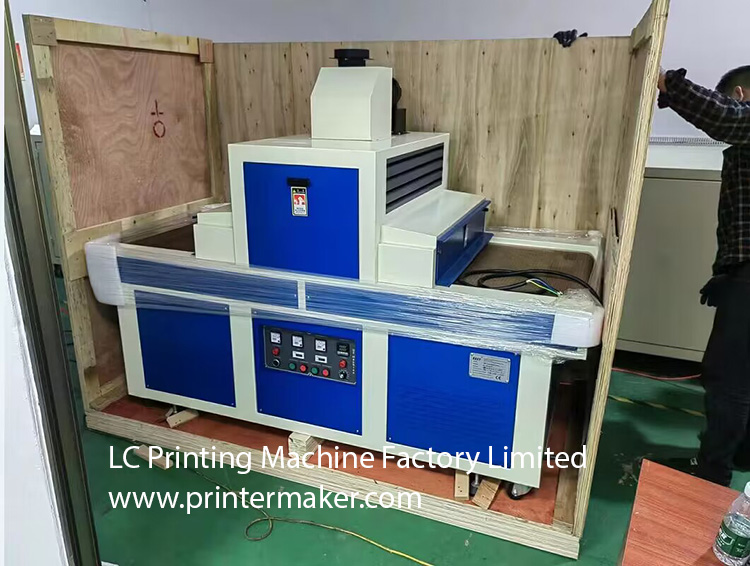

14.Pack in Wooden Case/Poly Wood Case

M-700UVF
1. Conveyer width： 700mm
2. Conveyer Longth: 2000mm
3. Max height of Proudution:75mm
4. Lamp Wattage:3KW/380V*2PCS
5. Wind fan wattage：500W/380V
6. Conveyer motor wattage：1000W/1P/380V
7. Total Wattage：7KW/11.2KW
8. Conveyer speed：0-10m/min
9. Speed adjustment：Stepless
10.Dimension：2150*800*1320mm(L*W*H)
11.Net   weight：260KG
12.Gross Weight: 400KG
13.Package: 2160*840*1380mm;
14.Pack in Wooden Case/Poly Wood Case

M-800UVF
1. Conveyer width： 800mm
2. Conveyer Longth: 2000mm
3. Max height of Proudution:75mm
4. Lamp Wattage:3KW/380V*2PCS
5. Wind fan wattage：500W/380V
6. Conveyer motor wattage：1000W/1P/380V
7. Total Wattage：7KW/11.2KW
8. Conveyer speed：0-10m/min
9. Speed adjustment：Stepless
10.Dimension：2150*1100*1250mm(L*W*H)
11.Net   weight：300KG
12.Gross Weight: 430KG
13.Package: 2160*840*1380mm;
14.Pack in Wooden Case/Poly Wood Case

M-1000UVF
1. Conveyer width：1000mm
2. Conveyer Longth: 2000mm
3. Max height of Proudution:75mm
4. Lamp Wattage:3KW/380V*2PCS
5. Wind fan wattage：500W/380V
6. Conveyer motor wattage：1000W/1P/380V
7. Total Wattage：7KW/11.2KW
8. Conveyer speed：0-10m/min
9. Speed adjustment：Stepless
10.Dimension：2300*1200*1500mm(L*W*H)
11.Net   weight：350KG
12.Gross Weight: 500KG
13.Package: 2400*1250*1550mm;
14.Pack in Wooden Case/Poly Wood Case
Advantages︰

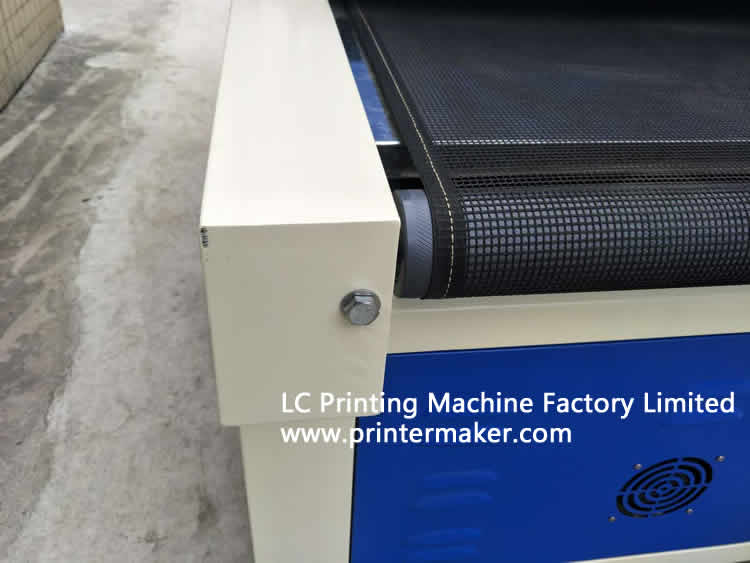

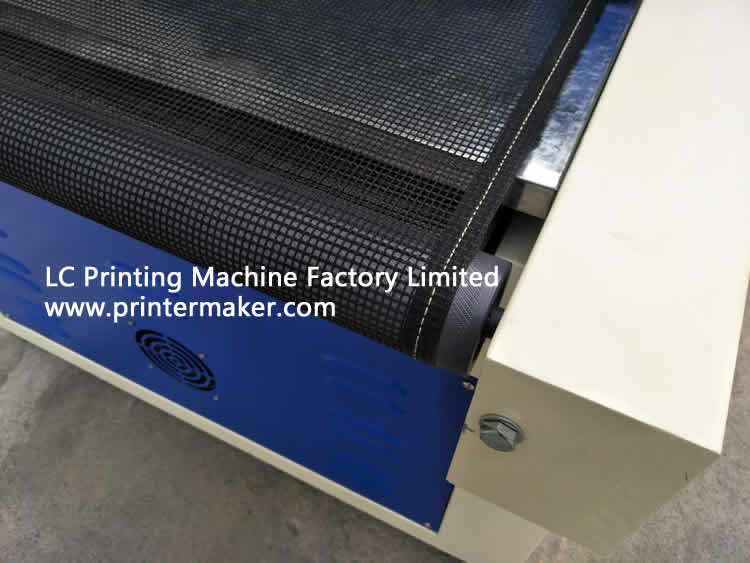

1. Made by high temperature conveyer belt,
2. Famous brand motor drive,stepless speed adjustment.
3. High quality UV lamp to ensure exposure power.
4. Taiwan transformer,startup organ . long life to use

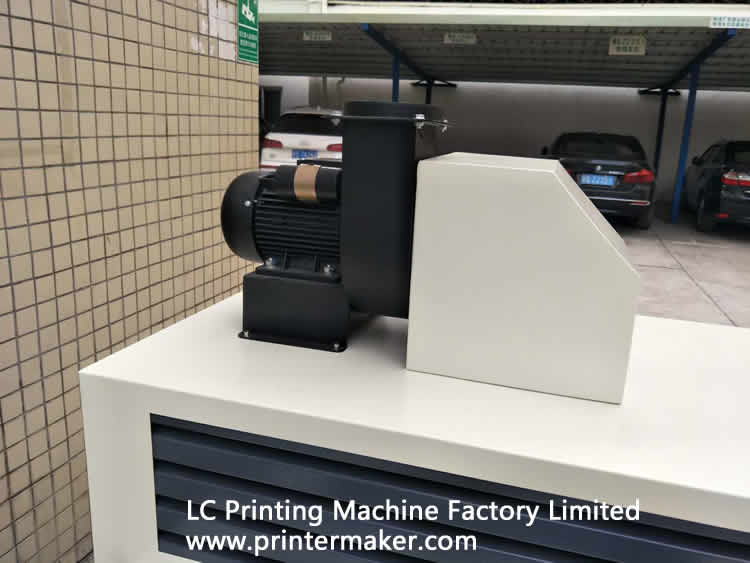

5. With convulsions function to remove quantity of heat in curing case.
Product Description:
Drying for variety of UV screen printing, pad printing, spraying UV ink processing, such as UV varnish, frosted, wrinkle, brilliant, refraction, enclosure spraying, single/double-sided green oil, offset supporting
Application range:

Used to make crystal pattern,frosted crystalam,colourful pattern ,etc,specia in the golden and silver card,metal ,glass and plastic ,etc,As well as,matched with offset printing for the UV drying of the offset printing ink.
