Description:

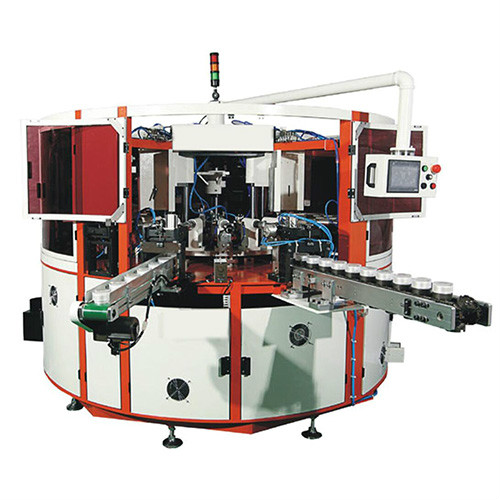

Soft Tubes Automatic UV Screen Printer with 6 colors
Technical Parameters：
Name:Soft Tubes Automatic UV Screen Printer with 6 colors
Model:AST-660
Max.printing size:φ(16~60)X(20~220)cm
Speed(Pieces/minute):60
Machine size(LxWxH):360X300X250cm
Net Weight:4500kg
Air Pressure(bar):5-7
Power:220V/50Hz 25kw
AST-660  is a Six Stations Fully Automatic Multi Functional Printing System,which was new designed system for special larger plastic container printing such as soft tubes, bottlecaps,cosmetic jars and other similar round containers.
To satisfy different requirements, optional devices can be equipped:
Standard stations: Six screen printing stations; Six UV curing systems.
Optional Stations: Hot stamping unit;Good automatic pre-registration system;
Varnish coating unit before or after print;Automatic feeder can be designed specially to increase efficiency.
To satisfy different packaging requirements, to fulfill the purpose of multi-functional,and all-in-one production line.
AST-660 was adopted reliable PLC system and touch screen control system and servo printing stroke system to make it becomes the most advance screen printing system availably.

Ideal for big quantity single color to Six colors screen printing on bottle caps, soft tubes,cosmetic jars and others.
