Description:

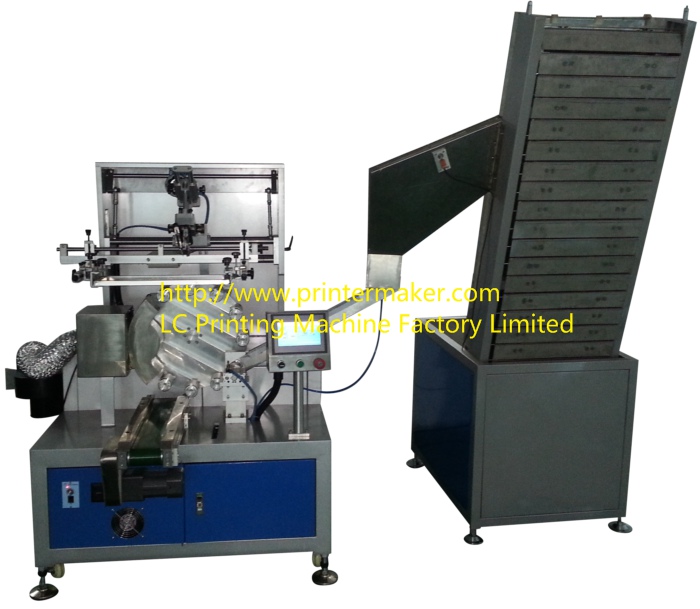

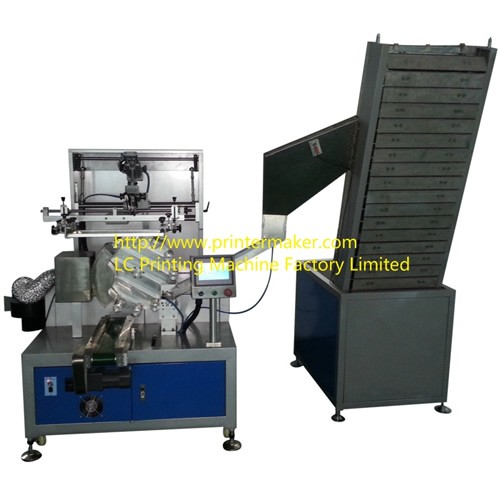

Ptfe Tape Case Automatic Screen Printing Machine
Technical Parameter:
Model  No. S-PTC
Automatic Grade:Full-Automatic
Start Mode :Panel /switch
Screen frame size: 220*520MM
Max Printing diameter:80MM
Printing Speed :3000PCS/hour
UV power :1000W
Air Pressure :6Bar
Power Requirement:220V/2500W/50Hz
Machine size :2500*1600*2150MM
Machine Weight :575KG
Printing Color :One color
Warranty :One years
Usage:            Ptfe Tape, Thread seal tape
Function introduction:
1:Using spatial CAM drive mechanism, characterized by the smooth operation, quiet, small impact, high speed, long service life, etc
2:Adopt touch screen control panel, simple and convenien operation
3:This machine is fully Automatic Screen Printing Machine, high speed, efficient, especially suitable for large quantities, demanding round calendar
4:Using ultraviolet light, the machine's speed possible
Accessories:
Screen frame with mesh x1 pieces
Squeegee * 1 pieces
Tooling box * 1 piece
Tooling set * 1 piece

English manual * 1 piece
