Description:

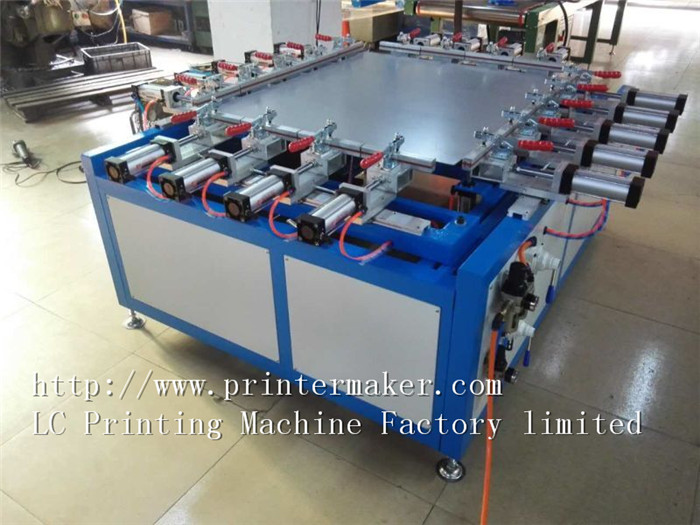

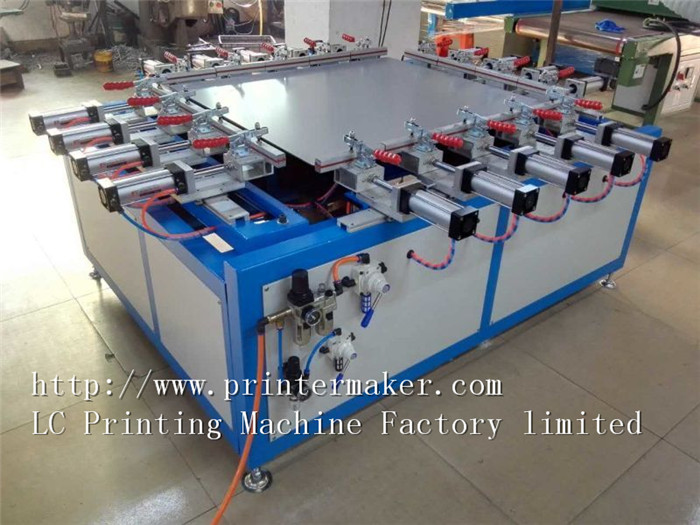

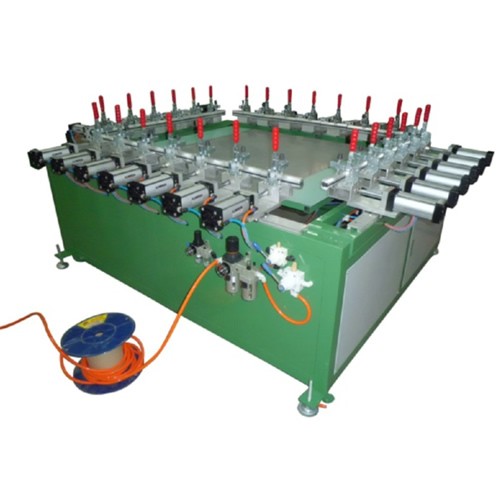

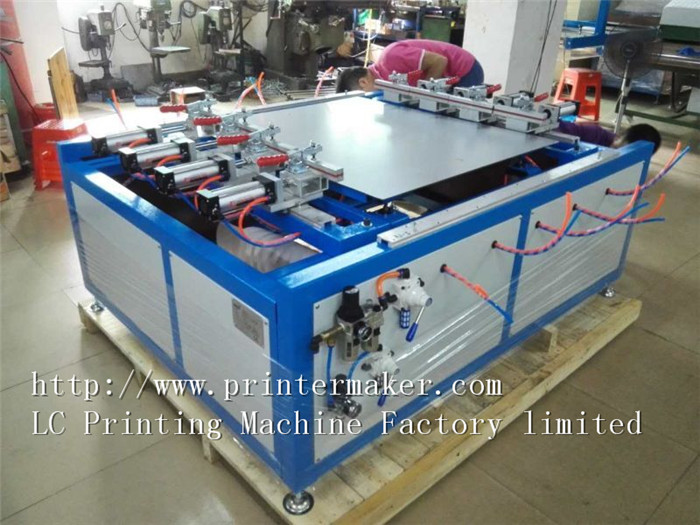

Pneumatic Screen Mesh Stretching Machine
PSMS-10（Price at 2300USD)
Specifications:
1. Simple: Easy to operate, no need electronic
2. Max tension area: 400x600 mm
3. Frame: Adjust as per the frame size
4. Machine dimension: 1400×1200×1100 mm (L*W*H)
5. Machine weight: 80KG
6. Compress air: 6 bar
7. No. of pneumatic unit: 10 pcs
PSMS-12  （Price at 2400USD)
Specifications
1. Simple: Easy to operate, no need electronic
2. Max tension area: 600x600 mm
3. Frame: Adjust as per the frame size
4. Machine dimension: 1400×1200×1100 mm (L*W*H)
5. Machine weight: 90KG
6. Compress air: 6 bar
7. No. of pneumatic unit: 12 pcs
PSMS-14（Price at 2700USD)
Specifications
1. Simple: Easy to operate, no need electronic
2. Max tension area: 600x800 mm
3. Frame: Adjust as per the frame size
4. Machine dimension: 1600×1400×1100 mm (L*W*H)
5. Machine weight: 140KG
6. Compress air: 6 bar
7. No. of pneumatic unit: 14 pcs
PSMS-16（Price at 2900USD)
Specifications
1. Simple: Easy to operate, no need electronic
2. Max tension area: 800x800mm (600x1000 mm)
3. Frame: Adjust as per the frame size
4. Machine dimension: 1740×1400×1100 mm (L*W*H)
5. Machine weight: 200KG
6. Compress air: 6 bar
7. No. of pneumatic unit: 16 pcs
PSMS-18（Price at 3100USD)
Specifications:
1. Simple: Easy to operate, no need electronic
2. Max tension area 800x1000 mm
3. Frame: Adjust as per the frame size
4. Machine dimension: 1740×1500×1100 mm (L*W*H)
5. Machine weight: 220KG
6. Compress air: 6 bar
7. No. of pneumatic unit: 18 pcs
PSMS-20（Price at 3300USD)
Specifications
1. Simple: Easy to operate, no need electronic
2. Max tension area: 1000x1000 mm
3. Frame: Adjust as per the frame size
4. Machine dimension: 1740×1740×1100 mm (L*W*H)
5. Machine weight: 240KG
6. Compress air: 6 bar
7. No. of pneumatic unit: 20 pcs
PSMS-22（Price at 3400USD)
Specifications:
1. Simple: Easy to operate, no need electronic
2. Max tension area: 1000x1200 mm
3. Frame: Adjust as per the frame size
4. Machine dimension: 1750×1540×1100 mm (L*W*H)
5. Machine weight: 260KG
6. Compress air: 6 bar
7. No. of pneumatic unit: 22 pcs
8.Packing Size:174*159*125CM
PSMS-24（Price at 3700USD)
Specifications:
1. Simple: Easy to operate, no need electronic
2. Max tension area: 1600x1200 mm
3. Frame: Adjust as per the frame size
4. Machine dimension: 2200×1840×1100 mm (L*W*H)
5. Machine weight: 340KG
6. Compress air: 6 bar
7. No. of pneumatic unit: 24pcs
8.Packing Size:2250*1980*1250MM
PSMS-26（Price at 3900USD)
Specifications:
1. Simple: Easy to operate, no need electronic
2. Max tension area: 1700x1400 mm
3. Frame: Adjust as per the frame size
4. Machine dimension: 2200×1740×1100 mm (L*W*H)
5. Machine weight: 360KG
6. Compress air: 6 bar
7. No. of pneumatic unit: 26 pcs

8.Packing Size:2250*1950*1250MM
