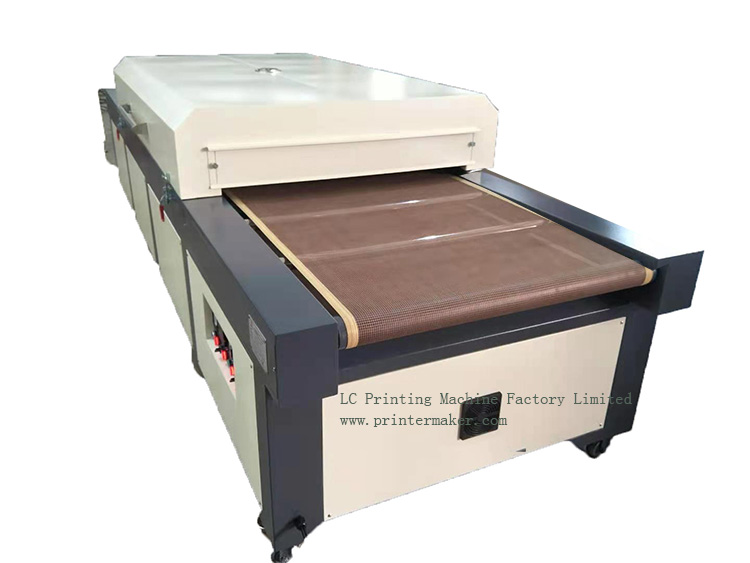

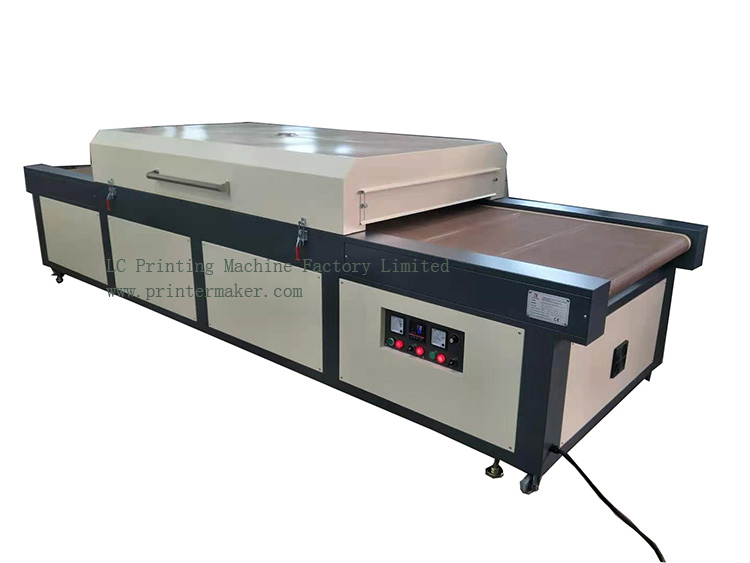

Paper Infrared Drying Tunnel

Specifications :

1:Model No:DT-900

2:Conveyer size: width: 90cm; infeed length:100cm; outfeed length:100cm, heating zone:200cm; Total length 4 meters;Max.infeed height at12CM

3:Total wattage: 10KW

4:Circulating air motor ：750W*2=1500W

5:Conveyer motor wattage(invertor):500W;velocity rate:60RPM,every 70 seconds;

Max. speed at9000mmper minute.

6:Heating temparature: 80-200 degree.

Heating Tube length: 900mm*12pcs;

Heating Tube power rate: 2700W--U Shape

7:Conveyer Speed adjustment: Stepless 0-8meters/minutes; 8.Machine Power:380V 3 Phase

9.Machine dimension: 410cm*91cm*130cm(W*L*H)

9:Gross/Net weight:680KG/800KG

10:Package: Wooden case

11:Warranty : 1 years

Package: Export polywood case

Teflon IR drying tunnel, Teflon IR heating tunnel,

Glass perfume bottles IR heating Tunnel, Glass bottles Infrared heating tunnel, Glass bottles Infrared drying oven, plastic bottles heating tunnel, Sports bottles Infrared heating tunnel, vacuum cup Infrared heating tunnel, thermal cups Infrared drying tunnel, vacuum bottles infrared drying tunnel

Infrared Heating tunnel on the plastic barrels bucket

BUCKET IR heating tunnel

Barrel IR Heating Tunnel

Infrared Heating tunnel on the bucket

Infrared Heating tunnel on the plastic pail bucket

Infrared Heating zone

5 Gallon water bottles infrared heating tunnel DT-500B, 5 Gallon water bottle drying tunnel, Infrared Heating Tunnel on buckets; IR Heating tunnel for pails;20Lbarrels pails drying tunnel on the plastic buckets

T-Shirt IR Heating tunnel, Teflon Belt IR heating Tunnel; Infrared drying tunnel; film drying tunnel, paper drying tunnel, carton box drying tunnel; plate Infrared drying tunnel;
