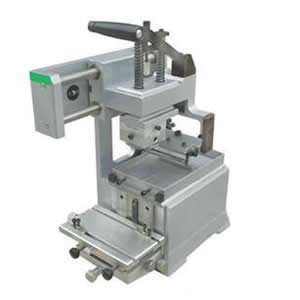

Ink Tray Manual Pad Printer
Price Terms:FOB china
Payment Terms:T/T
Packing:Wooden case
Lead Time:Within 3 days
Standards Certificate:ISO9001-2000
Colour Painted:silver
Specifications:
M100     Price:USD250
1.Plate area: 100×100mm
2.Dimension: 260 × 328 × 485 mm
3.Net weight: 25 Kg
4.Printing speed: 500pcs/H.
5.Max printing area:85×85mm.

M150        Price:USD280
1.Plate area: 100×150mm
2.Dimension: 290 × 328 × 485 mm
3.Net weight: 30 Kg
4.Printing speed: 500pcs/H.
5.Max printing area:85×130mm

Advantages:
1. One hand operation which makes the production faster.
2. With the precision engineering results in the sturdiness of the machine.
3. All the positions and the displacements of the system are limited by stop guides which are also accompanied by pressure guides.
4. Simple and precise adjustments of pad holder , inkwell , fixture of product to be printed are in X,Y,Z co-ordinates.
5. Very light and effortless operation for the operator.
6. Quick set up time of the Inkwell , plate, pad, and easy to clean.
7. Virtually maintenance free.
8. Totally portable and can easily take to different locations.
9. No electricity and air pressure is needed as it is manually operated.
10. Open ink tray system.
11. The height of worktable can also be adjusted for allowing bigger substrates.
12. Unibody construction and unique twin roller guides makes operation smooth and effortless.

Package List:
Simple set :
1.Package domension: 240×460×490mm;
2.Gross weight: 35KG

Five sets
1.Package domension: 550×1330×590mm;
2.Gross weight: 190KG

Ten sets
1.Package domension: 550×1330×1170mm;
2.Gross weight: 370KG.
Ship Date:1.By sea.
within 30 days after receive T/T .

2.By air.

within 6 days after receive T/T.
