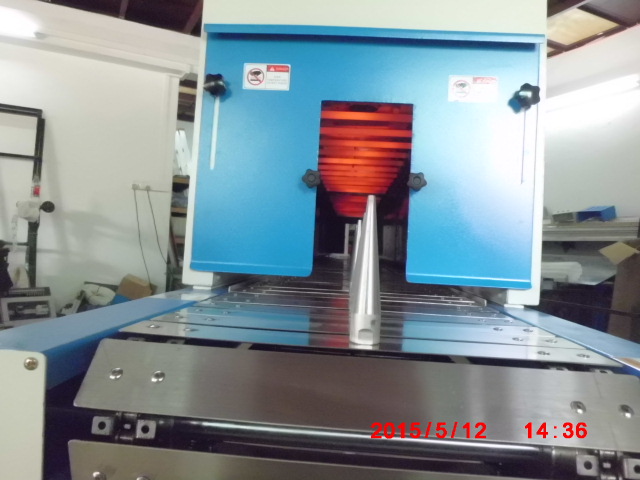

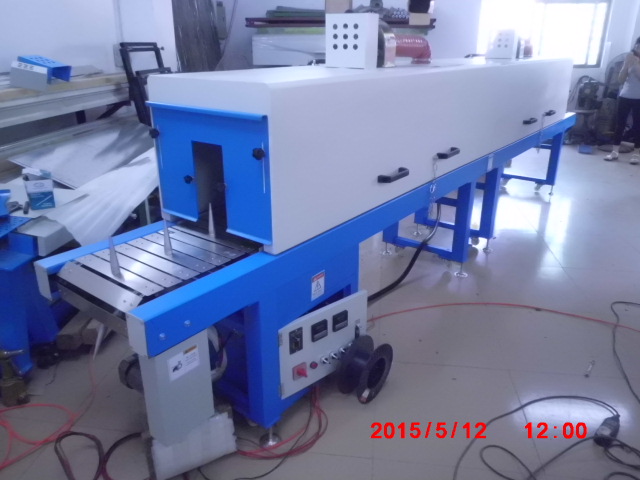

Infrared Tunnel For Plastic and Glass Wine Bottles
Tunel with total length of 5 meters at maximum temparature at 150degree, 50CM infeed, 50CM outfeed, 2*2Meters drying tunel. (included the tooling for plastic bottles) Power Supply at 220V , 2 phases , 60 Hz HS Code:8514109000
1.Conveyer width：400mm
2.Total wattage：10KW ;Lamp length:450mm;Lamp rate:400W*24pcs of lamps
3.Wind fan wattage：500W;
4.Conveyer motor wattage：1000W/3P/380V & 220V/3p
5.ConveyEr speed：0~10m/min
6.Speed adjustment：stepless
7. Outer dimension：5500×450×680mm(l×w×h)
8. Net weight：820KG
9. Package: wooden case.
Post time:Sep-25-2020
