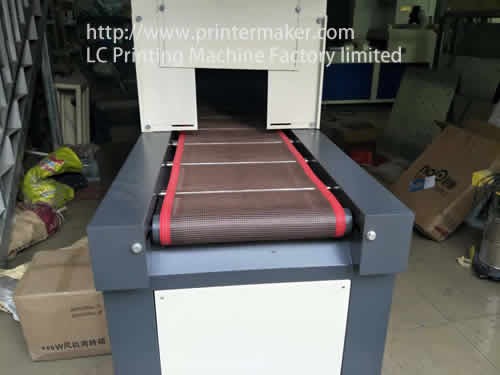

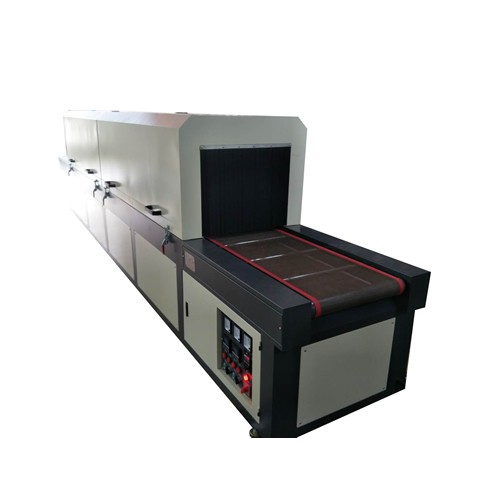

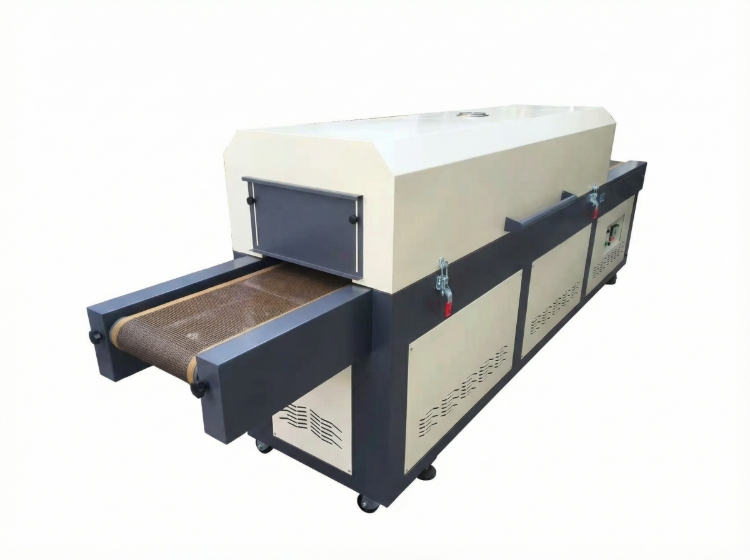

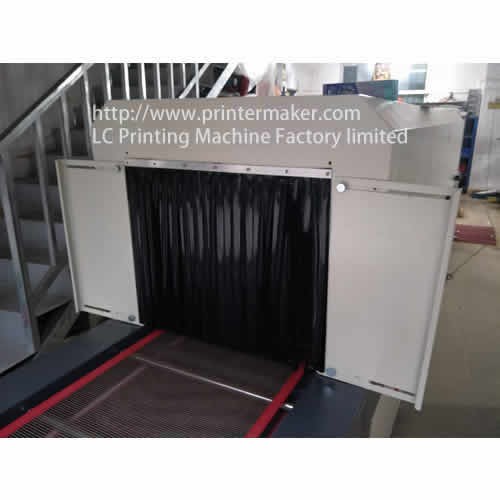

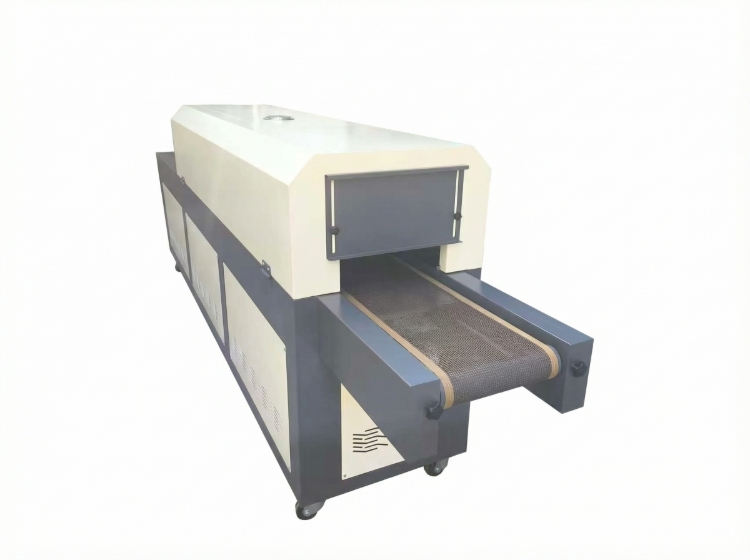

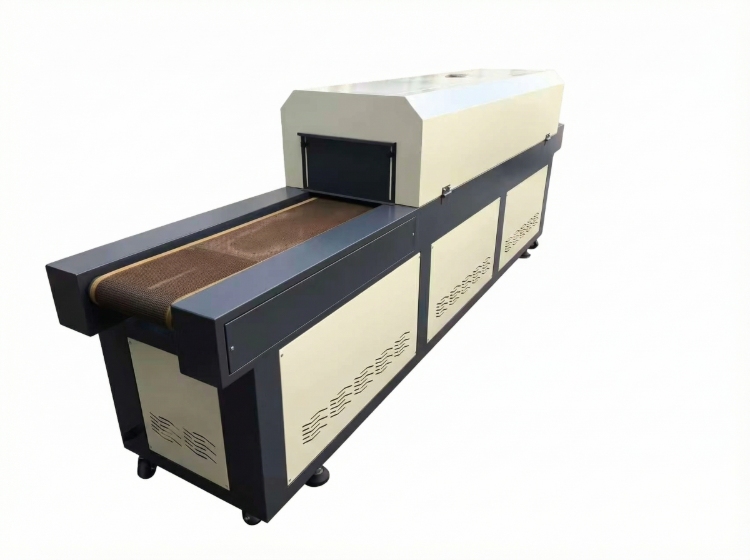

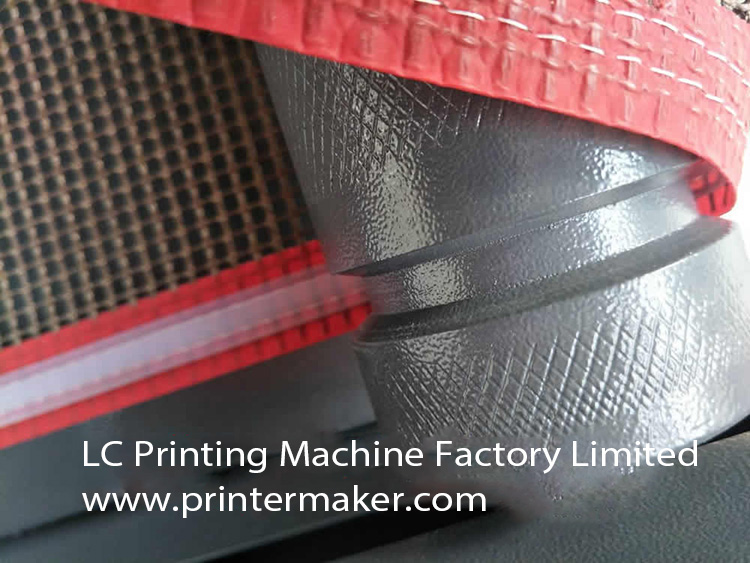

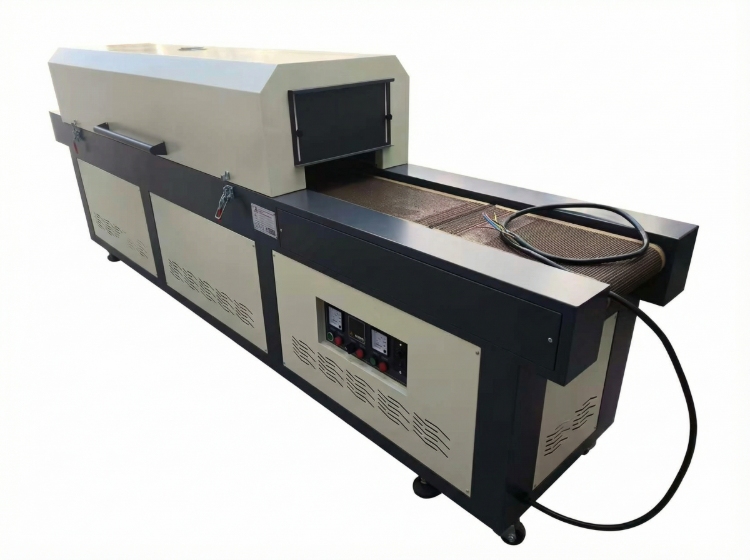

Infrared Drying Tunnel For Bottle (Telftlon Conveyor Belt for 5 Gallon bucket)

Short Description:

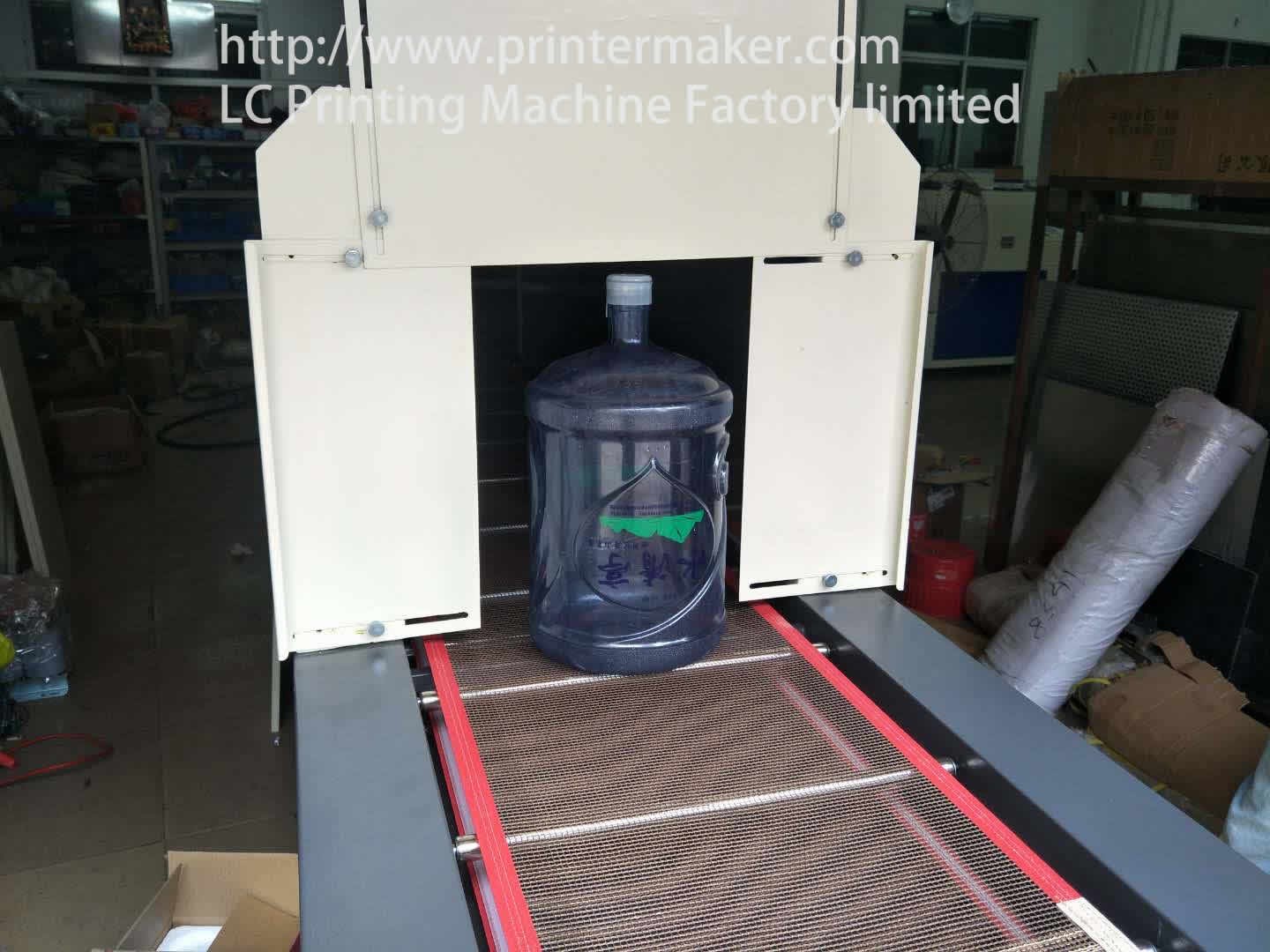

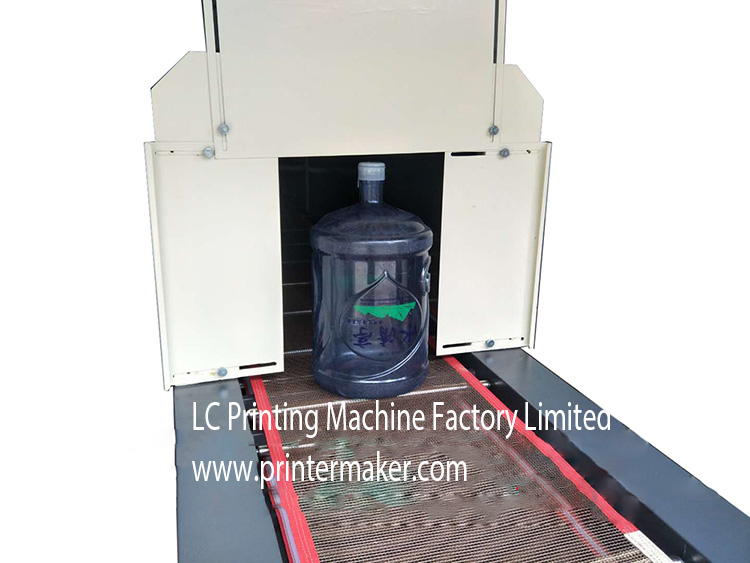

5 Gallon water bottles infrared heating tunnel DT-500B, 5 Gallon water bottle drying tunnel, Infrared Heating Tunnel on buckets; IR Heating tunnel for pails; 20L barrels pails drying tunnel on the plastic buckets Infrared Heating tunnel on the plastic barrels bucket BUCKET IR heating tunnel Barrel IR Heating Tunnel Infrared Heating tunnel on the buck...

Send email to us

Product Details

Product Tags

Specification
1:Model No:       DT-500B
2:Conveyer size: width: 500mm; infeed&outfeed length:1000mm;
heating zone: 2000mm*2 zones; total length at 6 meters;Max.infeed height at 50CM
3:Total wattage:   12KW
4:Circulating air motor ：550W*2=1100W
5:Conveyer motor wattage:160W;velocity rate:50RPM,every 70 seconds
6:Heating temparature:100-150 degree; Heating tube length:450mm*24pcs;tubes power rate: 400W
7:Conveyer Speed adjustment: Stepless 0-8meters/minutes; Stainless steel conveyor belt
8:Machine dimension:  620mm width*6000mm length *1600 height(lxwxh)
9:Gross/Net weight:    980KG/900KG
10:Package:  Wooden case
11:Automatic Grade:  Manual
12:Warranty       :  2years
13:Usage:  Round,Oval and flat plastic or glass bottles
14:packing size:  612*81*175CM

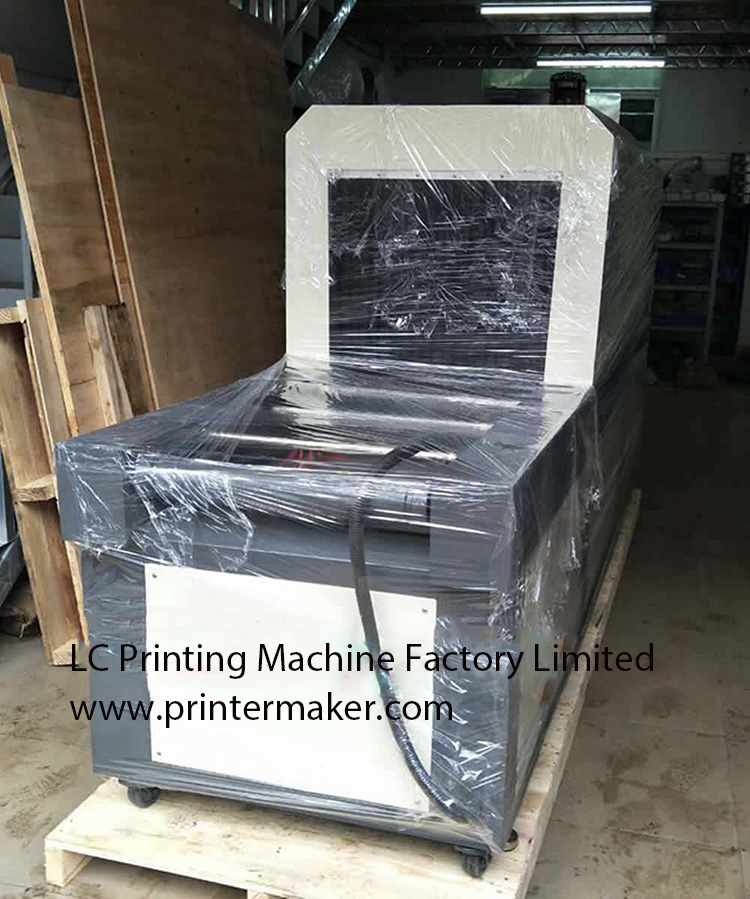

Package:               Export polywood case
Automatic Grade: Manual
Warranty       :      2 years

Usage: Round,Oval and flat plastic or glass bottles
