Description:

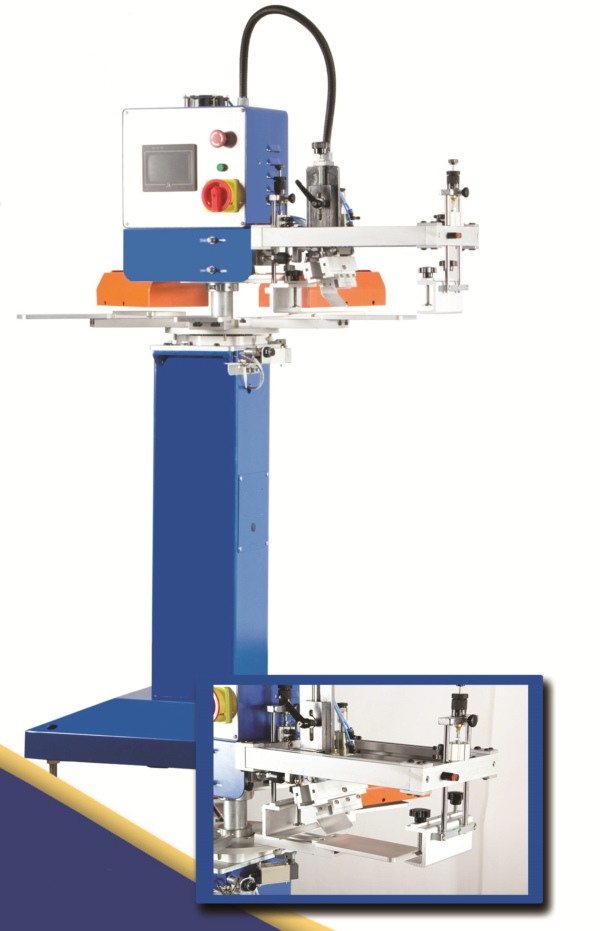

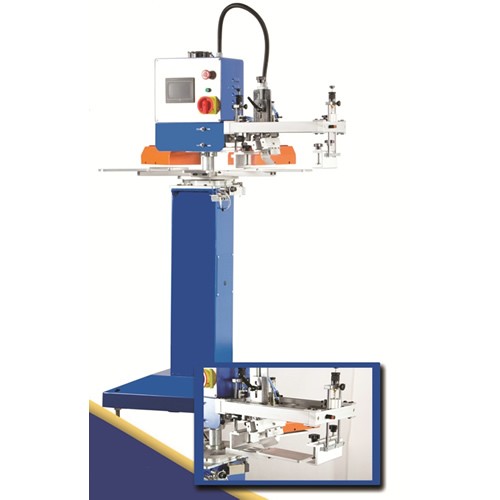

High Speed T Shirt Tagless Screen Printing Machine
Model RSP-A130
Technical Data:
Max.Printing Area:130*100mm
Max.Printing Speed:2000pcs/hr
Rated power :3200 W
Rated voltage :AC 110V/220V+10% 50/60Hz
Rated current :30A
Air consumption(L/min): 10 Litre/min 6bar
Noise (dB): ＜80dB
Outline dimension: 1000x920x1450 mm
Weight(kg) 90 kg
Features:
1. PLC control, human-computer interface, clear function display and easy operation.
2. Flat screen printing and dried by infrared ray. Suitable for general ink and small area screen frame printing such as T-shirt collar.
3. Five stations driven by step motor to insure stable and smooth running.
4. Angle and height of squeegee and flood blade can be adjusted to insure consistent printing pressure.
5. Adopts five stations rotary worktable, one for substrate display and one for printing, two for drying and one for substrate take-away and five stations working simultaneously with high speed.
6. With one cycle and auto function and switch easy.
Application range:

Super fast tagless label printter in textile industry.the screen printing press for Tag greatly increases your production speed up to 2000 units per hour
