Description:

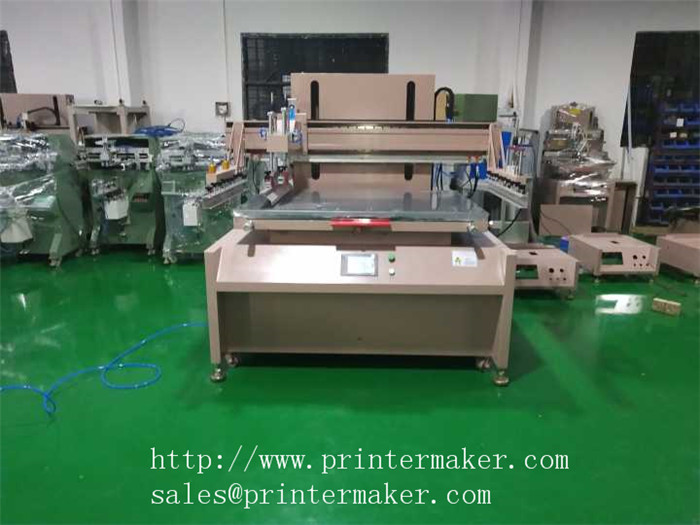

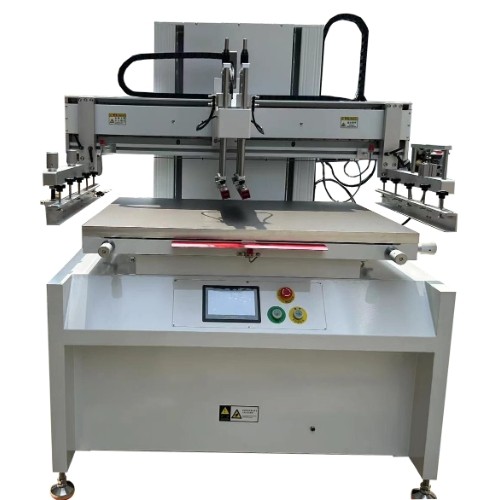

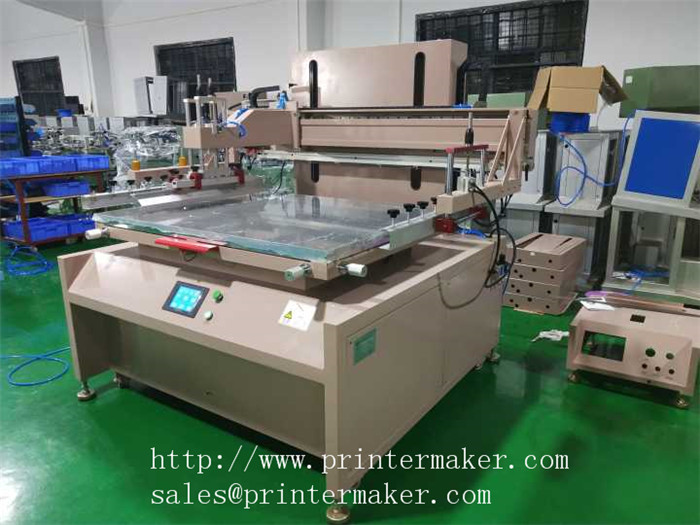

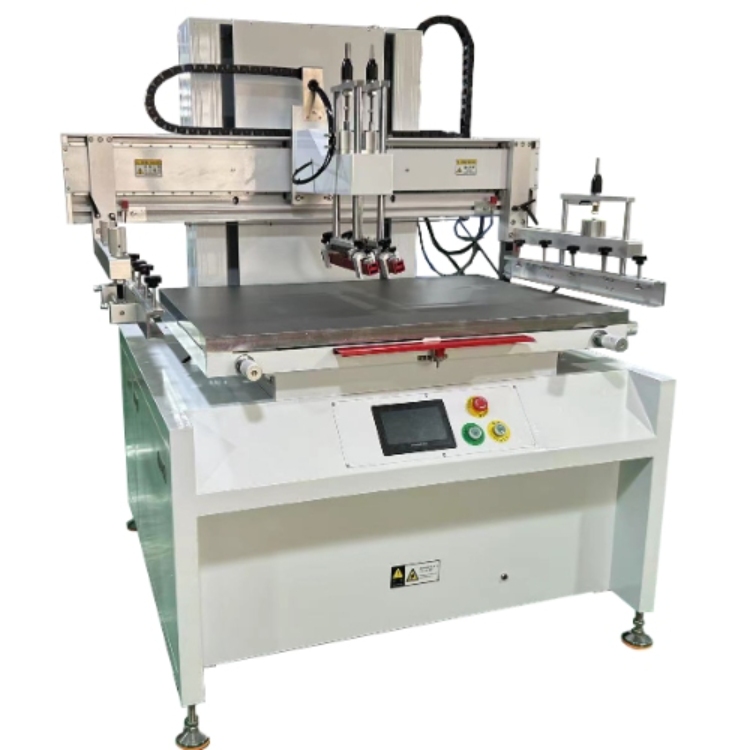

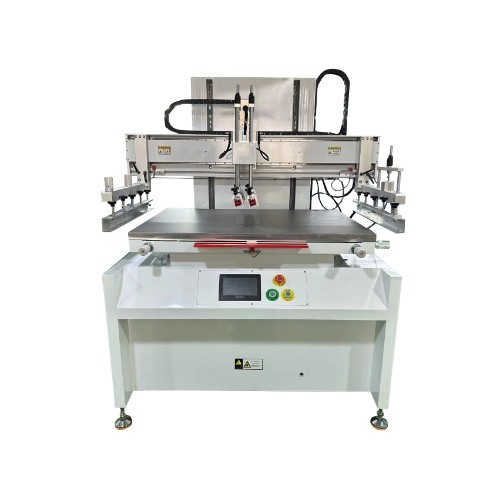

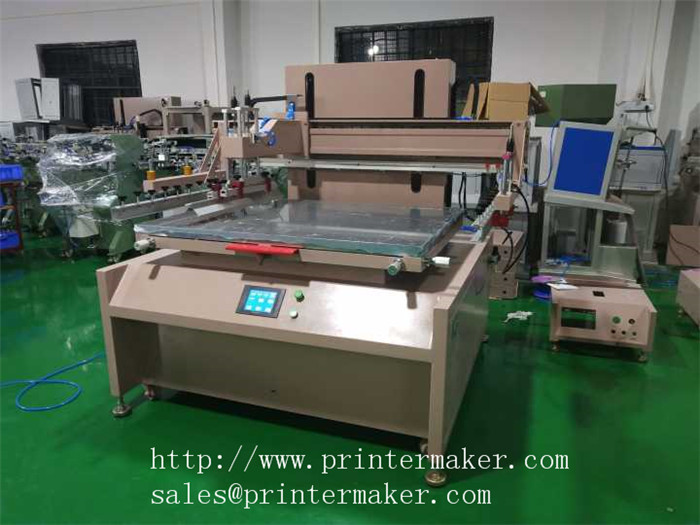

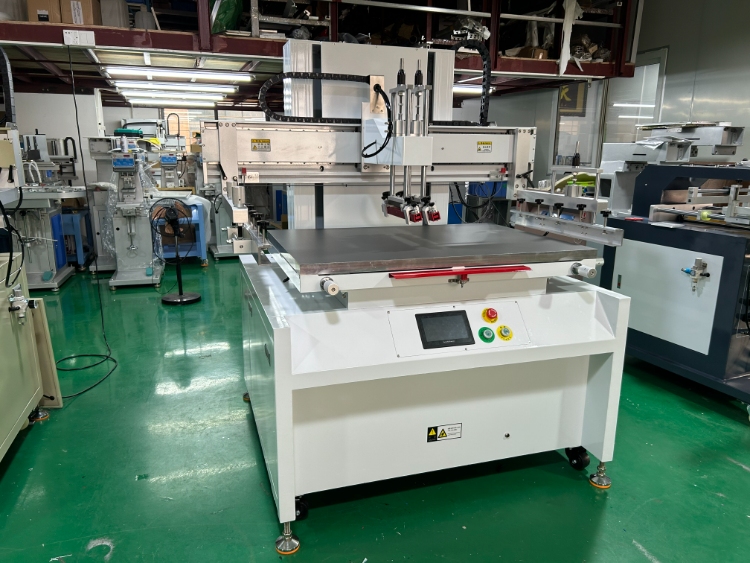

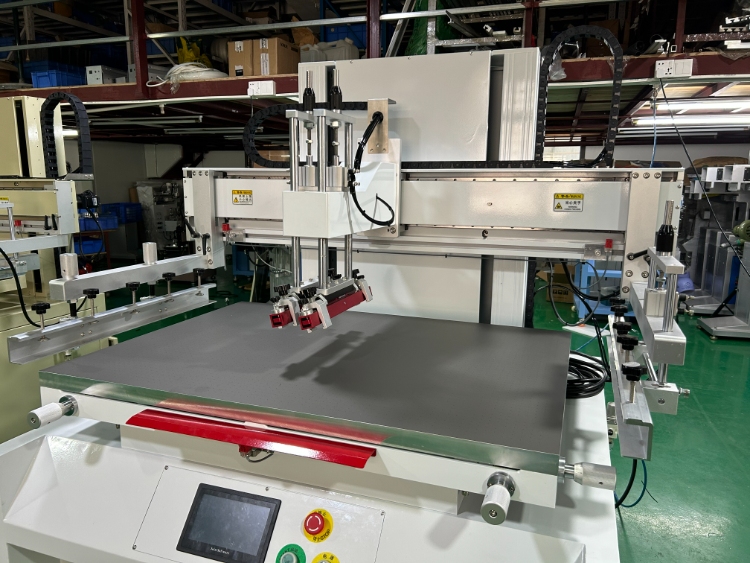

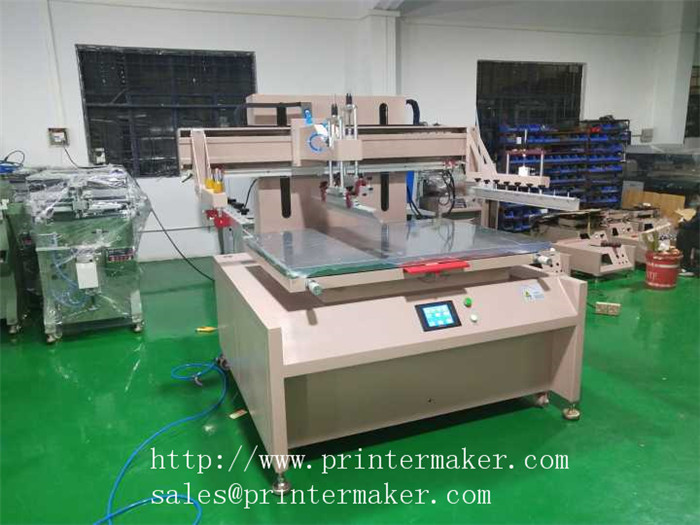

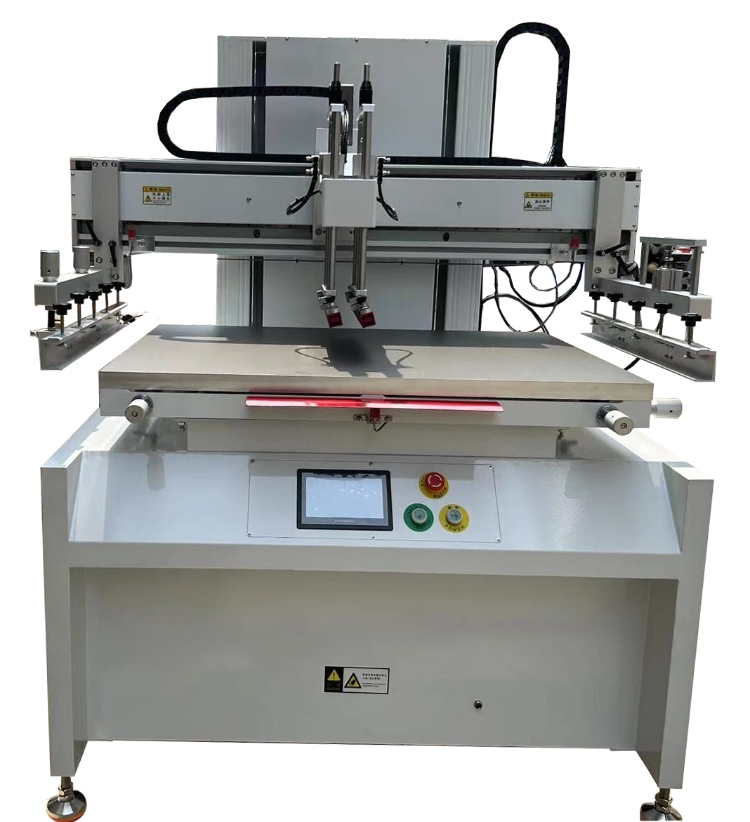

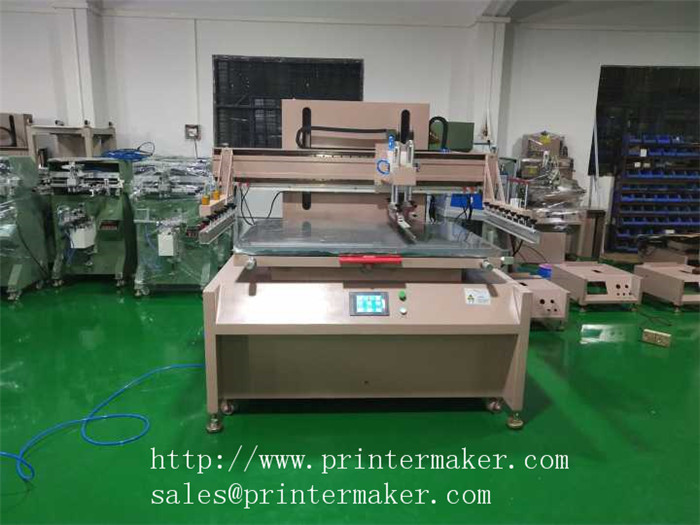

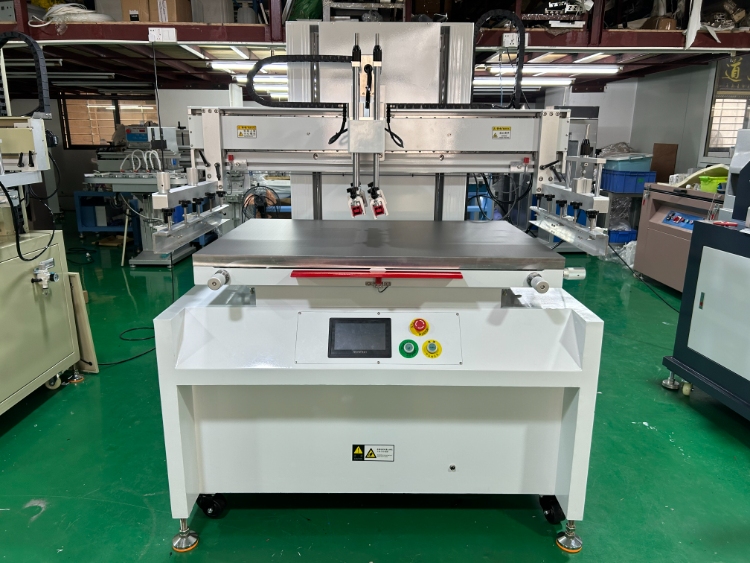

Fully Electrical Driven Flat Bed Screen Printer With PLC Control and Servo Motor

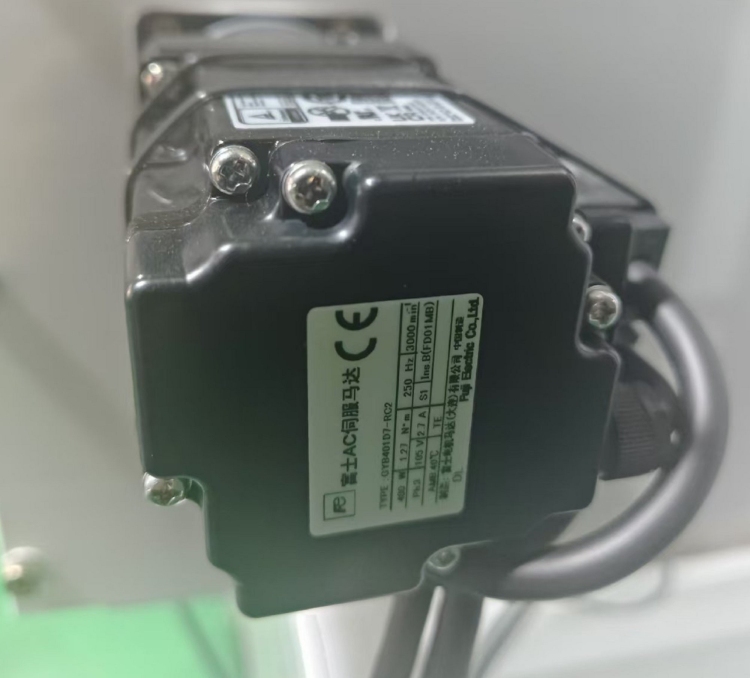

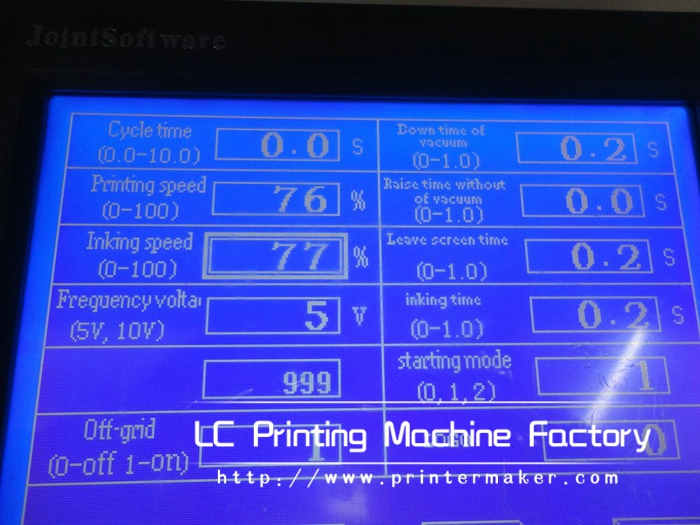

Servo Motor, Omron PLC, SMC Cylinder ,Import Motor

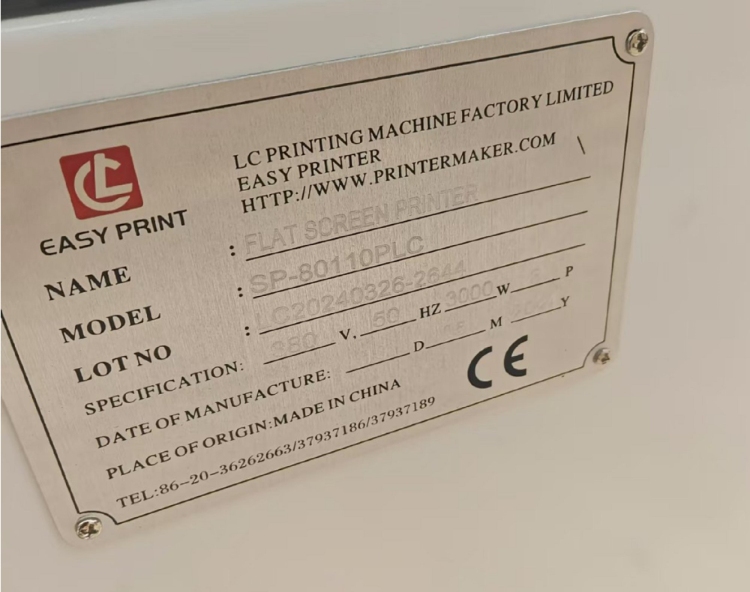

Model: SP-80110PLC

1. Thickness of printing matter: 0-80mm
2. Size of printing table：800×1100mm
3. Max Printing area：700×1000mm
4. Max Stroke of up-and-down frame：160mm
5. Max. printing speed：1500pcs/hour
6. Air pressure：6 Bar
7. Power voltage: AC 380V (because of the electric lifting table, we can change 110V or 220V)
8. Power consumption：3kw
9.Power Supply︰380V/50HZ,3PHASE
10. Machine dimension：1300×1620×1780mm

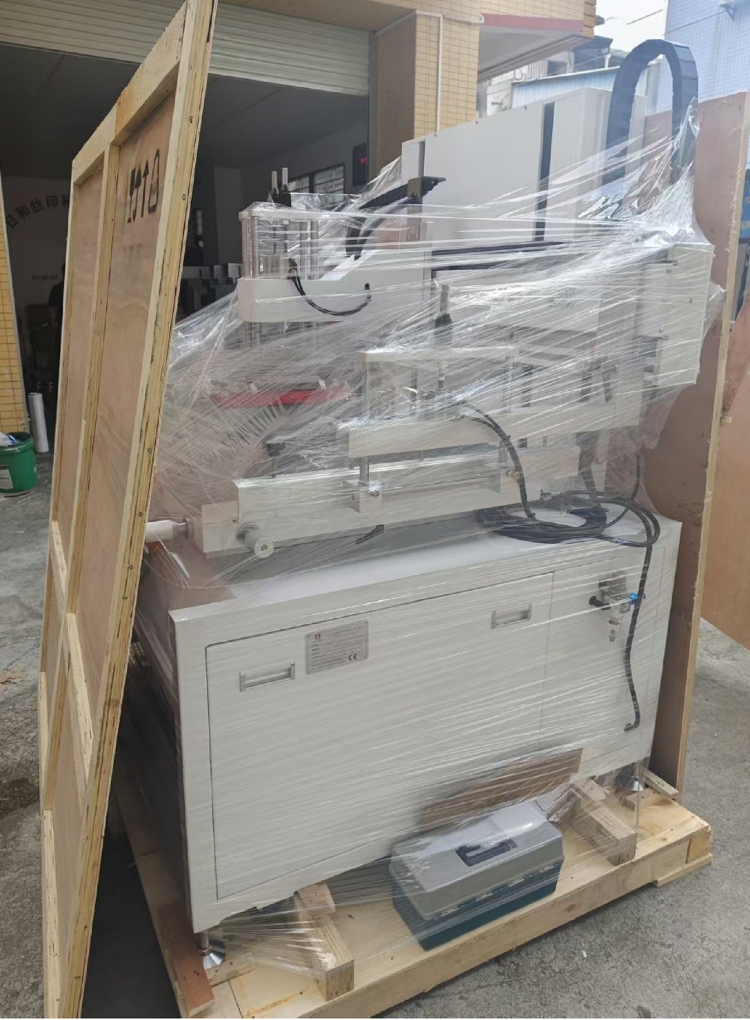

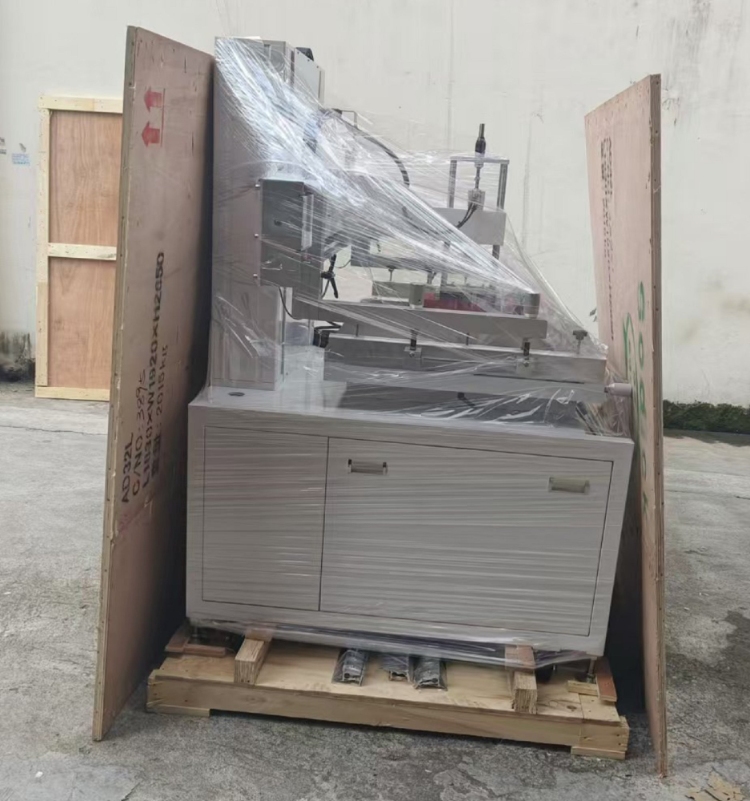

11.Packing size : 1375×1695×1930mm

Model:SP-100130-PLC
1. Thickness of printing matter: 0-80mm
2. Size of printing table：1000×1300mm
3. Max Printing area：900×1200mm
4. Max Stroke of up-and-down frame：160mm
5. Max. printing speed：900pcs/hour
6. Air pressure：6 Bar
7. Power voltage: AC 380V
8. Power consumption：3.5KW 9: Machine size:196*185*140CM
Model:SP-130190-PLC
1. Thickness of printing matter: 0-80mm
2. Size of printing table：1300×1900mm
3. Max Printing area：1200×1800mm
4. Max Stroke of up-and-down frame：160mm
5. Max. printing speed：800pcs/hour
6. Air pressure：6 Bar
7. Power voltage: AC 380V

8. Power consumption：4.5KW 9: Machine size:225*215*140CM
