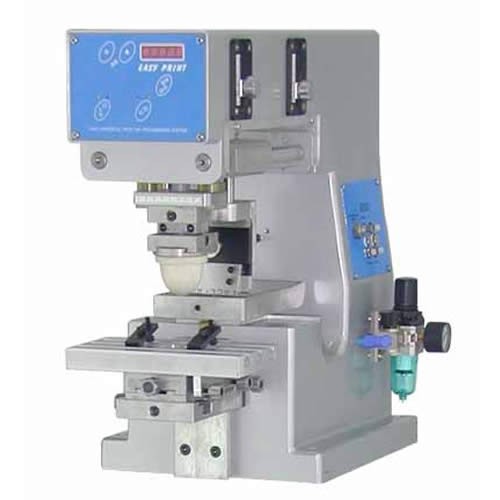

Economical One Color Pad Printing Machine
Economical One Color Pad Printing Machine
The pad printer is adopted no pedestal desigh with cabinet sharp and fast printing speed.Installing several sets in smaller factory can make a production line for printing products. Morever, it is more economic, reducing investment cost. It is suitable for printing electronic products, plastic shell, hardware products, stationary, small arts and crafts, logo on the surface of gift.
Specifications
1.steel plate size: 100*100mm
2.printing speed: 2500pcs/hr
3.power: 220V/110V 50-60HZ
4.air pressure: 5-7Bar
5.Action model option: fully automatic/semi-automatic/ Self-Programming
6.Start-up method:panel/foot switches
7.Scraper working style: Pneumatic mechanical valve drives cylinder up and down
8.transversa distance：125MM
9.vertical distance：50MM
10.Max.printing area：80*80MM
11.Plastic fastness style: by wooden bolt
12.Printing workstation: 1PCS
13.Fixuping clamp method： T-slot table, code pressure compress heavily
14.Choosing the material of clamp: Automobil Putty/ Aluminum/plastic/steel
Package List:
Wooden case :600×400×650mm
Gross Weight: 60kg
Machine Fittings:
1.One pad
2.One steel plate
3.One Manual in English
4.One blade
5.One set of tool
1 Color Open inkwell Pad Printer
Price Terms : Guangzhou
Payment Terms : Western Union ,T/T
Packing : Wooden case
Lead Time : Within 3 days
Standards Certificate : ISO9001-2000,CE
Feature
1.SCM IC complile action program,kinds of printing model options
2.Auto 4-digit counter built-in,and stat. Printing quantity
3.Airframe adopts coin alloy,and metal coating surface
4.Worktable,plastic head and ink tray can be adjusted X.Y.Z direction
5.Sucking ink and the pressure of printing pad can be adjusted independently .
6.The distance of scratching ink is adjustable
7.It has function of leveling ink by sliding automatically on front /back,this can avoid printing ink partial solidification
8.The speed of all the cylinders have an independent regulator intortum
9.Adopts original Taiwan AirTac pneumatic component
10.Each adjustable location has scale logo1
11.The machine is running fastly,it is steady and low voice
The pad printer is adopted no pedestal desigh with cabinet sharp and fast printing speed.Installing several sets in smaller factory can make a production line for printing products. Morever, it is more economic, reducing investment cost. It is suitable for printing electronic products, plastic shell, hardware products, stationary, small arts and crafts, logo on the surface of gift.
Specifications
1.steel plate size: 100*100mm
2.printing speed: 2500pcs/hr
3.power: 220V/110V 50-60HZ
4.air pressure: 5-7Bar
5.Action model option: fully automatic/semi-automatic/ Self-Programming
6.Start-up method:panel/foot switches
7.Scraper working style: Pneumatic mechanical valve drives cylinder up and down
8.transversa distance：125MM
9.vertical distance：50MM
10.Max.printing area：80*80MM
11.Plastic fastness style: by wooden bolt
12.Printing workstation: 1PCS
13.Fixuping clamp method： T-slot table, code pressure compress heavily
14.Choosing the material of clamp: Automobil Putty/ Aluminum/plastic/steel
Package List:
Wooden case :600×400×650mm
Gross Weight: 60kg
Machine Fittings:
1.One pad
2.One steel plate
3.One Manual in English
4.One blade
5.One set of tool
1 Color Open inkwell Pad Printer
Price Terms : Guangzhou
Payment Terms : Western Union ,T/T
Packing : Wooden case
Lead Time : Within 3 days
Standards Certificate : ISO9001-2000,CE
Feature
1.SCM IC complile action program,kinds of printing model options
2.Auto 4-digit counter built-in,and stat. Printing quantity
3.Airframe adopts coin alloy,and metal coating surface
4.Worktable,plastic head and ink tray can be adjusted X.Y.Z direction
5.Sucking ink and the pressure of printing pad can be adjusted independently .
6.The distance of scratching ink is adjustable
7.It has function of leveling ink by sliding automatically on front /back,this can avoid printing ink partial solidification
8.The speed of all the cylinders have an independent regulator intortum
9.Adopts original Taiwan AirTac pneumatic component
10.Each adjustable location has scale logo1
11.The machine is running fastly,it is steady and low voice
