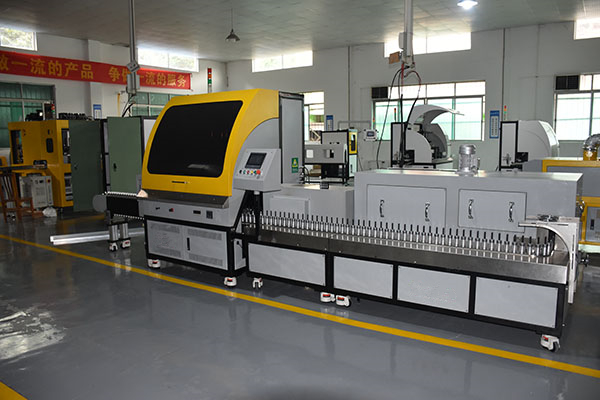

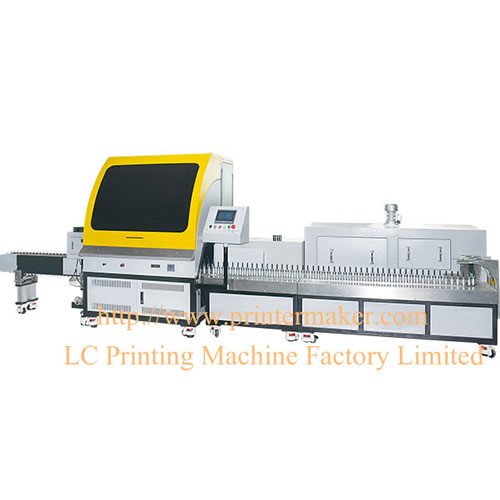

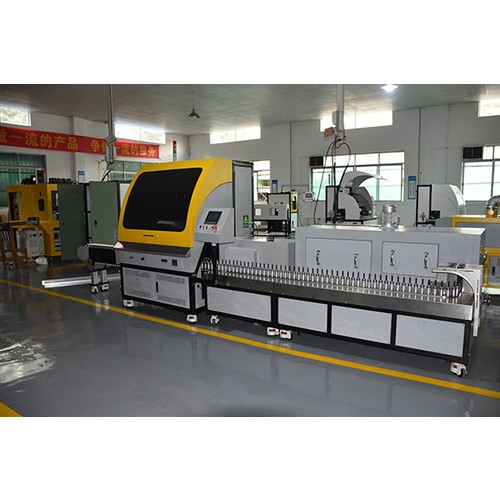

This Multi-function Automatic Screen Printer is servo system machine for single color printing, both can print plastic and glass products. It fits for printing glass and plastic bottles, cups, containers etc with high production speed.It can print any shape of containers all around in once time printing.
Applications:

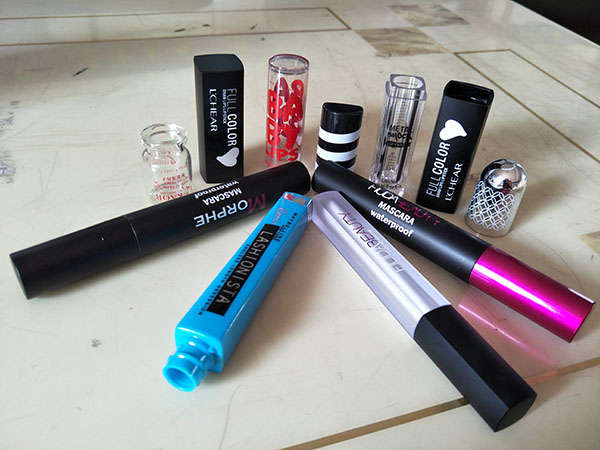

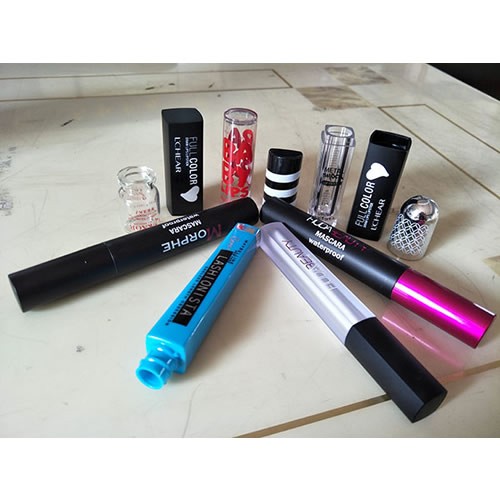

This Multi-function Automatic Screen Printer is servo system machine for single color printing, both can print plastic and glass products. It fits for printing glass and plastic bottles, cups, containers etc with high production speed.
It can print any shape of containers all around in once time printing.
Parameters：
Model:SGL-PT12H
Printing Size(mm):Dia. 10-70mm Hight:20-170mm
Speed (pcs/min.):25-45 PCS
Air Pressure(Mpa):4-6Bars
Power:380V/20KW
Weight(Kg):1200kgs
Packing Size(L*W*H mm):L:3800 mm*W:1500 mm*H:2100mm

Features:
1.Automatic loading and unloading system with multi axis servo robot
2.Without UV Curing system
3.Automatic printing system with all servo driven: printing head, mesh frame, rotation,container
up/down all driven by servo motors.
4.Fast tooling changeover time, it's about 15 minutes for each color. All parameters automatic setting by touch screen.
5.All servo motors with industrial PLC control & touch screen operation system

6.Can use thermoplastic ink or UV ink.
