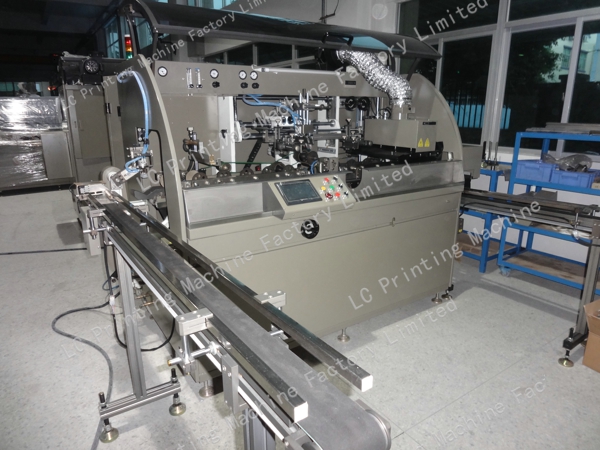

Automatic UV Screen Printing Machine-Mechanically Driven

Short Description:

This 1 color UV silkscreen printing machine well designed to print round, oval and square shape plastic bottles, glass bottles, and metal bottles. Such as cosmetic bottle, water bottle, sport bottle, milk bottle, plastic cup, silicone sealant tube, engine oil bottle, lube filter, wine bottle, etc. As the bottle printing machine manufacturer,....

Send email to us

Product Details

Product Tags

Description:

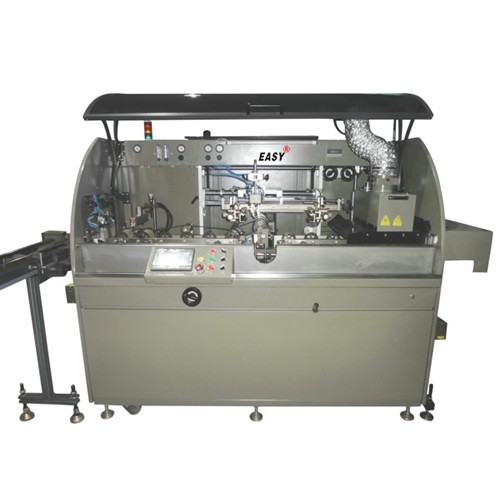

Mechanical Driven Automatic UV Screen Printing Machine (For Round,Oval,Conical,Flat Shape Bottles, Cups and Containers)
Parameters:
1.Printing Speed Round: 4000pcs / hr Oval 5000pcs / hrParameters:
1.Printing Speed Round: 3500pcs / hr Oval 4000pcs / hr
2.Printing Size: (φ100X280mm)x(260-200mm)
3.Printing Length: Oval Width 25-100mm Length 25-280mm
4.Compressed Air: 0.6MPa
5.Lp Gas:0.15MPa
8.Power Unit:380V/3P 50Hz 7KW/220-240V,3Phrases,7KW.

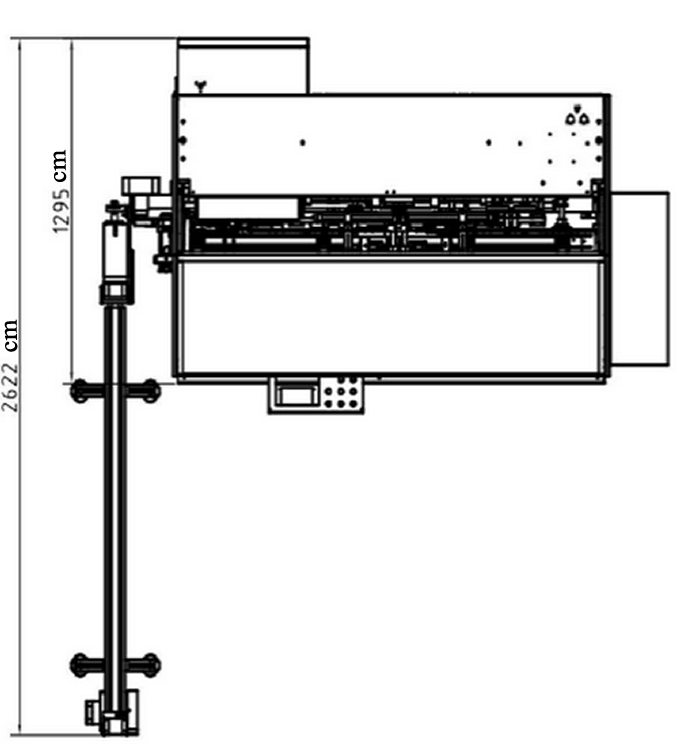

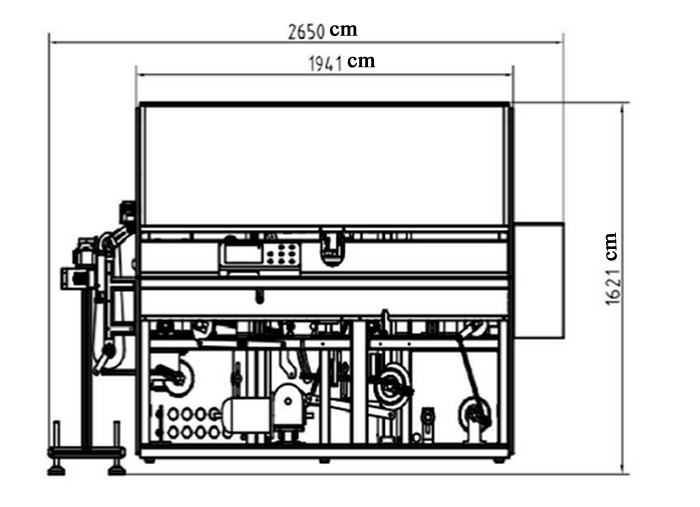

10.Machine Dimension:2580×1580×2100mm
11.Packing Size:291*167*187CM
12.Net Weight:1000KG

13.Gross Weight:1200KG

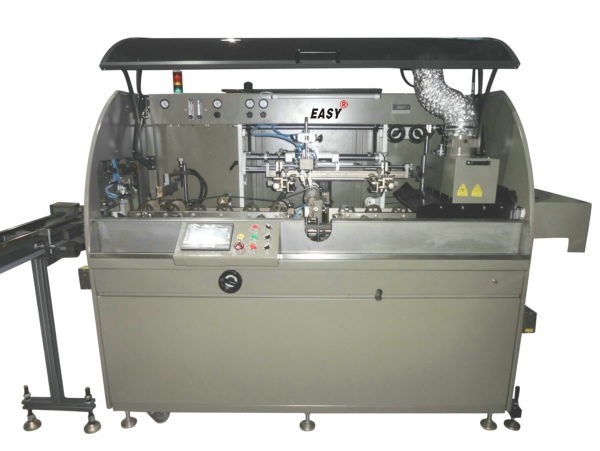

Automatic UV Screen Printing Machine-Mechanically Driven

Features:

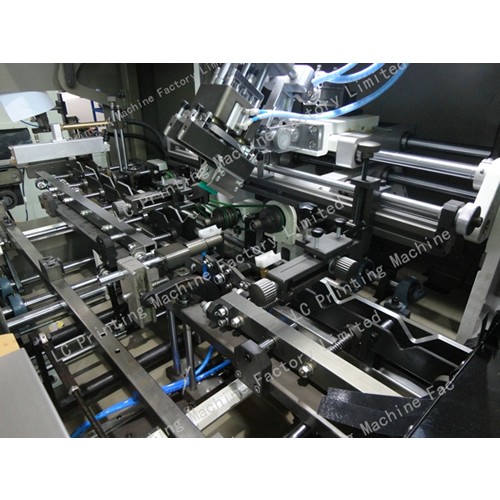

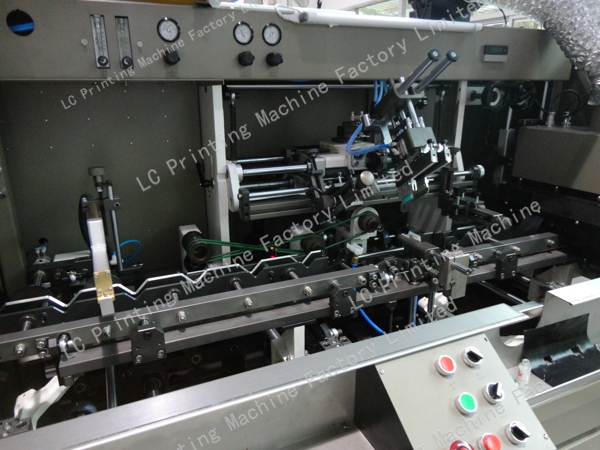

Cam-linkage mechanisms driving mode combined with PLC control system effectively guaranteeing the reliability and efficiency.
Reliability:
Main components from Rexroth, Schneider, SMC, Mitsubishi etc. other parts machined in-house by CNC directly from CAD. Frame & structures made by high intensity aluminum alloy and stainless steel.
Easy Operation:

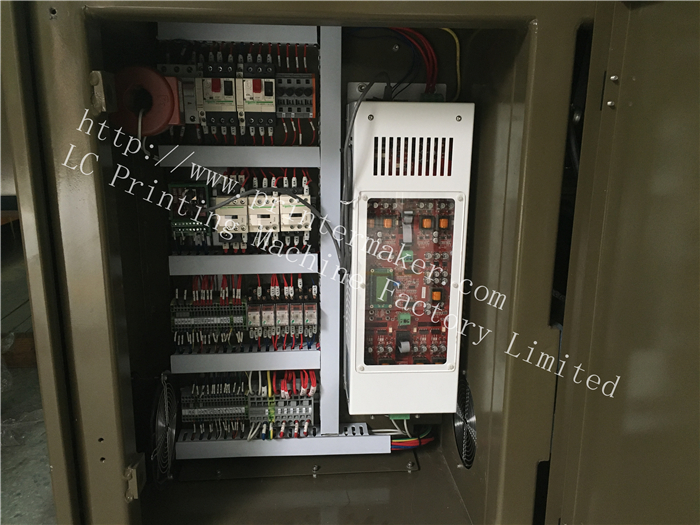

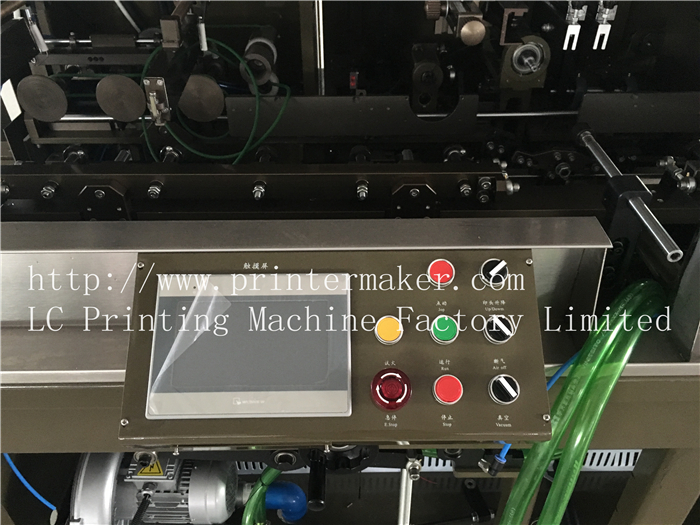

With PLC control system, touch screen interface. Fast setup & quick tooling change over.
Printing Management:
Adopted with No-object no printing system, auto counter, faulty alarm device.
Options: General unit for round & oval bottles, antistatic device, flame treatment, UV/IR system, auto feeding system and other customizations due to order.
