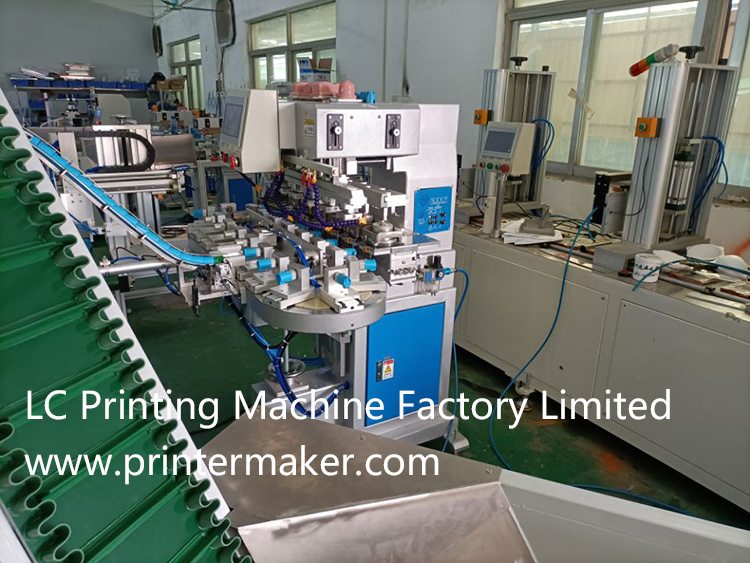

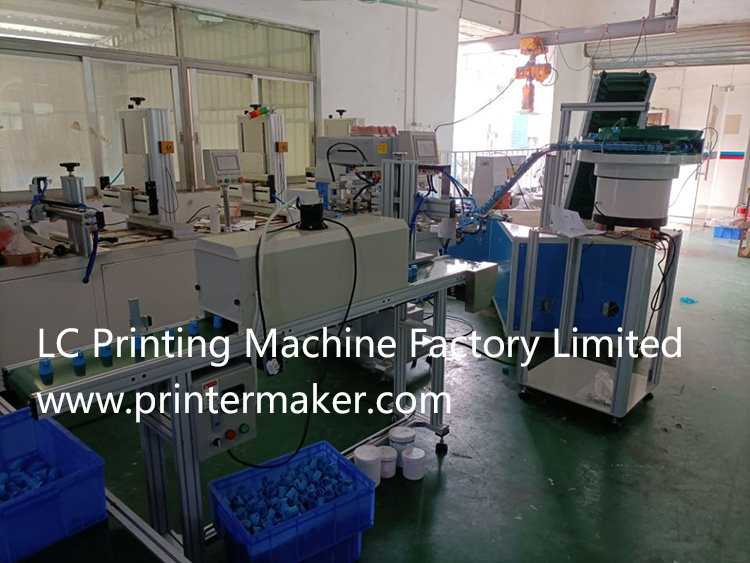

Automatic Seal cup 6-Color Pad Printer with Conveyor model M6-BC  included vibrating bowl, automatic application and automatic 16 stations deposition of painted elements and IR heating tunnel, Movable offloading conveyor belt based on set quantity)

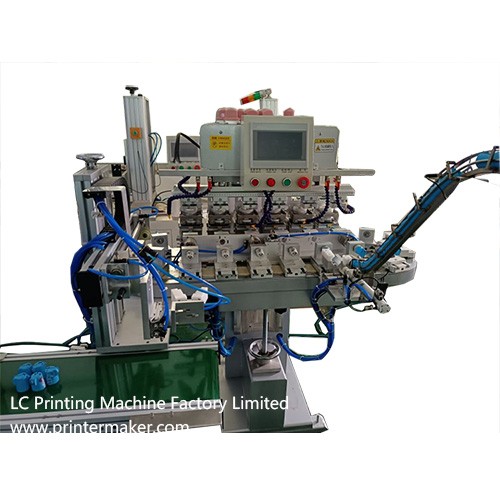

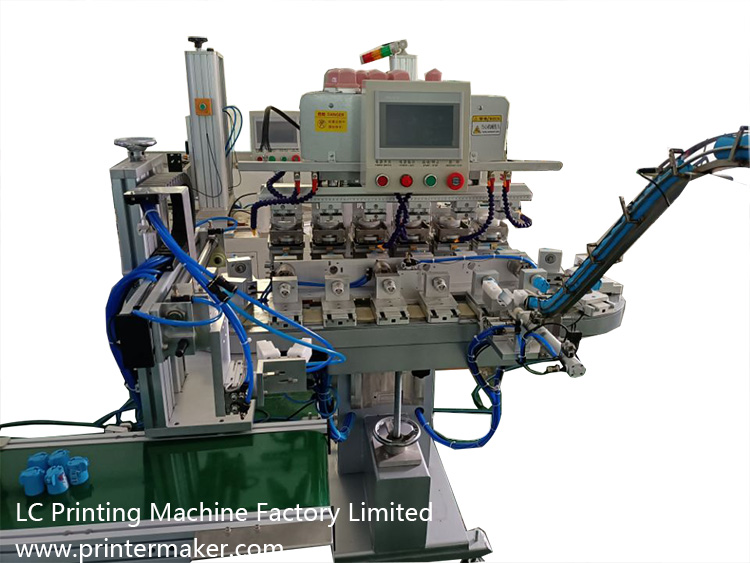

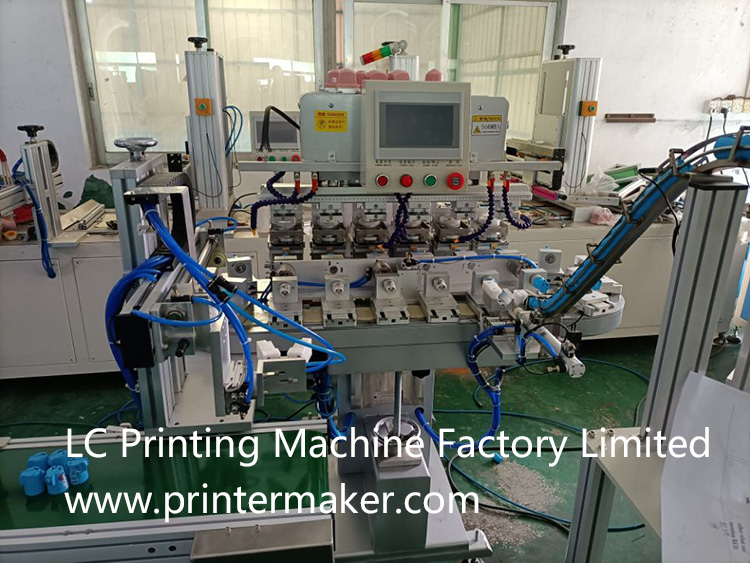

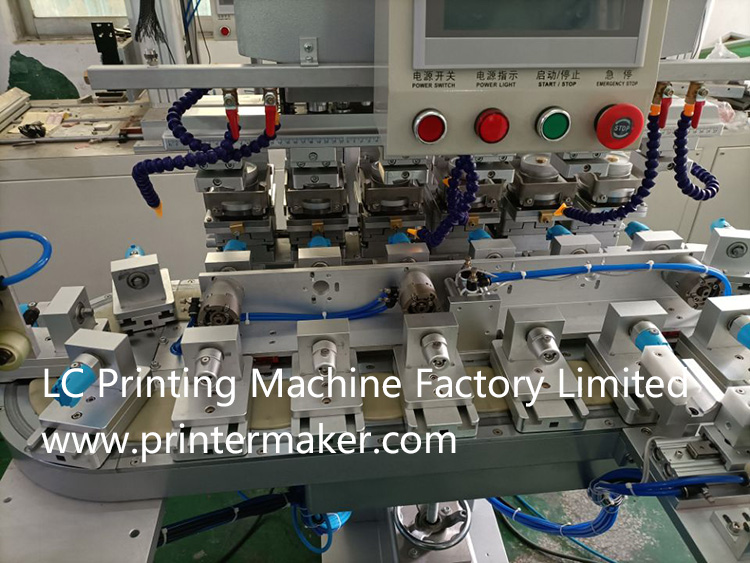

6-Color Automatic Pad Printer for Bottle Caps
Model M6-BC
1. Maximum printing size: 75mmx90mm
2. The steel plate size: 100mmx250mmx0.5mm
3. Ink cup diameter:100mm
4: Ink cup stroke: 100mm
5. printing precision: + 0.10mm
6. Turntable worktable drive: cylinder
7. Work table guide: chain
8. Workstation workstations: 18
9. Table size: 80mm*125mm; The height of the workpiece: 0~80mm

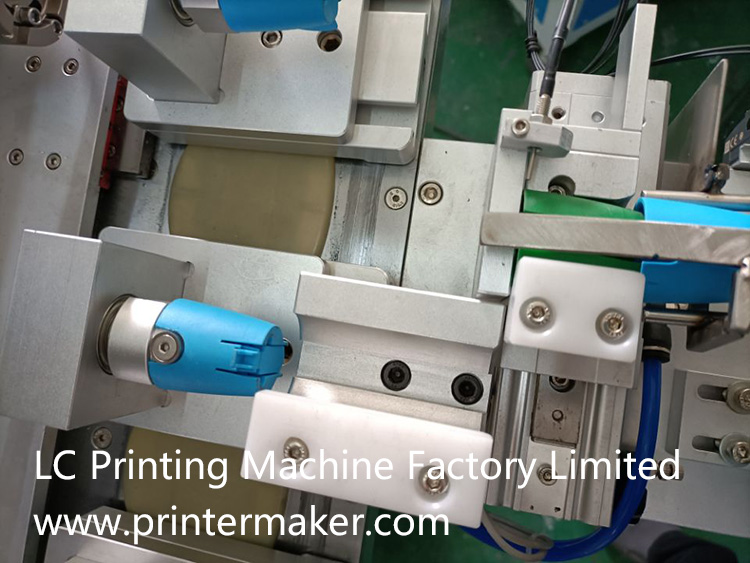

10. Jig rotation for back side printing
11. Capacity: 1200PCS/ hours
12. Working pressure: Mpa 0.5~0.6Mpa
13. Working cycle about: 3S
14. Machine platform structure: casting
15. Power supply: 220V; 50/60Hz; 3KW
16. Machine size: 2400*1800*1500MM
17. Machine net weight: 780KG, Gross weight: 900kg
18:  Drying tunnel: 1000meters length * 200mm width
19: Drying tunnel Temparature: 0-100 degree
