Description:

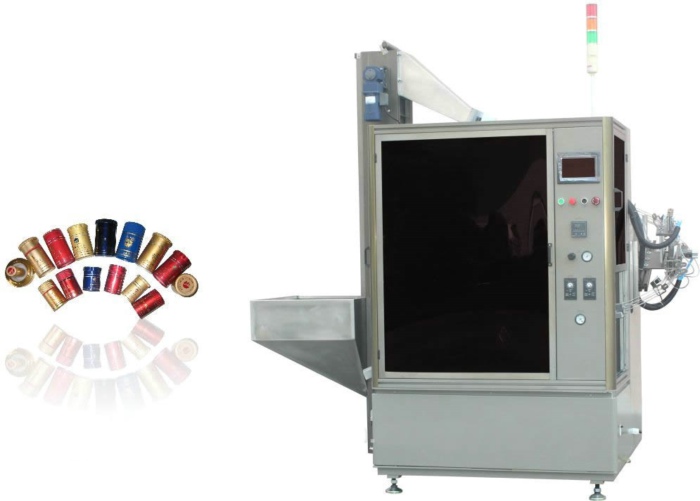

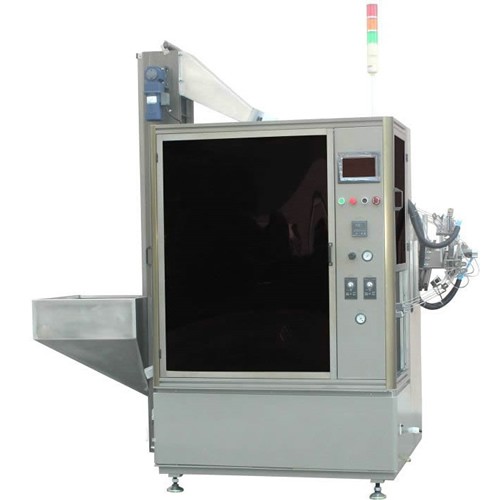

Automatic Hot Stamping Machines for Caps sidewall
(Included side selection for two sides opening caps)
1:Max.Dia:18-50mm Dia.* 25-70mmH
2:Speed:60/Minute
3:Machine Dimension:210*120*230mm
4:Net Weight: 864kg
5: Air pressure: 5-7 Bar
6: Power Rate:4.2KW
7: 220V/2P;50/60HZ;
Main Features:
With mechanical driven rotary indexer, Auto loading-unloading system.
PLC control & mechanical drive.
Main components from Rexroth, Schneider, SMC, Mitsubishi etc. other CNC parts machined in-house directly from CAD, Casting aluminum, stainless steel frame & structure with high intensity.
Touch screen interface, fast setup & quick tooling change-over.
With caps no print system, Production counter, faulty alarm device.
Optional Devise:
Various options depend on customer requirement as following;
Heat -transfer device, servo motor drive for right-left registration, stepping motor for front-back registration (for tube only)Automatic feeding and delivery trimmer device,. Auto optical register, Hot air device

It is fitting for all those round caps, caps with two sides opening and registration foiling.
