Description:

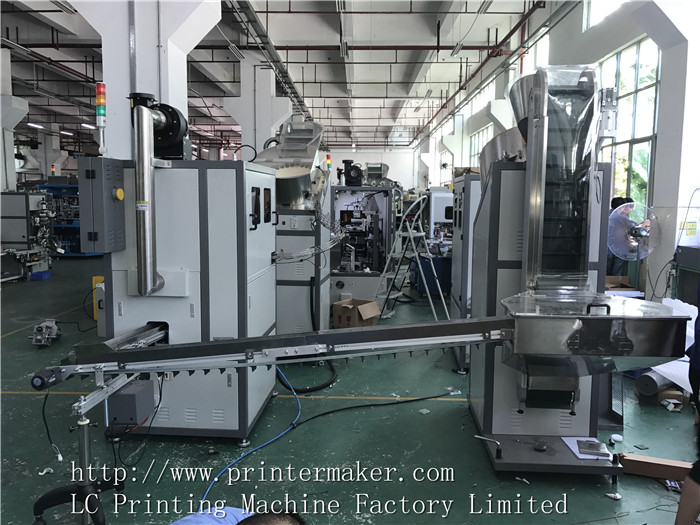

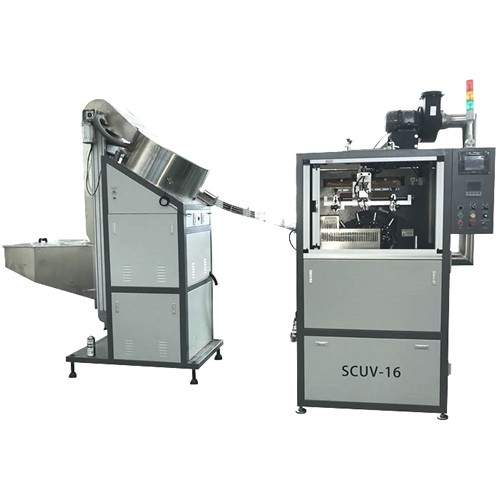

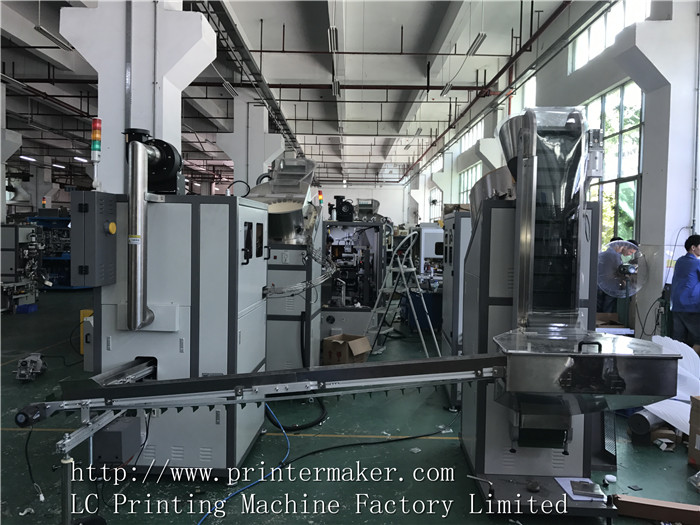

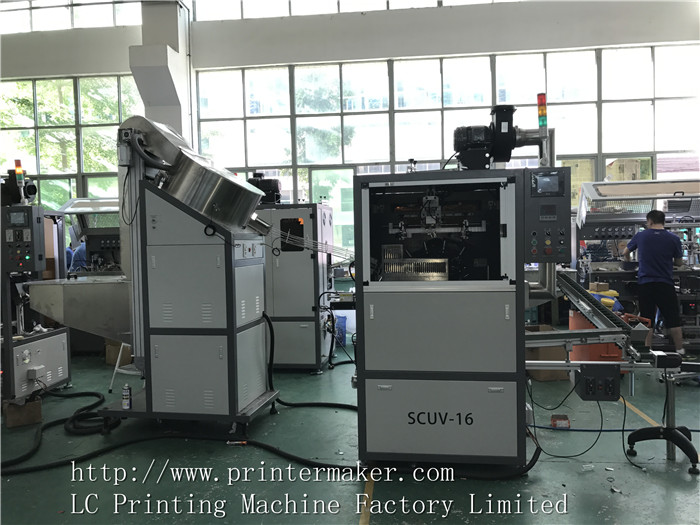

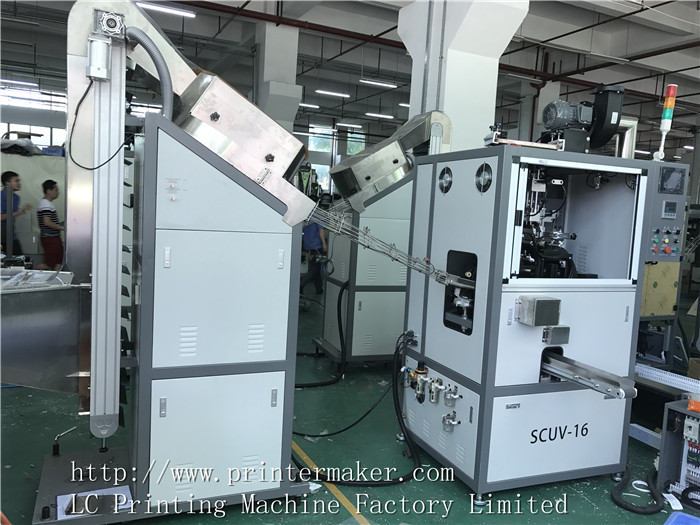

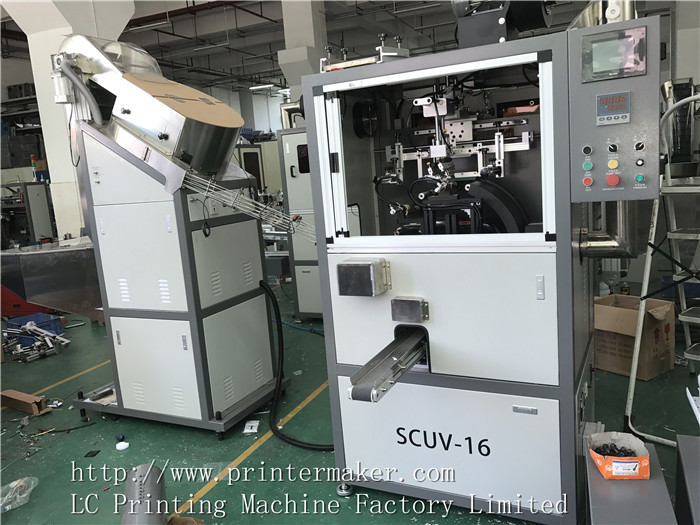

High Speed Automatic Screen Printing Machine for small round bottles and caps
Specifications︰
1.Printing speed： 3,6000-4,000Pcs/hr
2.Printing diameter：Round Dia φ15～φ60mm
3.Printing objects length： 20～200mm
4.Compress air：0.6～0.8MPa：
5.Burning oil air: 0.15MPa
6.Main machine dimension: 260*160*280CM
7.Power: 3KW,220V
8: UV Curing System Rate: 3KW(LED curing system optional)
9: Station Mandrill: 16pcs
10.Packing Size: 2 Wooden Case
1. Polywood Case Size:188*145*228CM(Main Part)
2. Polywood Case Size:135*95*210CM(Elevator)
3: Polywood Case Size:90*80*70CM (Hopper)
Advantages︰
1 Automatic single color screen printer on small Bottle and caps;

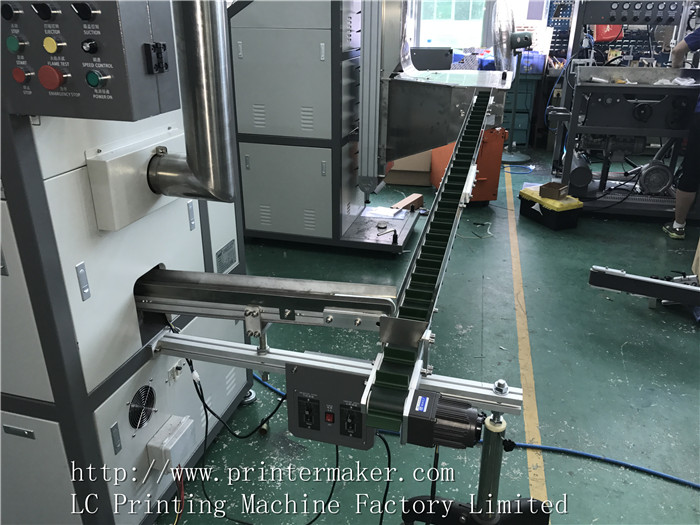

2 High efficiency, Auto Feeding, Flame Treatment , Auto Loading and Screen printing as well as UV drying all in one function. (LED curing system optional)
3 Online Flame Treatment.
4 Reliable PLC control & touch screen operation system.
5 Closed working system, well safety protection:
6 Promise of quality with SMC, FESTO pneumatic parts and Omron, Siemens Electric parts.
7 High quality aluminium alloy ensure light and ruggedization

8 Optional sensor for multi colors printing (optinal)
