Description:

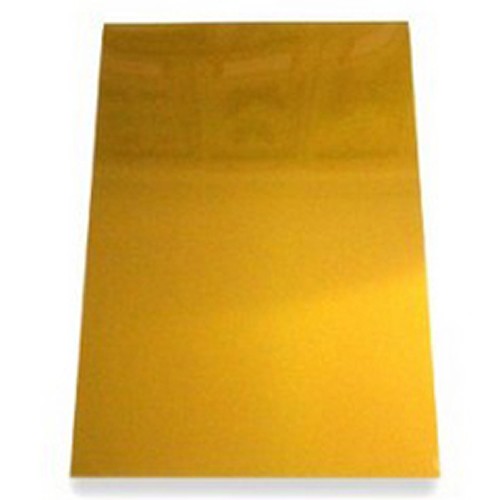

A3 Water Soluble Photopolymer Plate

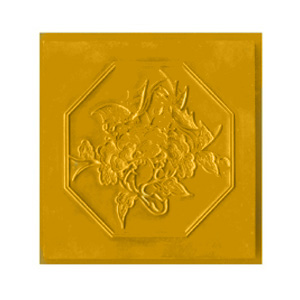

Plate or die making is the key of hot foil stamping. Water soluble photopolymer plate is currently the simplest, fastest and least—cost plate making method.

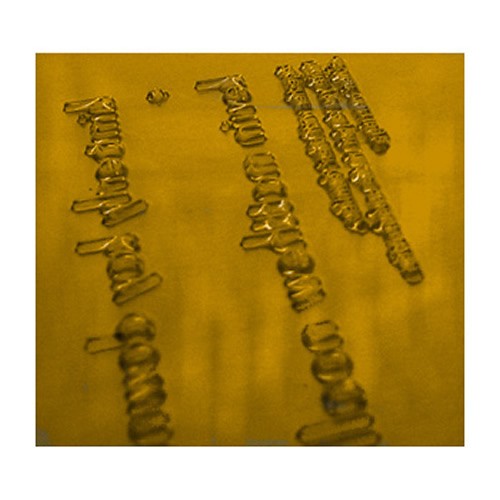

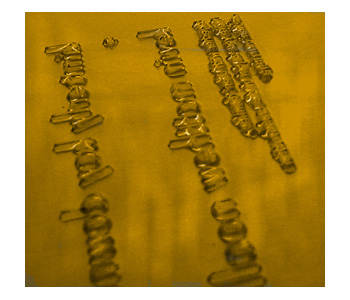

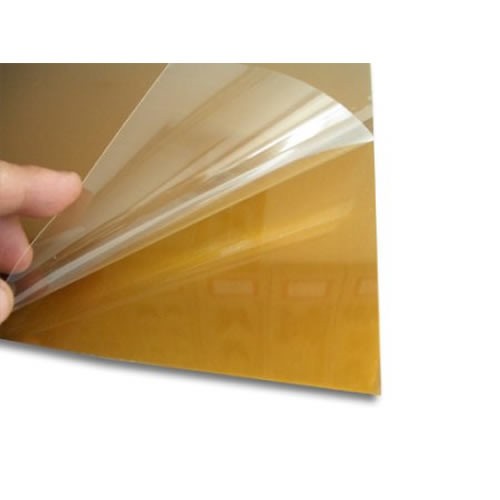

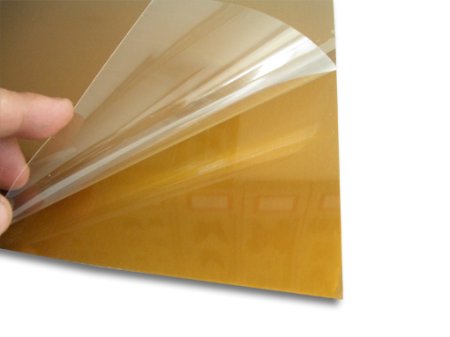

This photopolymer plate has two layers: the upper layer is photopolymer plate about 0.03 inch thickness, part of it will solidify after UV exposure, while the rest part without exposure can dissolve in the water. The lower layer is aluminum plate, about 0.008 inch thickness.
A3 Water Soluble Photopolymer Plate  (NO STOCK )
Parameters:
High quality water soluble photopolymer resin plate made in Japan
High thermal conductivity and pollution free
Heat resistant up to 302-320F (150-160℃)
Simple plate making process in short time
Relief: 0.026" (0.68mm)
Base: 0.008" (0.2mm)
Size of photopolymer plate: A3-17"X11"(420x297mm);
A4 Water Soluble Photopolymer Plate  USD:38USD/PC
Parameters:High quality water soluble photopolymer resin plate made in Japan
High thermal conductivity and pollution free
Heat resistant up to 302-320F (150-160℃)
Simple plate making process in short time
Relief: 0.026" (0.68mm)

Base: 0.008" (0.2mm)Size: A4-8.5"X11"(210x297mm)
