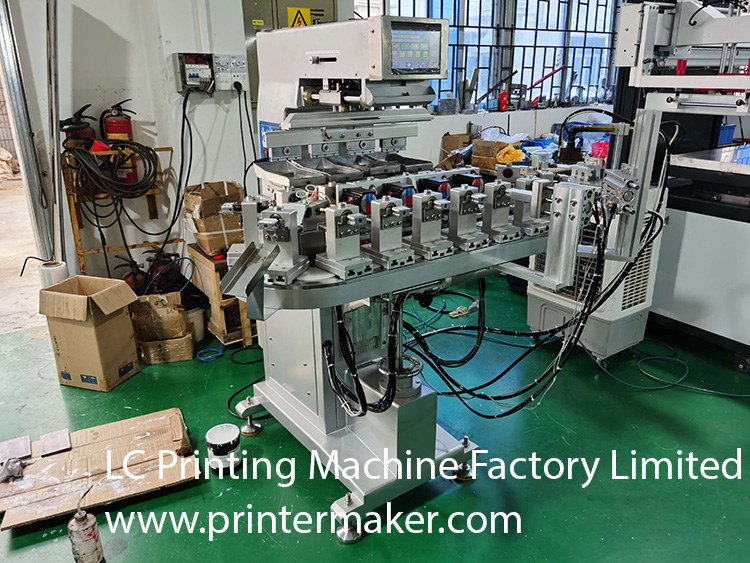

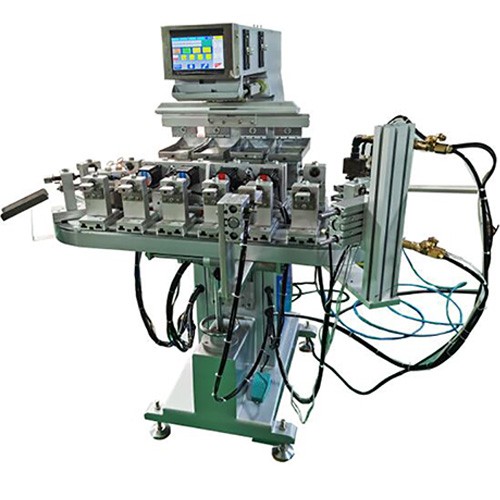

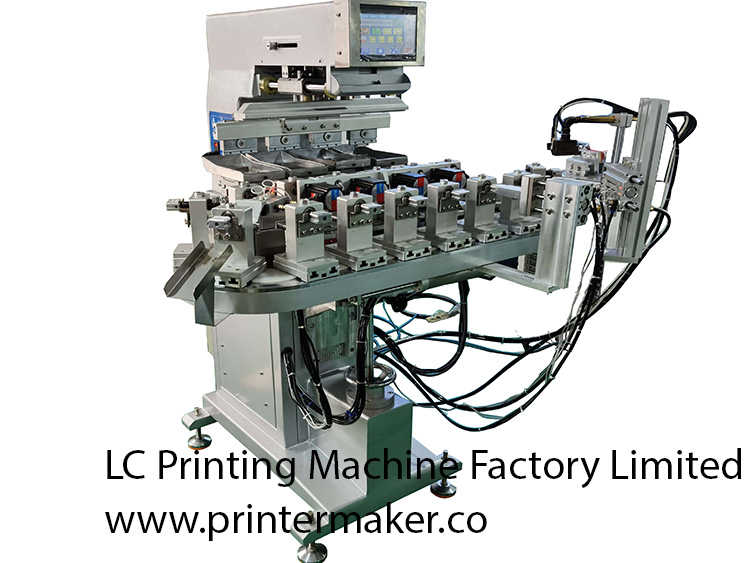

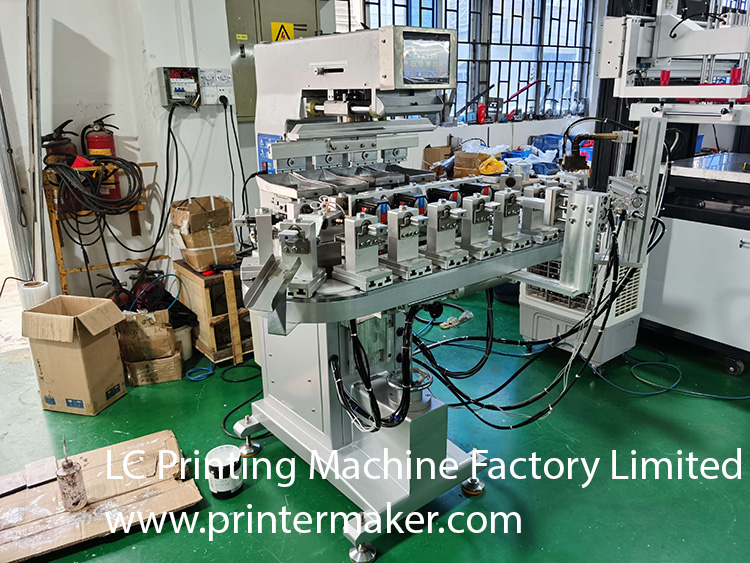

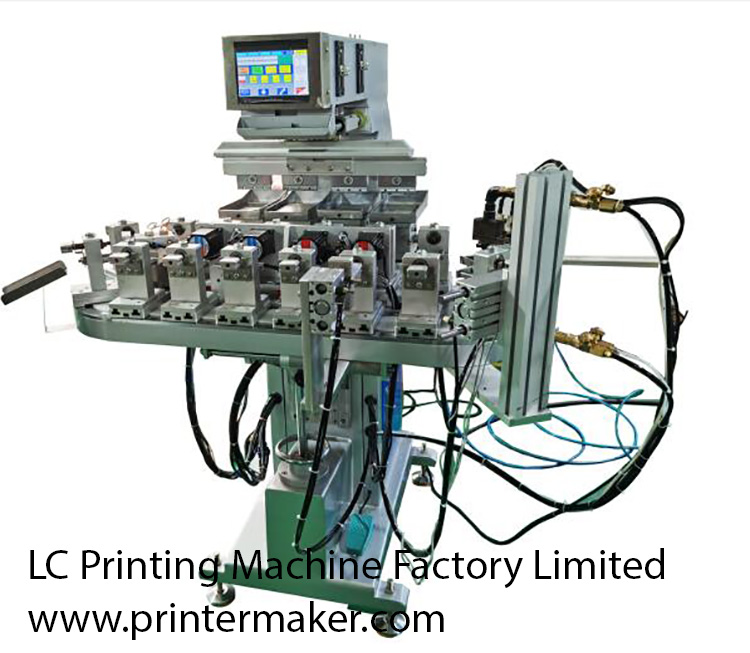

4 Color Pad Printing Machine with Conveyor and rotation Jig （PLC Control)
Price Terms:FOB GuangZhou
Payment Terms:T/T LC
Packing:Wooden case
Lead Time:Within 7 days
Standards Certificate:ISO9001-2000
Power Supply:110/220v 60/50Hz
Colour Painted:Blue and Sliver
Parameter:
1.Max. plate size:100×200 mm;
2.Max. worktable area:90×125mm;
3.Max. printing area:85×170mm;
4.Max. printing speed:1200pcs/hr;
5.Colour number:4;
6.Air consumption:330Litre/min(6bar);
7.Printing objects dimension:100×140mm.
8.Conveyer stroke:125mm;
9. Station number: 16
10.Machine Size:122*147*152
11.Net Weight:350 Kg
12: Packing size:1230*1250*1650mm
Advantages:
1.HMI Touch Screen controlled operation;
2.PLC Servo motor control.
3.Ink covering by ink roller;
4: 4 color Pad Printer With Carousel and turnover jig for other sides printing
Print 4 colors one time, excellet decorating results.
5:With conveyer worktable to supply high printing efficiency and Put 16 pcs objects to print.
6:Coin Aluminium structure ensure more stabilization and long life.
7: Opend inkwell and ink roller to supply ink for operation simply.
Machine Fittings:
1. Four cliche plates,
2. Four pads
3. Four sets of ink cup
4. A tool box.
Ship Date:
By sea:
within 30 days after receive T/T OR LC.
Description:
This machine is widely used in the field of toys, gifts, plastic bottles, oval caps, square caps, mugs proudct's with request of above 2 sides printing.
Payment Terms:T/T LC
Packing:Wooden case
Lead Time:Within 7 days
Standards Certificate:ISO9001-2000
Power Supply:110/220v 60/50Hz
Colour Painted:Blue and Sliver
Parameter:
1.Max. plate size:100×200 mm;
2.Max. worktable area:90×125mm;
3.Max. printing area:85×170mm;
4.Max. printing speed:1200pcs/hr;
5.Colour number:4;
6.Air consumption:330Litre/min(6bar);
7.Printing objects dimension:100×140mm.
8.Conveyer stroke:125mm;
9. Station number: 16
10.Machine Size:122*147*152
11.Net Weight:350 Kg
12: Packing size:1230*1250*1650mm
Advantages:
1.HMI Touch Screen controlled operation;
2.PLC Servo motor control.
3.Ink covering by ink roller;
4: 4 color Pad Printer With Carousel and turnover jig for other sides printing
Print 4 colors one time, excellet decorating results.
5:With conveyer worktable to supply high printing efficiency and Put 16 pcs objects to print.
6:Coin Aluminium structure ensure more stabilization and long life.
7: Opend inkwell and ink roller to supply ink for operation simply.
Machine Fittings:
1. Four cliche plates,
2. Four pads
3. Four sets of ink cup
4. A tool box.
Ship Date:
By sea:
within 30 days after receive T/T OR LC.
Description:
This machine is widely used in the field of toys, gifts, plastic bottles, oval caps, square caps, mugs proudct's with request of above 2 sides printing.
