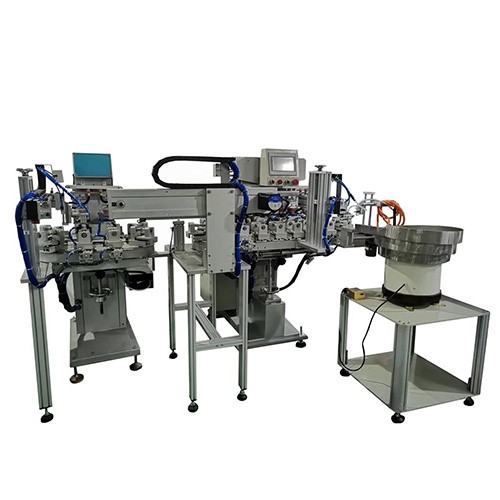

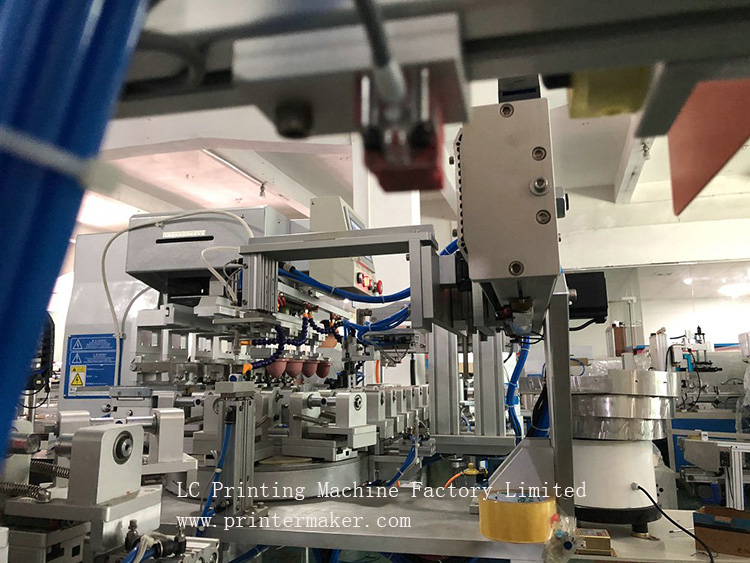

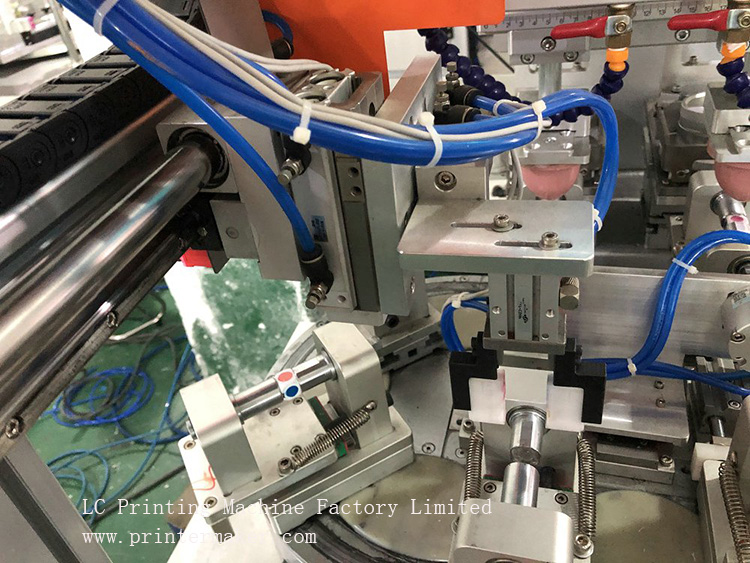

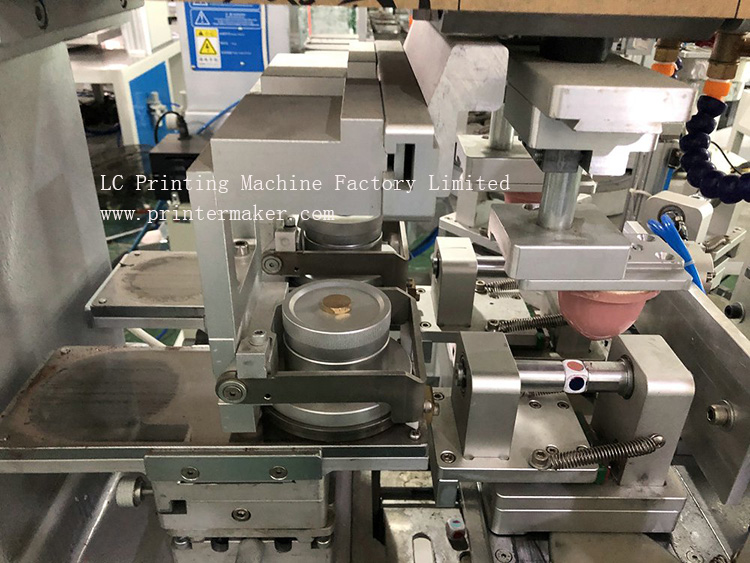

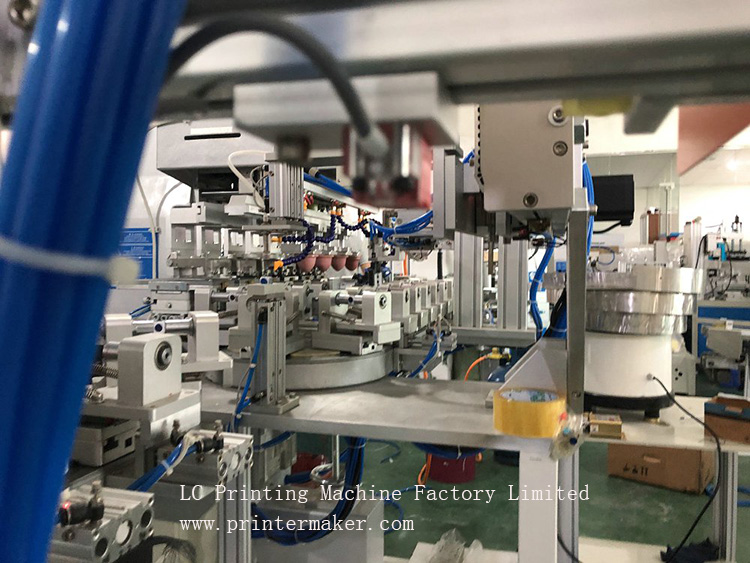

6-Colors Pad Printer with Conveyor & 2 Color pad printer with conveyor on Dice ( included the vibrating bowl, automatic application and automatic deposition of painted elements and drying tunnel， loading and unloading robot)

1. Japan's Mitsubishi PLC + Weilun touch screen

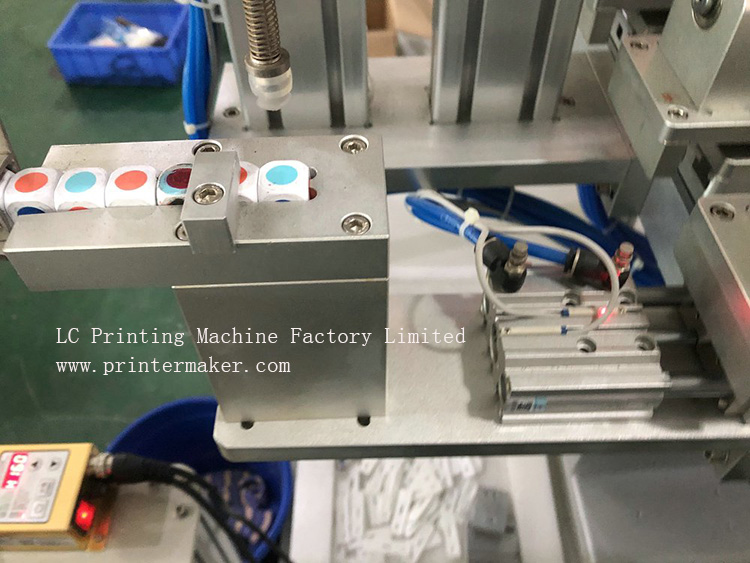

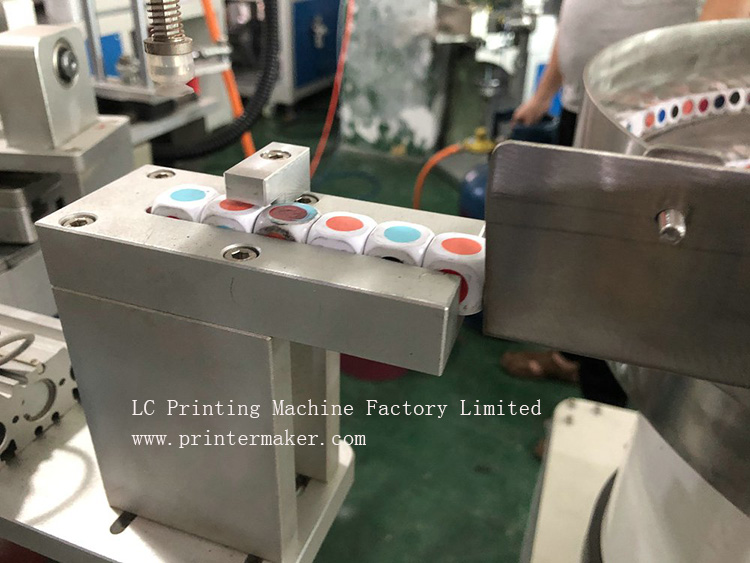

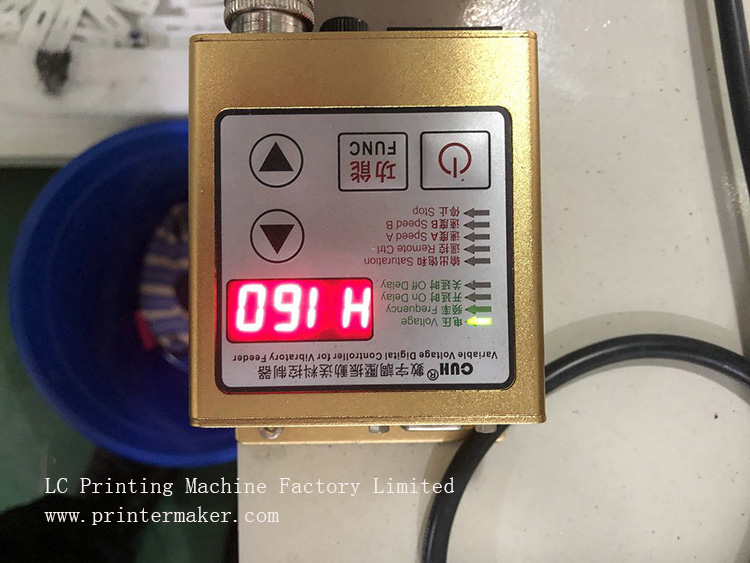

2. Vibration plate feeding
3. Shangyin Precision Guide
4. Airtac pneumatic components
5. Air source requirements: 5--7bar
6. Power requirements: 220V, 50-60HZ
7. Printing speed: 800- 1200 per hour
8. Machine platform structure: casting
9. Power supply: 220V; 50/60Hz; 3KW
10. Machine size: 1800*1000*1500MM
11. Machine net weight: 680KG, Gross weight: 800kg
12. Extra set of auto feeder: Optional
13: Flame treatment system, Optional
14:  Drying tunnel: 1000meters length * 300mm width
15: Drying tunnel temparature: 0-100 degree     16：Packing size: 2850*1800*1600mm
